[GB] ZOOM98

GB Time : 9:30AM, Oct.10 - 9:30AM, Oct.30, Beijing Time.

Delivery Time: Expected January 2024

Bundle Discounts！

1. Zoom98 will have the matching keycap bundle (15% off)

2. Zoom98 will have 4 Packs switch bundle (10% off)

Ps: Zoom98 will have the matching keycap (15% off) + 4 Packs switch bundle (10% off)--(Need to use the code SWITCH10 if bought these three together)

Note: This code can only be used on bundle purchases, otherwise, the separate switch orders will be canceled manually.

Check out the showcase video

The next level of customization in 98% layout

Customize your typing experience with hot-swappable switches, interchangeable external weight, and many keycap theme options.
(NOTE: Barebones kit only (includes stabilizers). Switches and keycaps are purchased separately.)

ZOOM98 BONUS ||

Note: The complimentary gifts may vary from what is shown please note that they are not covered by the aftersales service.

6 special edition Colors ||

Case Finish: 5 Anodized +1 Electrophoresis(E-White)

14 essential EDITION Colors ||

Case Finish: Electrostatic coated

Optional External Weights ||

Add to cart

New Design ||

Top Case: includes a Telescope with an LED diffuser. Bottom Case: has ambient lights with our new side profile design.

Multiple colors and lighting effects can be chosen.

2 optional PCB versions ||

Tri-Mode Version-Defaults with the Screen Module

Add to cart

Wired Version-Defaults with the 2-keys Module

Add to cart

4 Replaceable Modules ||

NOTE:
1. The Tri-mode version defaults with the screen module, so the 2-keys module, badge module, and knob module need to be purchased separately;

2. The wired version defaults with the 2-keys module, so the badge module and knob module need to be purchased separately (The screen module is not supported).

3. All module bases are not compatible with ZOOM75.

4. Each kit has a default module (Tri-mode: LCD screen or Wired: Two-keys). In addition, please add the corresponding module base to your shopping cart if you need to purchase other accessories for customization.

LCD Screen Module

Knob Module

2-Keys Module

Badge Module

2U COLOR LCD FEATURES ||

The lens is compatible with the ZOOM75 series, but the screen PCB is not compatible.

Various badges to choose from ||

Badges are compatible with the ZOOM75 series.

20 color knob modules ||

The knob is compatible with ZOOM65/75/PAD series.
NOTE: Telescope Logo Design instead of Dot RGB Design.

COLLABORATION ||

COLLABORATION!

Zoom98 x Cosmic Odyssey by SxM Designs

Limited to 500 units globally!!!

CONFIGURATOR ||

Configurator

Case Color

Ice Blue

Weight Color

Anodized Gold

Module

Screen

Knob Color

E_White

at a glance ||

Knob Compatibility

The Knobs are compatible with ZOOM65/75/PAD series, and lovely Spinny Friends knobs also as an add-on option. Featuring a cute animal pattern design, they offer a unique companion for your keyboard.

Gasket Slip Design

Stability, ease of installation, durability, and long-lasting flexibility come together seamlessly.

Per-Key RGB

The Tri-Mode PCB enables per-key RGB lighting, offering a diverse selection of colors and effects to enhance your visual experience. It is compatible with wired, wireless, and 2.4GHz modes, except for the wired PCB which lacks this feature.

NOTE: Telescope Logo Design instead of Dot RGB Design.

New WS Stabilizer V3.1

The new stabilizers that come with ZOOM98 are in a 9+1 configuration, 9x2U+1x 6.25U, and support splitting. This new version of the black stabilizers is which follows the original ZOOM75 silicone stabilizers, and is changed from the original pure black to glitter black. At the same time, it is lightly factory-lubed so novices can easily get started and no longer have to worry about lubrication.

Multi-Layout

Unlike traditional keyboards, you are not stuck with just one layout on Zoom98! Change things up every now and then with split (spacebars, back space, left shift, right shift),stepped caps Lock, ISO & ANSI enter.

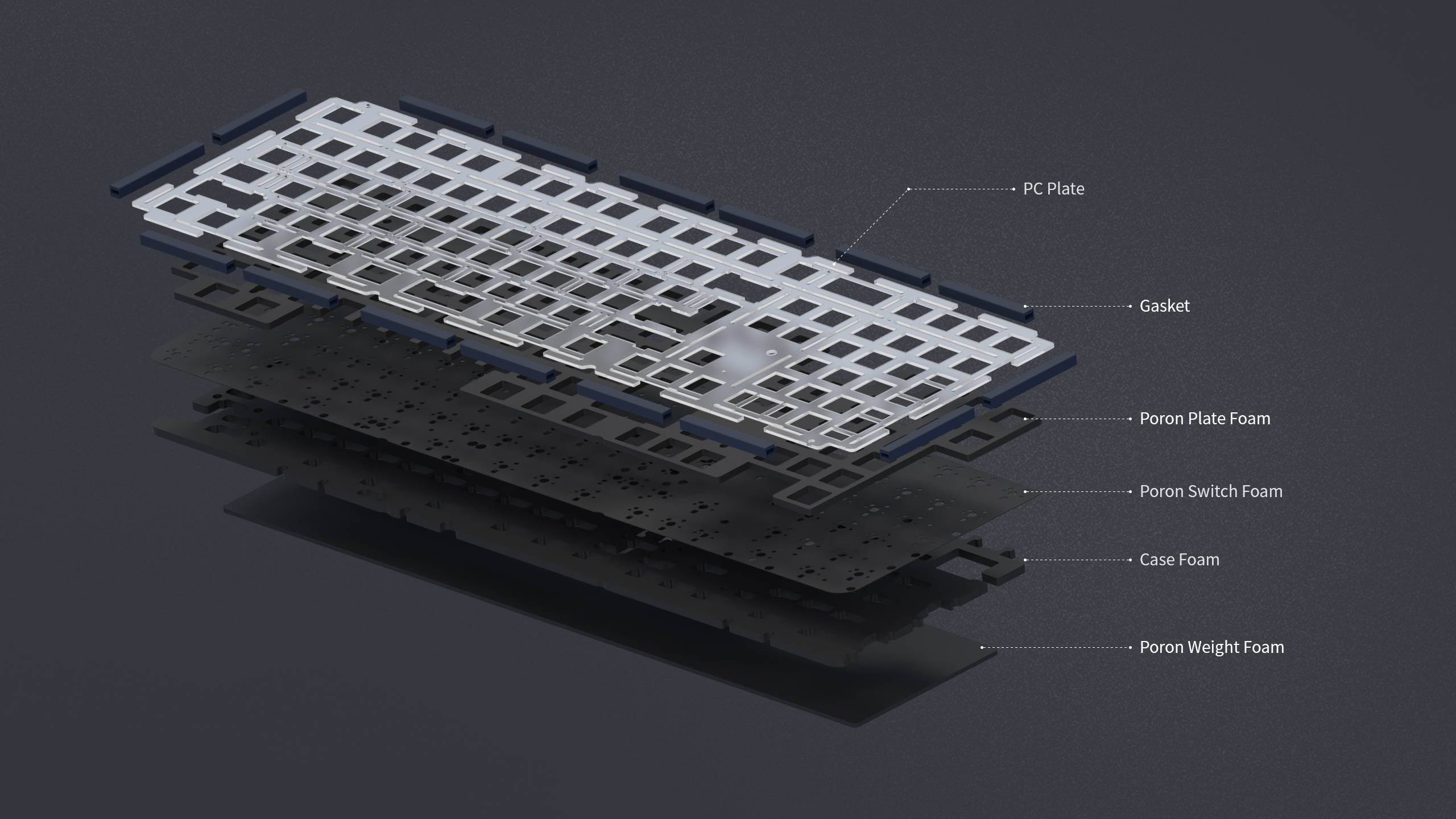

Foam Included

PCB and Bottom Case are made of lighter PORON material. To reduce resonance, many tests were done on the foaming material this time. We made the PORON lighter and the foam pores dense. Every minor detail matters a lot, with the current poron, the sound is more concentrated and is deeper than with normal dampeners.

Specifications

General Specs

Keyboard layout: 98% layout

Mounting style:Gasket Mount

Typing Angle: 7.7 degrees

Front Height: 22mm

Case Material: Aluminum

Default plate: polycarbonate plate

PCB:

PCB thickness: 1.2mm, with Ai03 DB

PCB Version:Tri-mode Flex Cut or Non-Flex Cut Hotswap RGB PCB / Wired Non-flex Cut Hotswap PCB

Supported layout: Split spacebars, back space, stepped caps Lock, left shift, right shift, ISO & ANSI enter

Connection methods: Tri-mode(Wired/Bluetooth/2.4G) / Wired

VIA/QMK Support: Tri-mode PCB supports VIA, the wired PCB supports QMK/VIA.

Size and Dimensions

Pricing ||

NOTE: Price are based on current estimation, they are very likely the final, but if there are any changes, the price on GB page should be final.

Prototype Photos ||

NOTE: We got feedback from the previous leak of renders about the Dot RGB design on the board. And we changed it to a telescope logo as customers want! However, we still used the original design for the real shots due to the modified version of the sample did not arrive during that period.

The mass production unit will be the telescope design!
