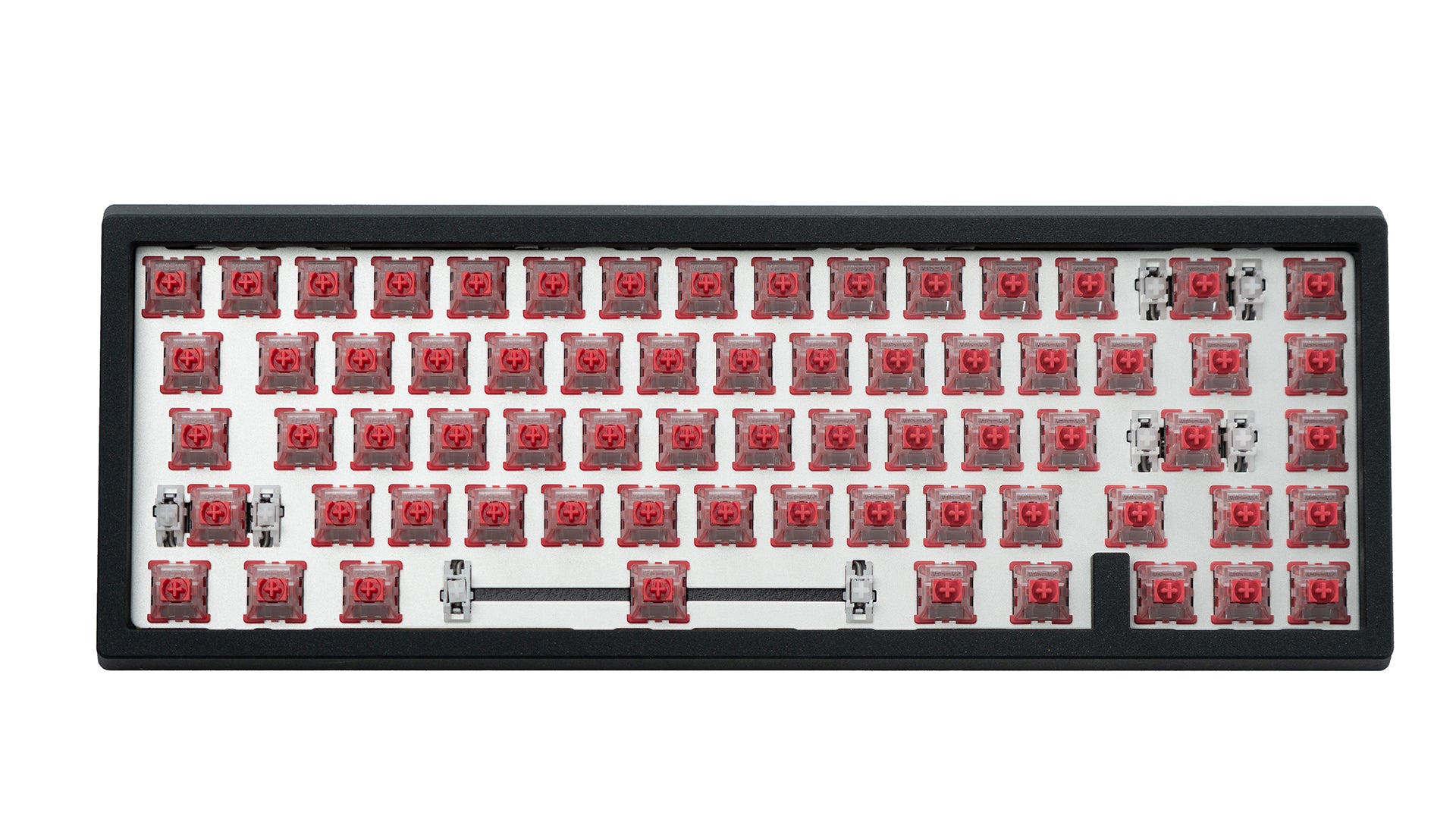

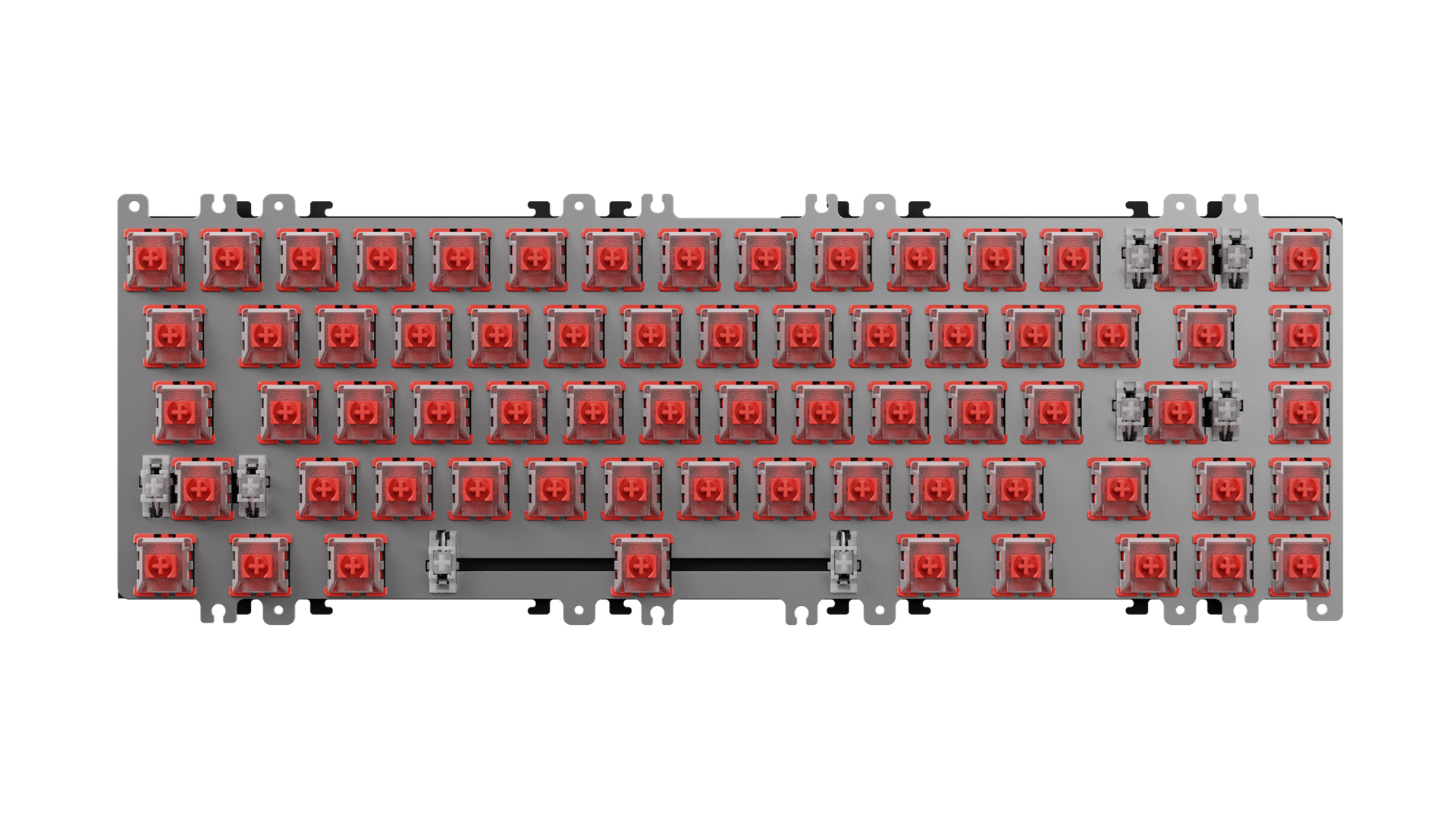

ZOOM65 V3 HE Module
HE Module Kit Contents:
No keycaps, No case

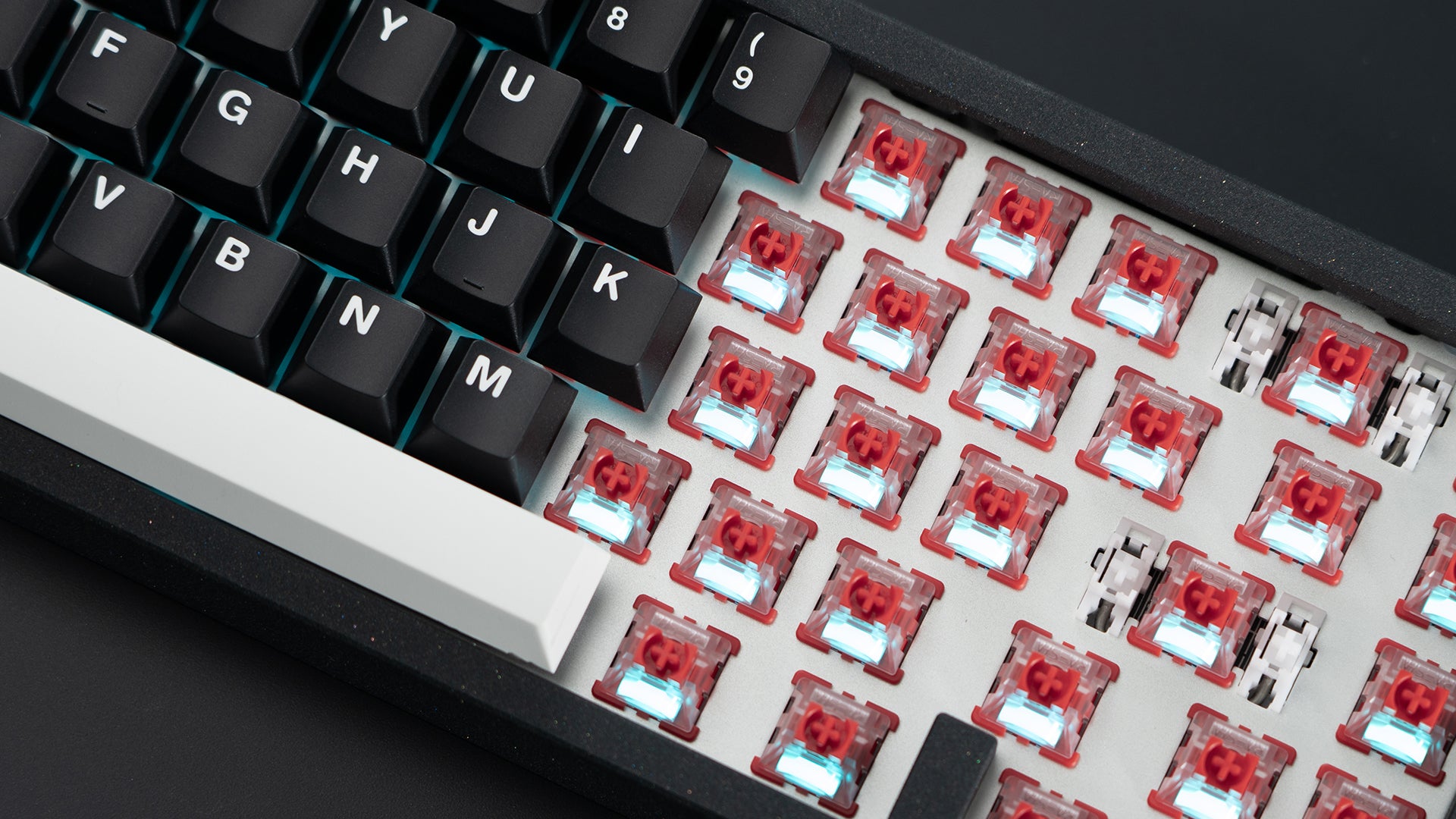

Magnetic Switch
Alu Plate
Poron Pad
PCB
Accessories
Switch Specifications:

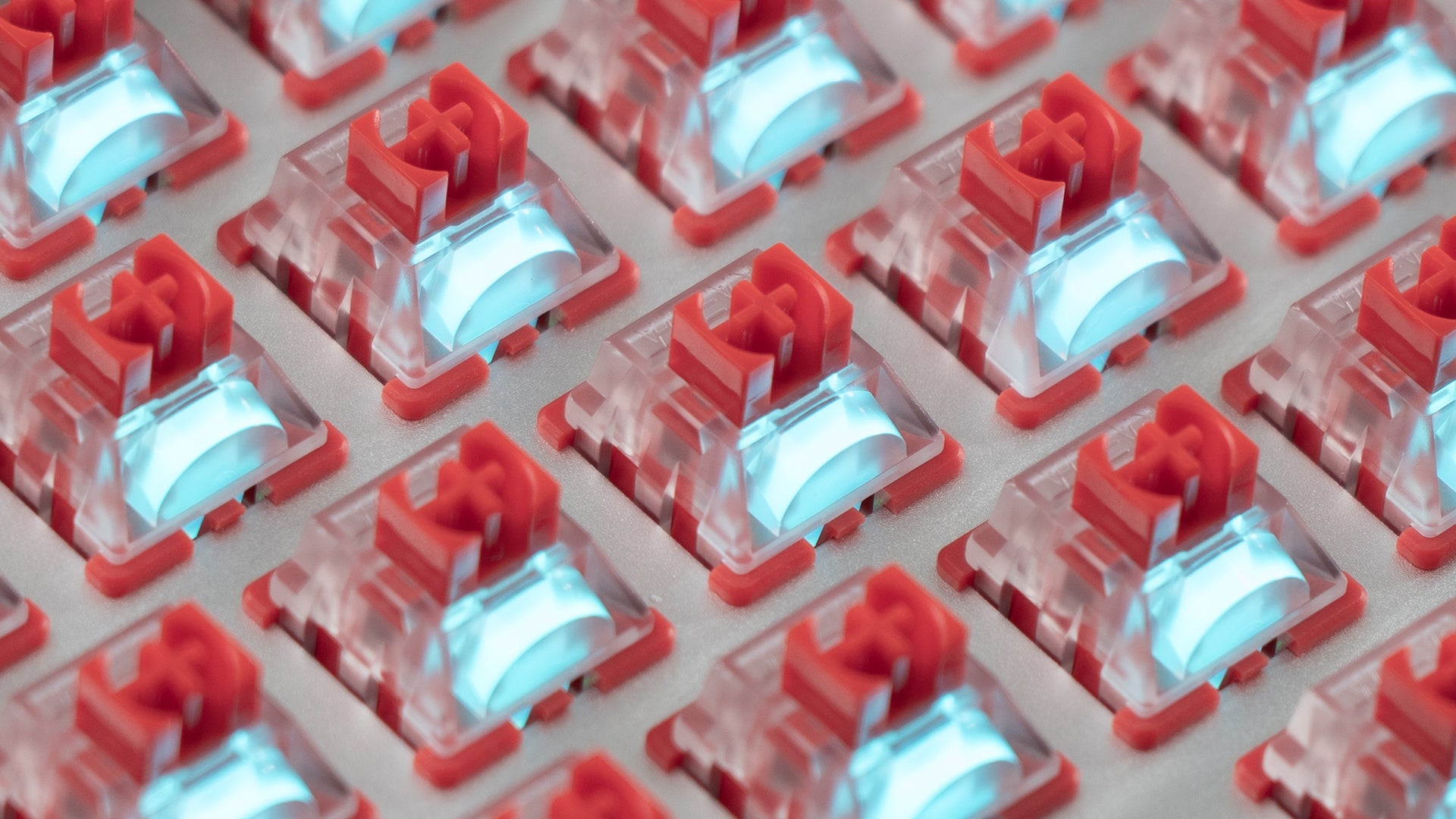

Item Name：RAESHA Rouge Magnetic Switch
Switch Type：Magnetic Switches
The Orientation of the Switches: South Facing
Top Housing Material: PC, Transparent
Bottom Housing Material: PA66, Red
Stem Material: POM, Red
Total Travel：4.0±0.3mm
Pre-Travel：Trigger stroke can be freely defined
Actuation Force：Trigger stroke can be freely defined
Preload：28±10gf
Bottom-out Force：55±10gf
Lifespan：100 million keystrokes
Spring：SUS304
Lubing：Factory Pre-lubricated
Revitalize your ZOOM65 V3 keyboard!
Our HE module is designed for compatibility with the Zoom65 V3, aimed at enhancing your gaming experience with faster response times and superior performance.
Each keystroke is faster

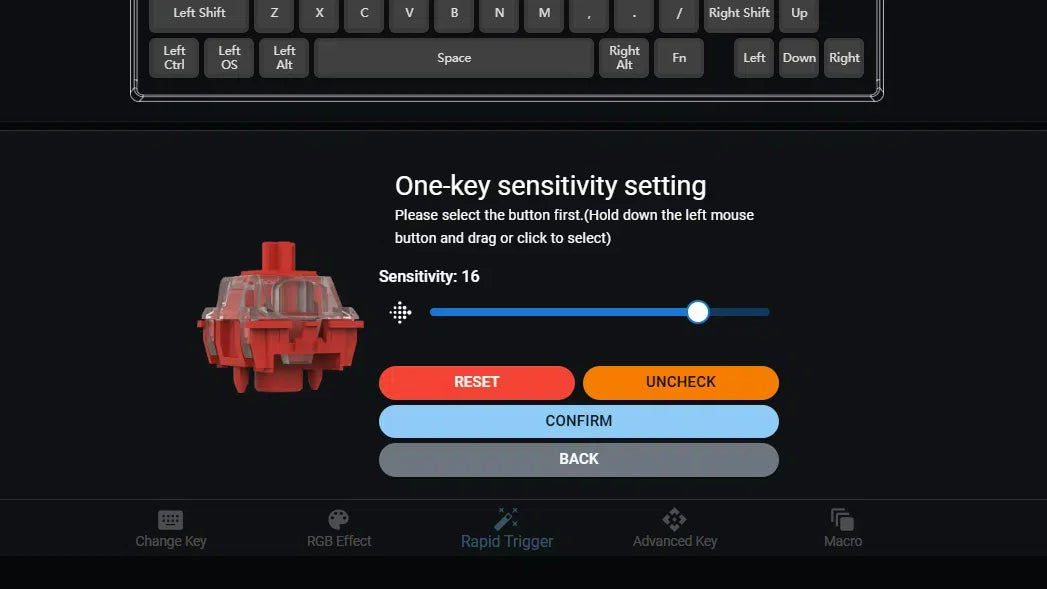

A precision increase of 0.1mm accuracy enhances gaming performance. With our driver software, you can freely adjust the sensitivity to your personal preferences, further enhancing your customized gaming keyboard experience.
Adjustable Activation Point
Adjustable activation point for each key from 0.1 mm - 4.0 mm with an accuracy of 0.1 mm.Find the ideal key travel distance that suits you best.
Rapid trigger
Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance traveled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses.

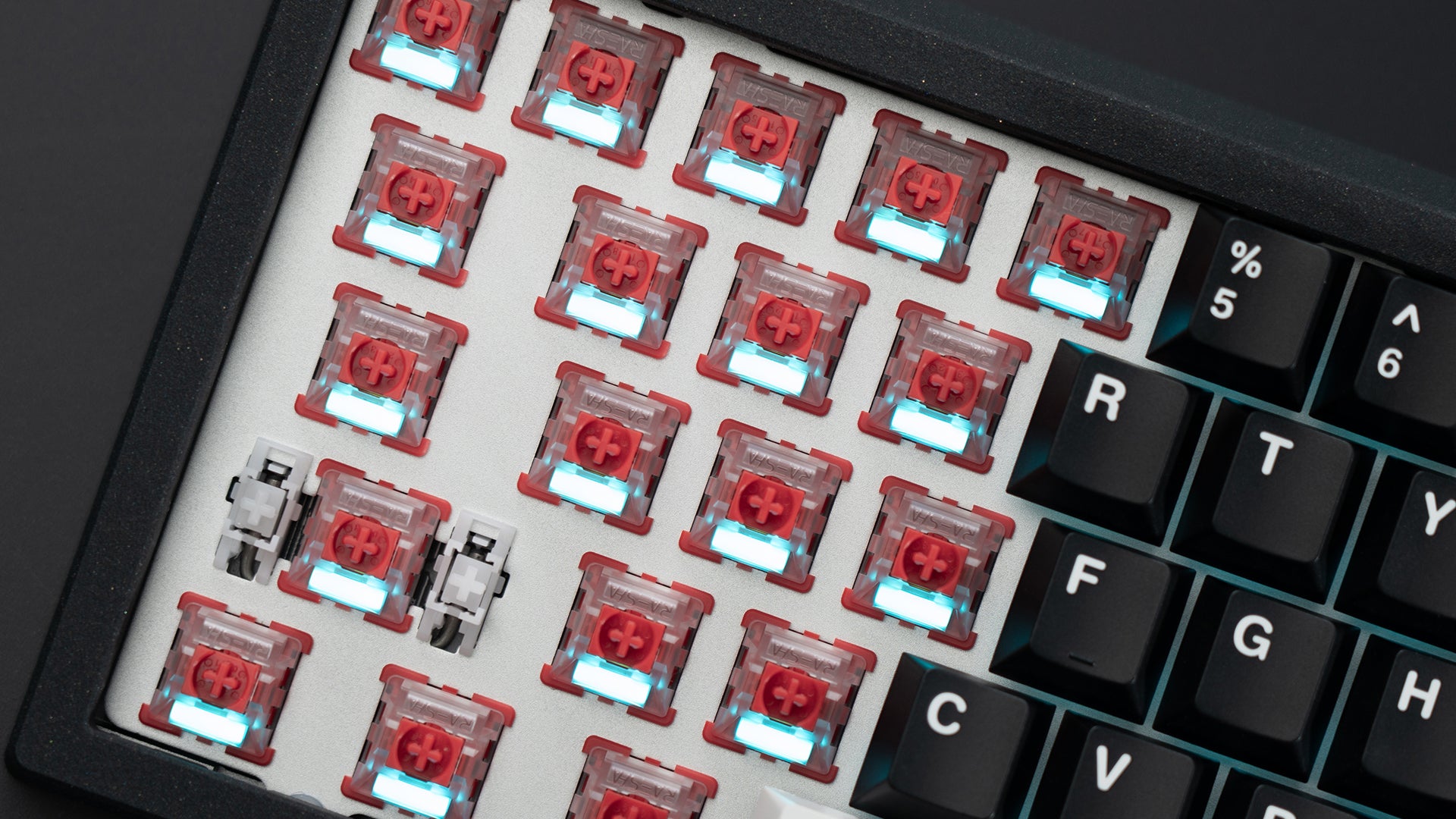

Per-Key RGB
We support setting different RGB light effects.Low-power LED, saving LED power usage.

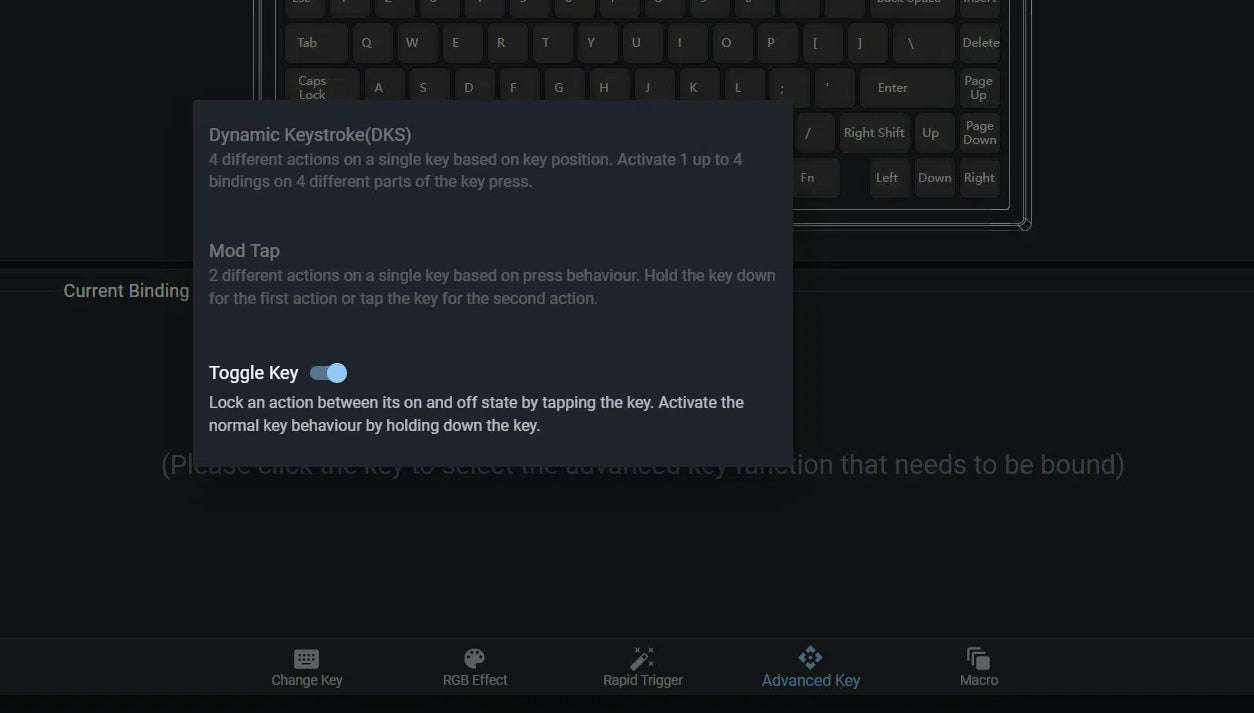

Advanced Key

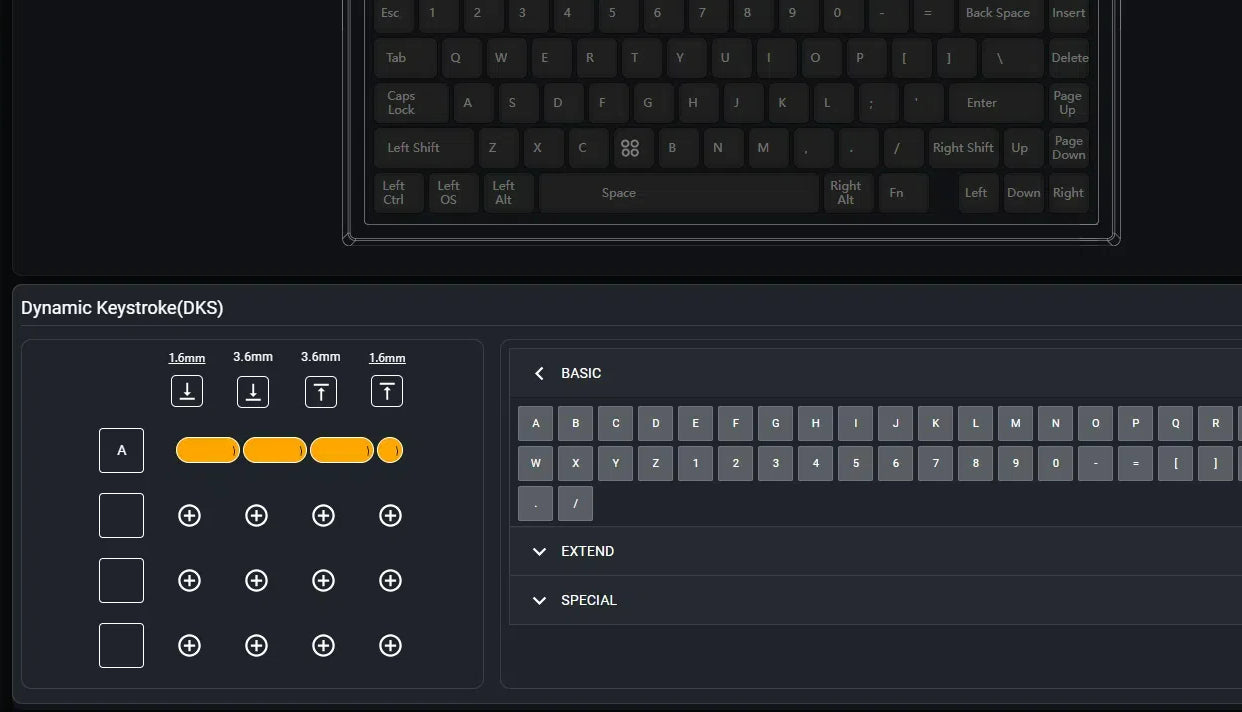

4 different actions on a single key based on key position. Activate 1 up to 4bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.

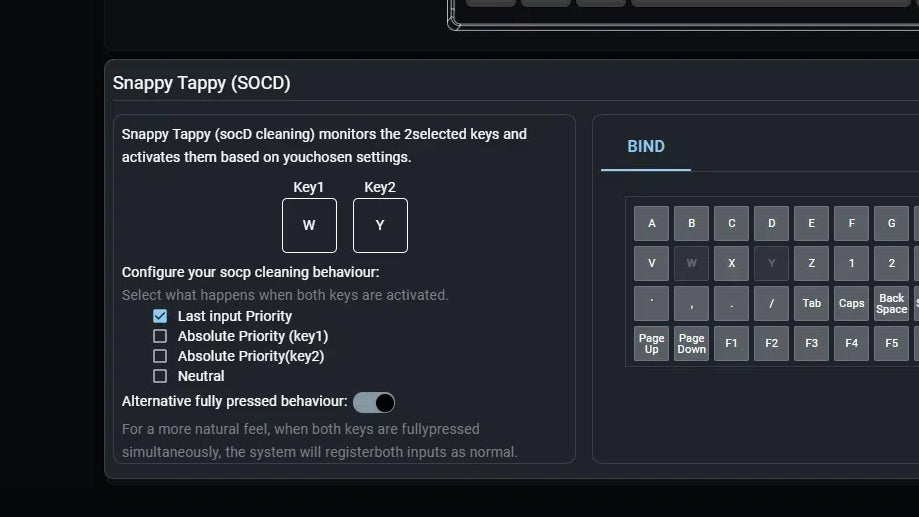

Snappy Tappy (socD cleaning) monitors the 2selected keys and activates thembased on youchosen settings.

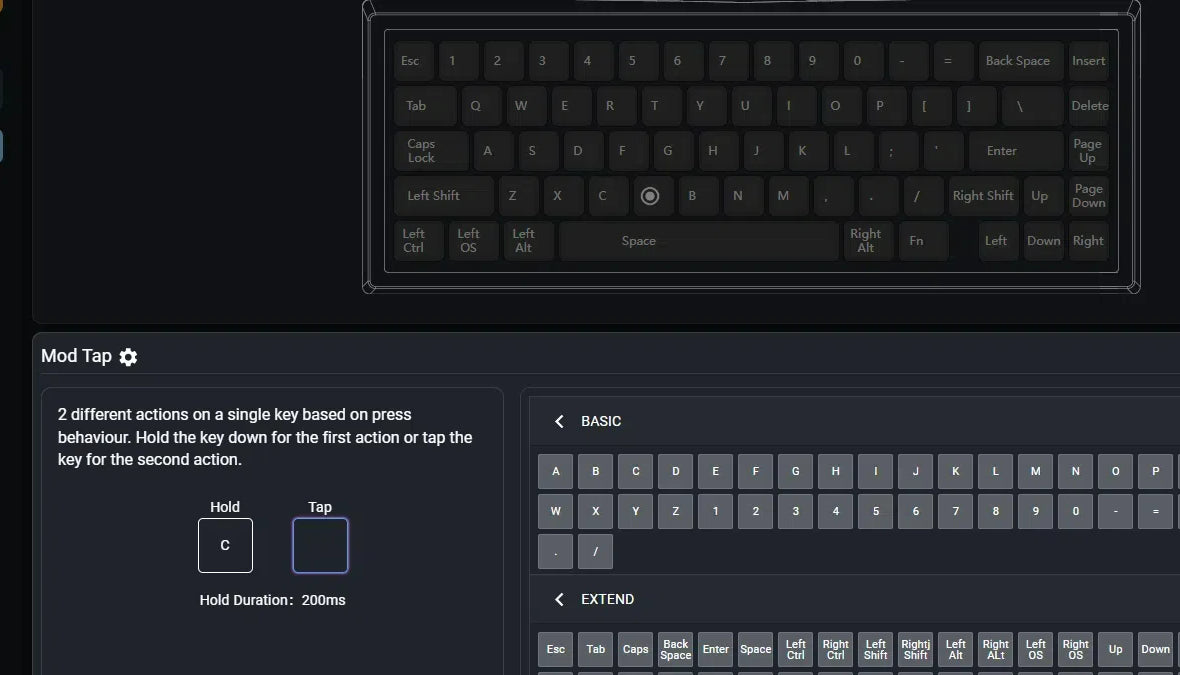

2 different actions on a single key based on press behaviour. Hold the key downfor the first action or tap the key for the second action. Mod tap function improves operational and input efficiency by providing additional shortcuts.
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
4 different actions on a single key based on key position. Activate 1 up to 4bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.
Snappy Tappy (socD cleaning) monitors the 2selected keys and activates thembased on youchosen settings.
2 different actions on a single key based on press behaviour. Hold the key downfor the first action or tap the key for the second action. Mod tap function improves operational and input efficiency by providing additional shortcuts.
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

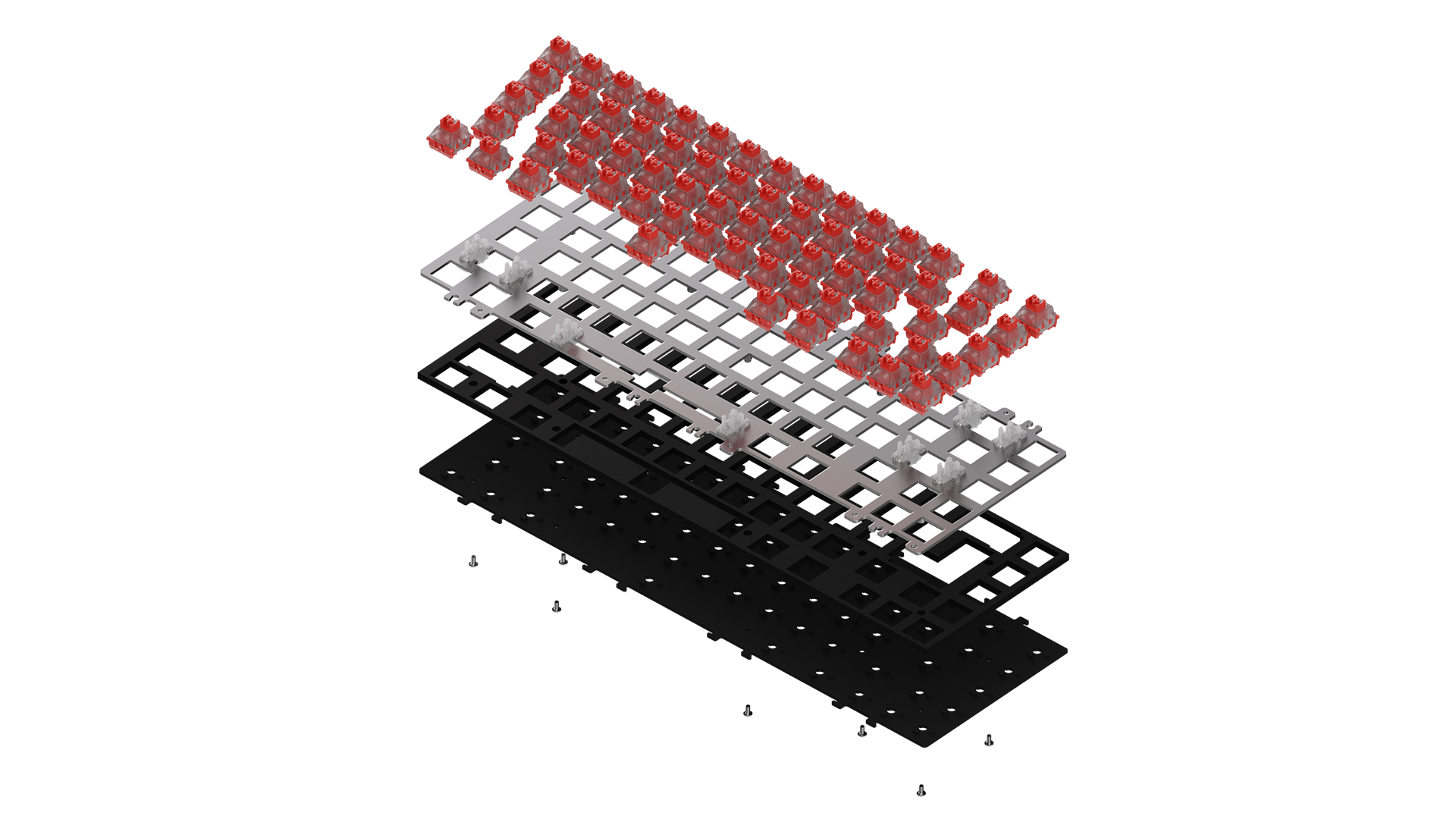

Exploded View
