ZOOMPAD

NOTE: Bonus will add to your order automatically when we ship it out(website orders), only for the first 3 days purchaser--(7.25 9:30 am---8.8 9:30 am)
MATCHING BACKPLATE TO CASE


OPTIONAL
KNOBS & WEIGHTS
configurator
(Note: The CONFIGURATOR is simply meant to showcase the different options available for the ZoomPad.
For detailed information on how to purchase the product, please refer to the product page.)
Configurator-normal

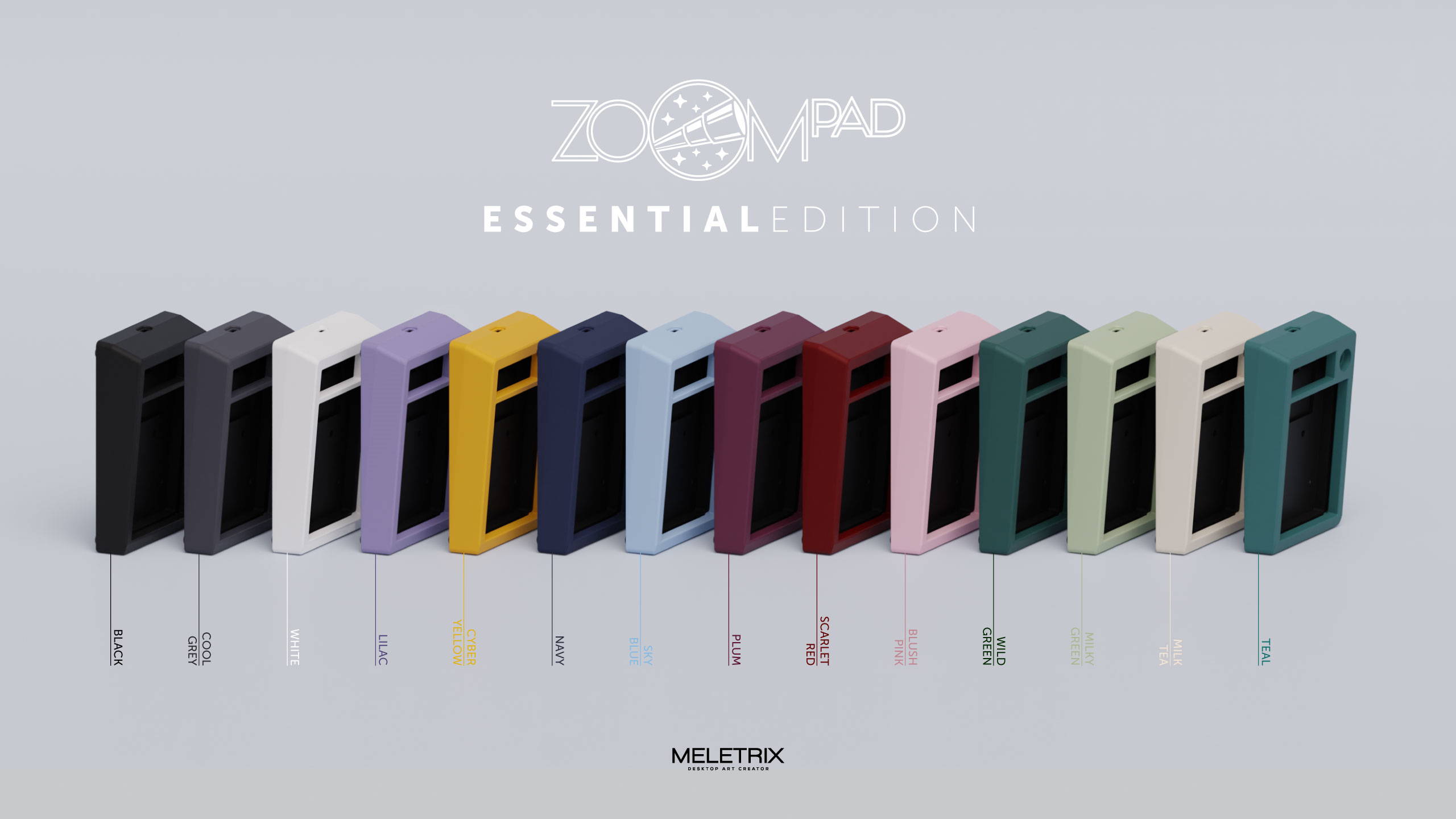

Case Color
Backplate Color
Weight Color
Knob Color
Led Color
Configurator-southpaw





Case Color
Backplate Color
Weight Color
Knob Color
Led Color

New Design Knobs: Spinny Friends
$ 10
Personalized Knobs
$ 9-12


How the NightLight Knob Works
Note: *Only available on Tri-Mode PCB.
Note: NightLight Knobs can be installed on other Zoom series models but will not display the RGB effect.
On the other hand, the Spinny Friends series knobs are perfectly compatible with the Zoom series.
default packaging box




ZOOM PAD X KITSUNE
Features of ZOOMPAD

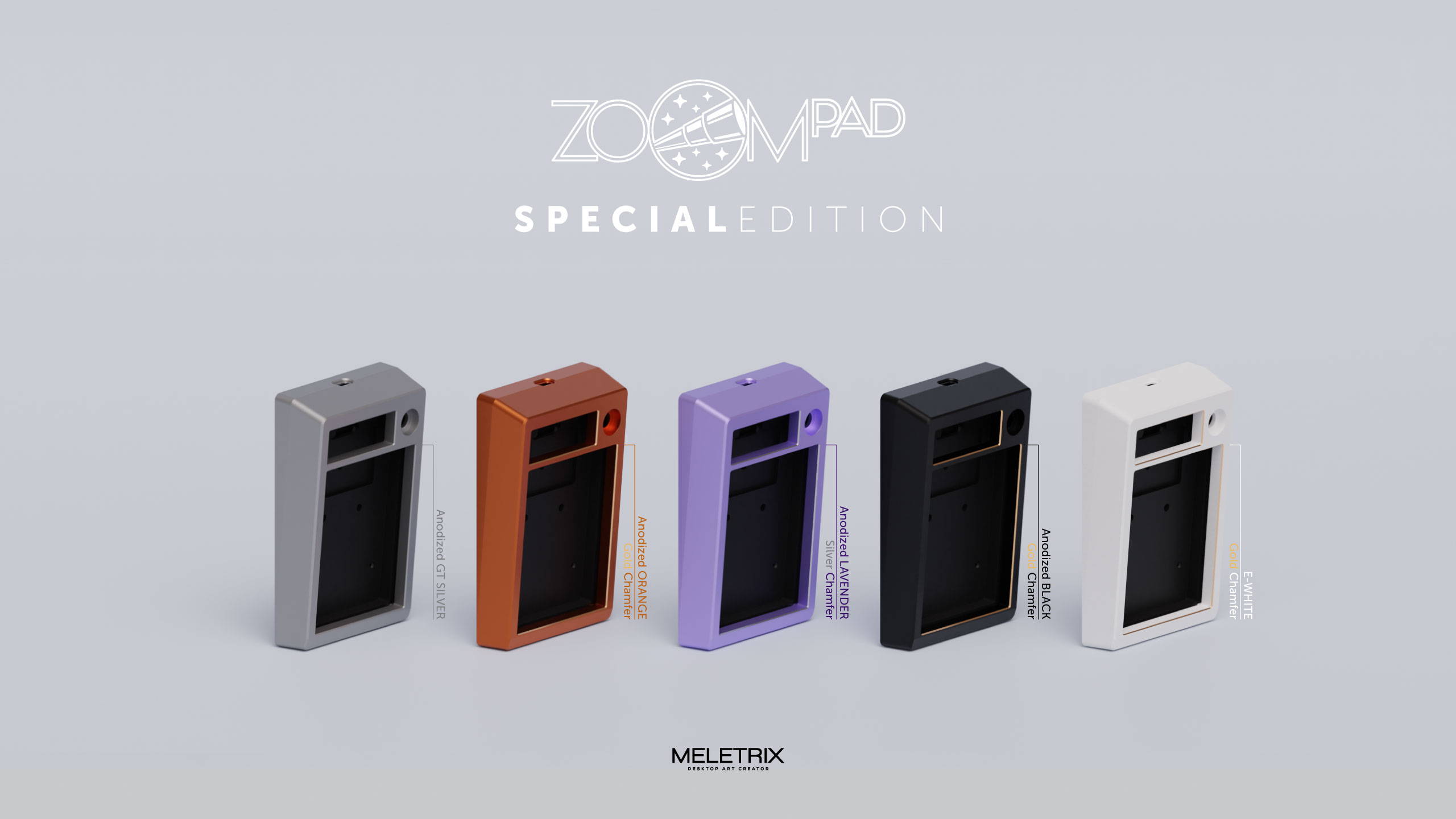

Unique Chamfer
Special Editions will have an anodized or Electrophoresis (for the white) finish. Chamfers are polished too like the ZOOM75. (GT Silver NO Chamfer )

New Nightlight Knobs
The Zoom Pad features the newly designed Nightlight knobs. And five lovely new knobs have also been introduced. These knobs can be rotated to adjust the volume and pressed to toggle mute. Additionally, VIA allows users to assign any command to these three actions, providing further customization options.

Per-key RGB
The Tri-Mode PCB enables per-key RGB lighting, offering a diverse selection of colors and effects to enhance your visual experience. It is compatible with wired, wireless, and 2.4GHz modes, except for the wired PCB which lacks this feature.
(Wired PCB does not have this function)

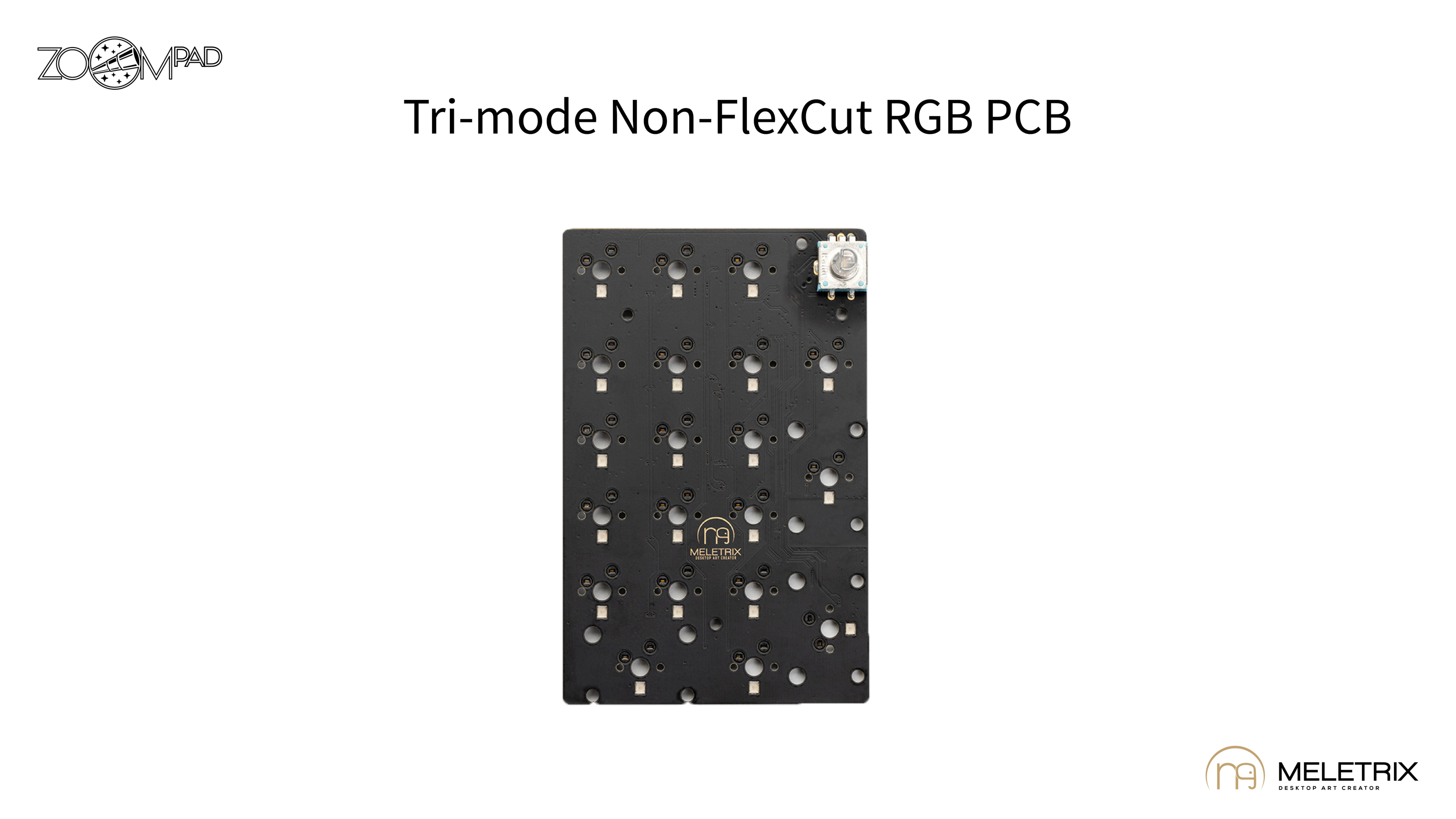

Optional PCB
To expand the range of choices available to all, the PCB now offers two options: tri-mode and wired. The thickness remains at 1.2mm. The design incorporates a daughterboard that can be securely attached independently, effectively preventing the positioning of the Type-C interface from being affected by the cut-out on the case.

Gasket Sleeves
The gasket sleeves are constructed from supercritical foam, which serves to stabilize the plate while also providing adequate room for it to flex in a harmonious manner. They possess an optimal level of softness, neither excessively rigid nor excessively flexible.

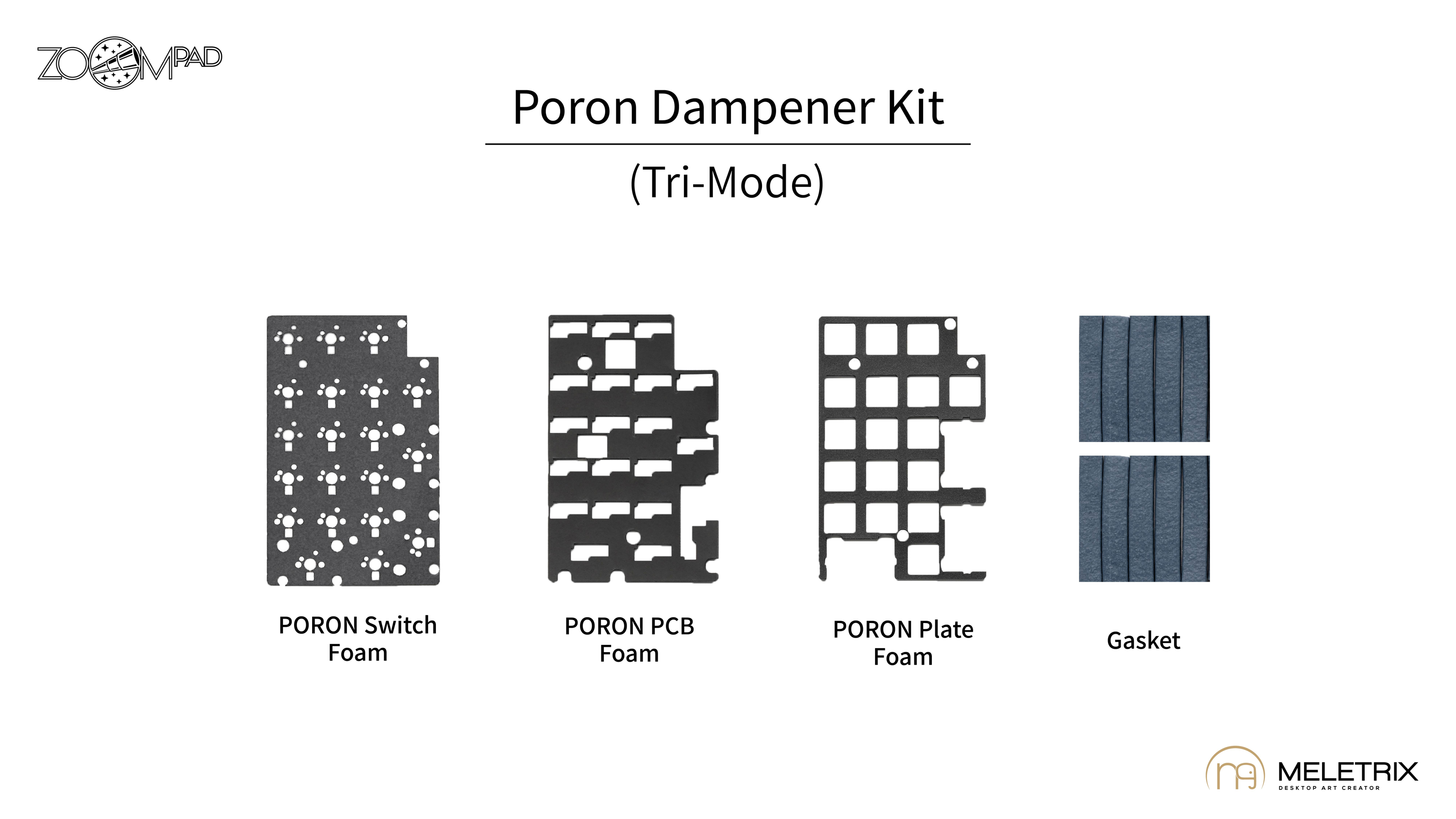

Internal Foam
Extensive testing was conducted on the foaming material of the Zoom Pad to minimize resonance. Meletrix successfully developed a lighter and denser PORON material, resulting in a keyboard sound that is more focused and deeper compared to the default settings.
WIRELESS FREEDOM

Triple Mode PCB
An all-in-one PCB! You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF, and in plain old wired mode. You can charge the battery with any USB-C cable(USB Cable not included), or simply use it in wired mode for a while!

VIA Compatible
The new Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for its customizability and ease of use. Remap any key on the keyboard on 4 different layers, including the knob. Use built-in powerful shortcuts and macros, or define your own!

Battery included
Every ZoomPad comes with a 600 mAh Li-ion battery included in the kit. Once it's out of charge simply connect your keyboard to your PC / laptop using the USB-C cable(USB Cable not included).
