[GB] Zoom TKL DYNA:June 3 - June 17

Estimated delivery time: August

[GB] Zoom TKL DYNA

The Warrior of Light and Life

Click to View

GB Benefits
  • Surprise Benefits

First 3 days: Free Titanium Switch Puller×1
Entire period: Free Switch Sample Pack×1
  • Lucky Draw (Discord)

⏱️Time: June 3 to June 5 (Beijing time)
*Draws start daily at 9:30 AM, with results announced at 9:00 AM the next day (3 chances in total)



🎁Daily Prizes (1 winner each day):
Win a FREE ZOOM TKL DYNA and Alumizu Novelties Kit


🙌Eligibility: Users who place an order before each draw result is announced are eligible to participate (including vendor orders).



💡Tips: Please refer to the official website and Discord announcements for detailed rules.

Join Now

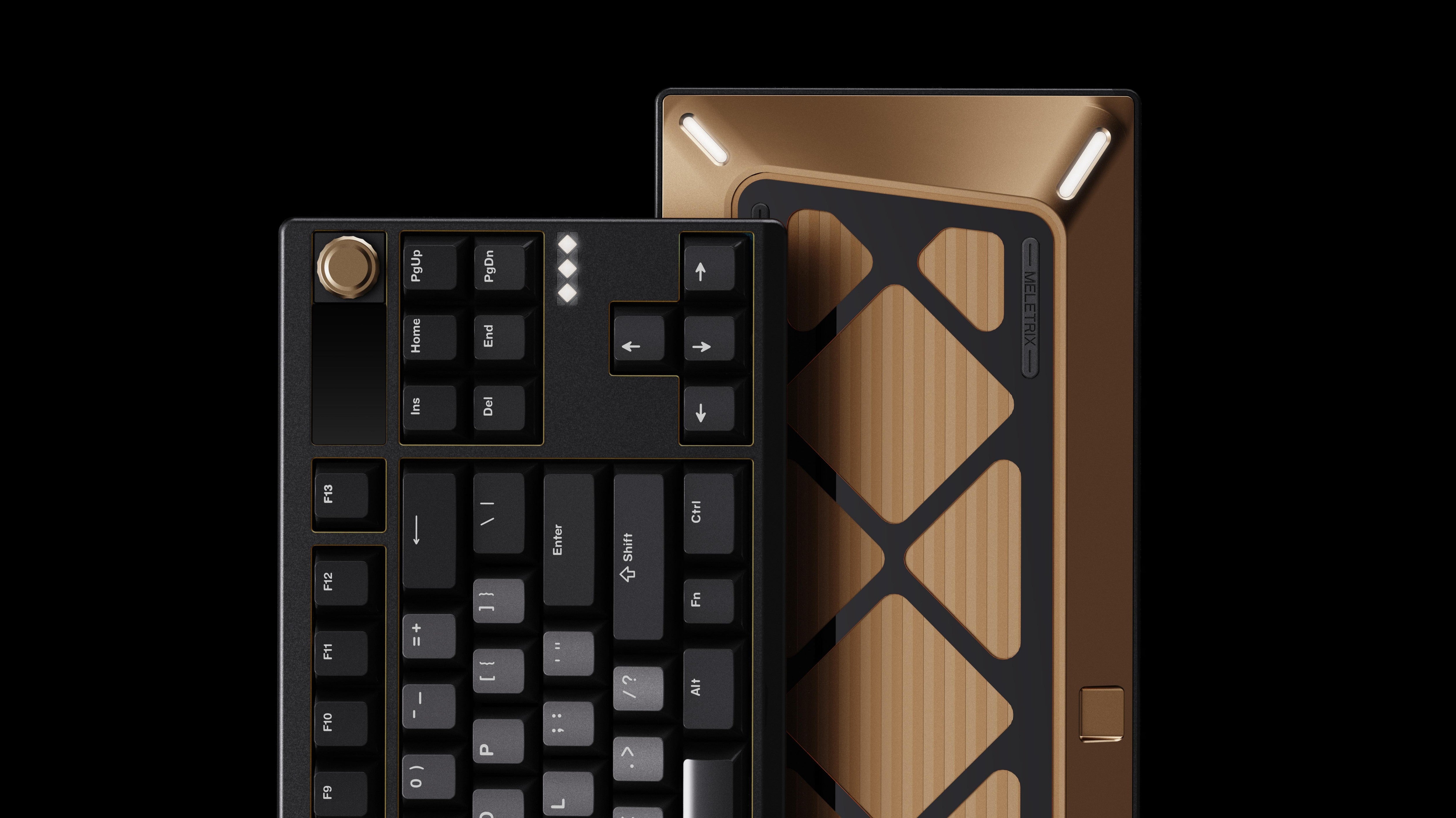

Front-Rear Design Harmony
  • The diamond-pattern grille lighting on the front perfectly complements the rear design, delivering futuristic aesthetics.

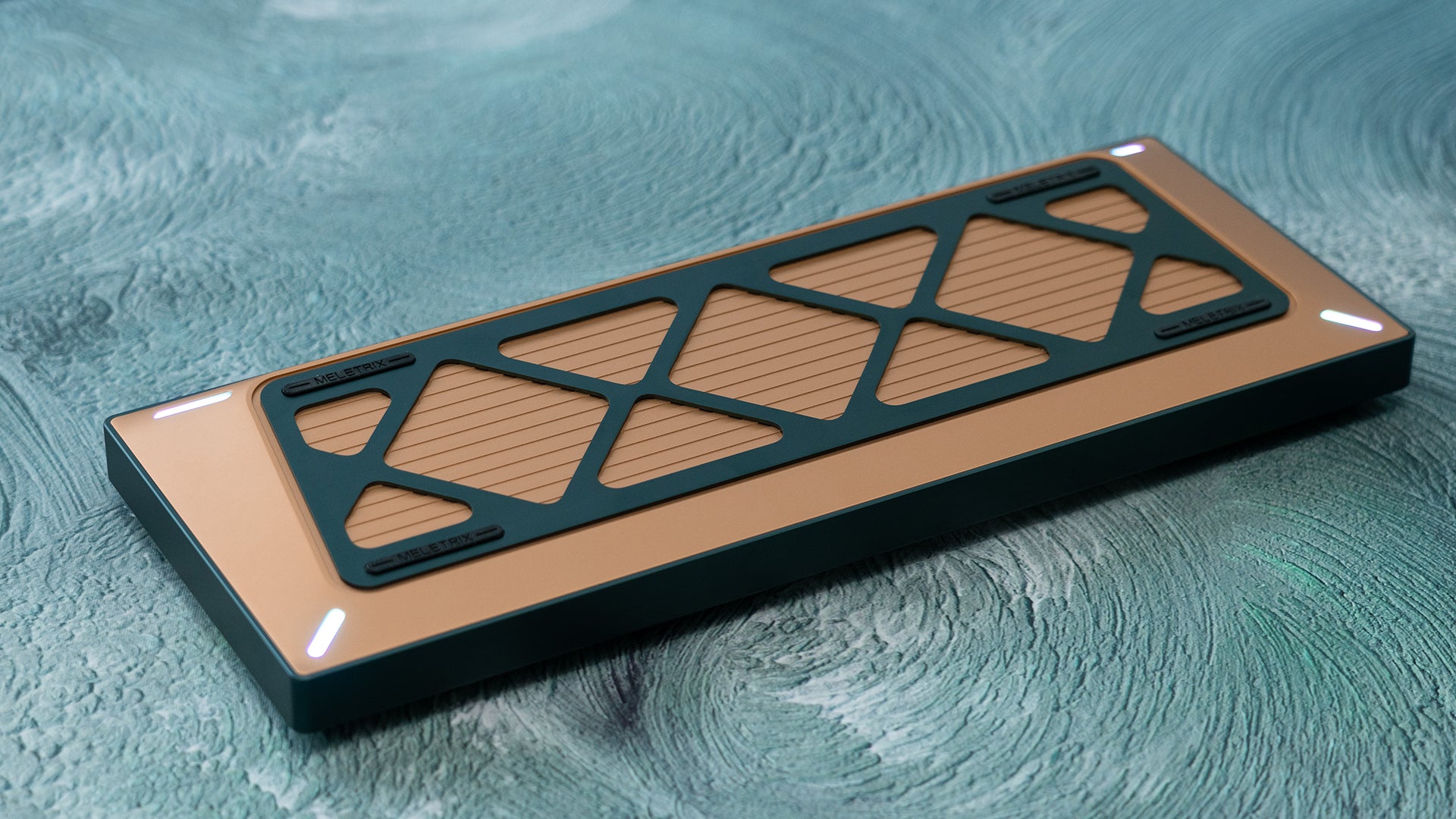

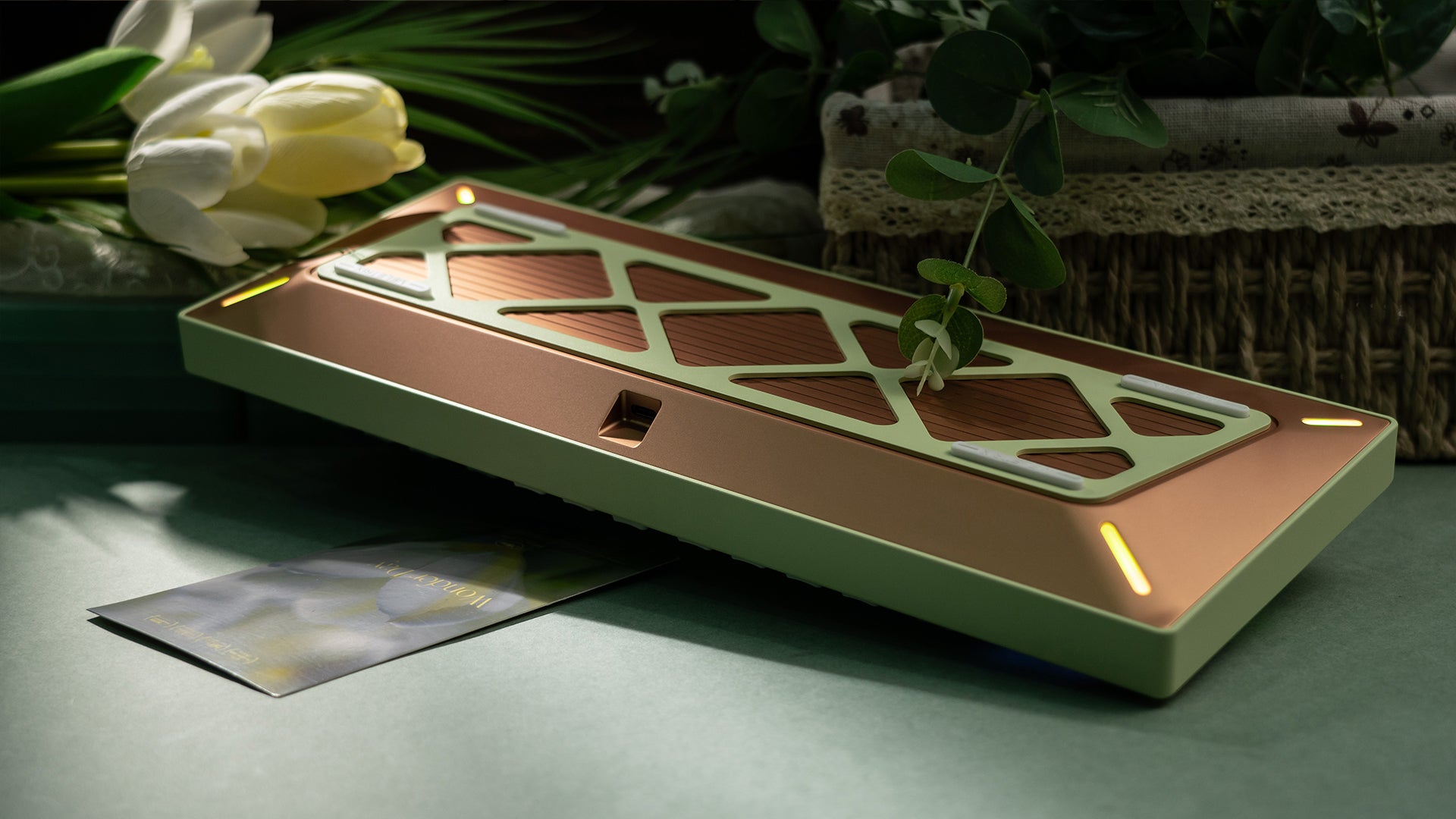

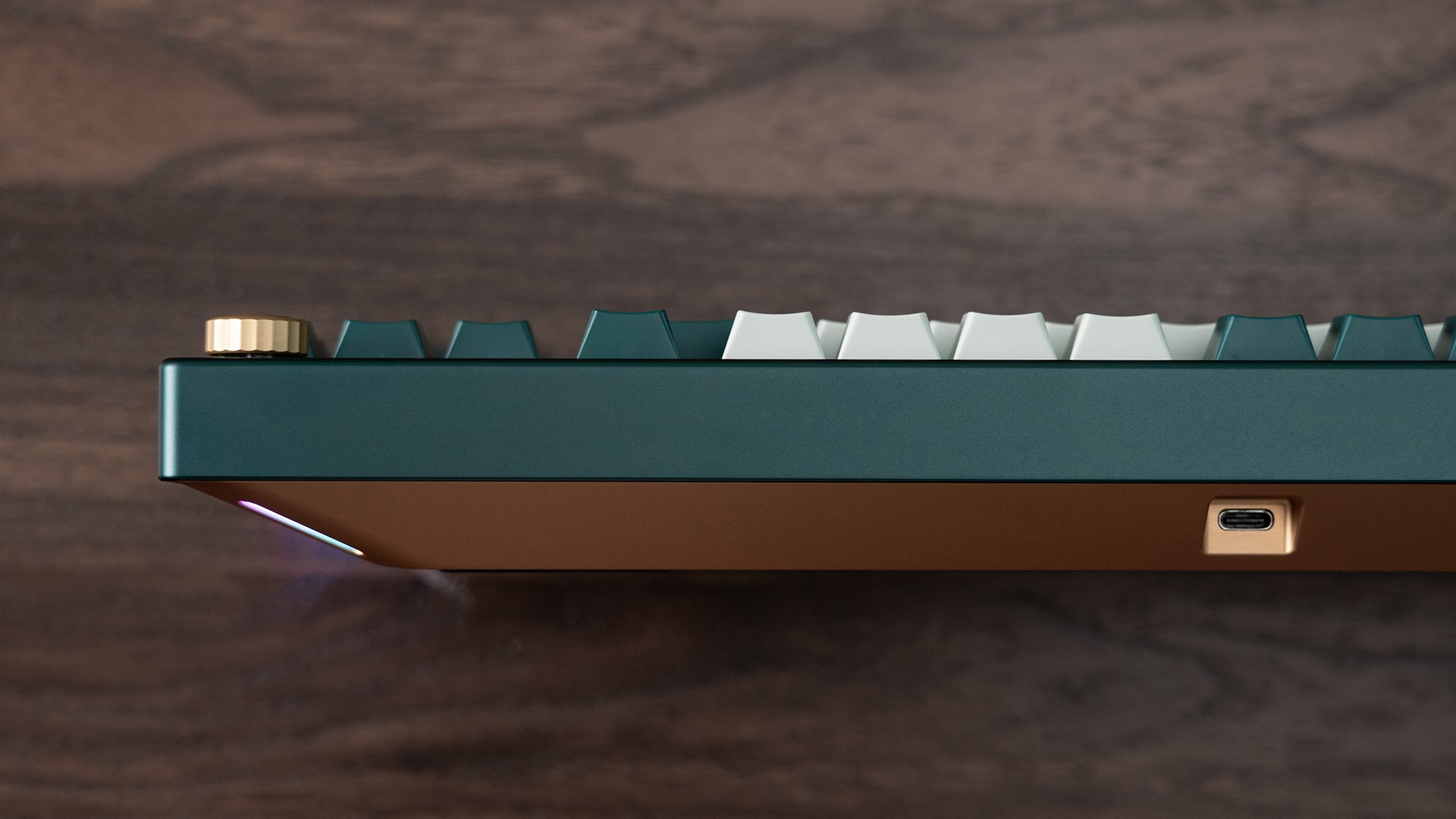

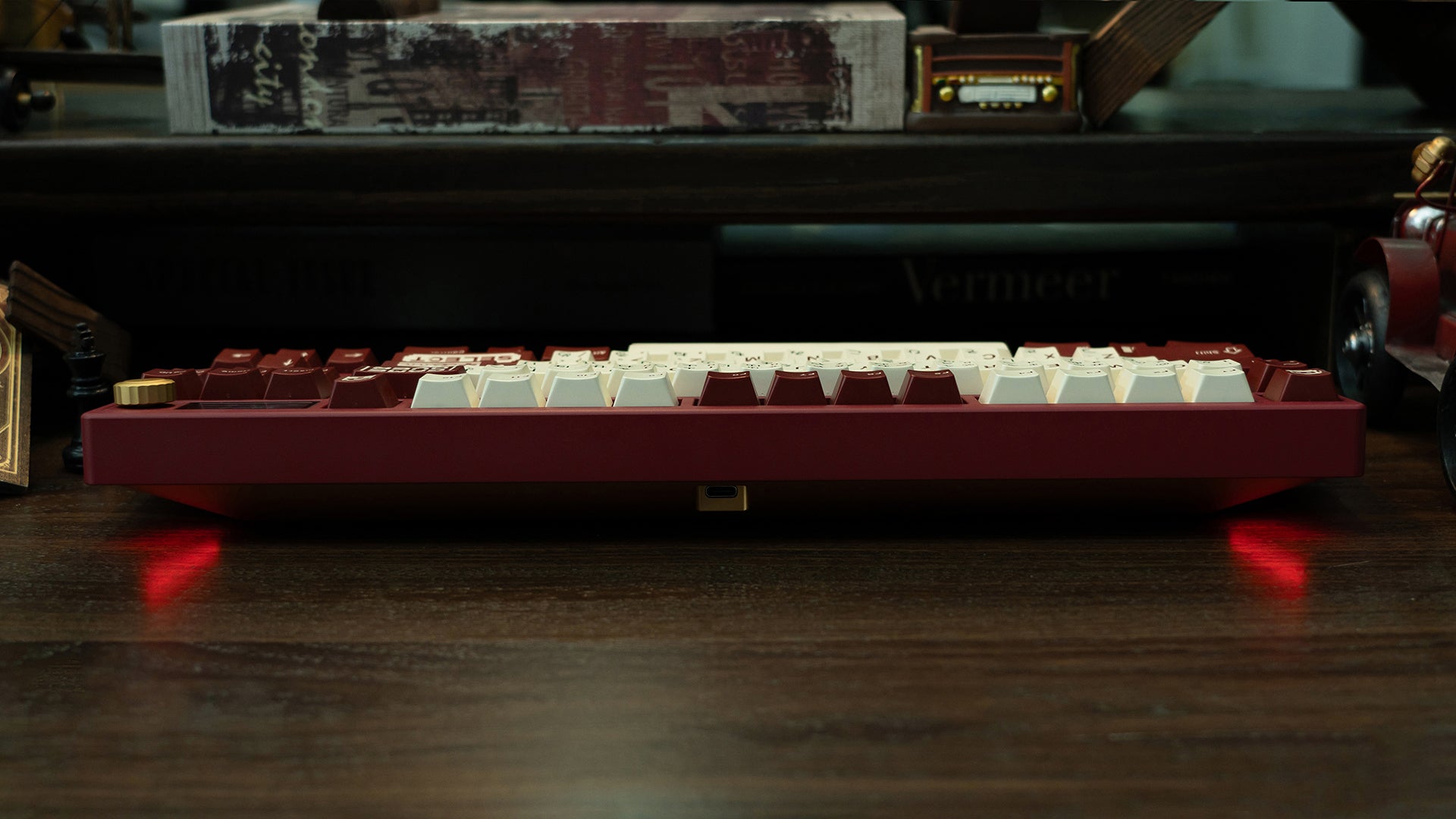

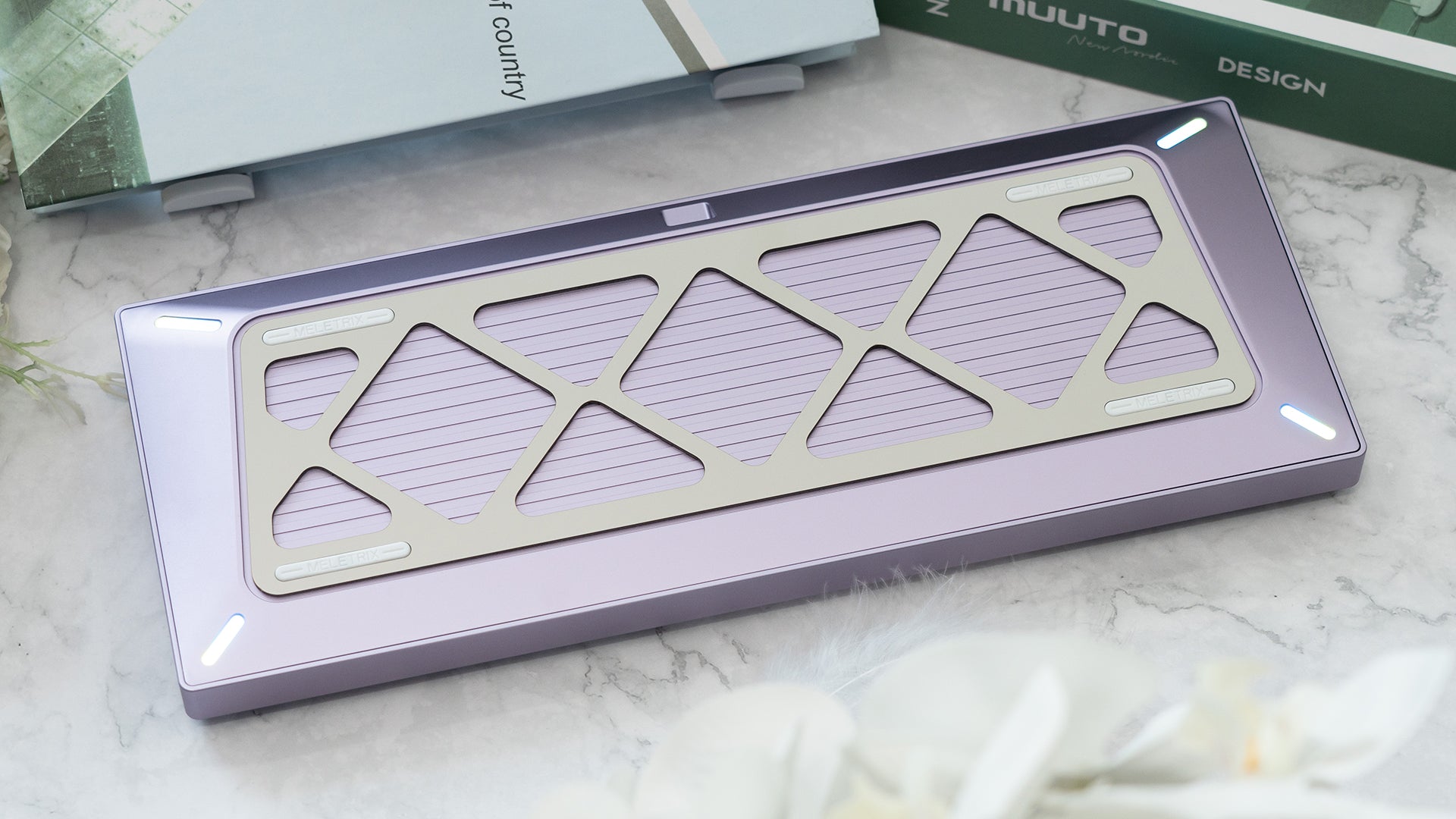

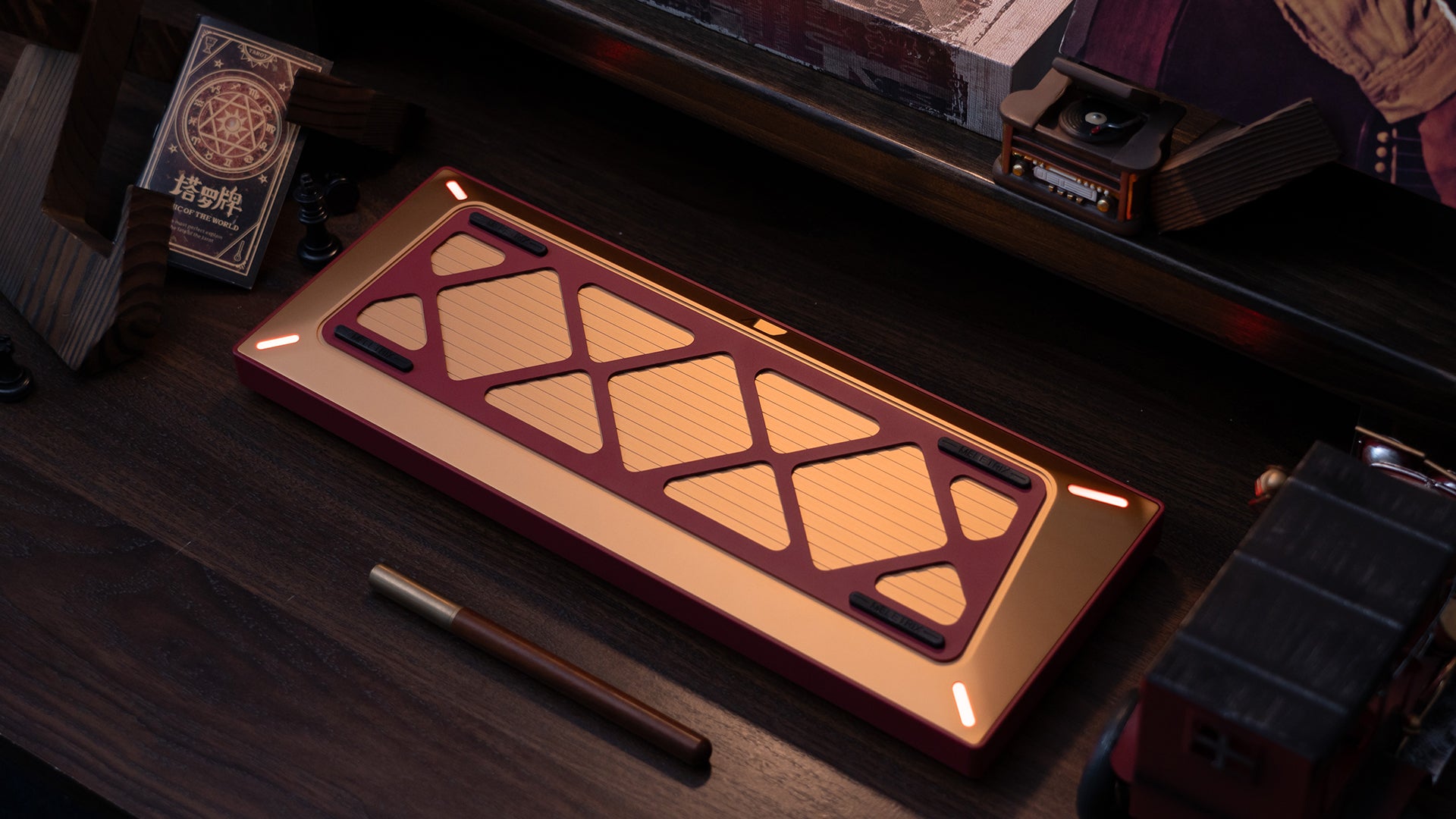

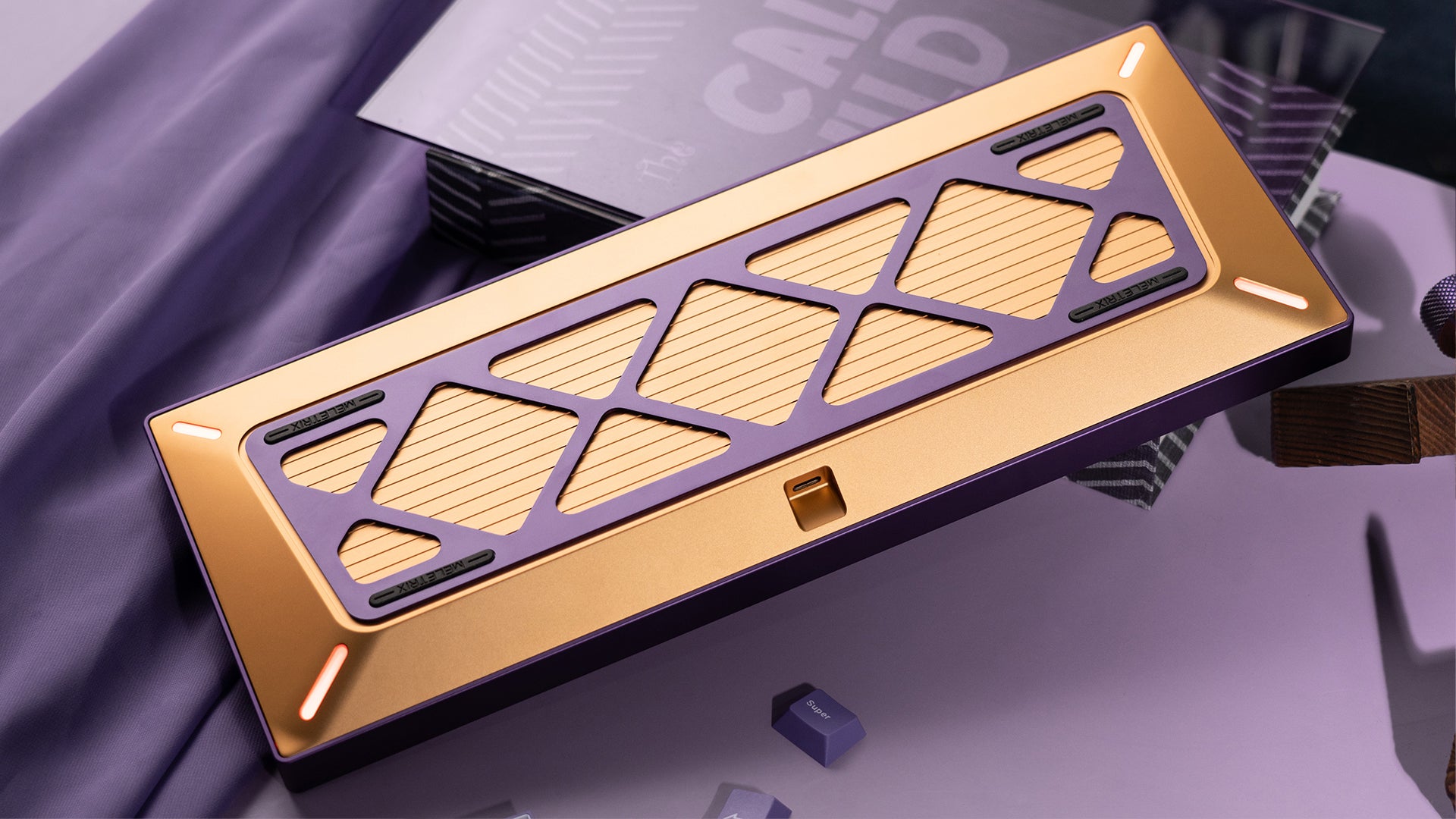

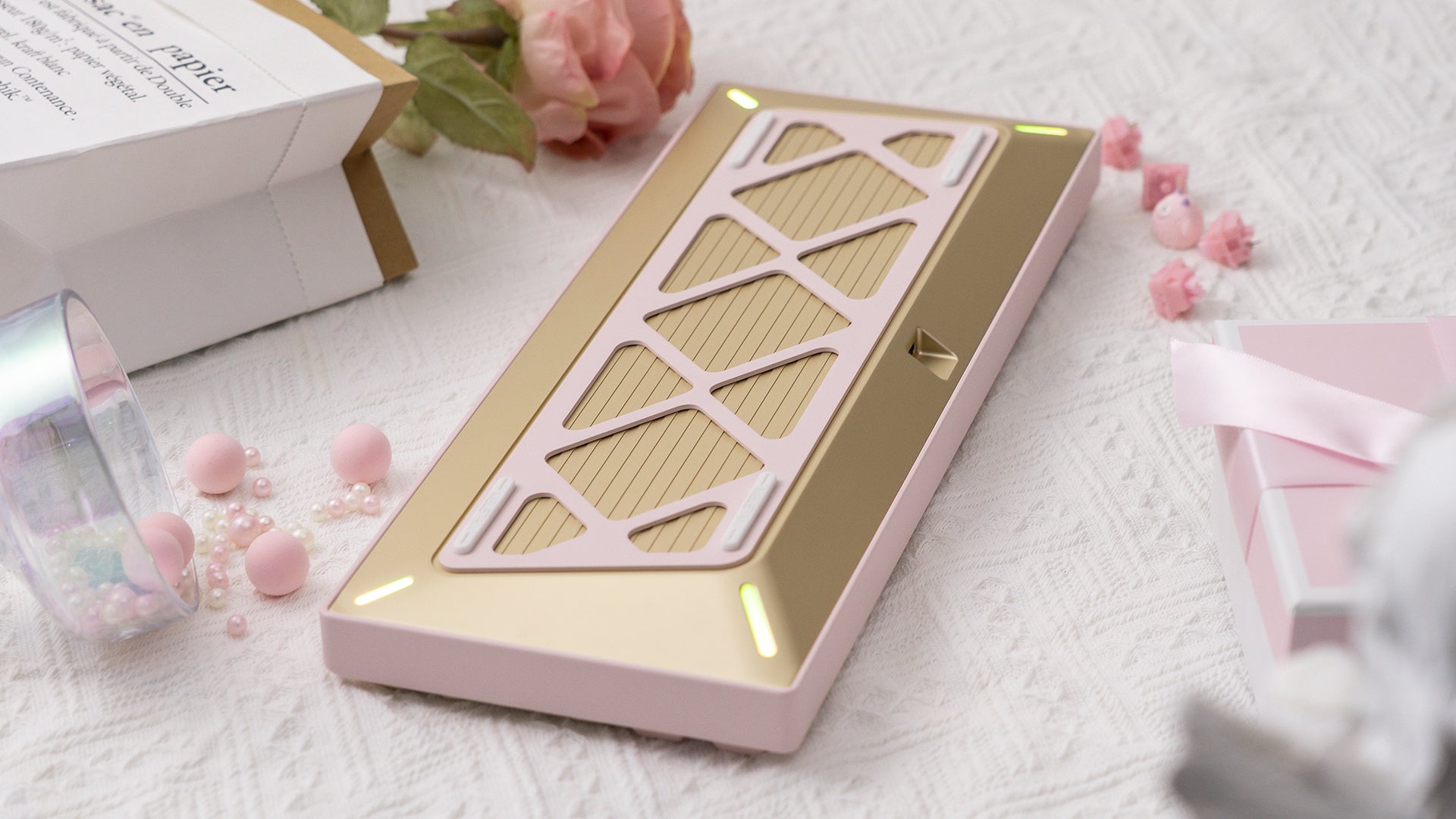

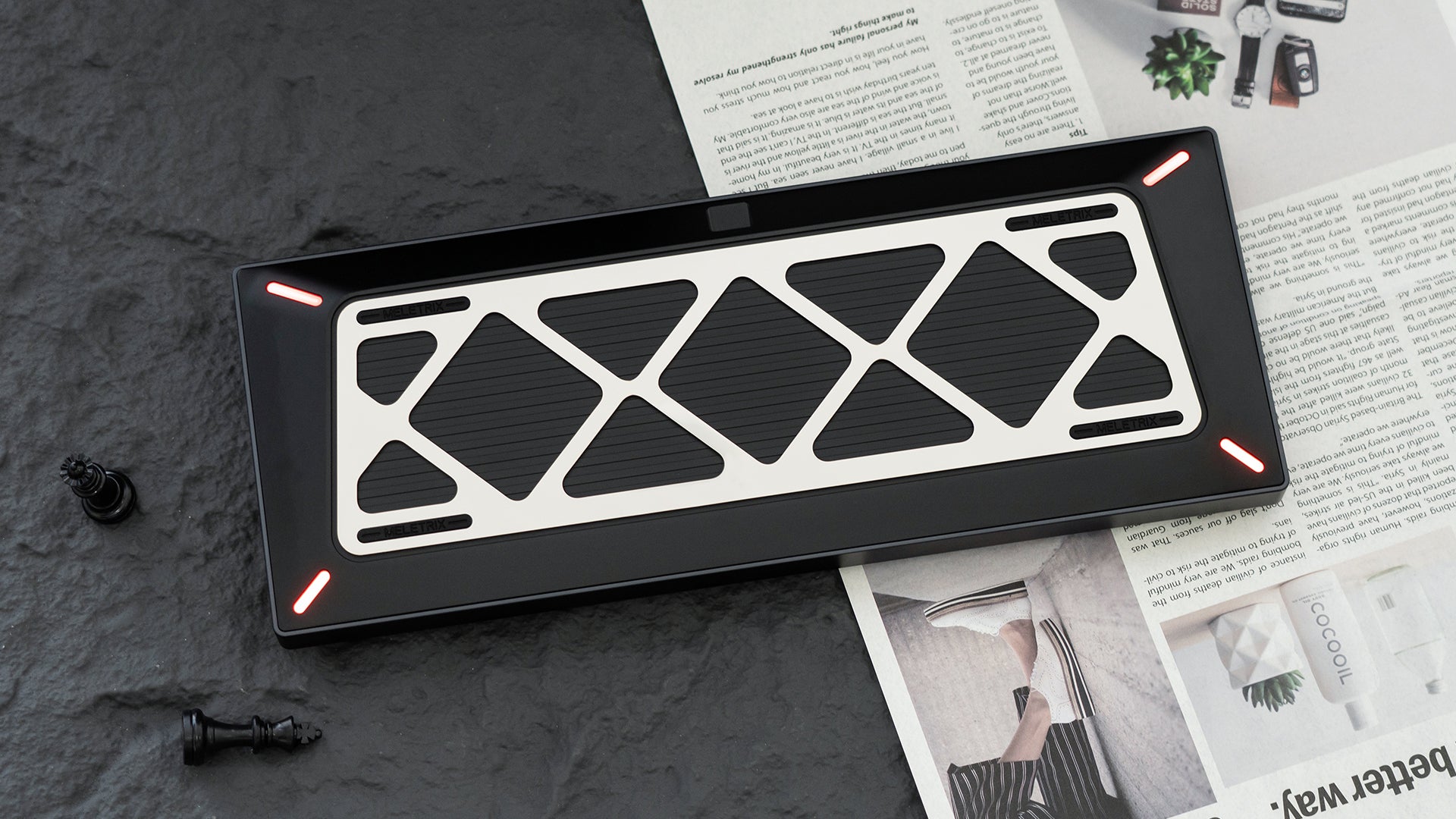

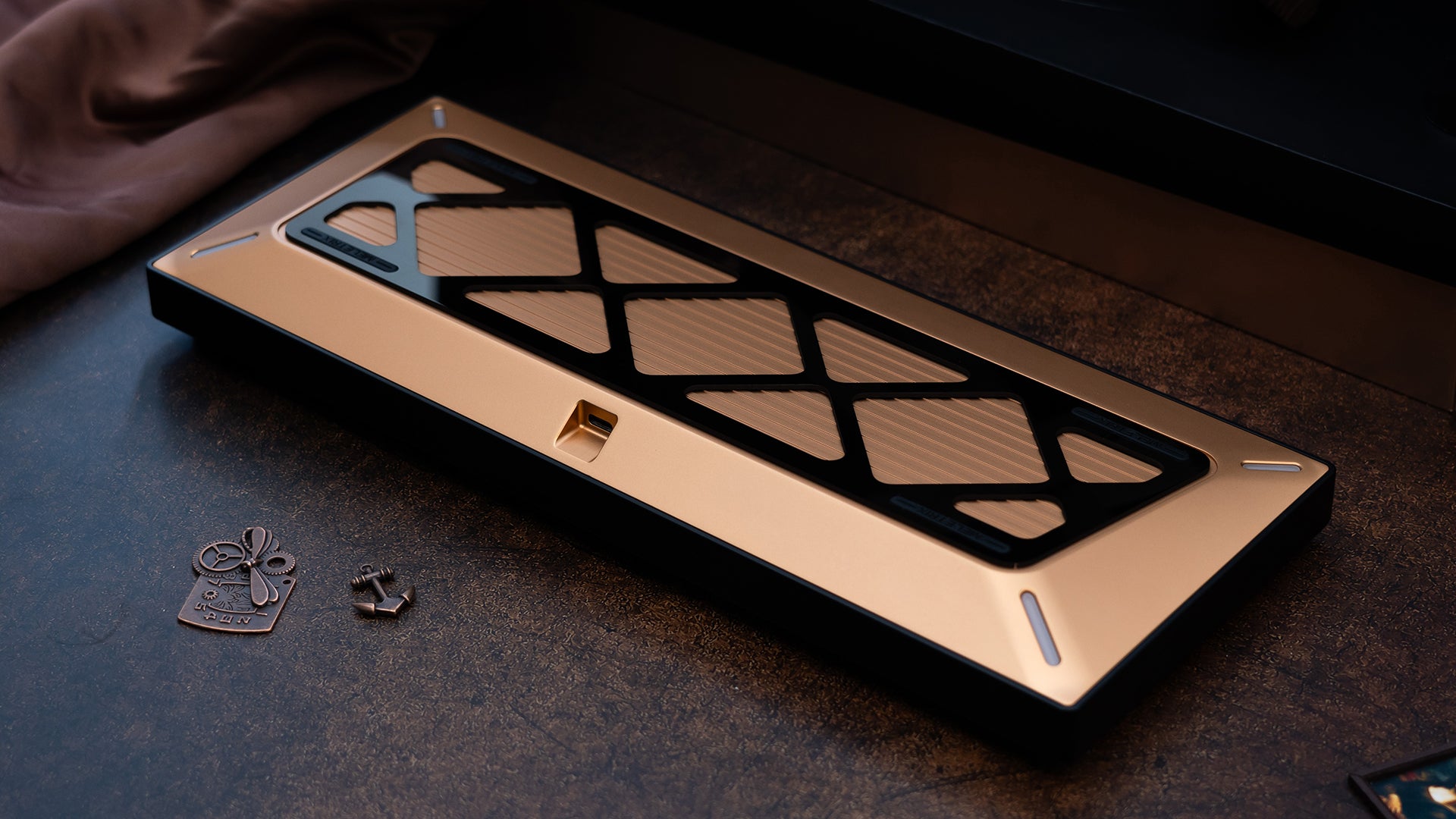

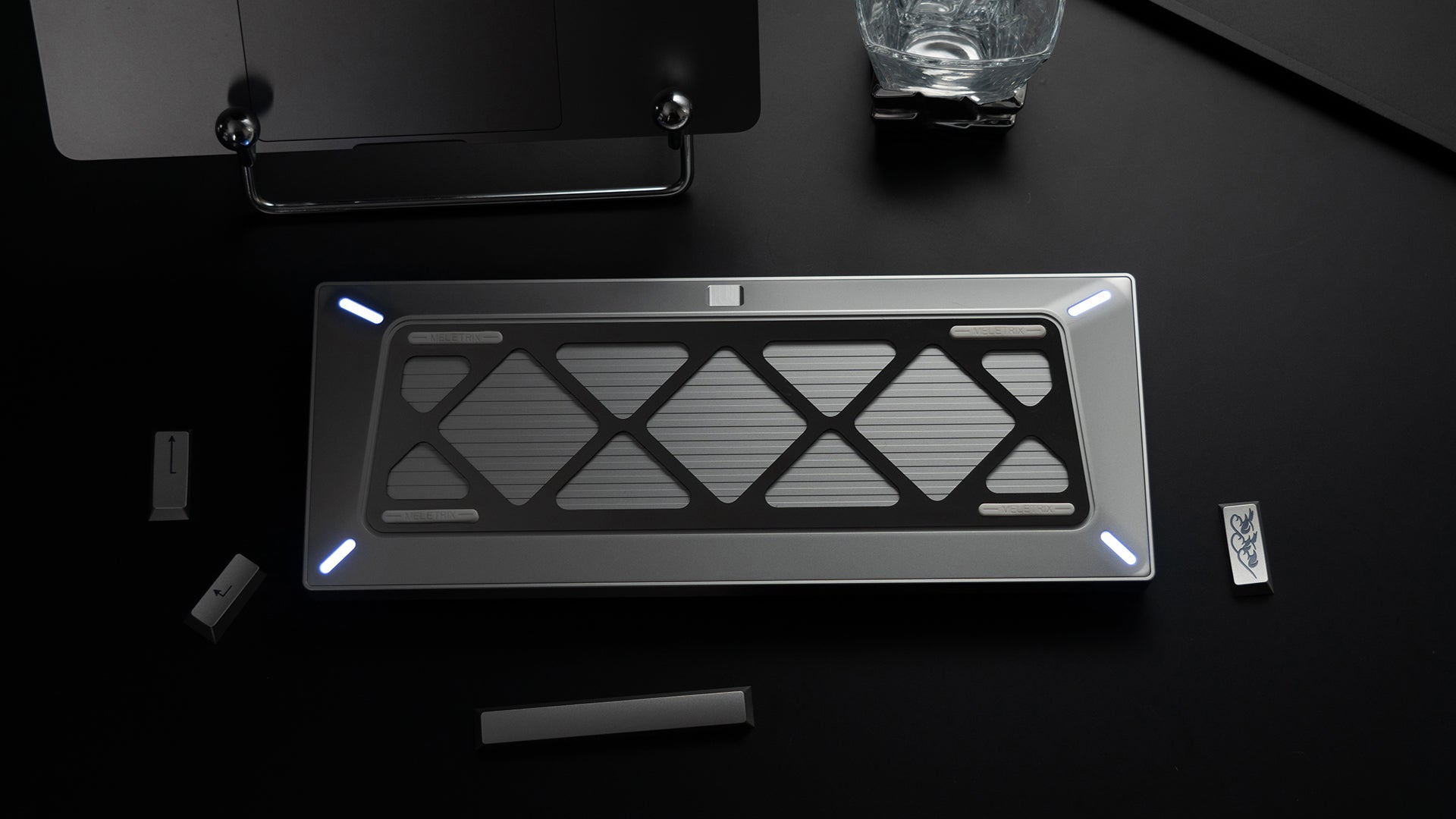

  • The back retains TIGA series’ signature grille design, through multiple adjustments to retain a retro style while incorporating unique personality, with clean and orderly grid lines.

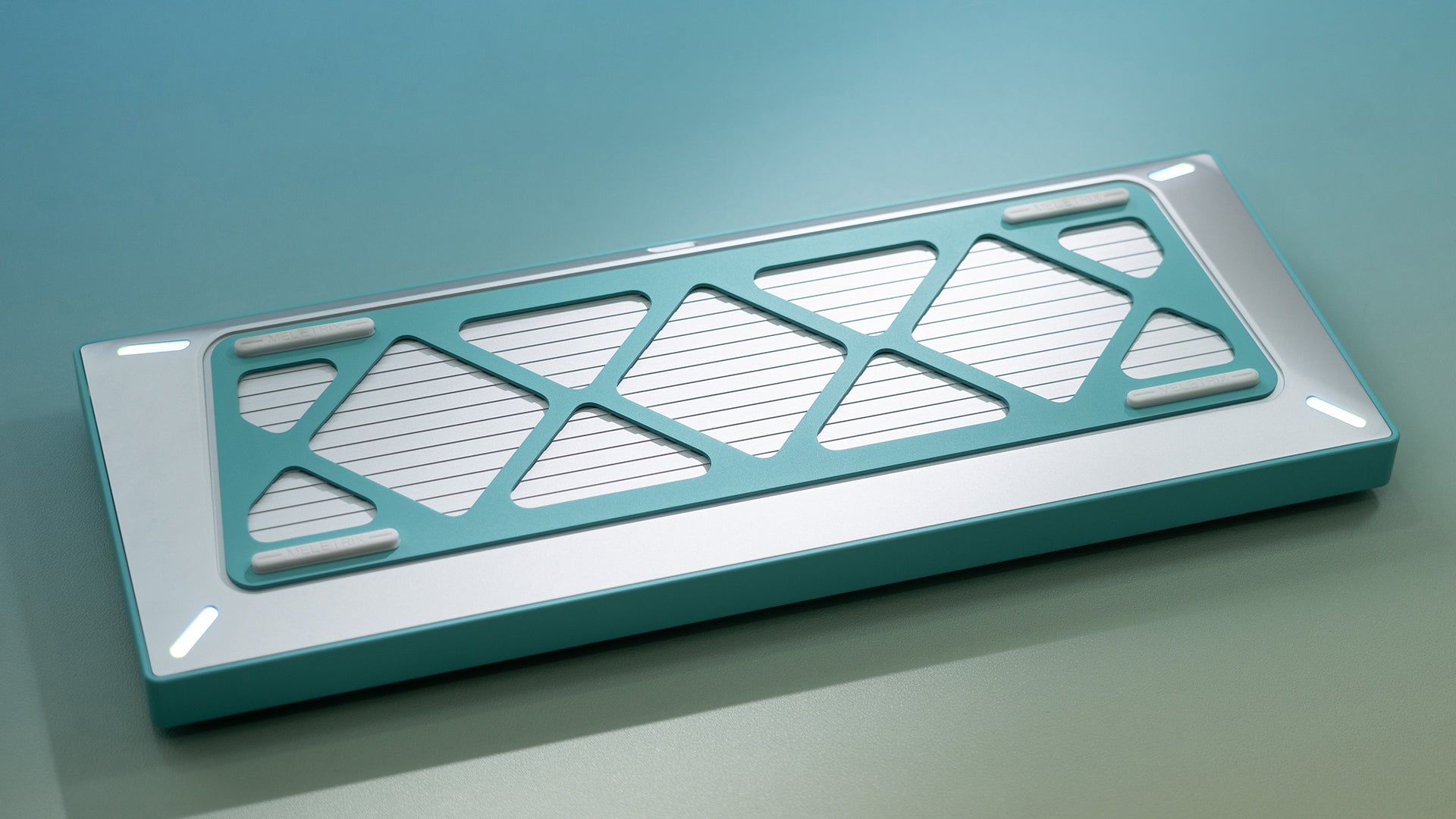

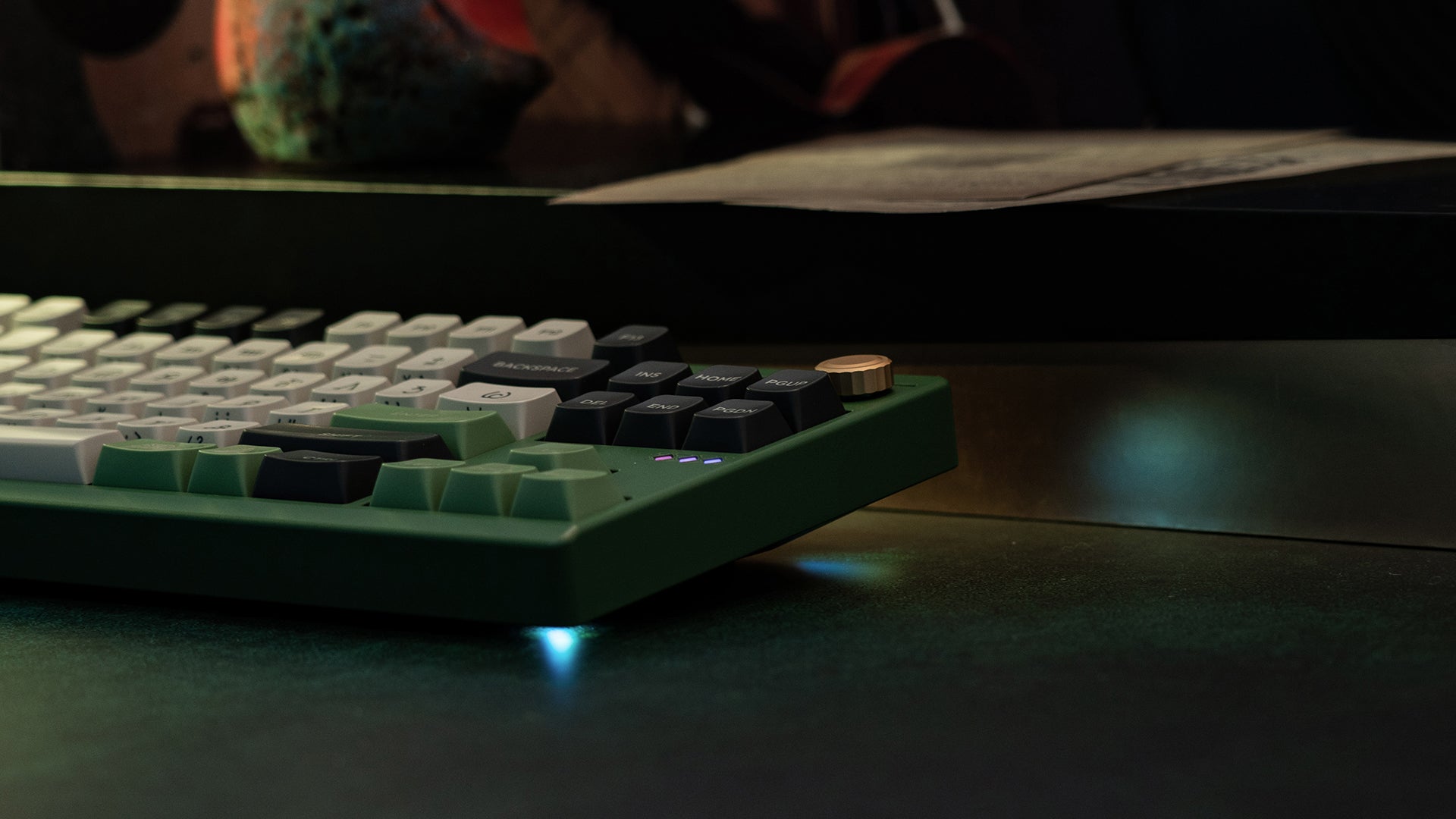

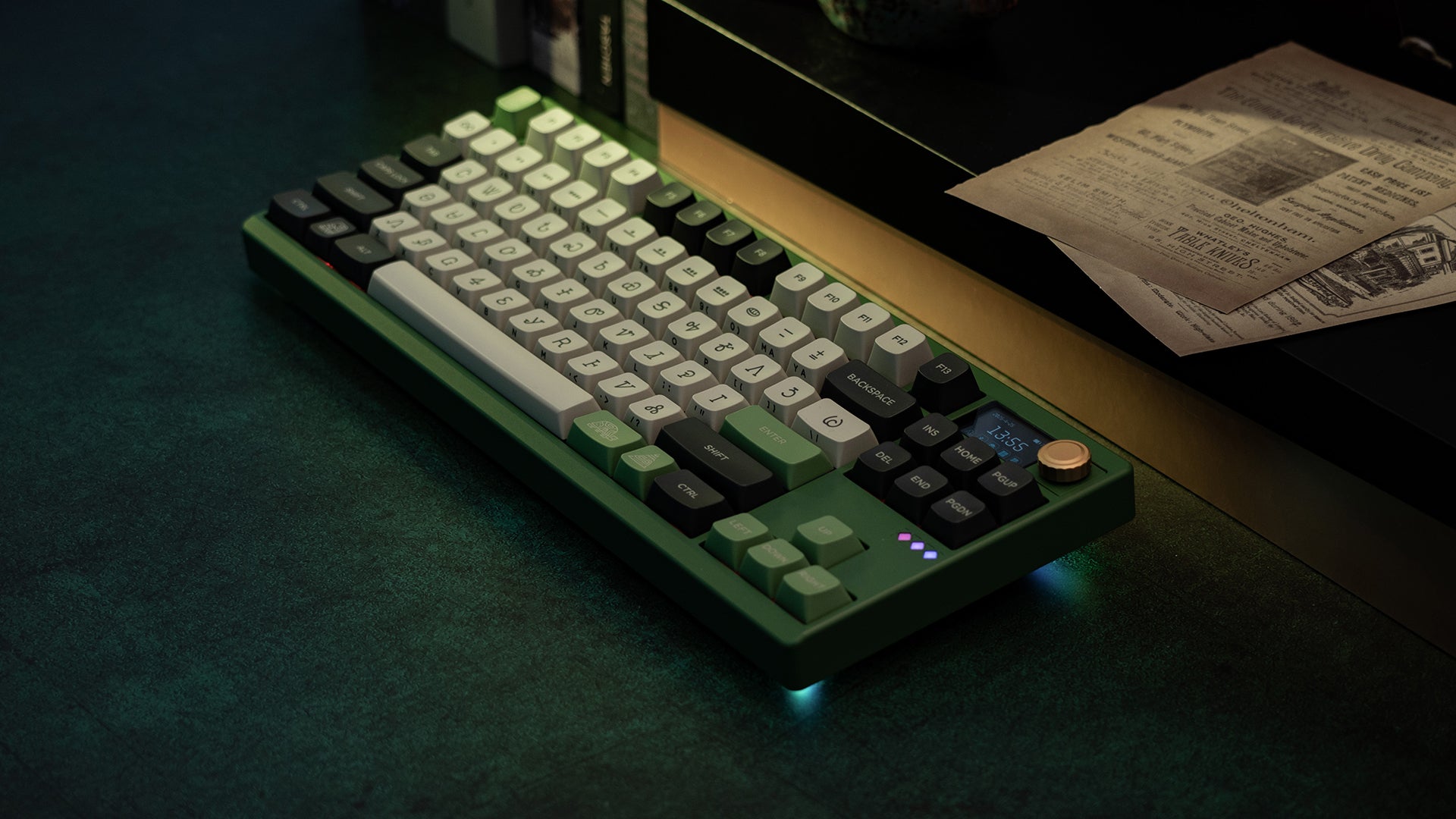

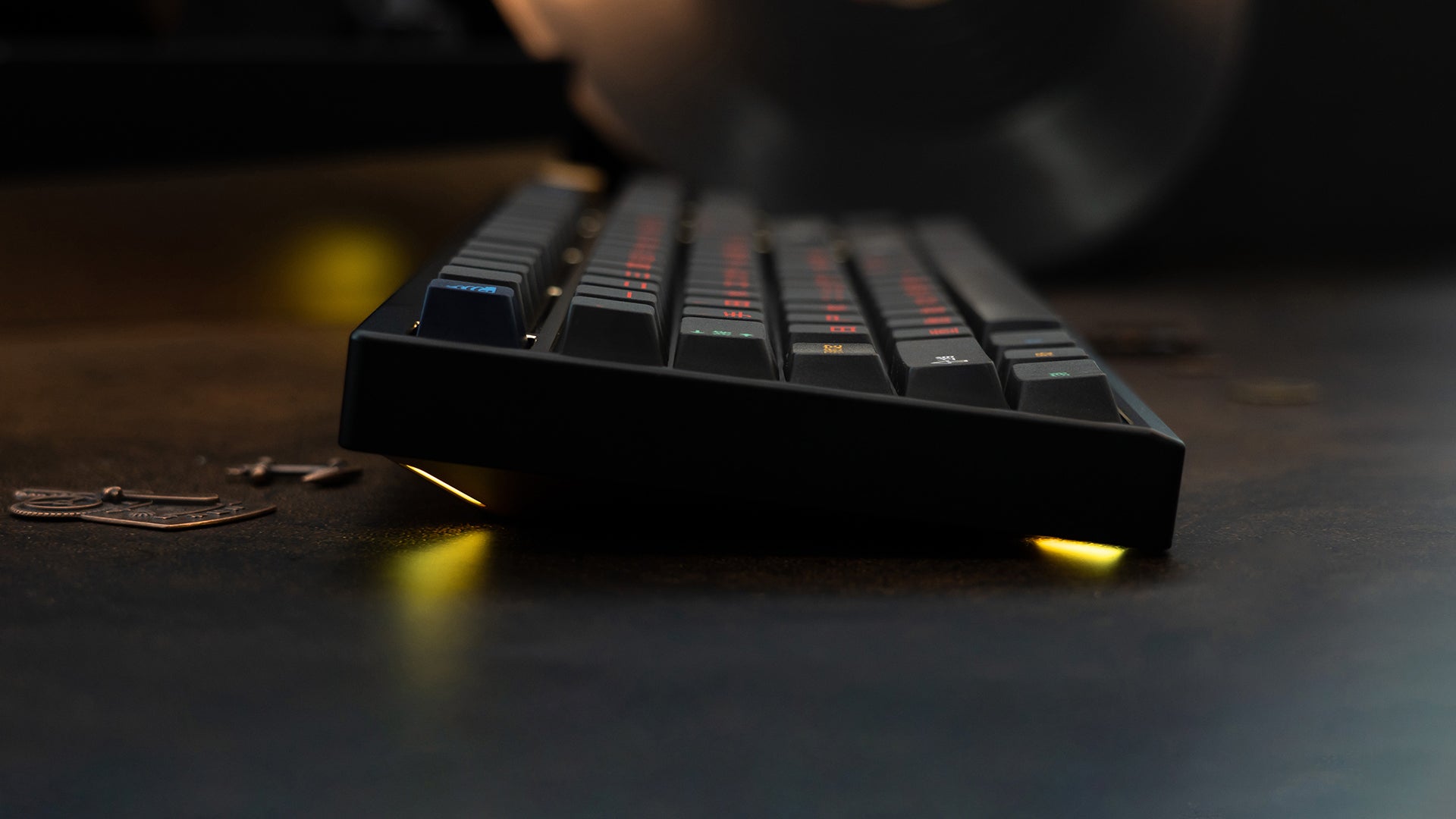

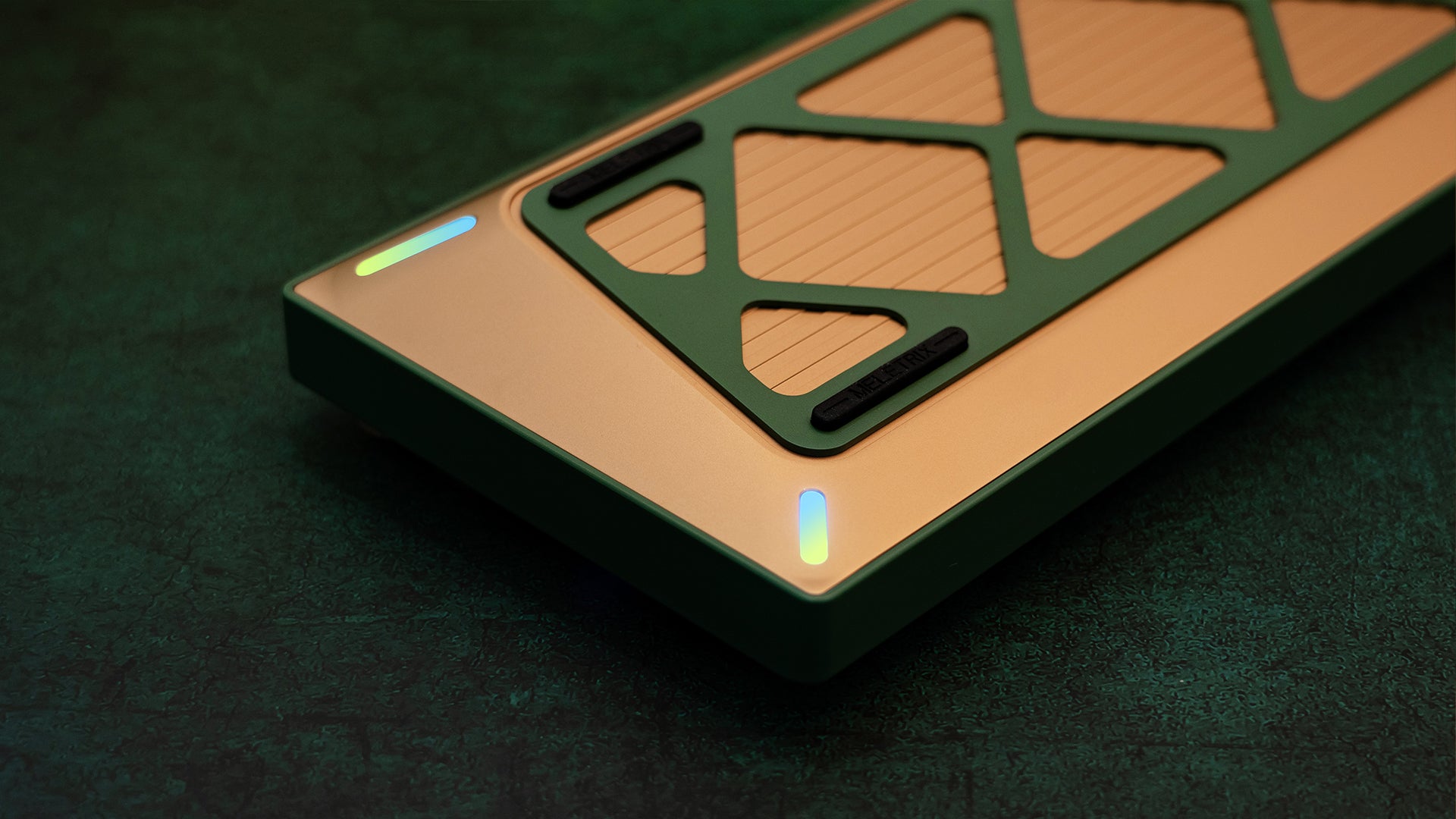

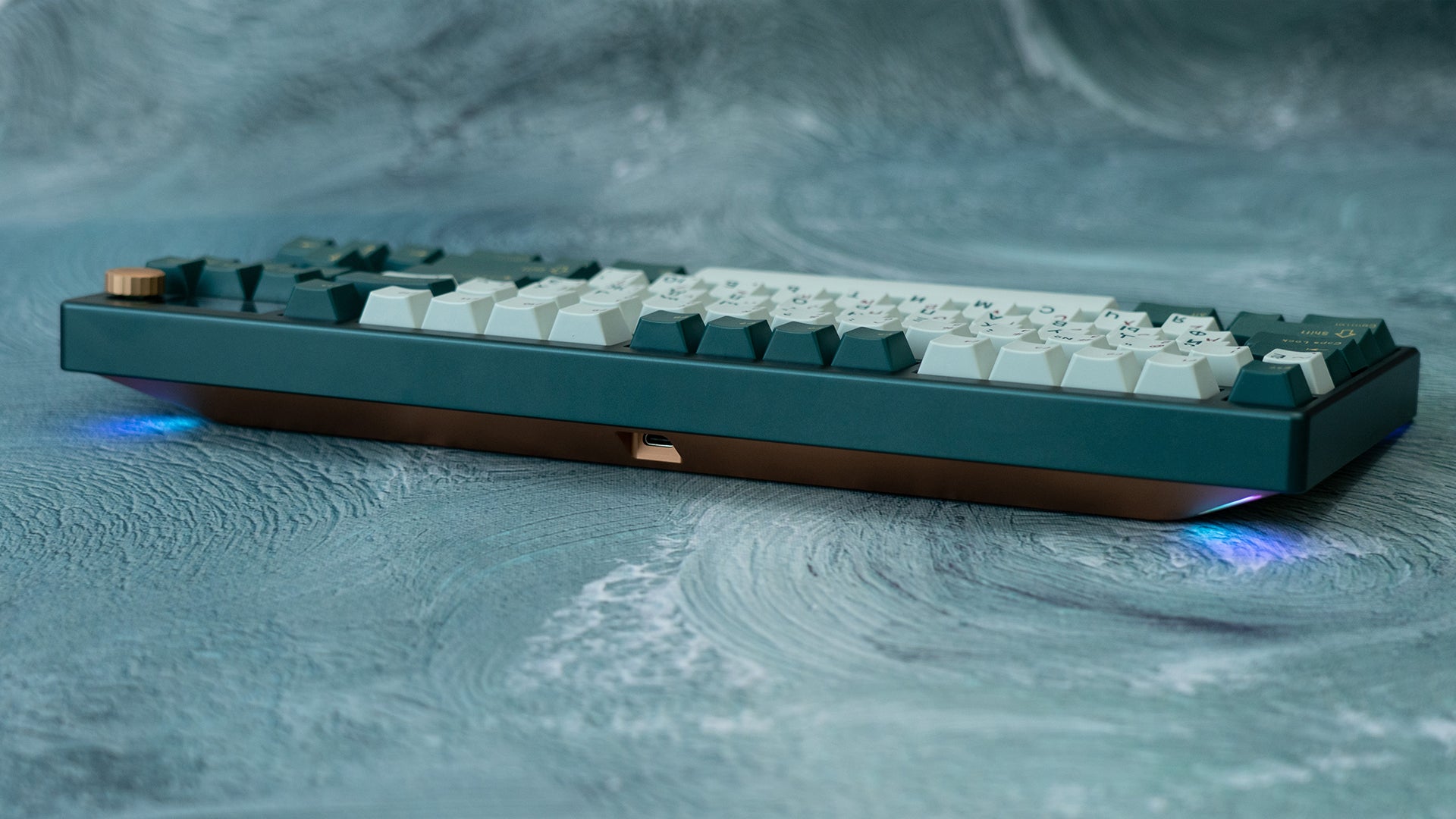

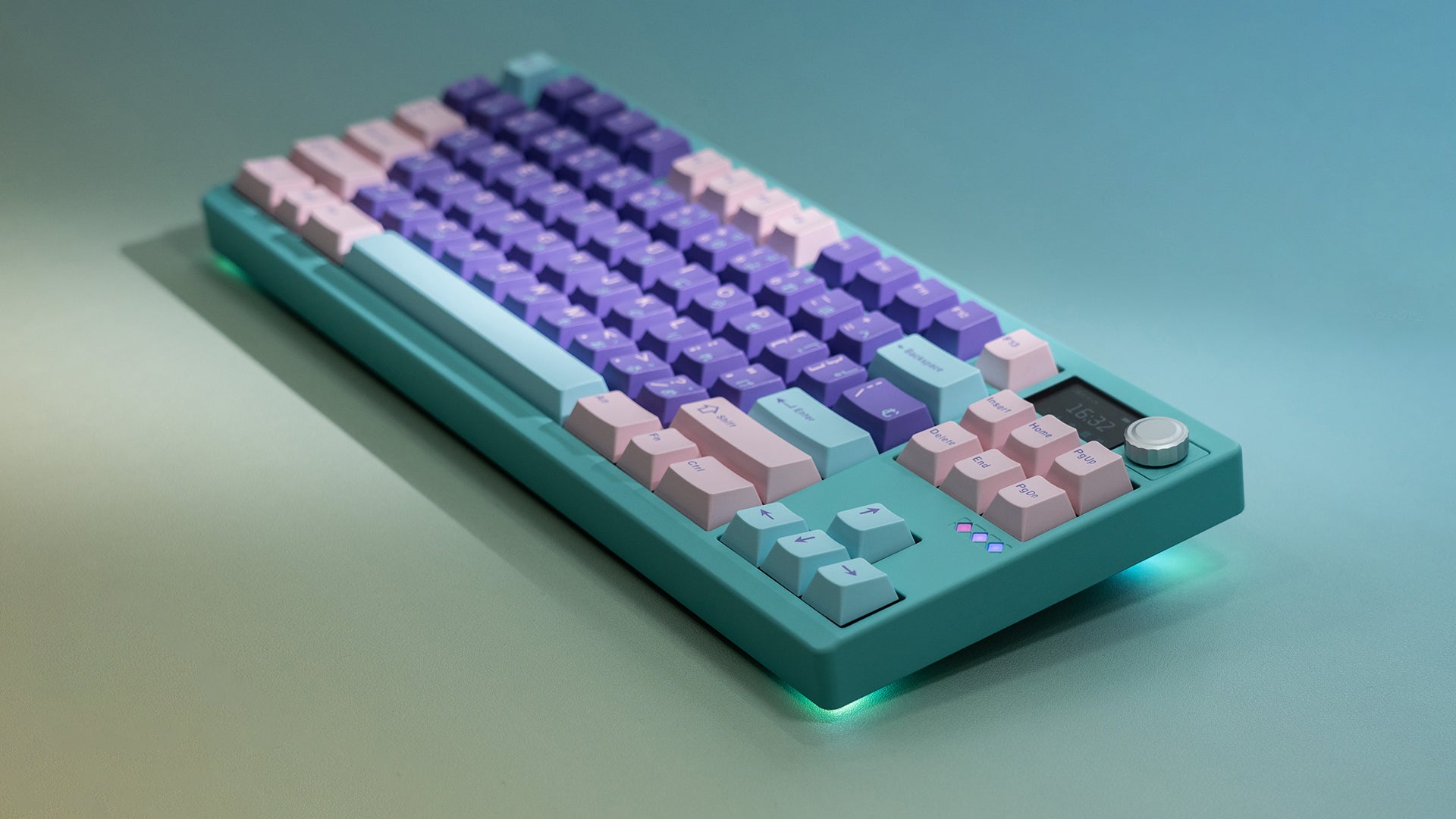

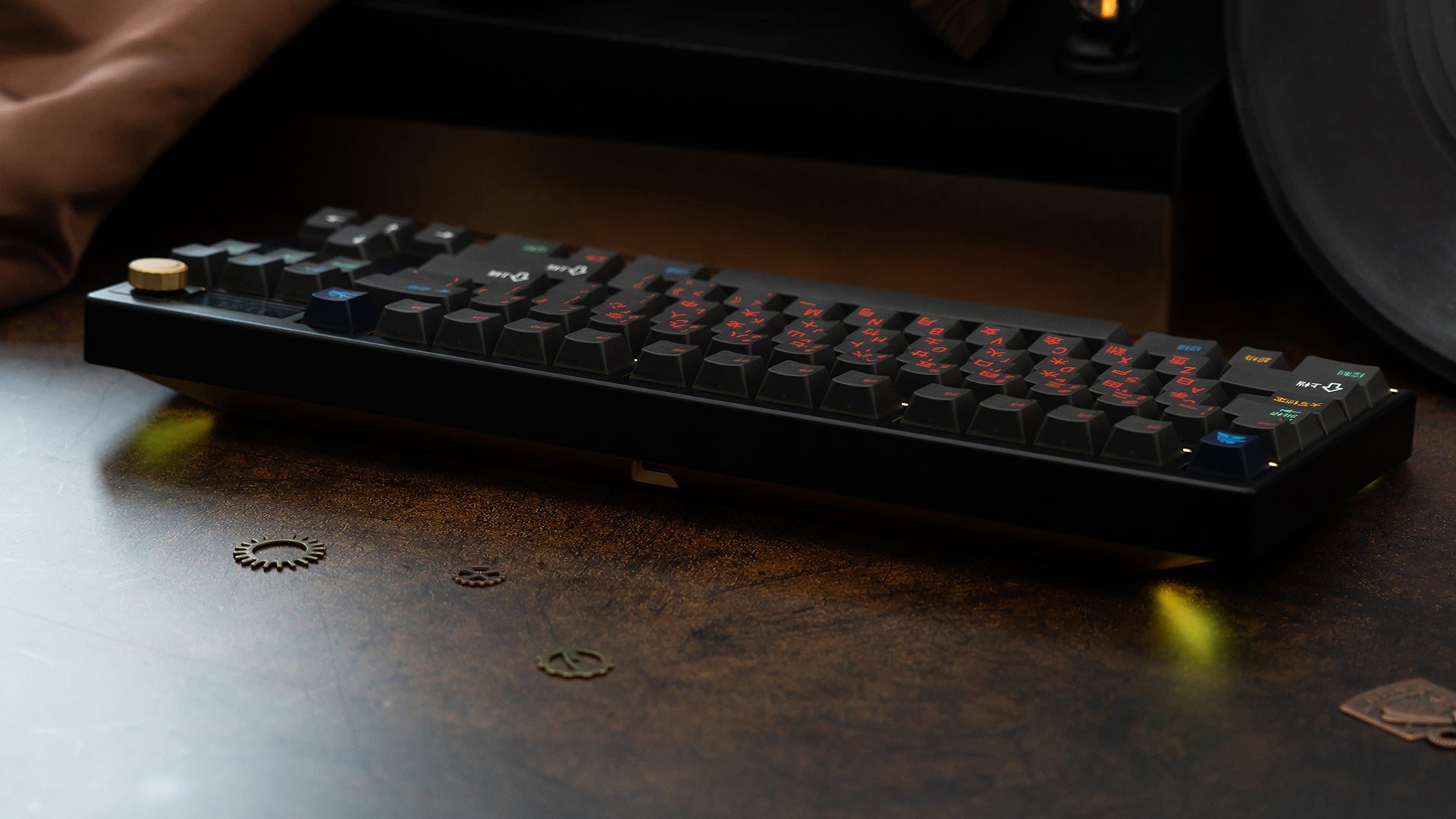

  • The four-dimensional light domain at the bottom echoes the diamond-patterned ambient light on the top case, enabling unified control over effects and colors. In low-light settings, the dual illumination creates a dynamic “light warrior” effect.

Extreme Contrast Aesthetics
  • Rounded R-Corner Frame: After 20+ optimizations based on user feedback, DYNA achieves a smooth-edged profile that enhances ergonomic comfort.

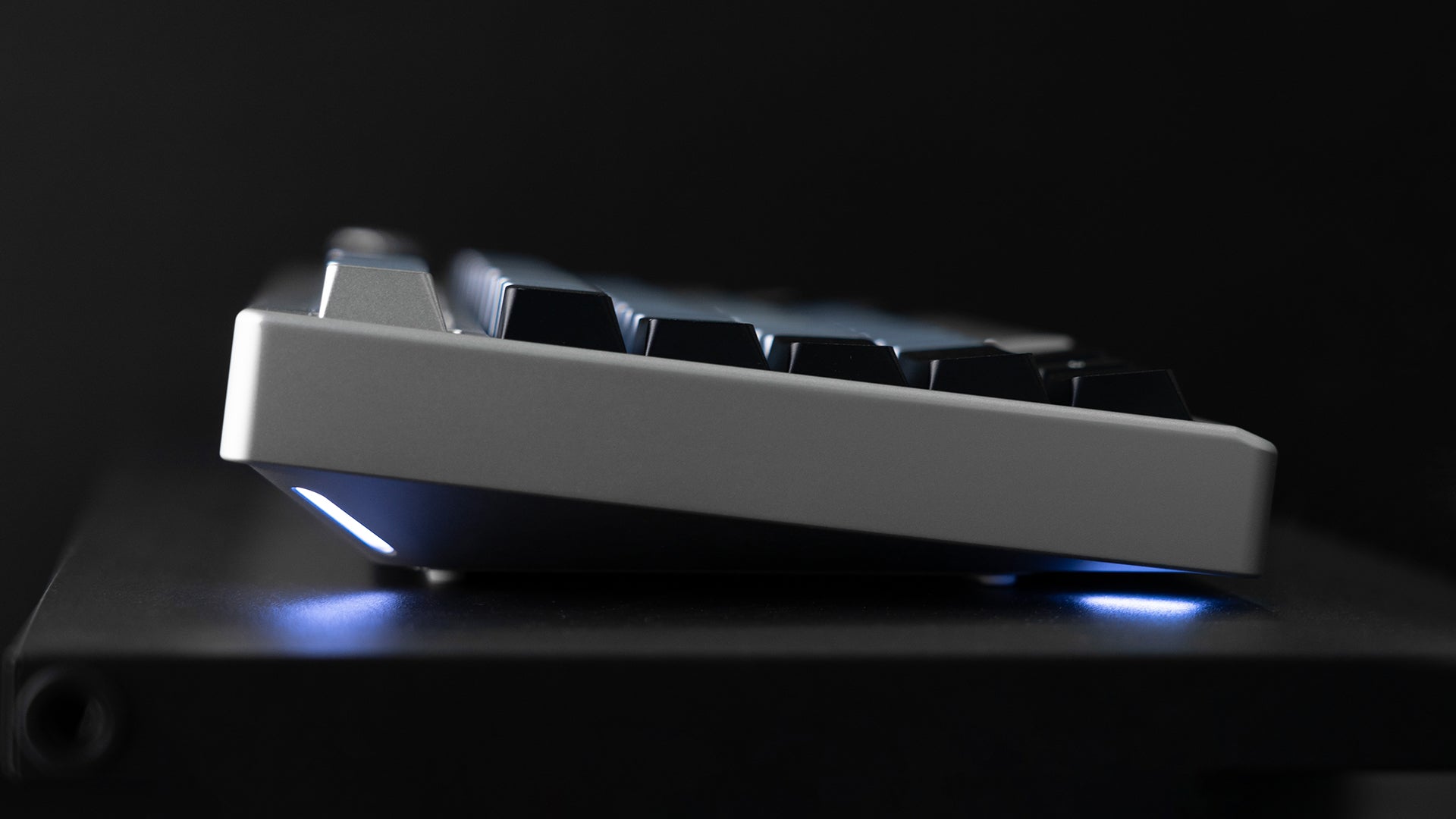

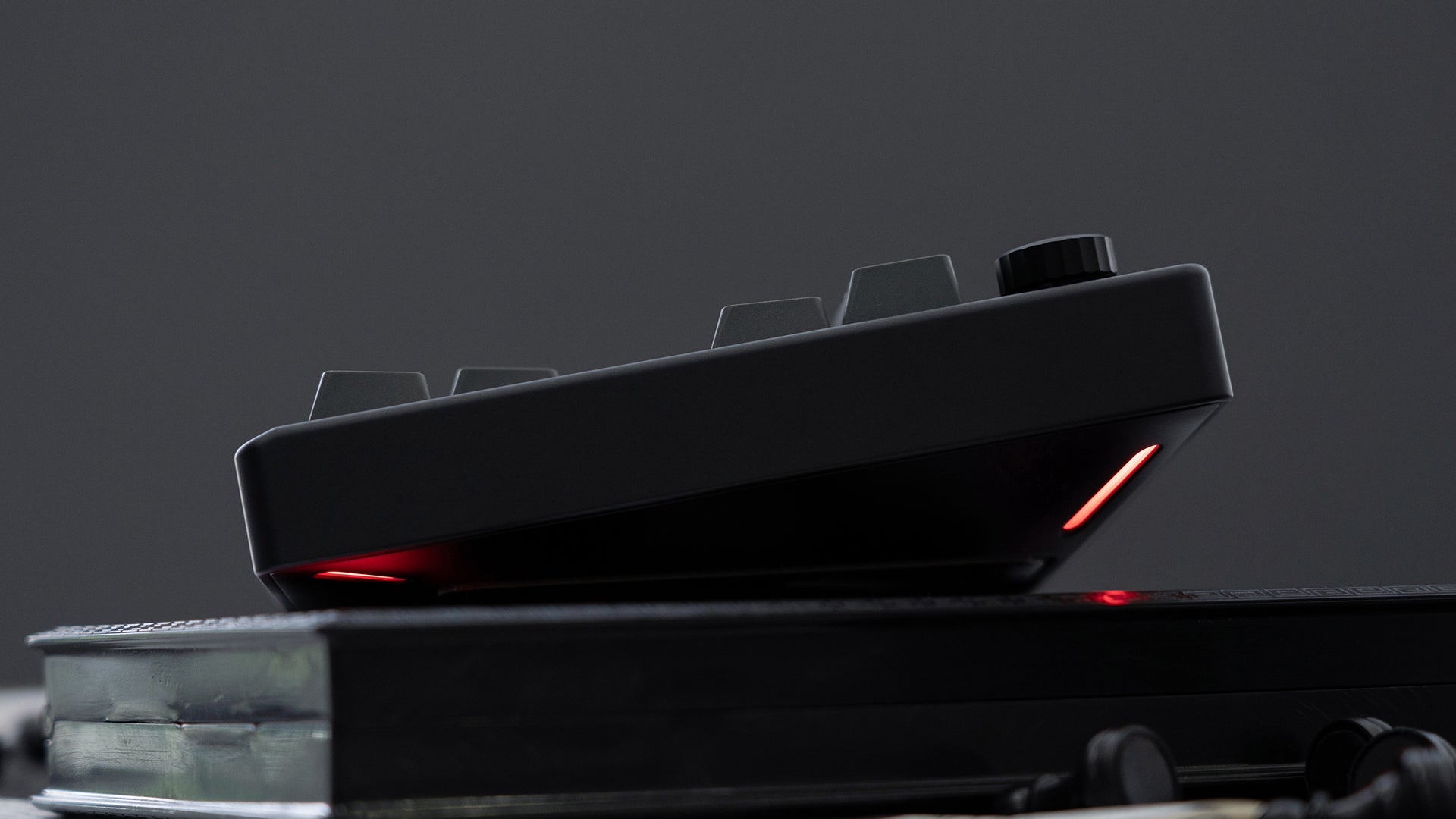

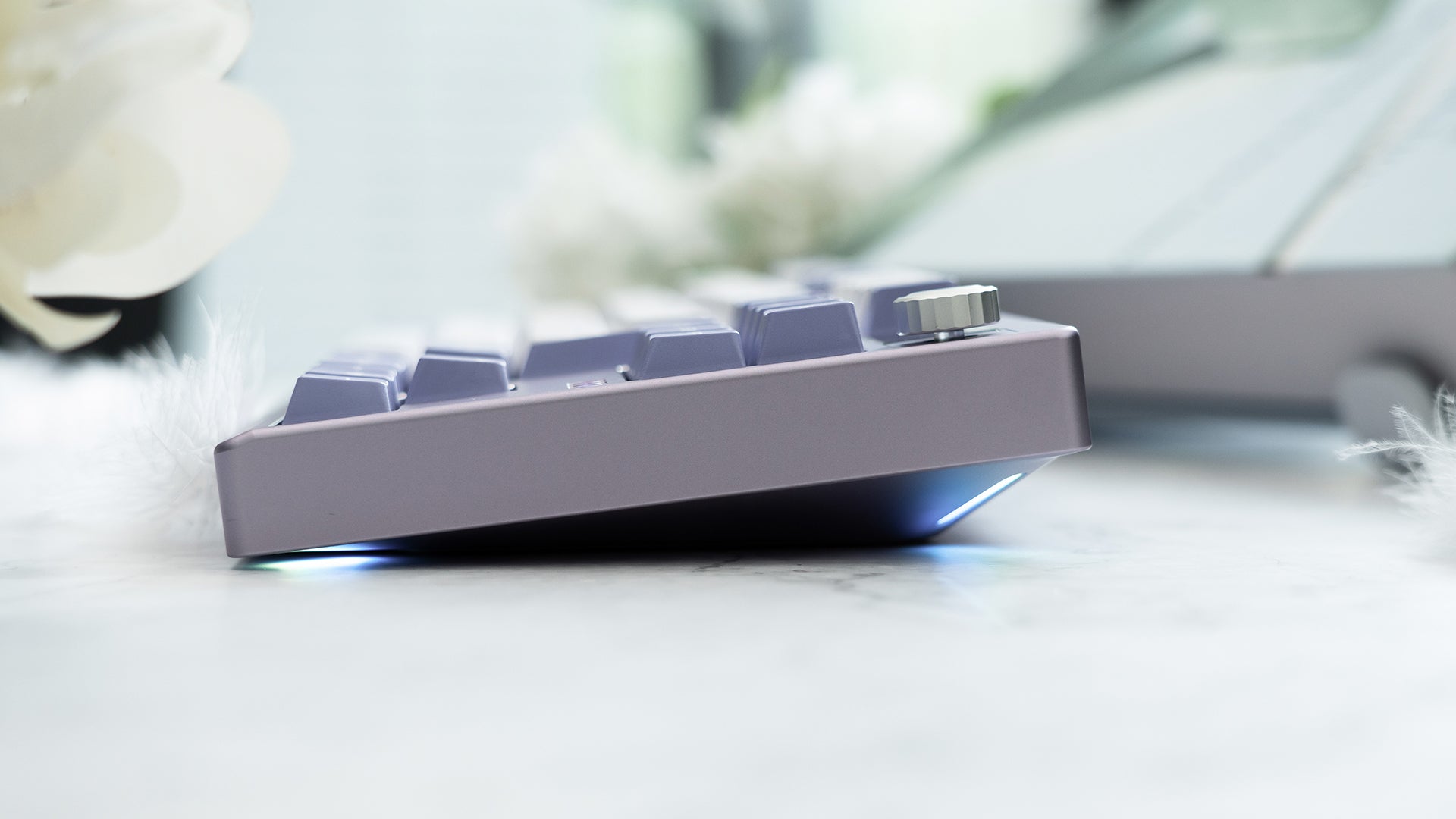

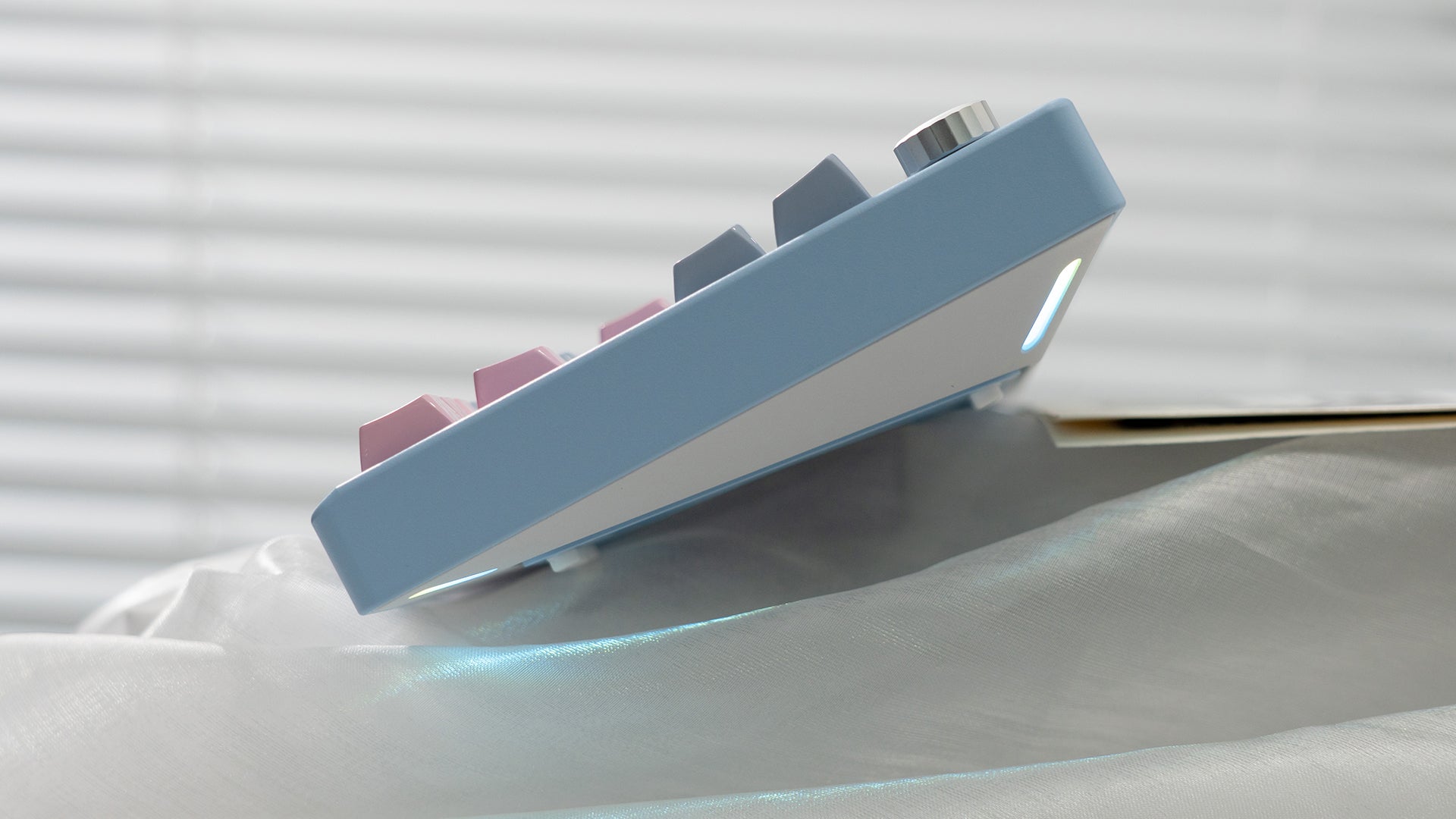

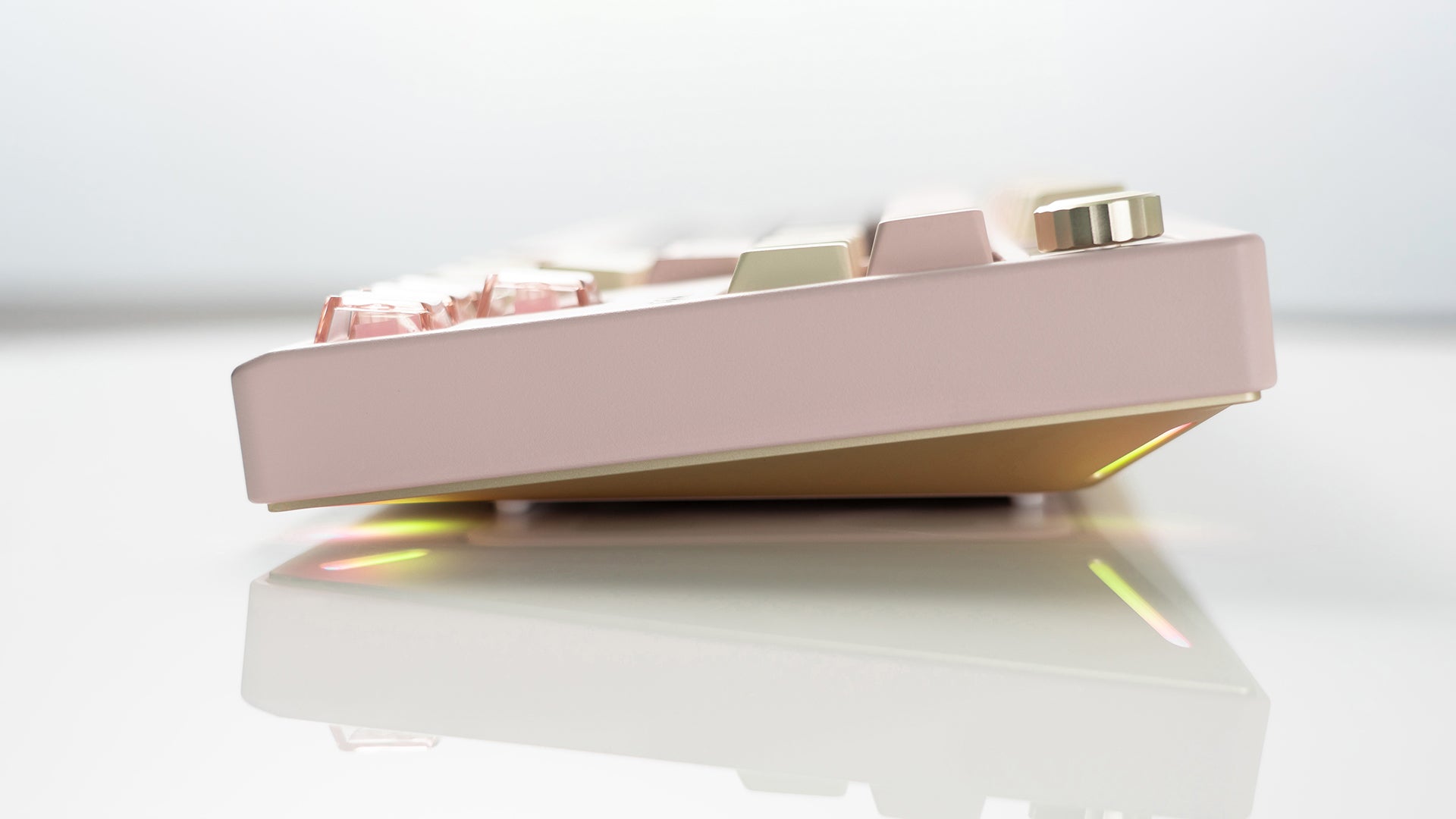

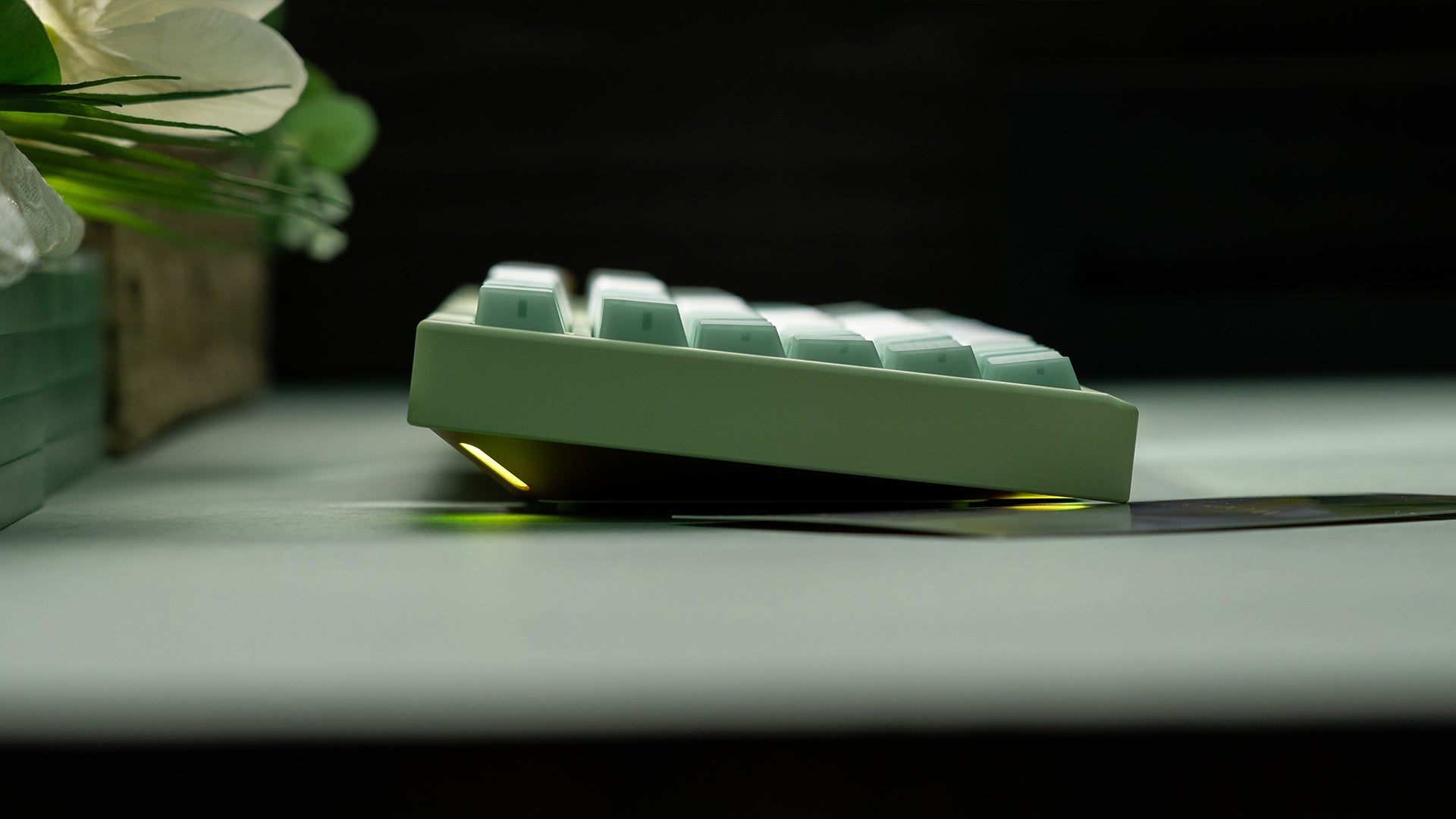

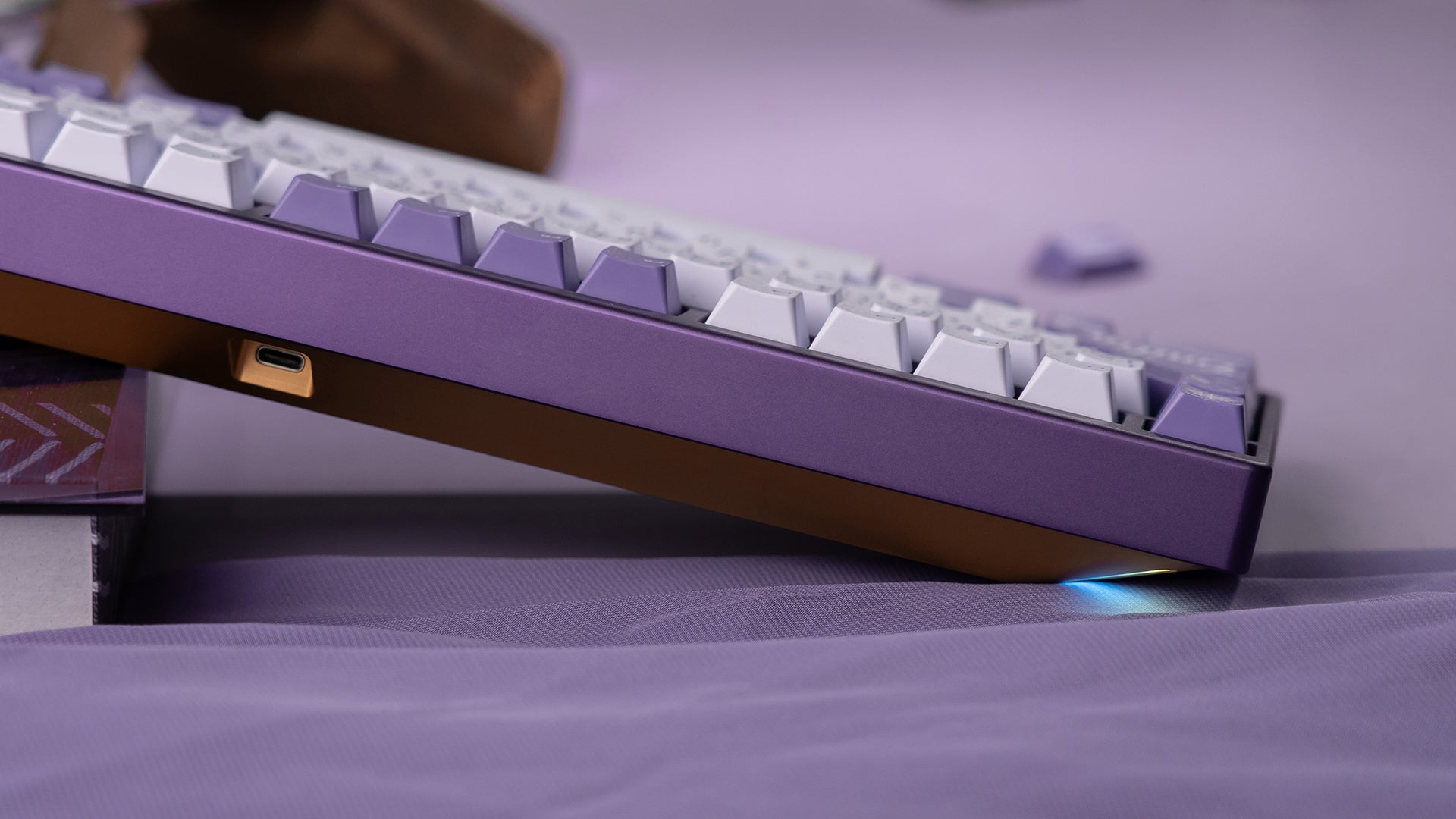

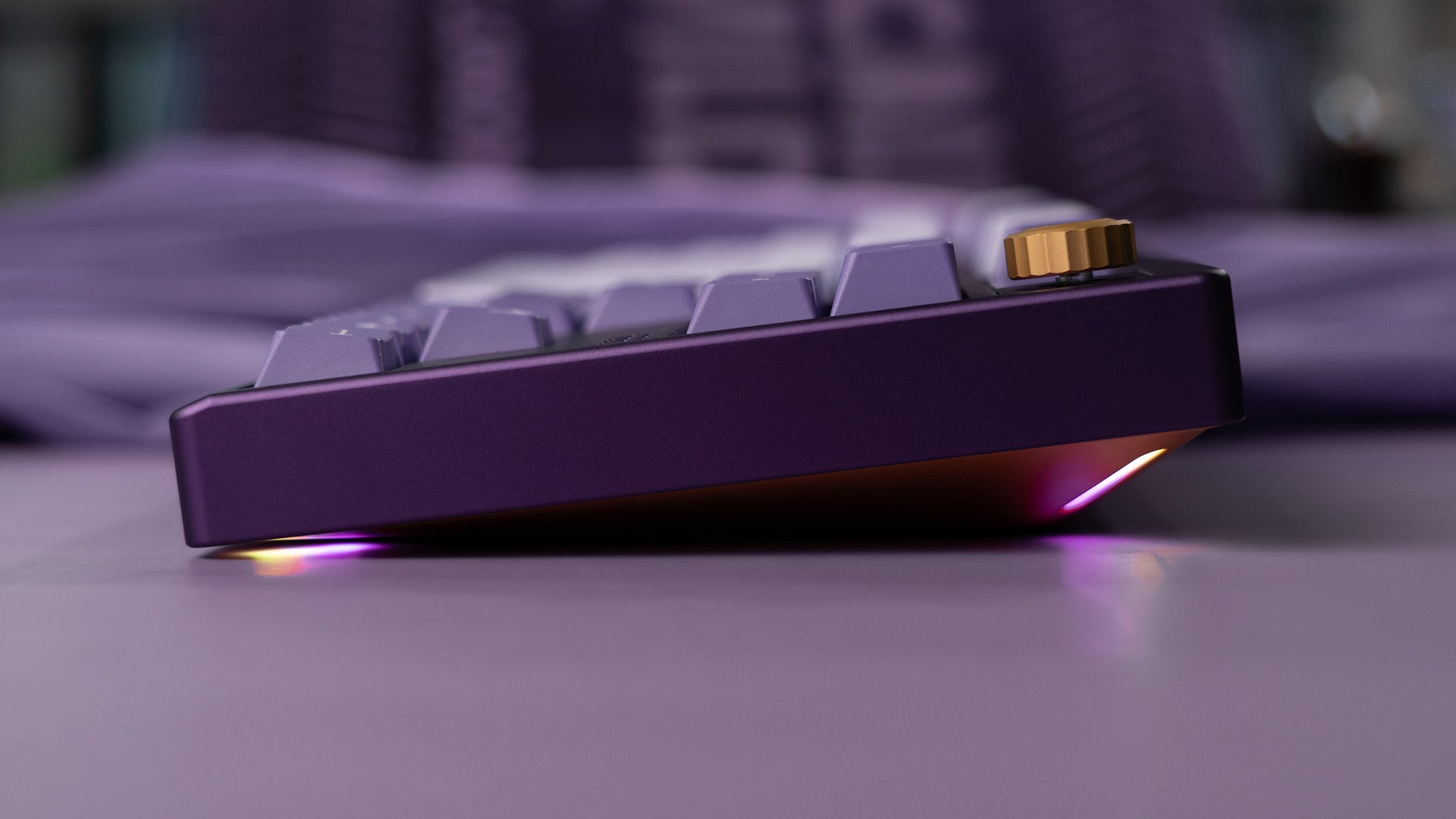

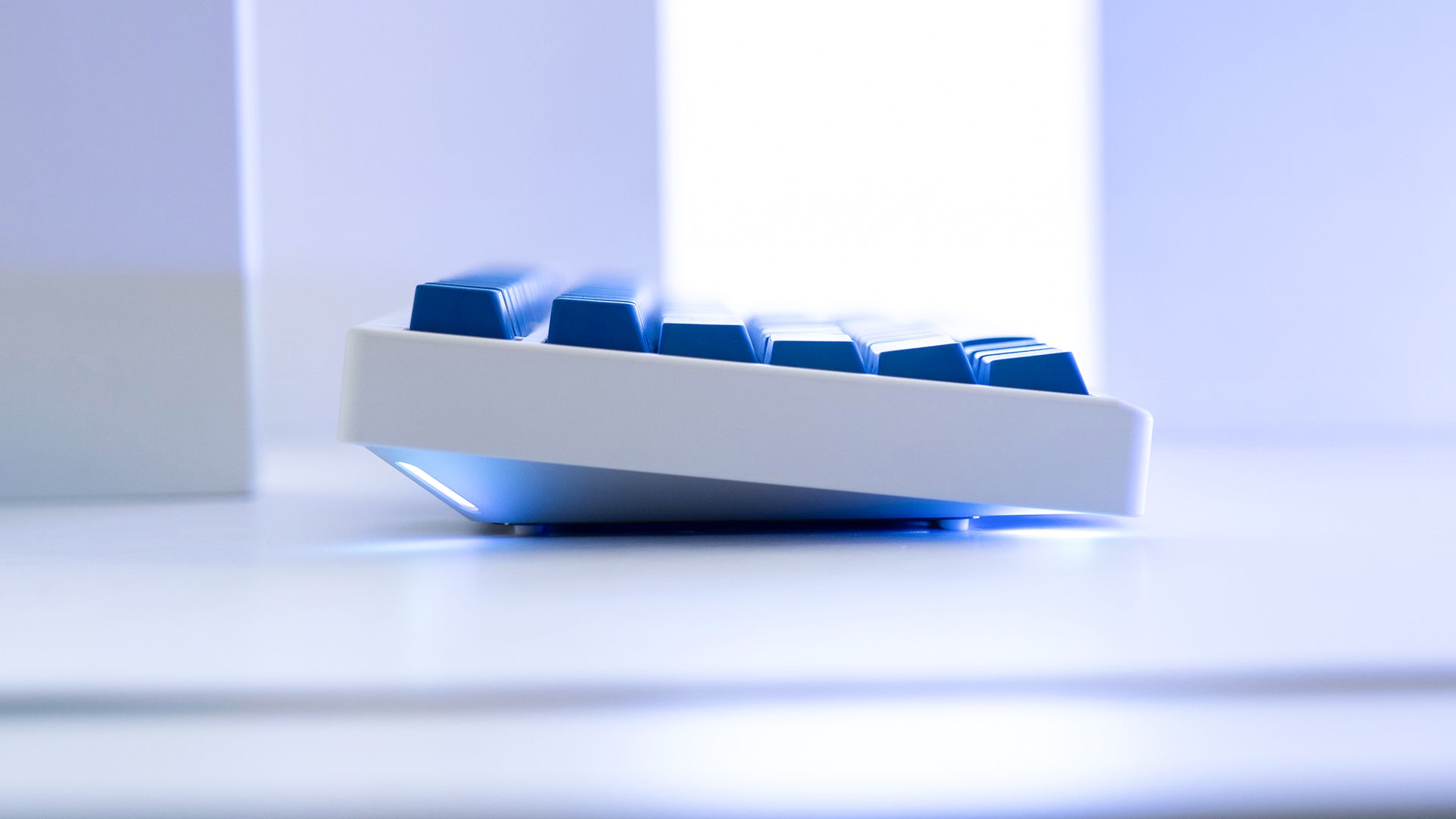

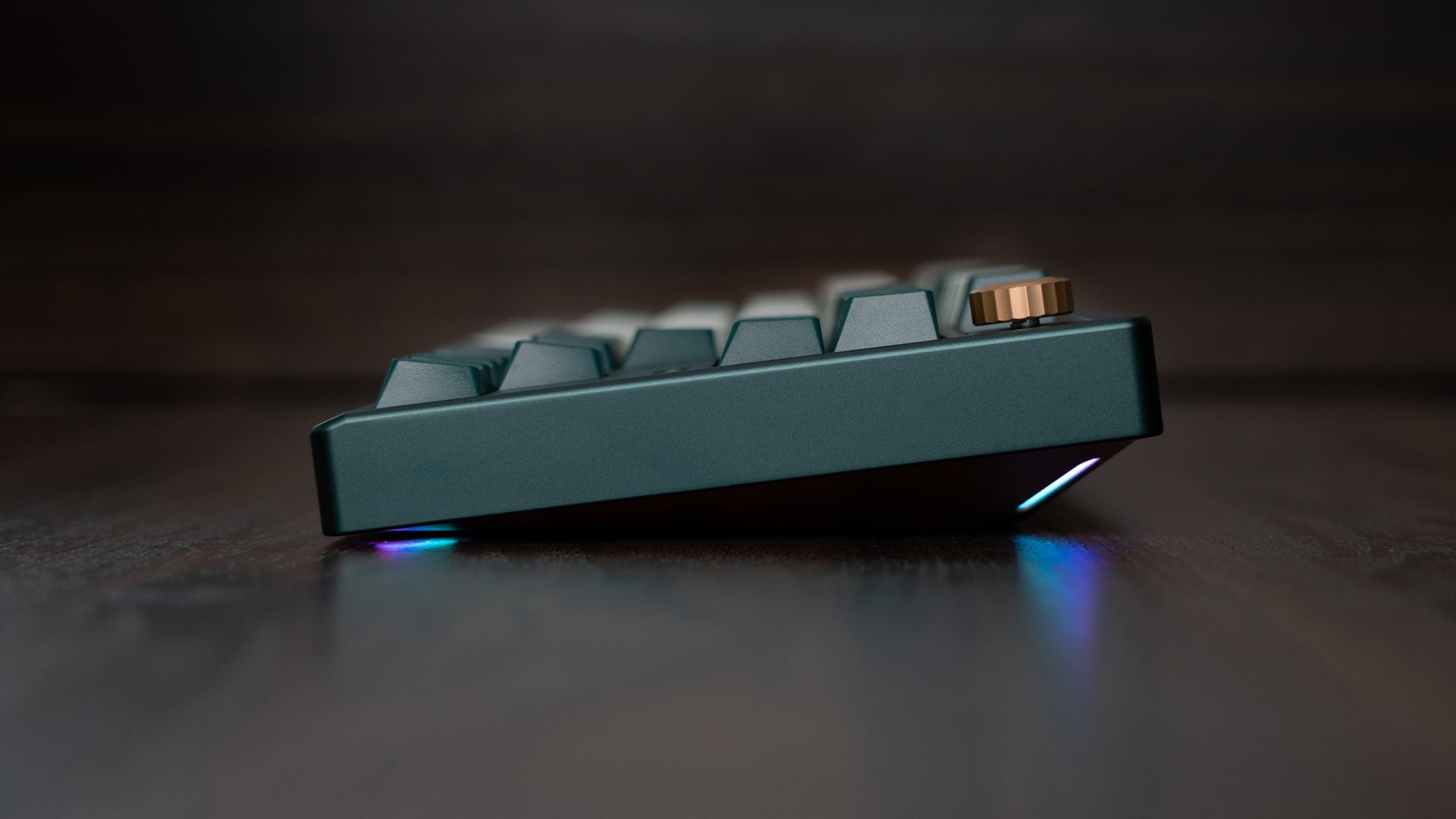

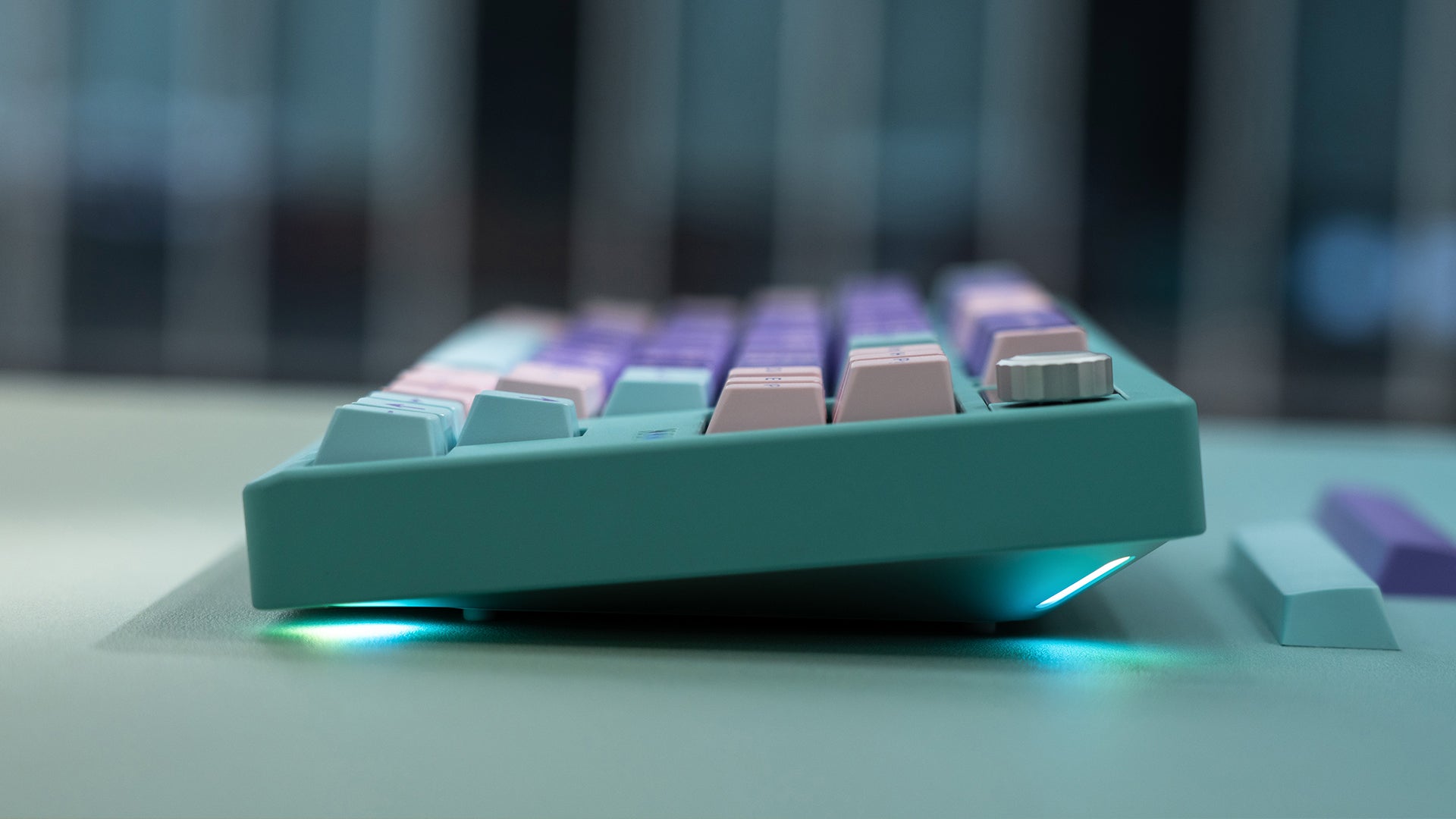

  • 40° Angled Underside: Sharply contrasts with the top case’s soft curves, amplifying visual hierarchy while achieving a sleeker profile.

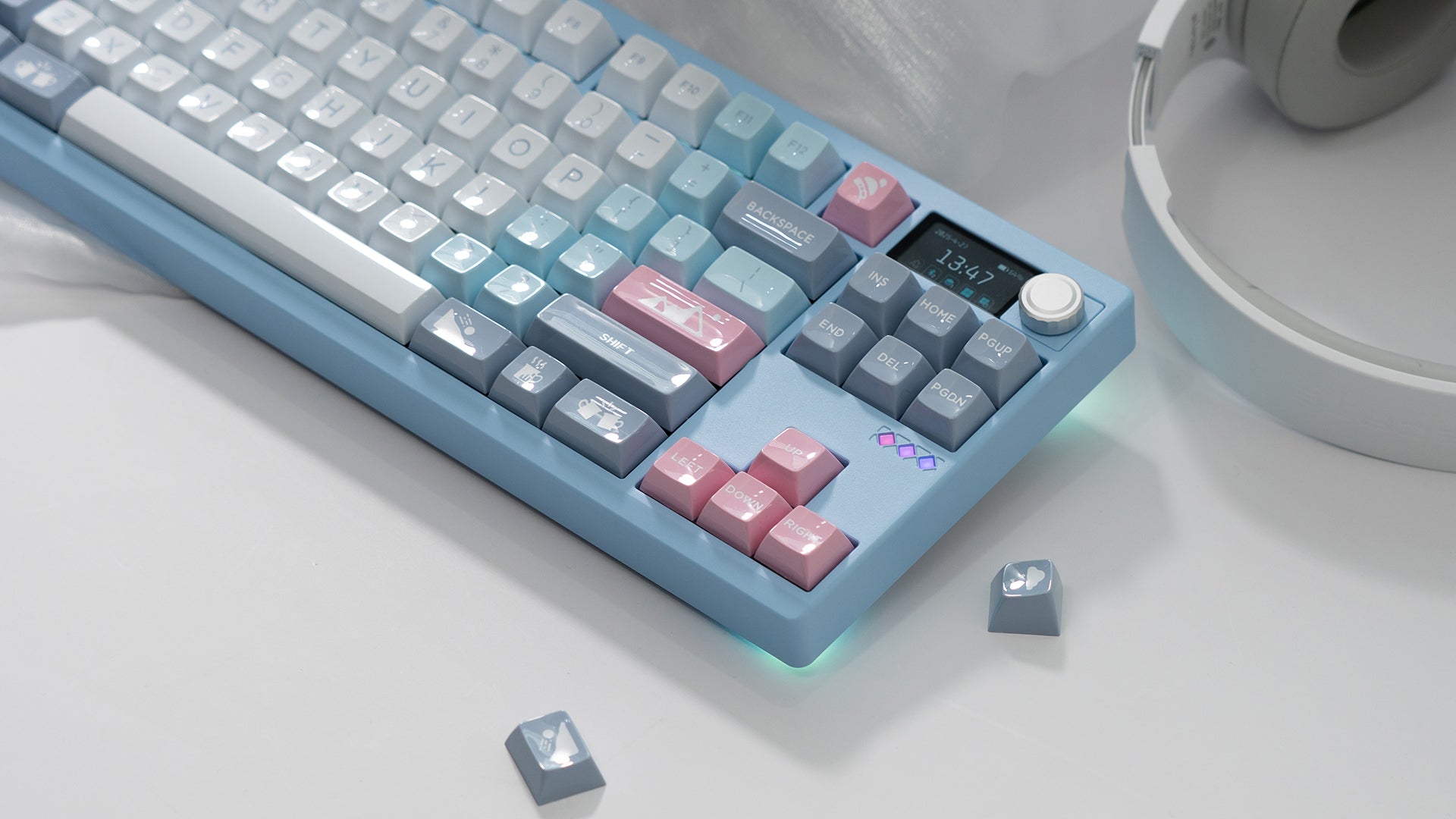

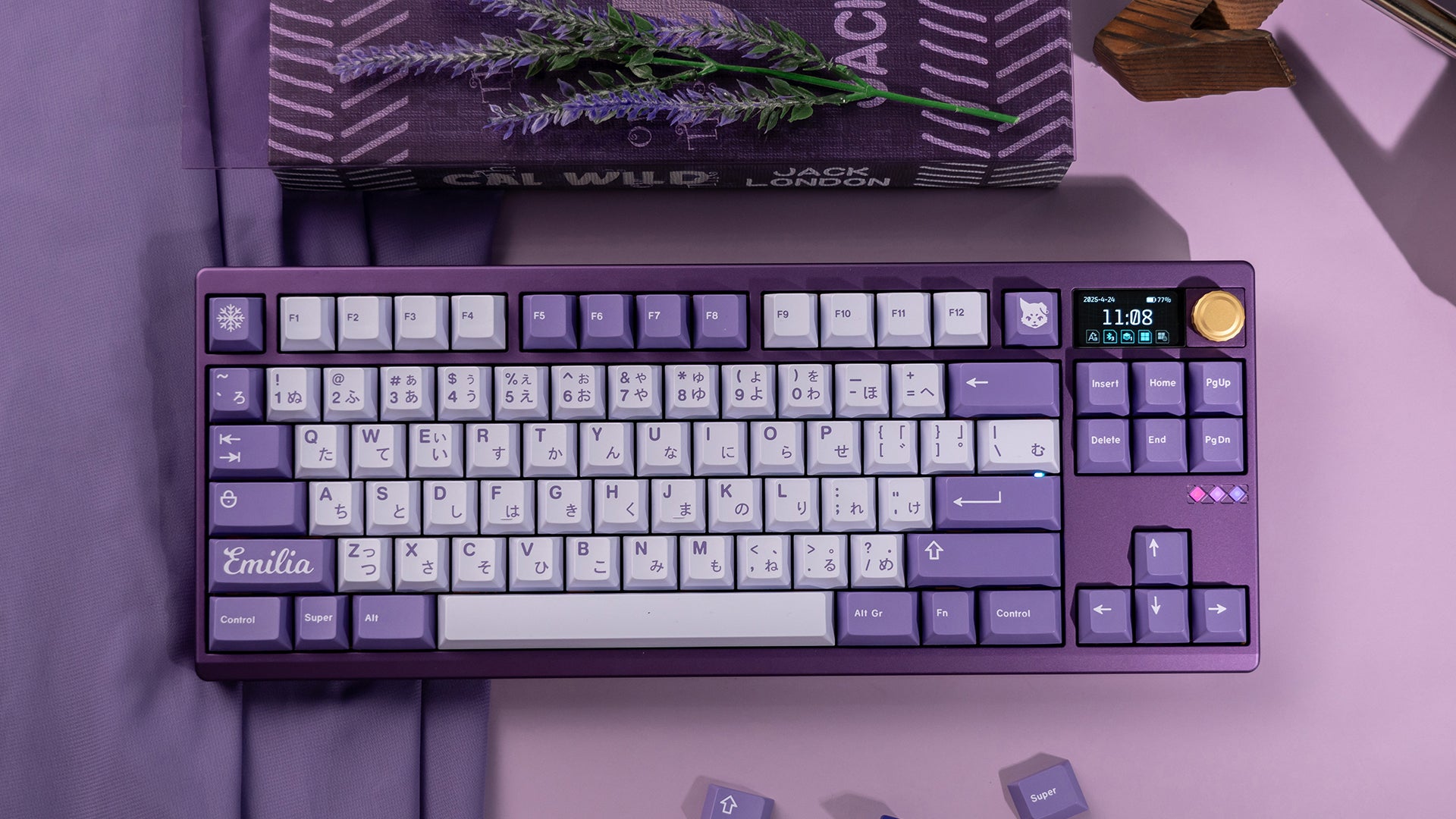

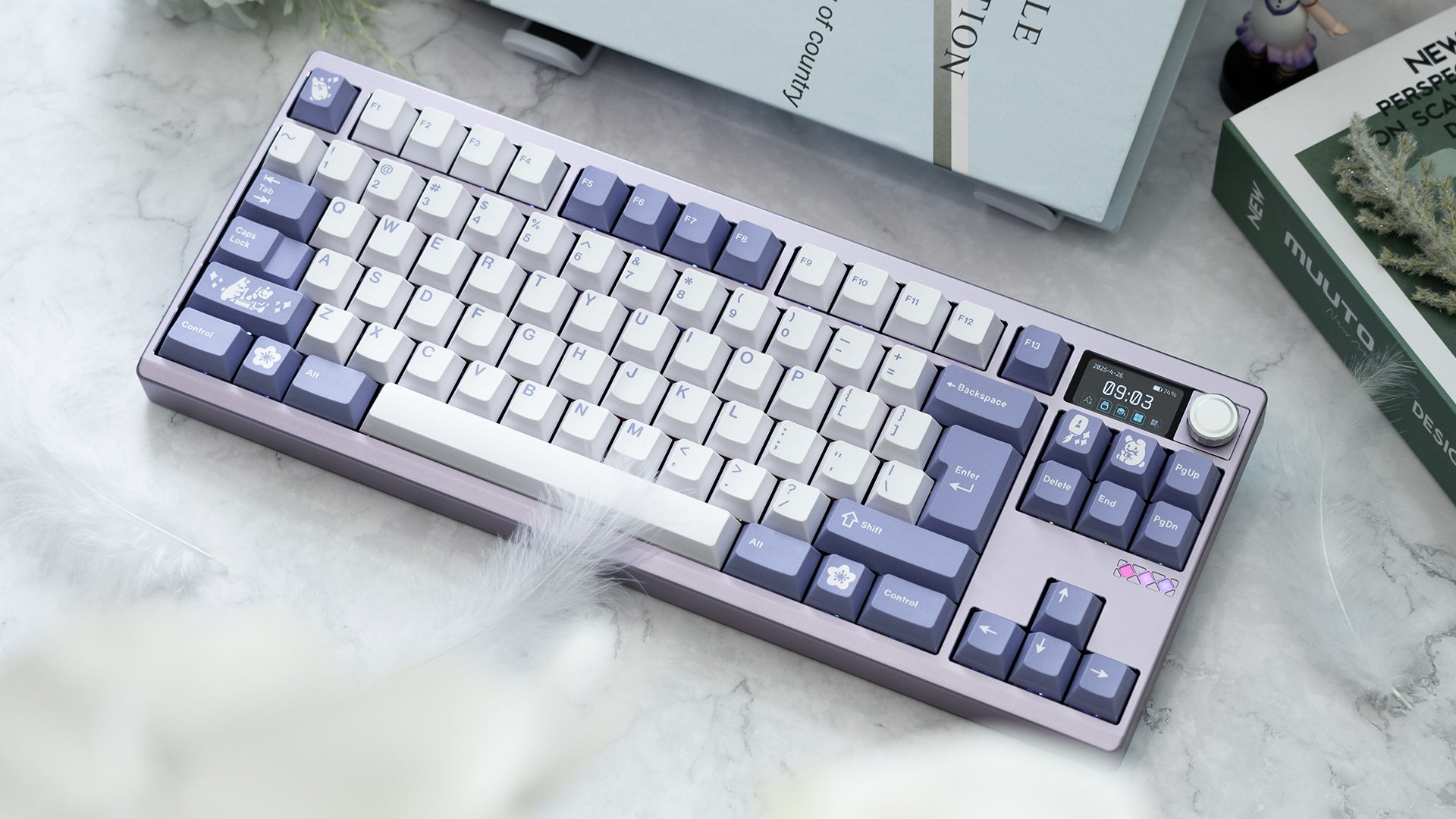

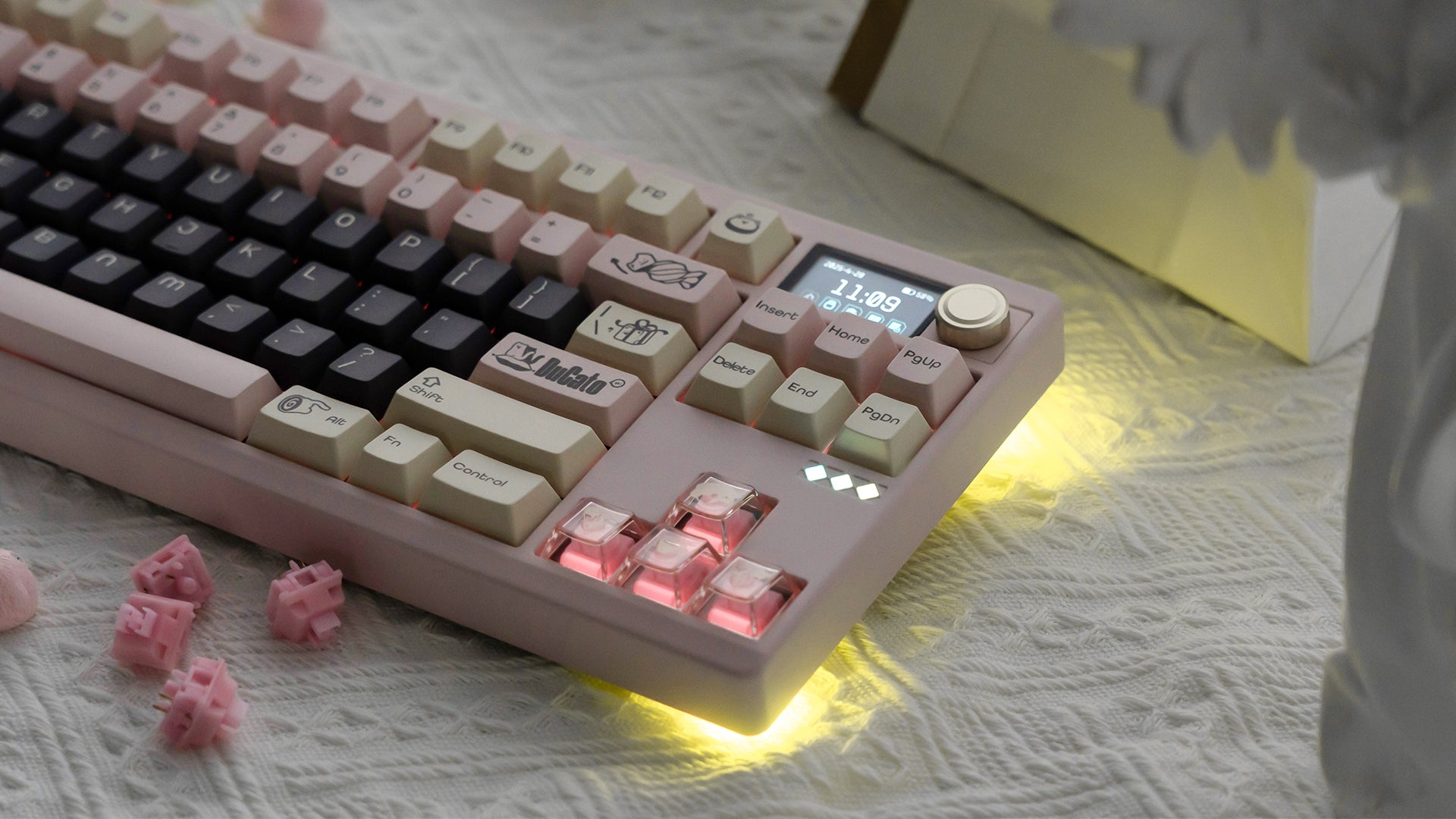

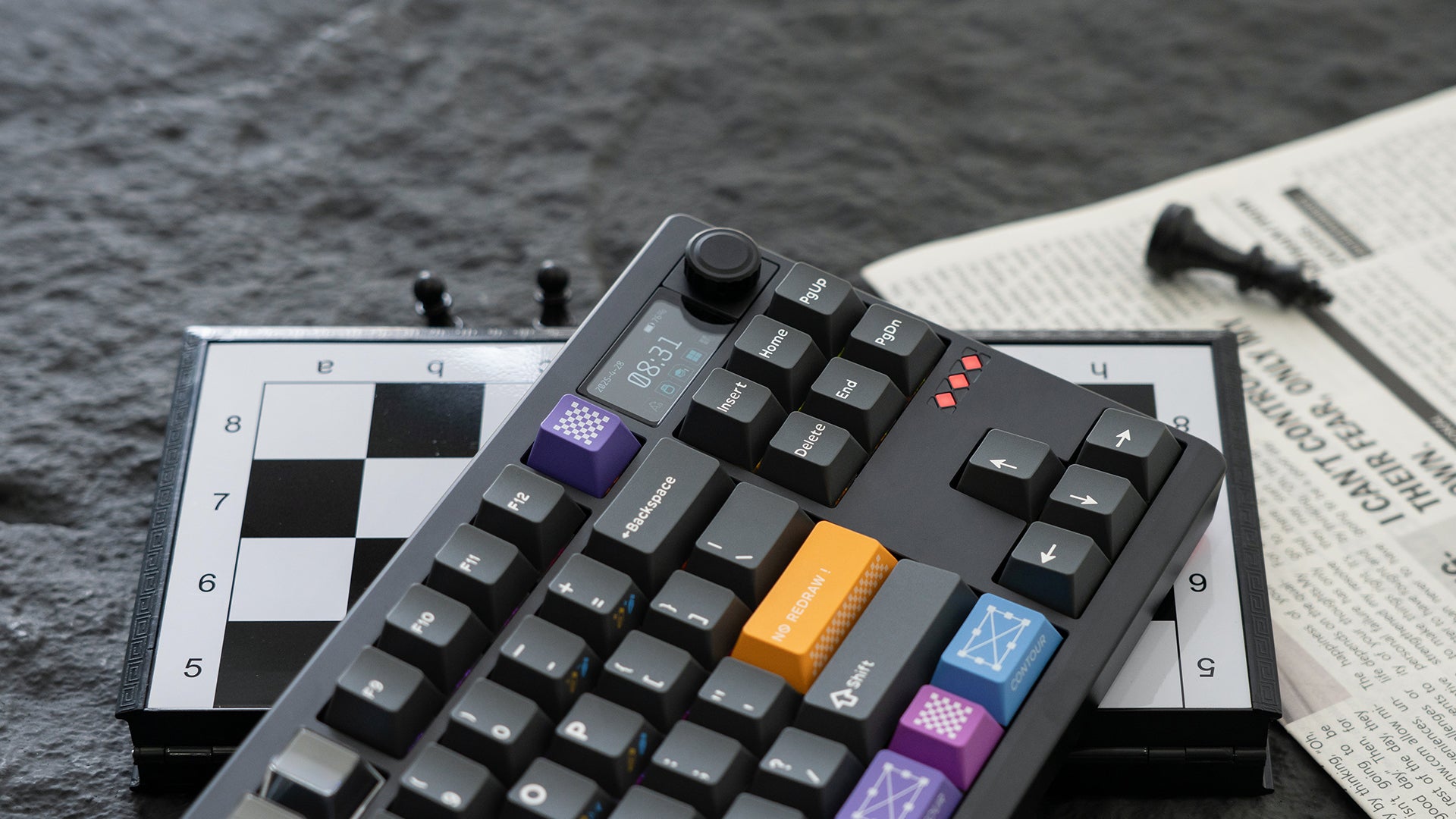

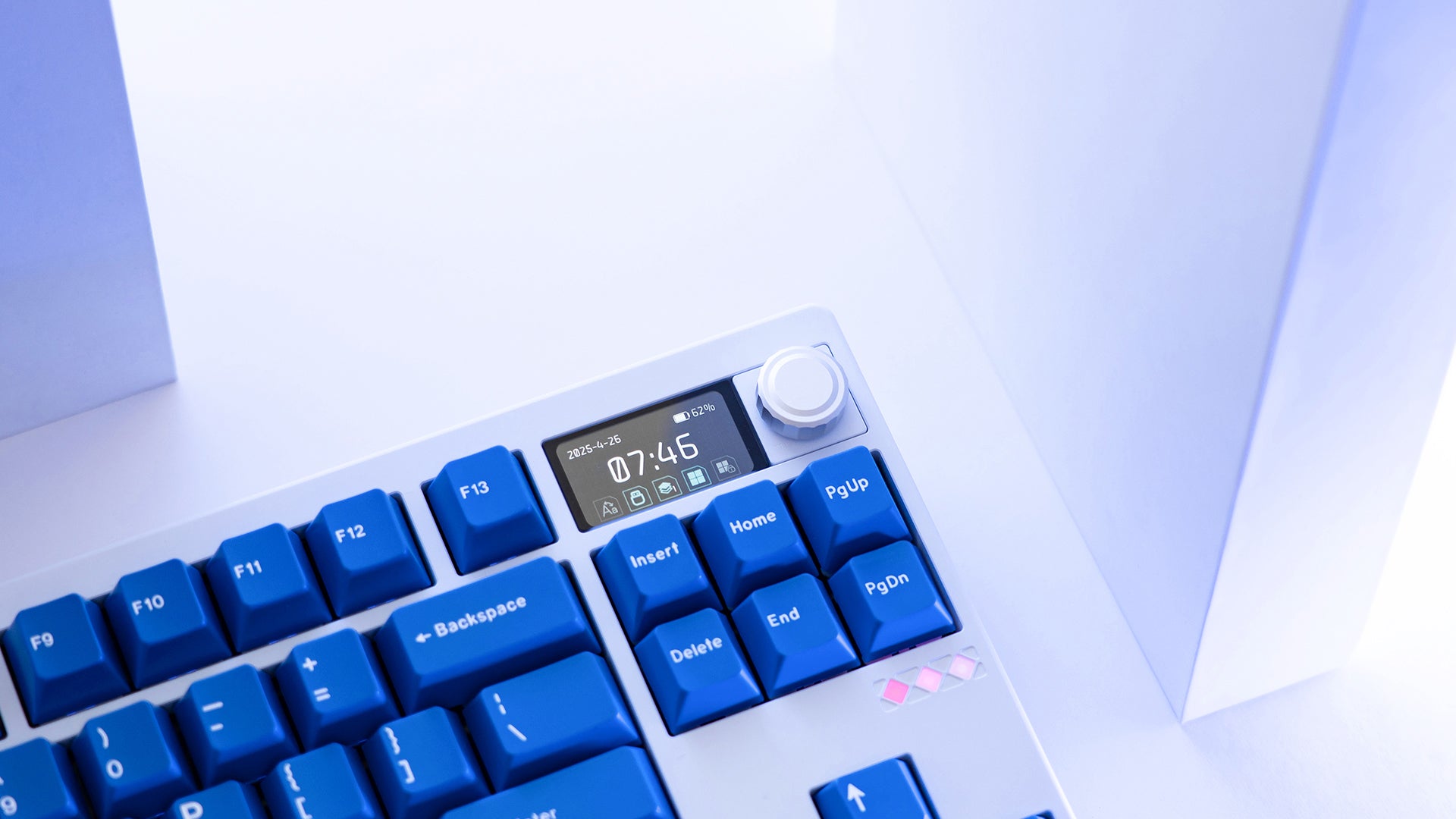

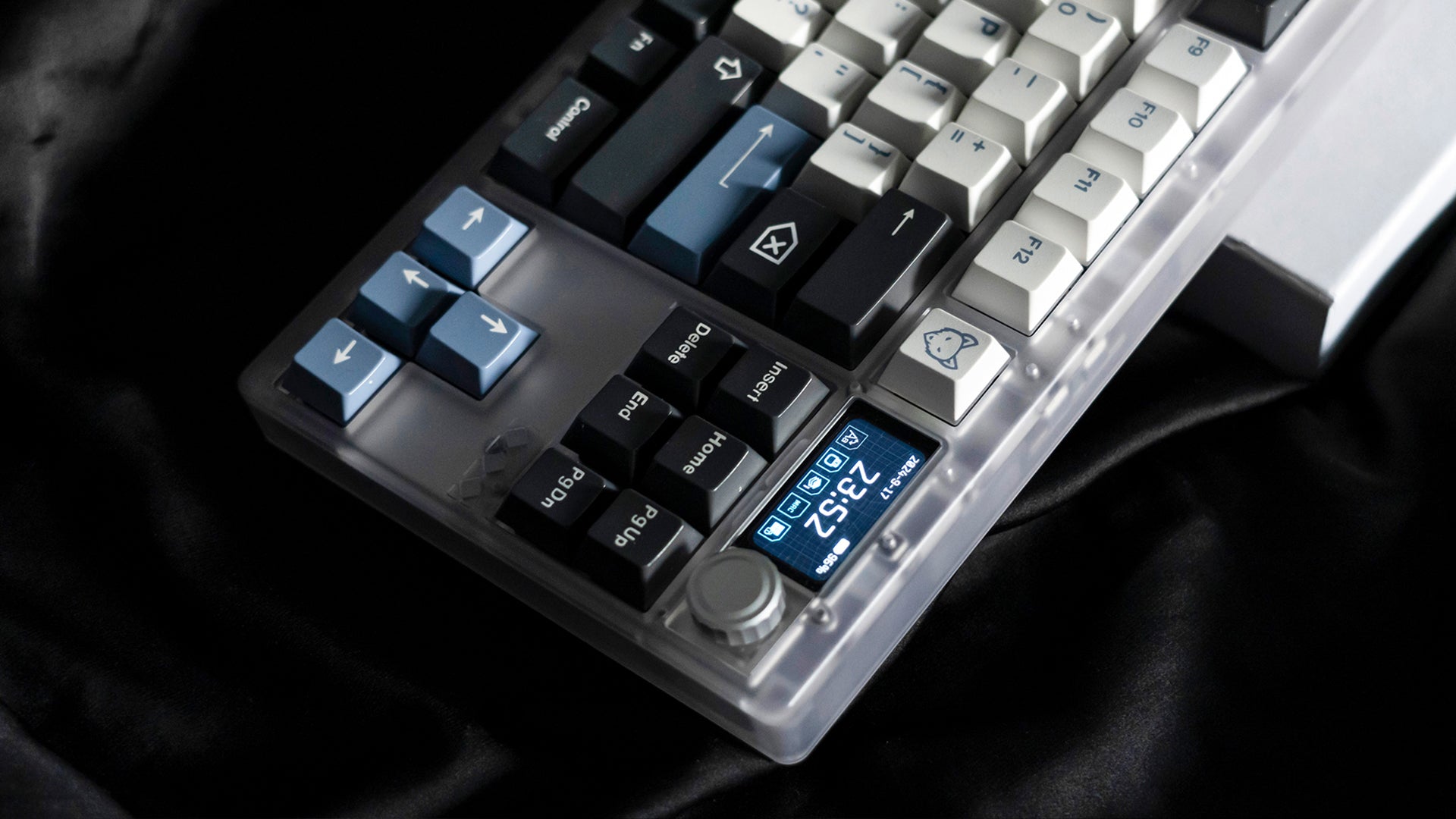

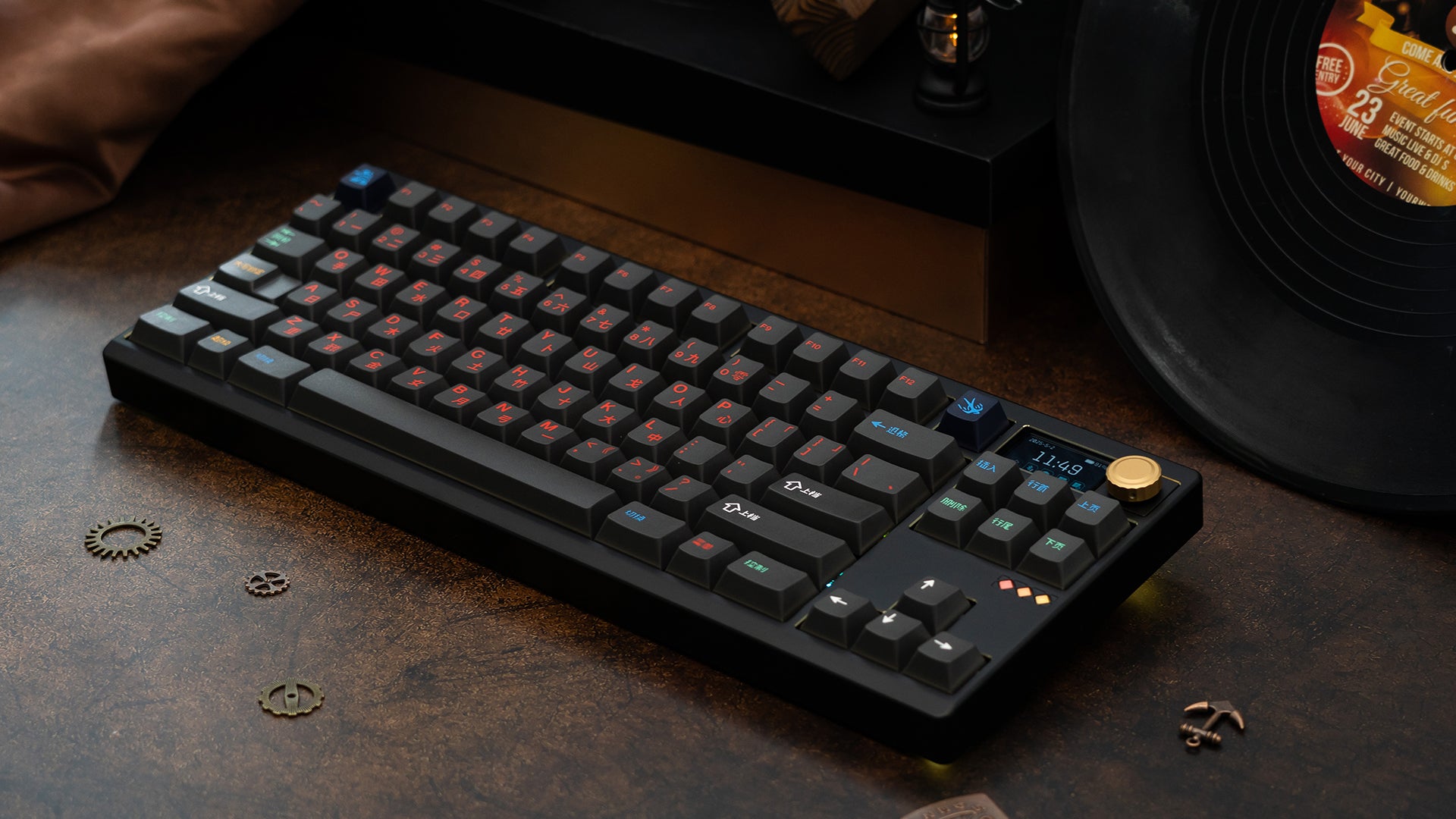

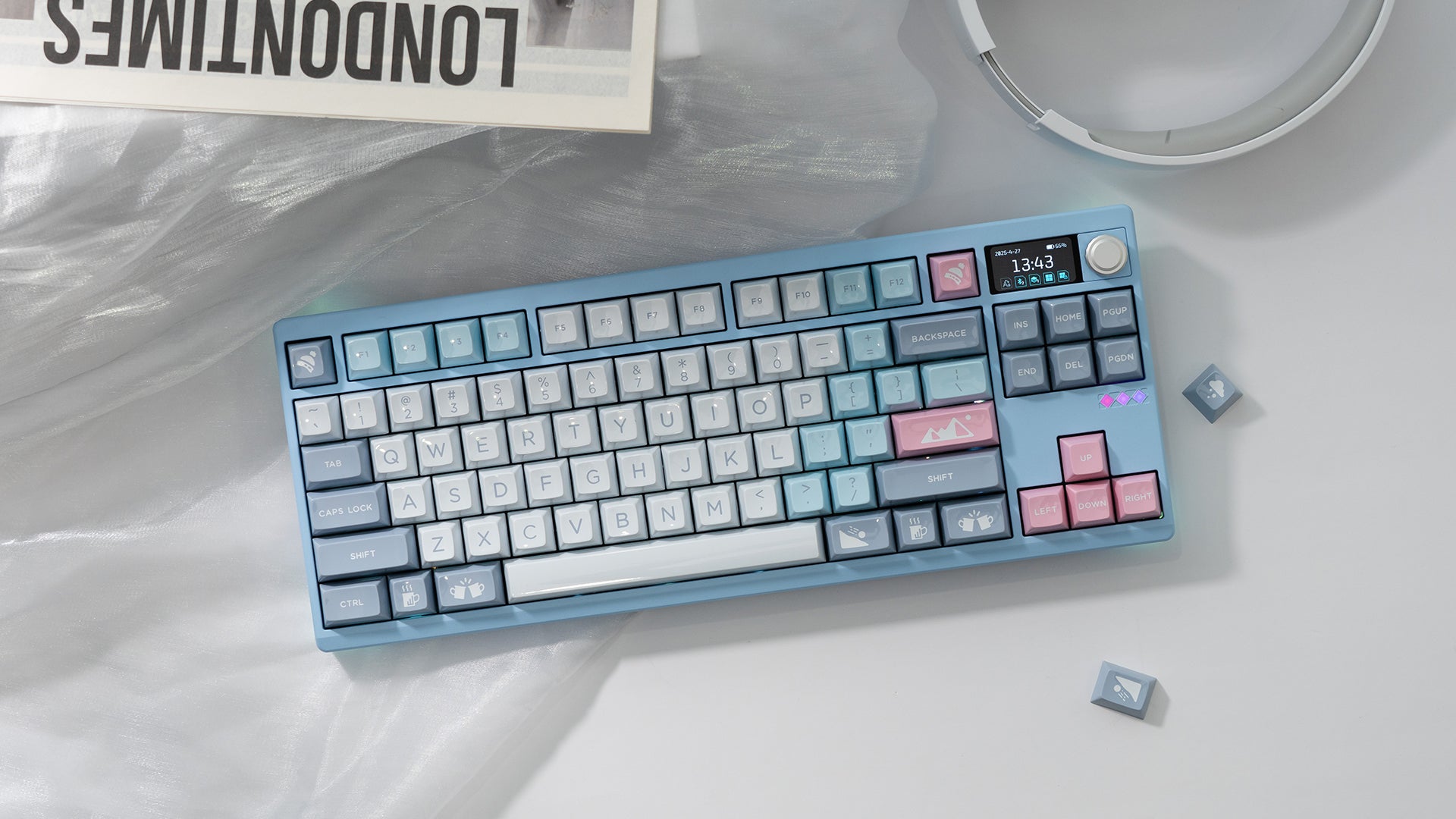

Upgraded Screen + Knob Combo – Modularity Redefined

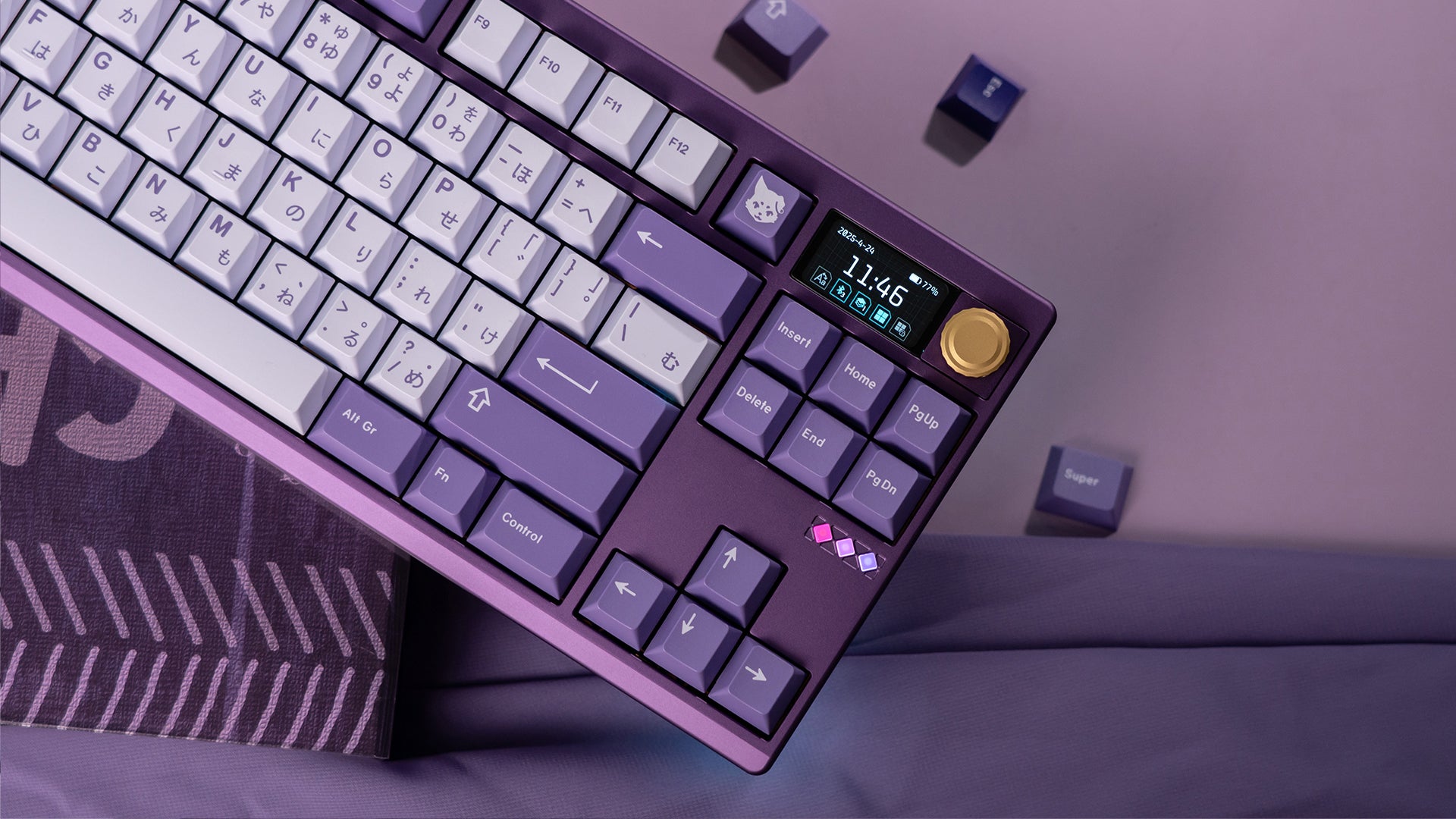

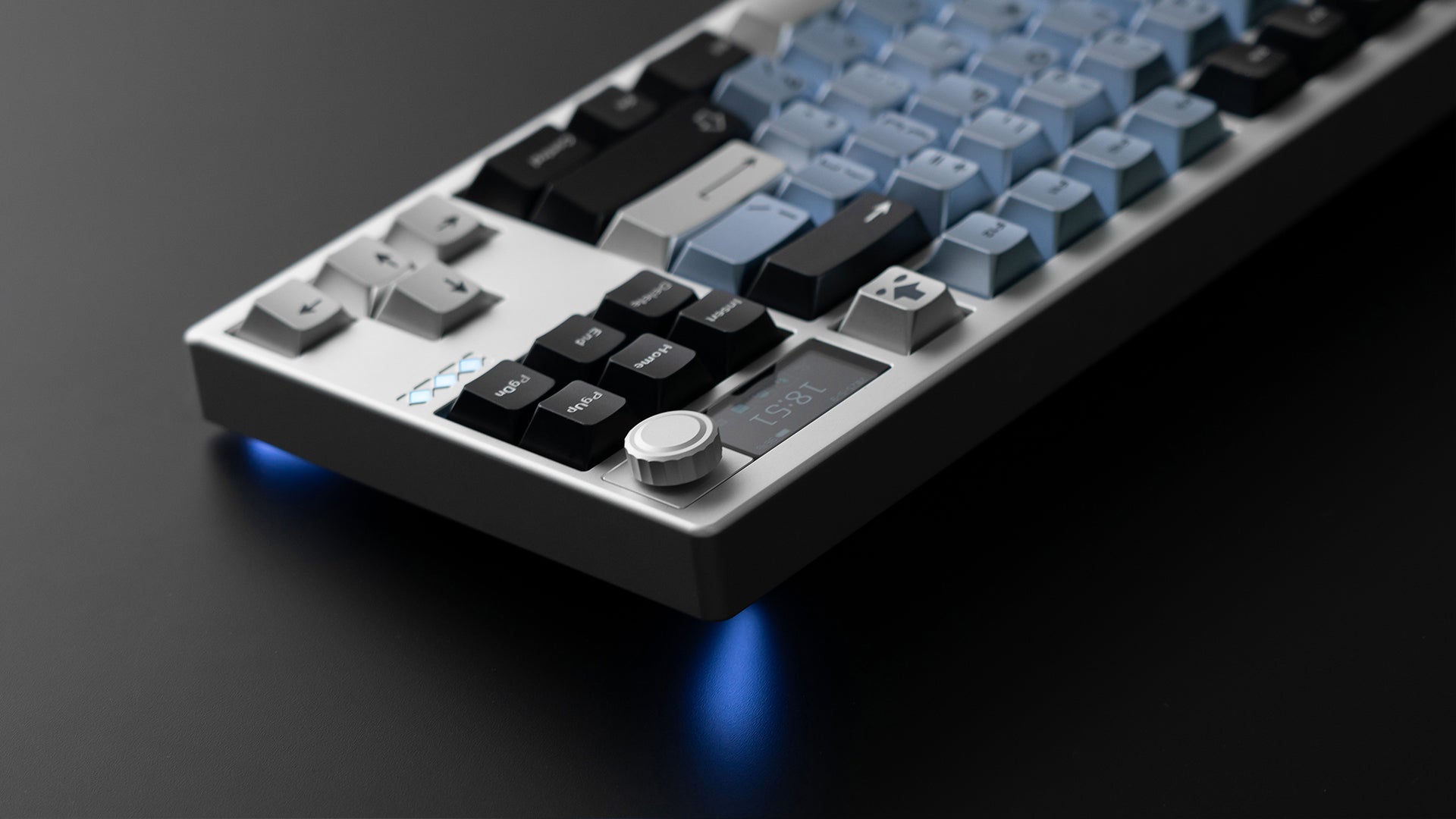

Our newly upgraded modular design features a pogo-pin-integrated screen and introduces innovative hot-swappable technology for the knob, eliminating the need for replacement modules to deliver a more seamless user experience. The knob’s ripple-textured surface not only ensures anti-slip grip but also enhances its futuristic aesthetic.

8K Polling Rate – Elite Responsiveness

DYNA adopts an 8K polling rate this time, with extremely low latency, measured at just 0.6ms (tested), ensuring a better gaming experience in FPS games. In the future, we will also launch a magnetic switch edition in collaboration with Star Flash, bringing the latest magnetic switch solution.

One Keyboard, Infinite Configurations

DYNA shatters limits with flexible screen/knob layouts:

Full Keys (No Screen/Knob)

Knob + Two-keys

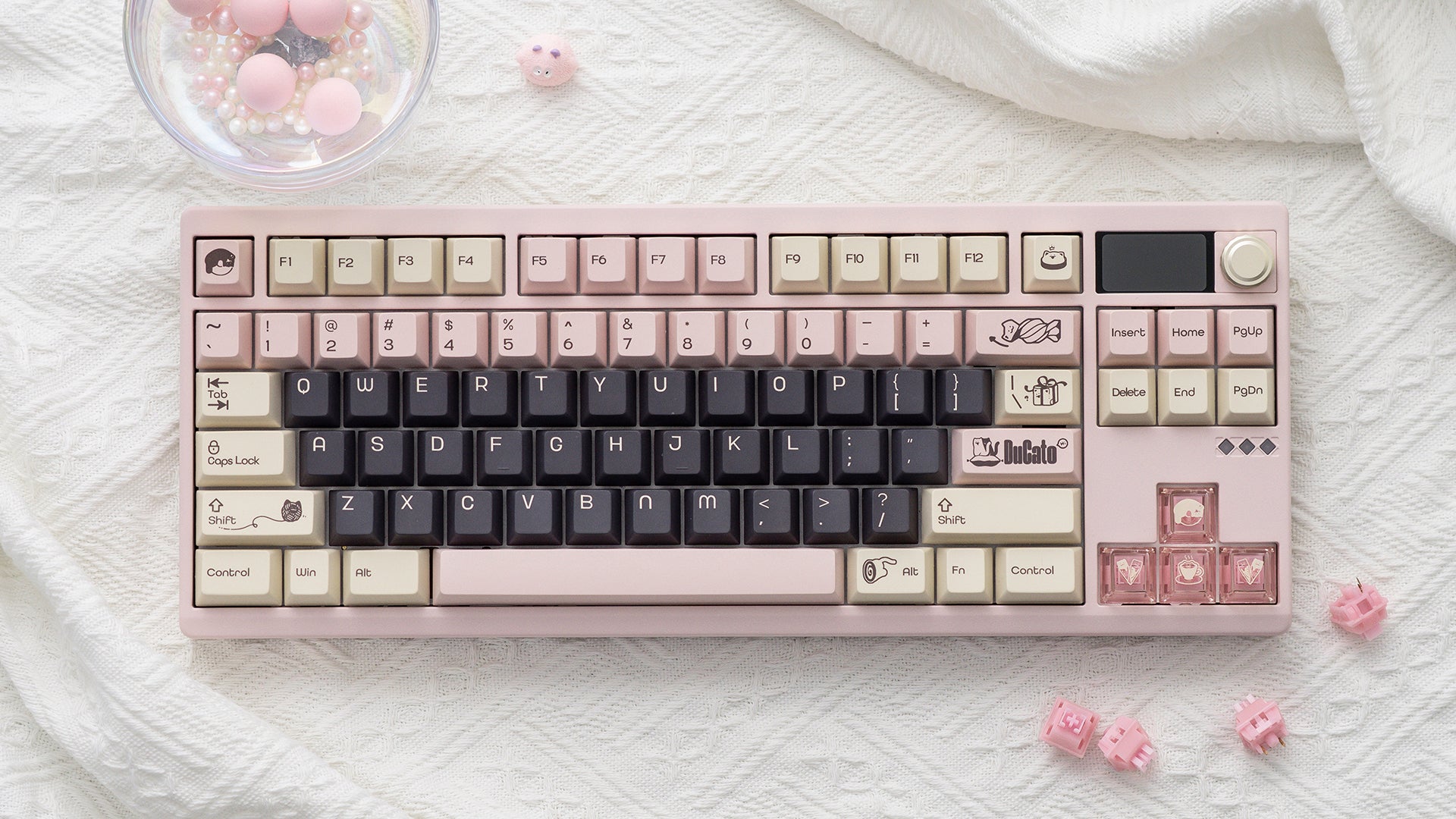

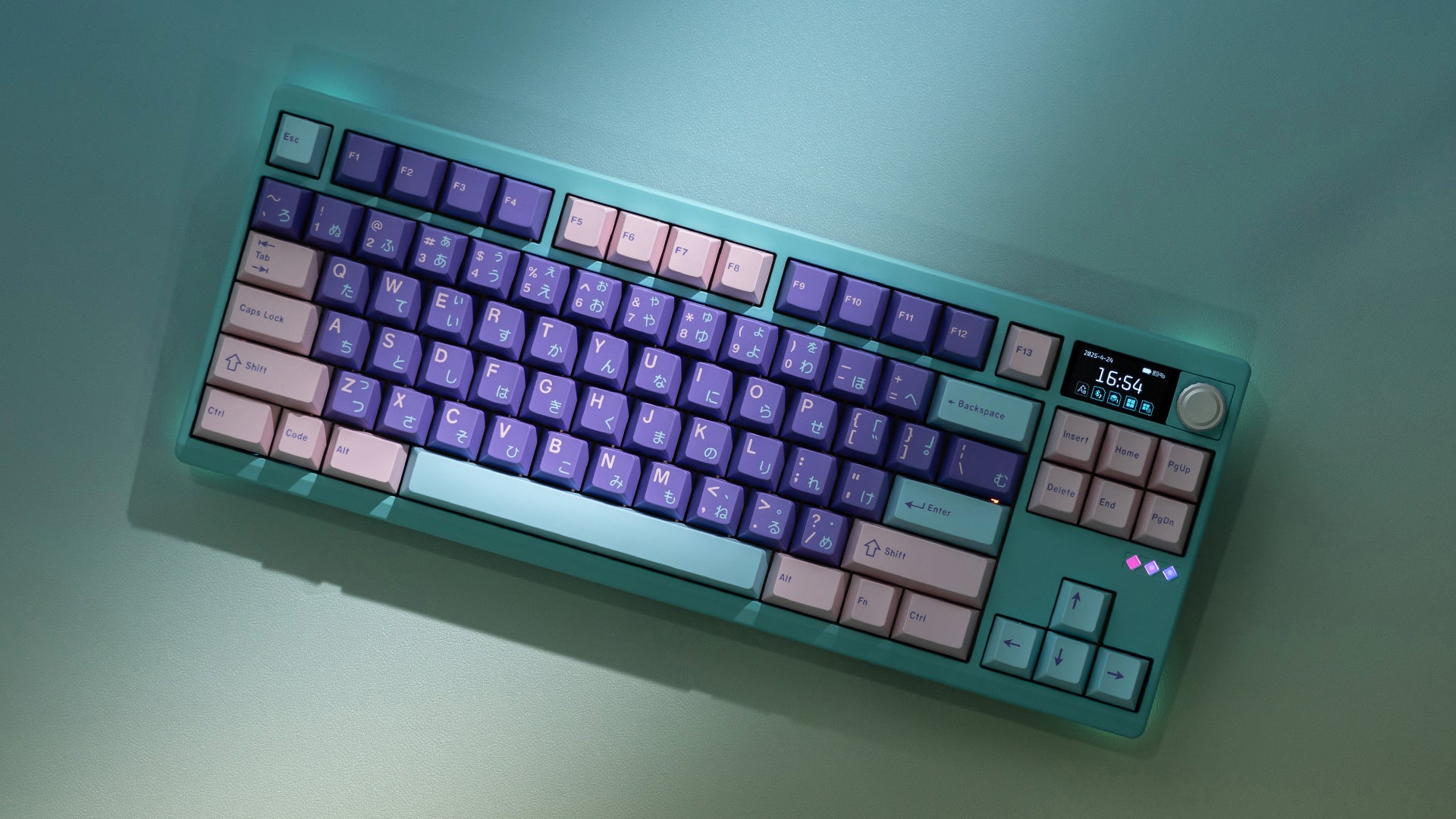

Screen + Single Key

Premium Acoustic & Tactile Experience

The design of DYNA fully carries forward the advantages of TIGA, ensuring optimal performance in both sound and tactile feedback to meet the preferences of different users.

  • 4 Mounting Systems: Top Mounting，Split O-Ring Mounting，Elastic Bar Silicone Mounting，Silica Gel Particle Mounting
  • 3 Foam Options: Poron Foam，Classic Foam，Cork Sandwich

15 Signature Colorways

This release introduces three new colors—Eggplant Purple, Bavarois, and the Frosted Clear . Among these, the PC Edition stands out for its elegant yet powerful aesthetic.

All 15 colors:  Forest Green, Gunmetal Gray, Eggplant Purple, Ink Green, Aquamarine, E-White , Anodized Black, Anodized Lavender, Strawberry Icecream, GT Silver, Scarlet Red, Bavarois, Frosted Clear, Sky Blue, Milky Green

Exploded View

Dimensions

Layout

Price Information

Collaboration Edition

Regarding the Zoom TKL DYNA X Voyager Edition and Zoom TKL DYNA X GMK Edition, we regret to inform everyone that they will not participate in this Zoom TKL DYNA group buy.

  • Zoom TKL DYNA X Voyager Edition (by Sayantan)

Zoom TKL DYNA X Voyager Edition (by Sayantan): Due to its complex manufacturing process and the previous voting results for the Voyager Edition keycaps, we are not considering its release at this time.
  • Zoom TKL DYNA X GMK Dolch Edition

Zoom TKL DYNA X GMK Dolch Edition: Due to time constraints, the GMK collaboration edition was unable to complete prototyping in time. We are actively planning to introduce this collaboration in the future. Please stay tuned for updates.

On sale together

In this GB, we are introducing the WS BigLucky Switch series, which includes three distinct switch types to cater to different sound and tactile preferences: Linear, Tactile, and Clicky.
  • WS BigLucky Switch-Linear
  • WS BigLucky Switch- Tactile
  • WS BigLucky Switch-Clicky

Product information

Keyboard Layout

80%
Title

Finish Treatment

Anodized/Acustatic/Electrophoresis
Title

Typing Angle

6.7°
Title

Front Height

18mm
Title

Case Material

6063 Aluminum
Title

Mounting System

Top Mounting

Split O-Ring Mounting

Elastic Bar Silicone Mounting

Silica Gel Particle Mounting
Title

PCB

1.2mm/1.6mm Tri-mode
Title

Battery Capacity

4000mAh*2
Title

Default Plate

Copper/Aluminium/Carbon Fibre/Fr4/PC/POM
Title

Connection Methods

USB/BLE/2.4G
Title

Latency Data (wireless and wired)

USB：0.6ms
BLE：8ms
2.4G：1.1ms
Title

Bluetooth Version

BLE5.4
Title

Bluetooth PCB Polling Rate

133Hz
Title

2.4GHz Polling Rate

4KHz
Title

Wired Polling Rate

8KHz
Title

Supported Layouts

ANSI, ISO
Title

VIA Support

Yes
Title

RGB Support

Yes
Title

Hotswap Support

Yes
Title

OS Compatibility

Win/Mac/Linux/Android
Title

Dimensions

356.5*139*34.2mm
Title

Real Photograph

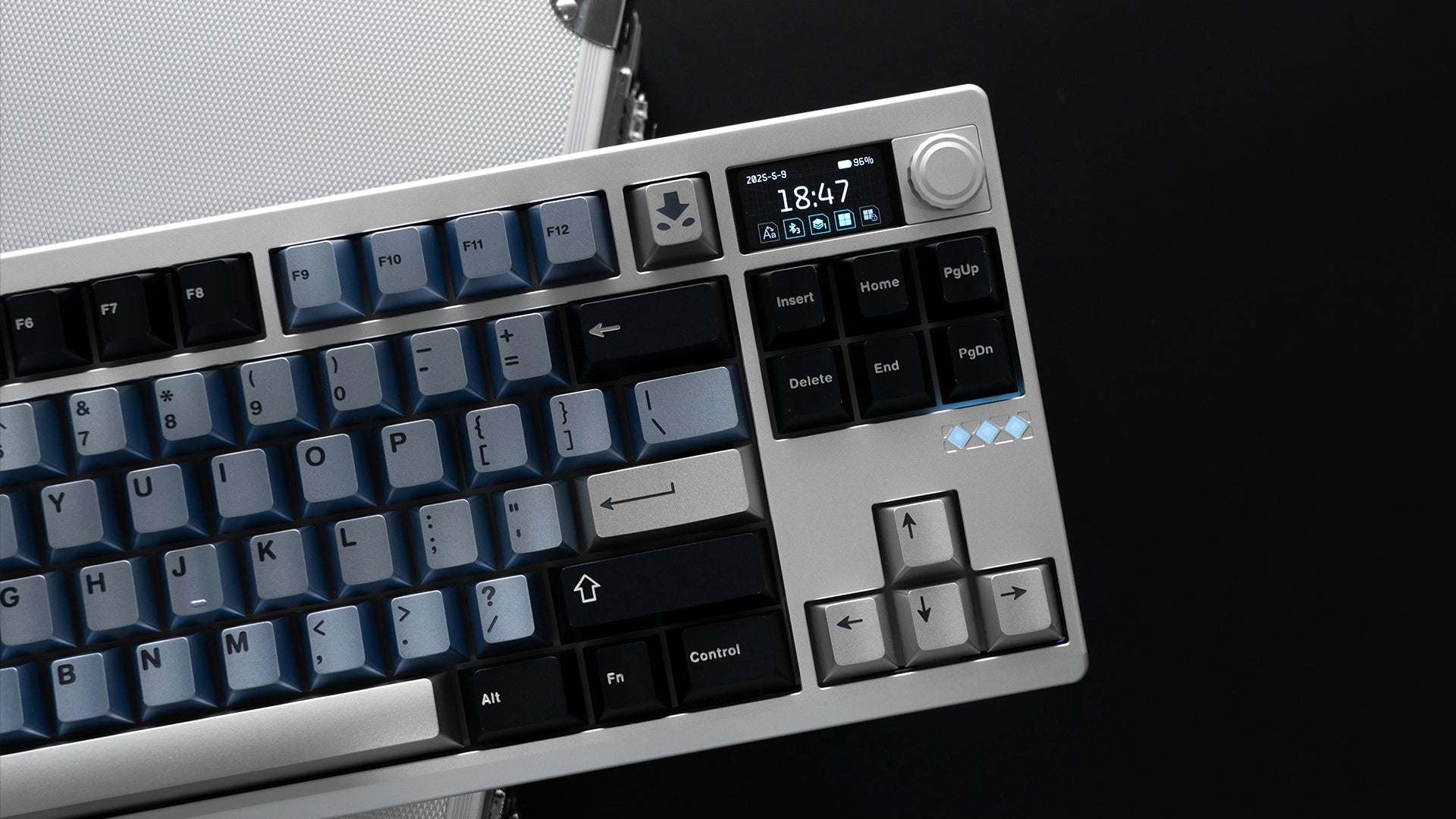

  • GT Silver

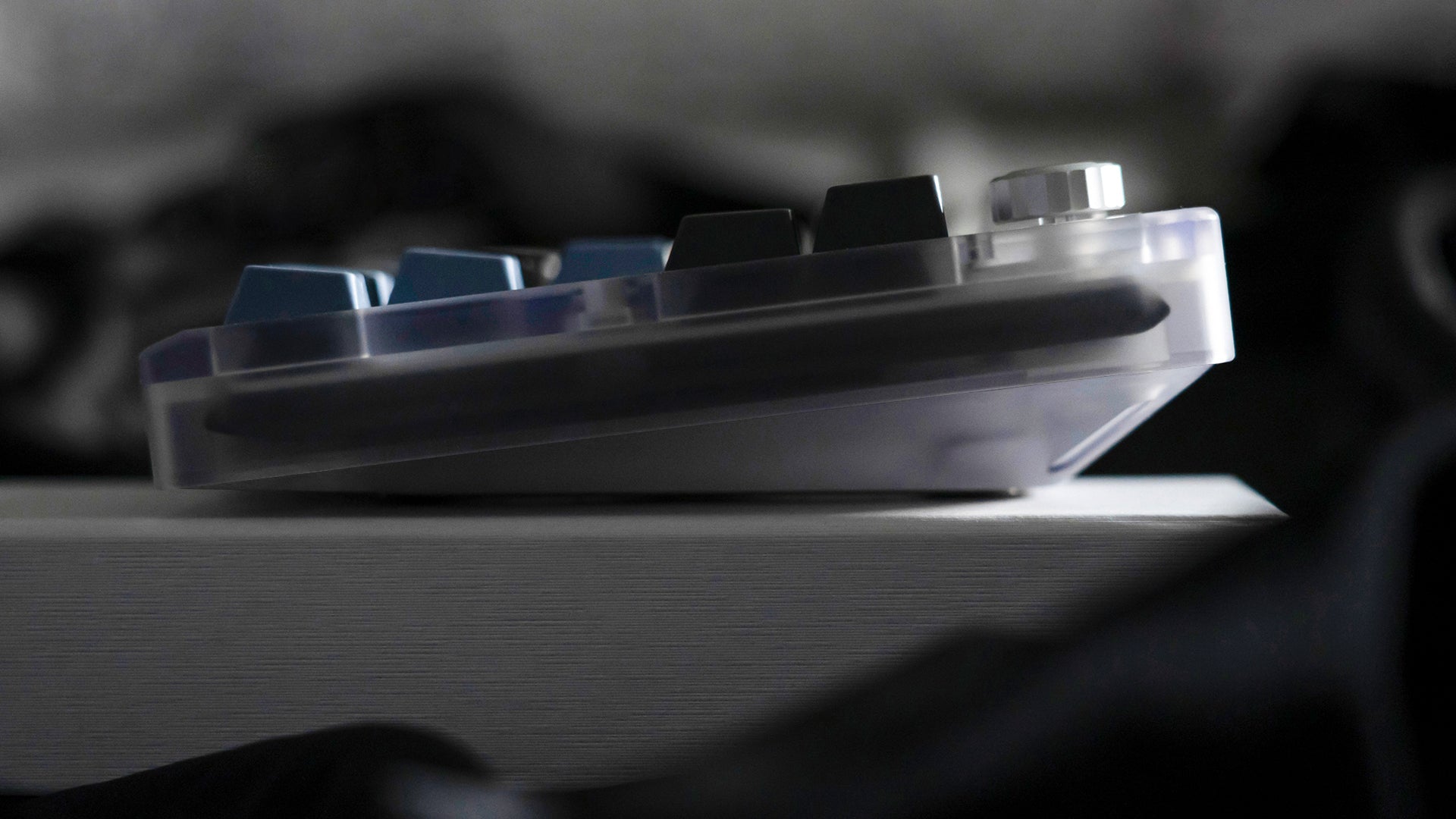

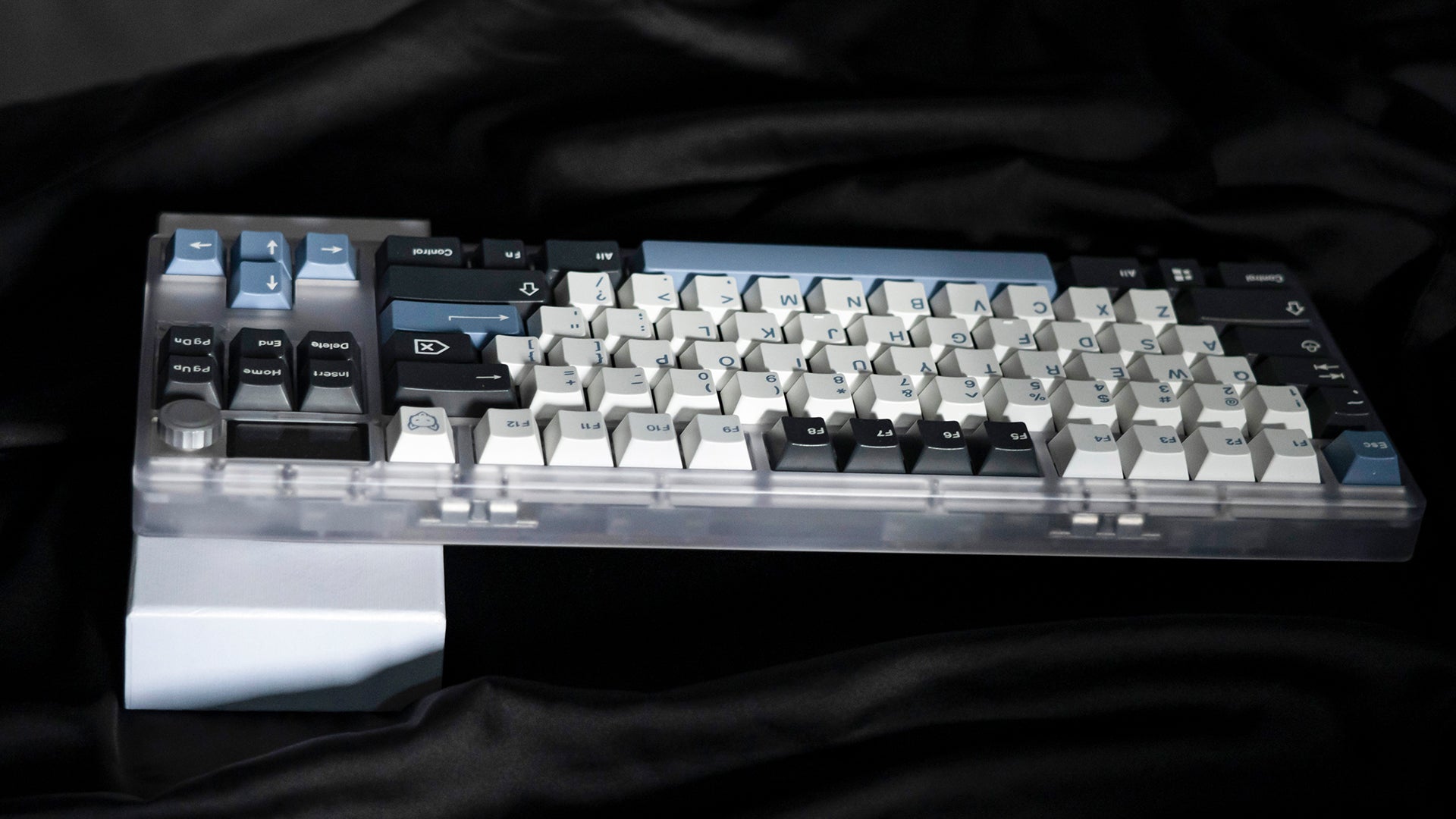

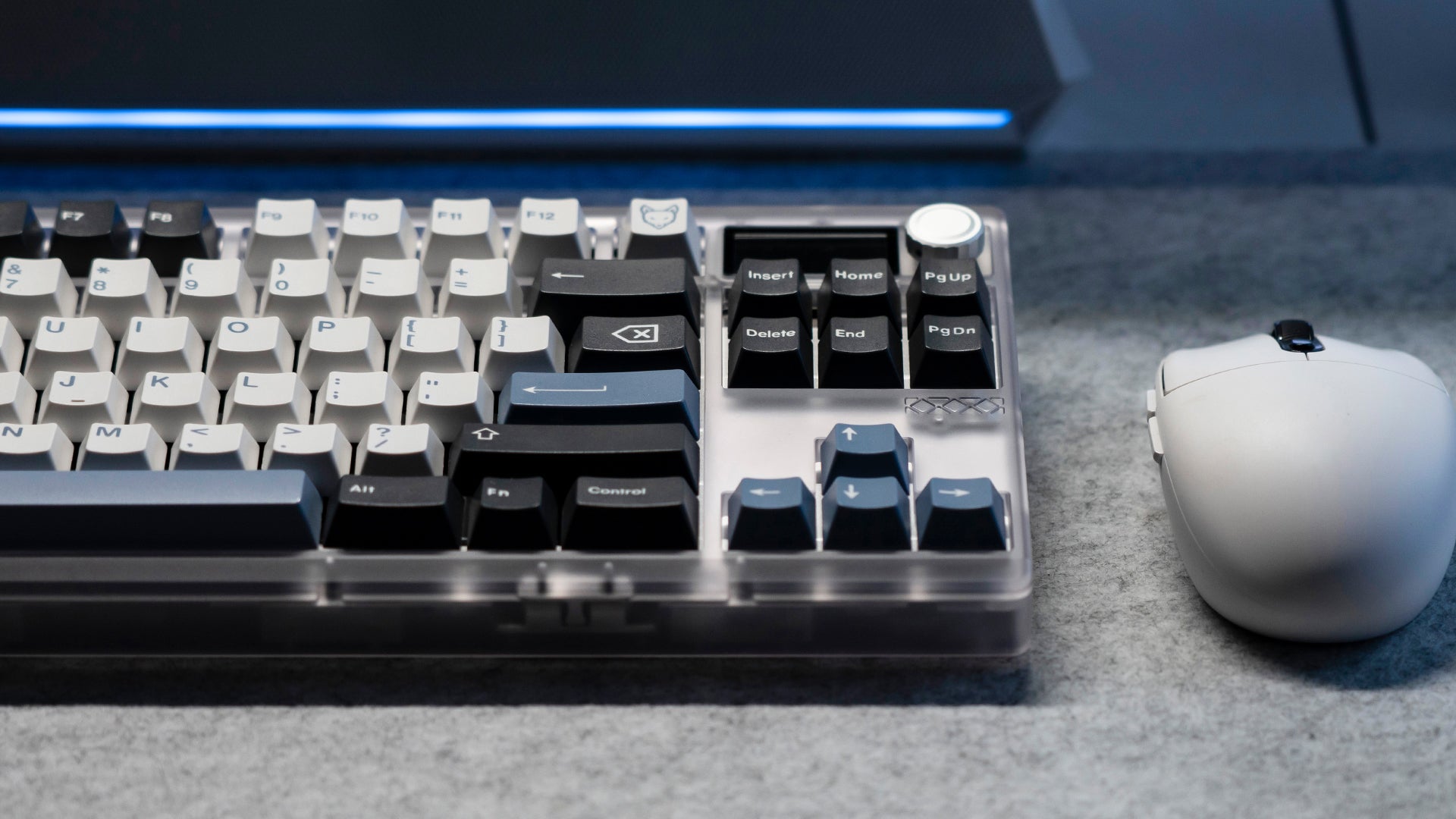

  • Frosted Clear

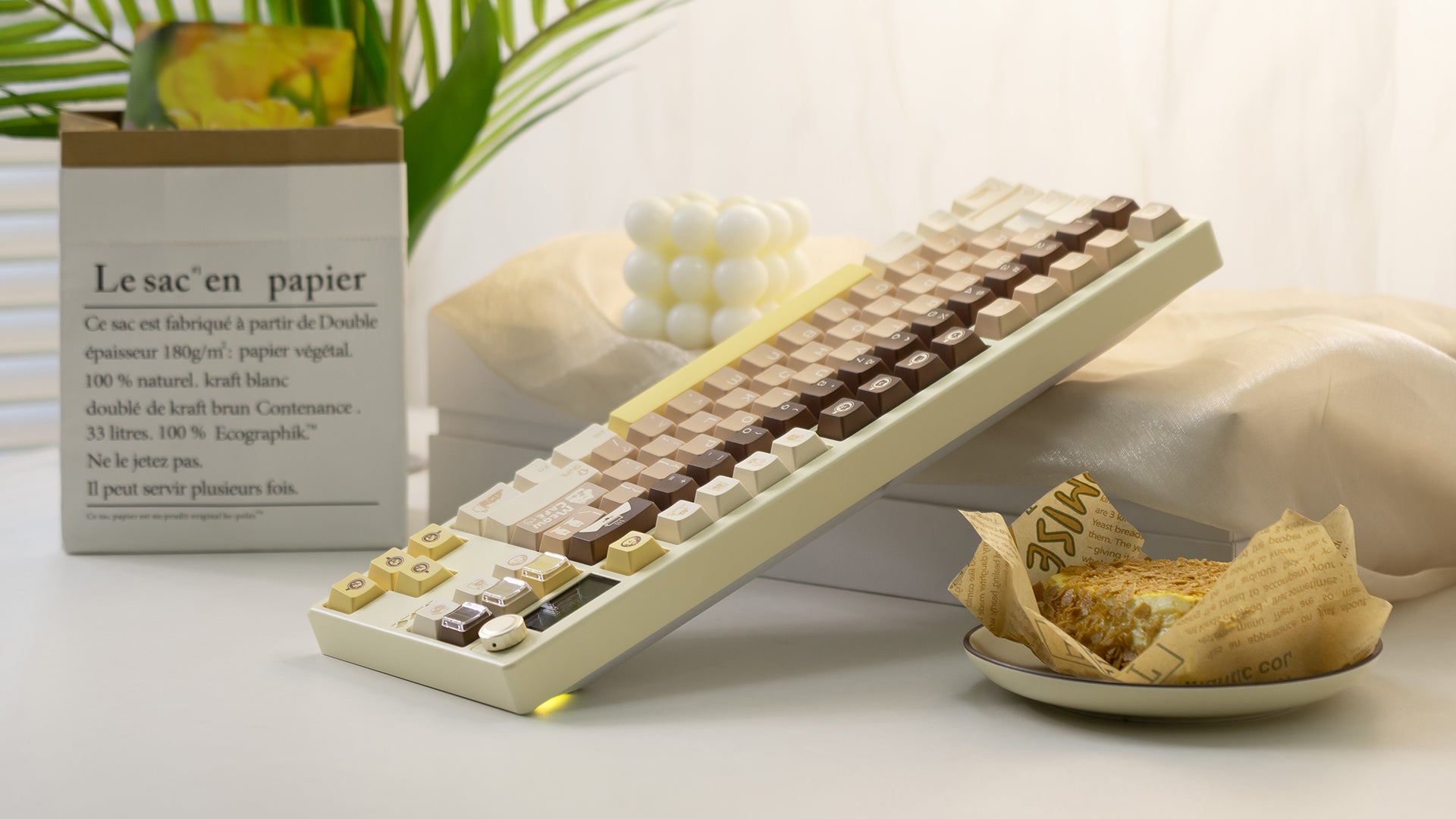

  • Barbarossa

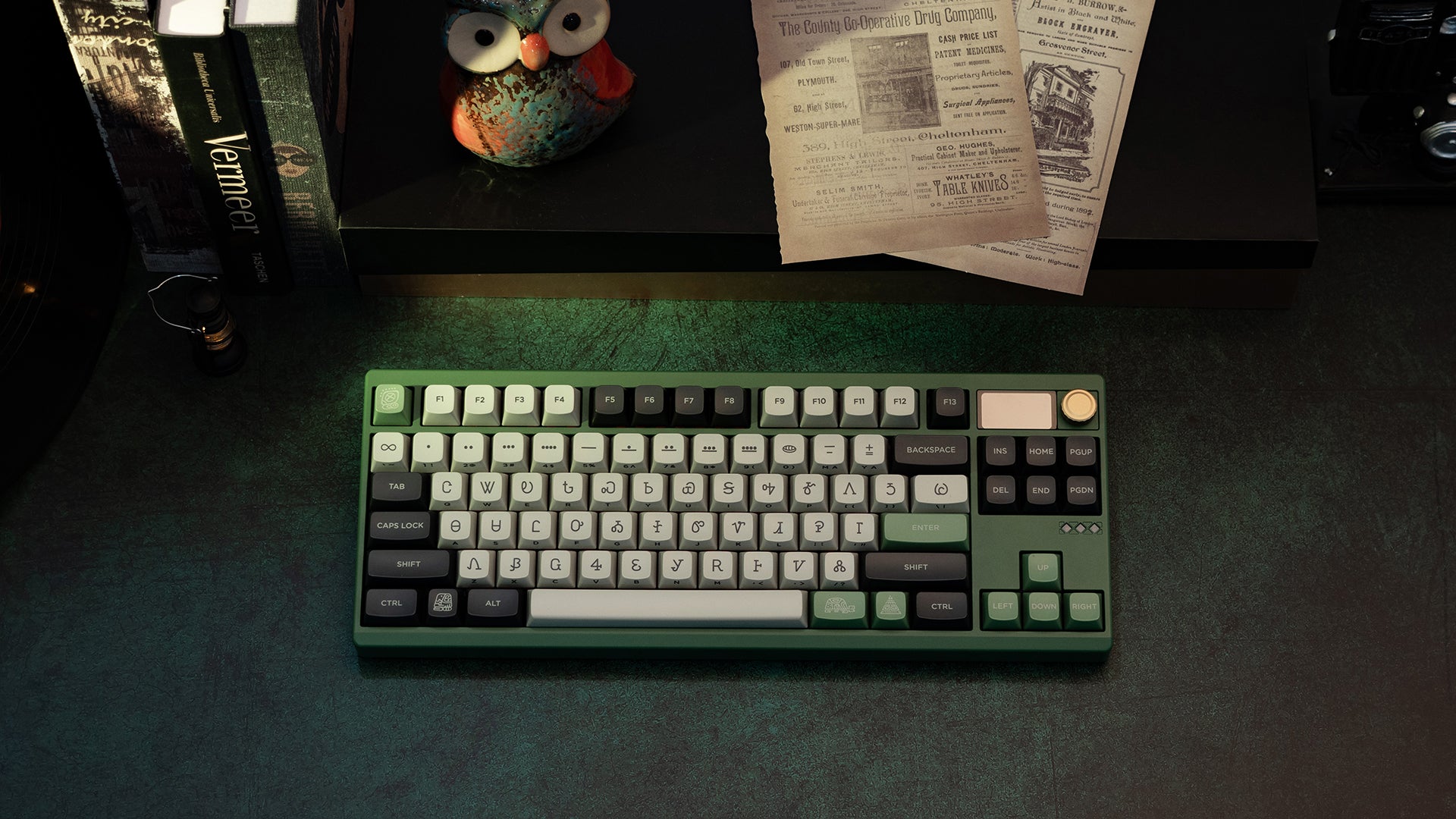

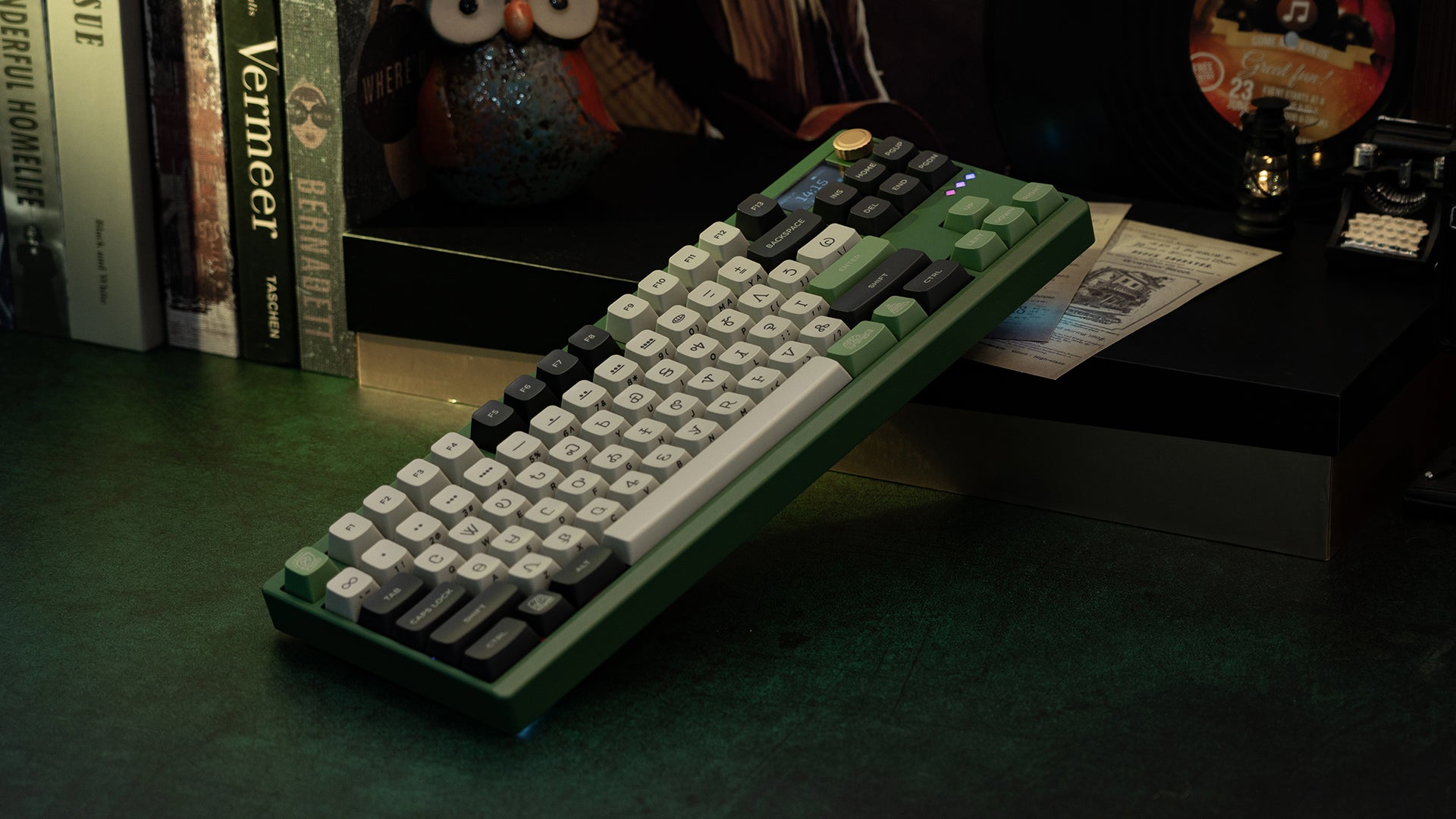

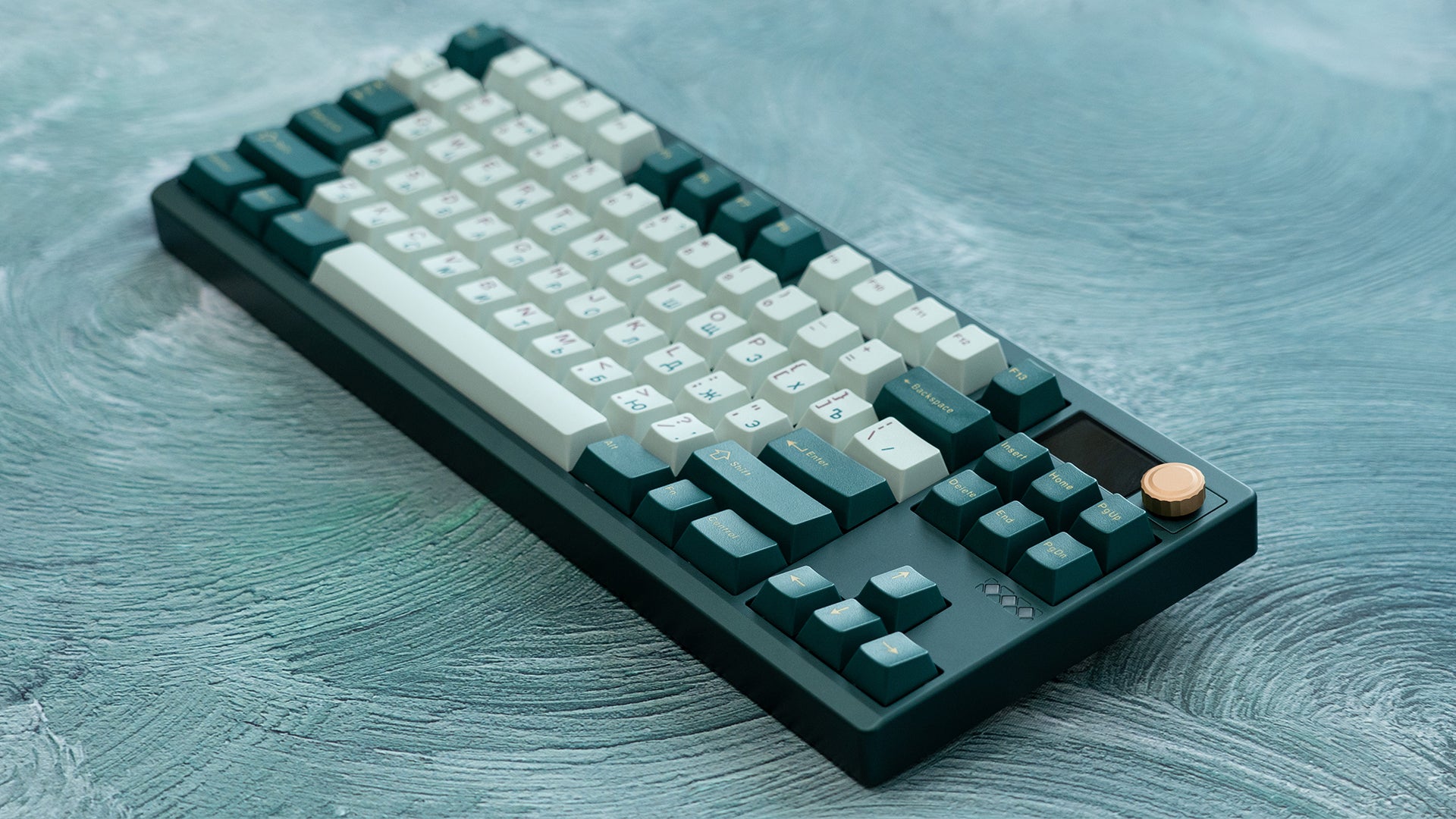

  • Forest Green

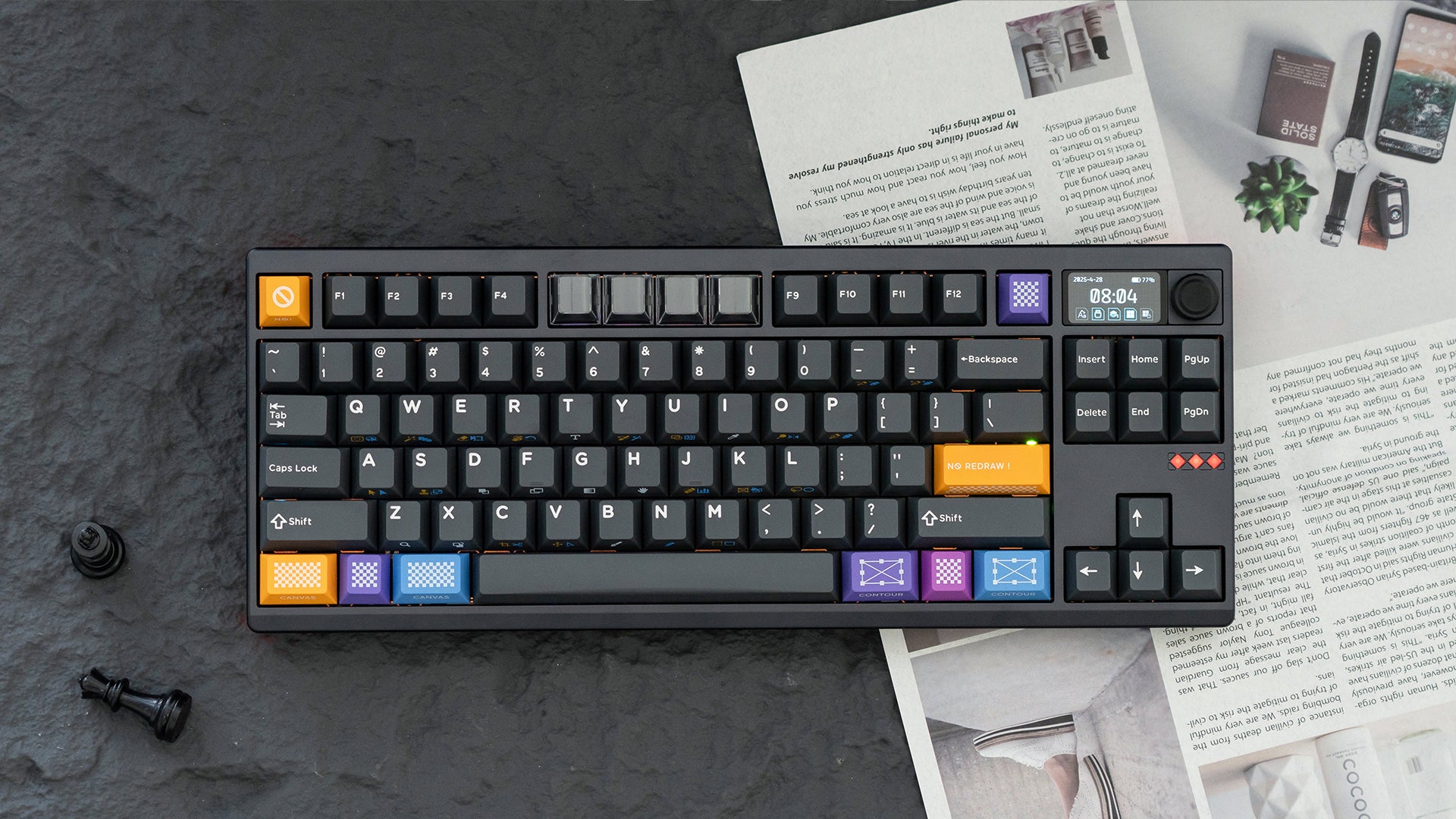

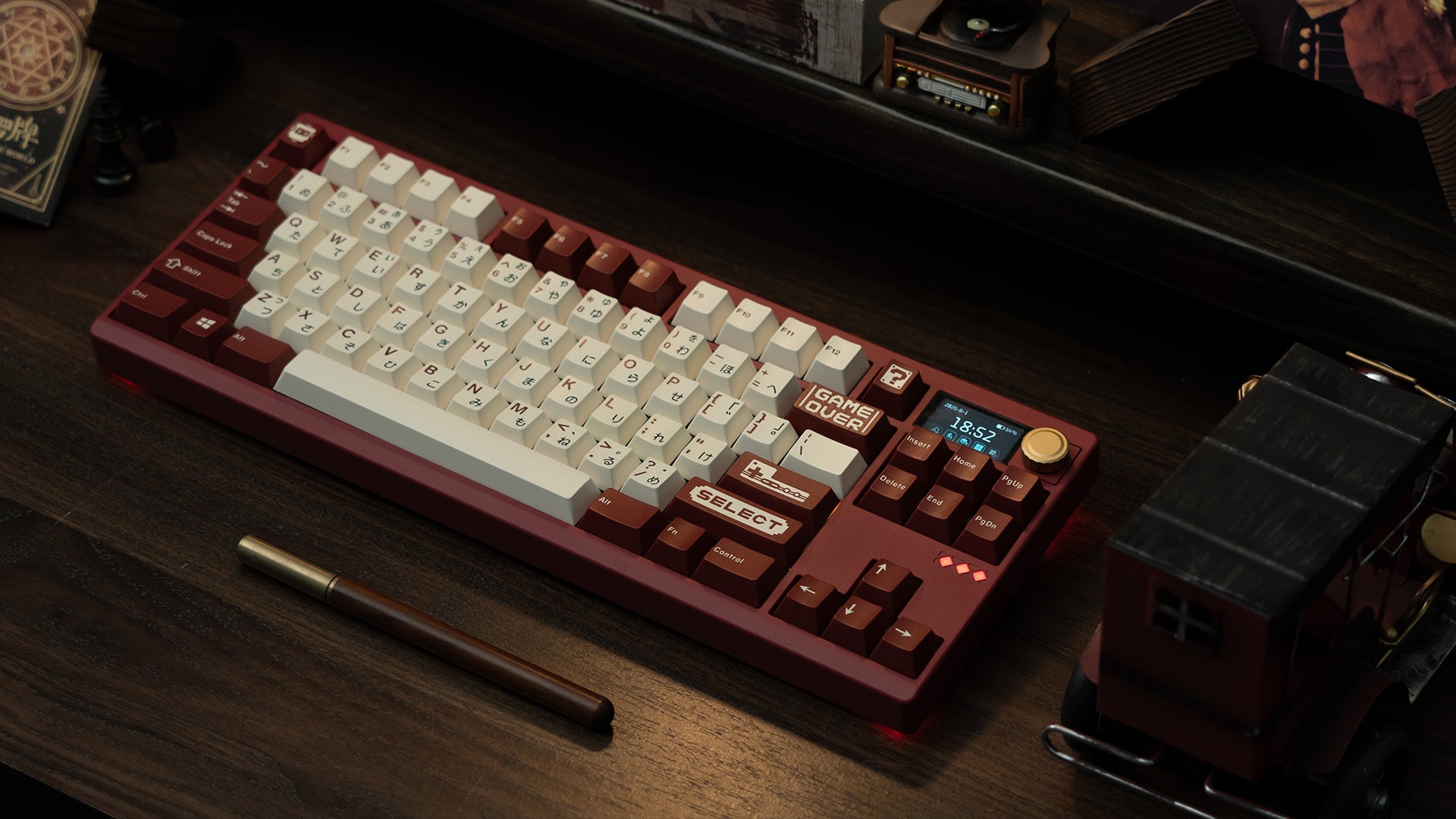

  • Scarlet Red

  • Strawberry Icecream

  • E-White

  • Sky Blue

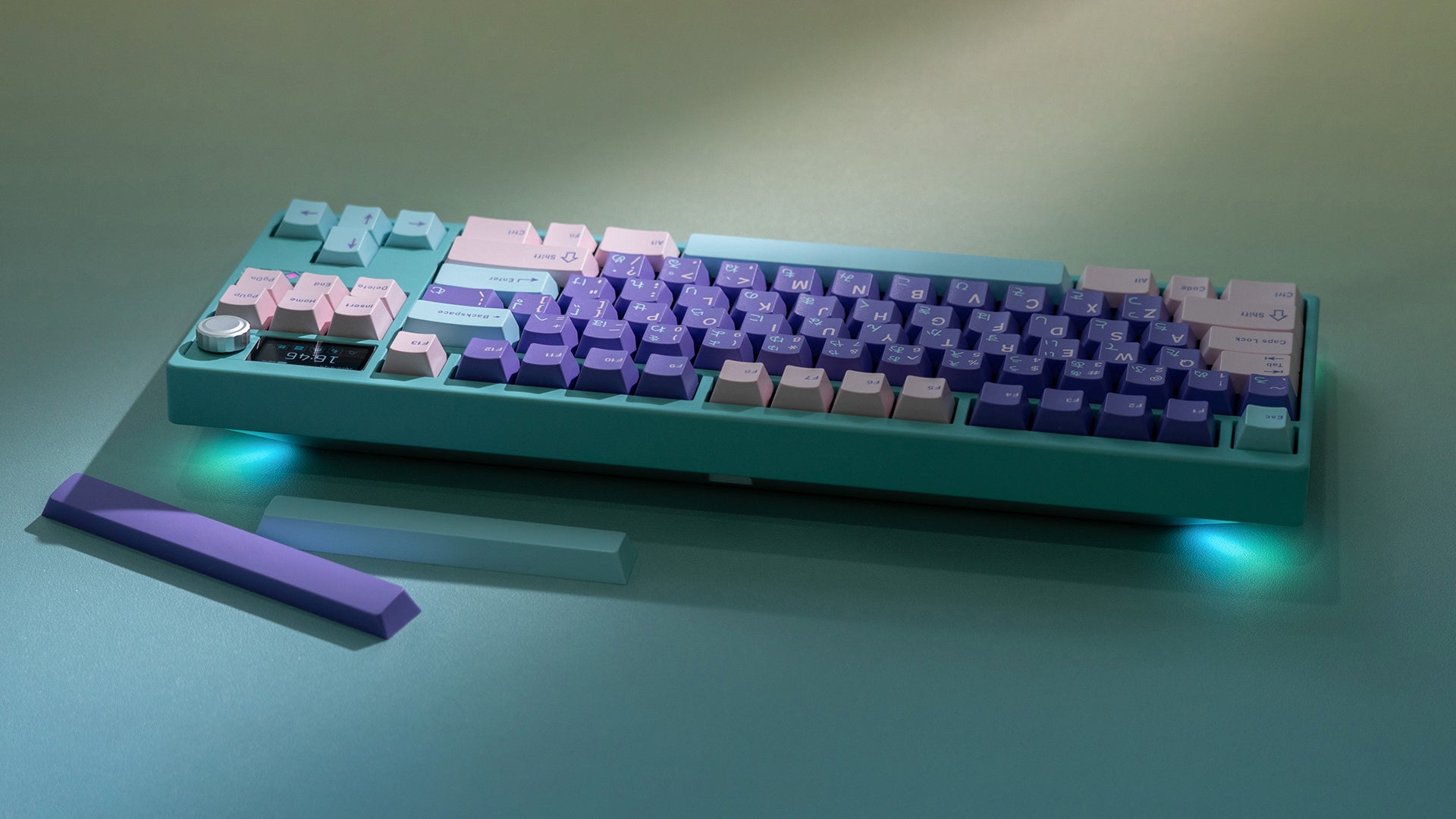

  • Aquamarine

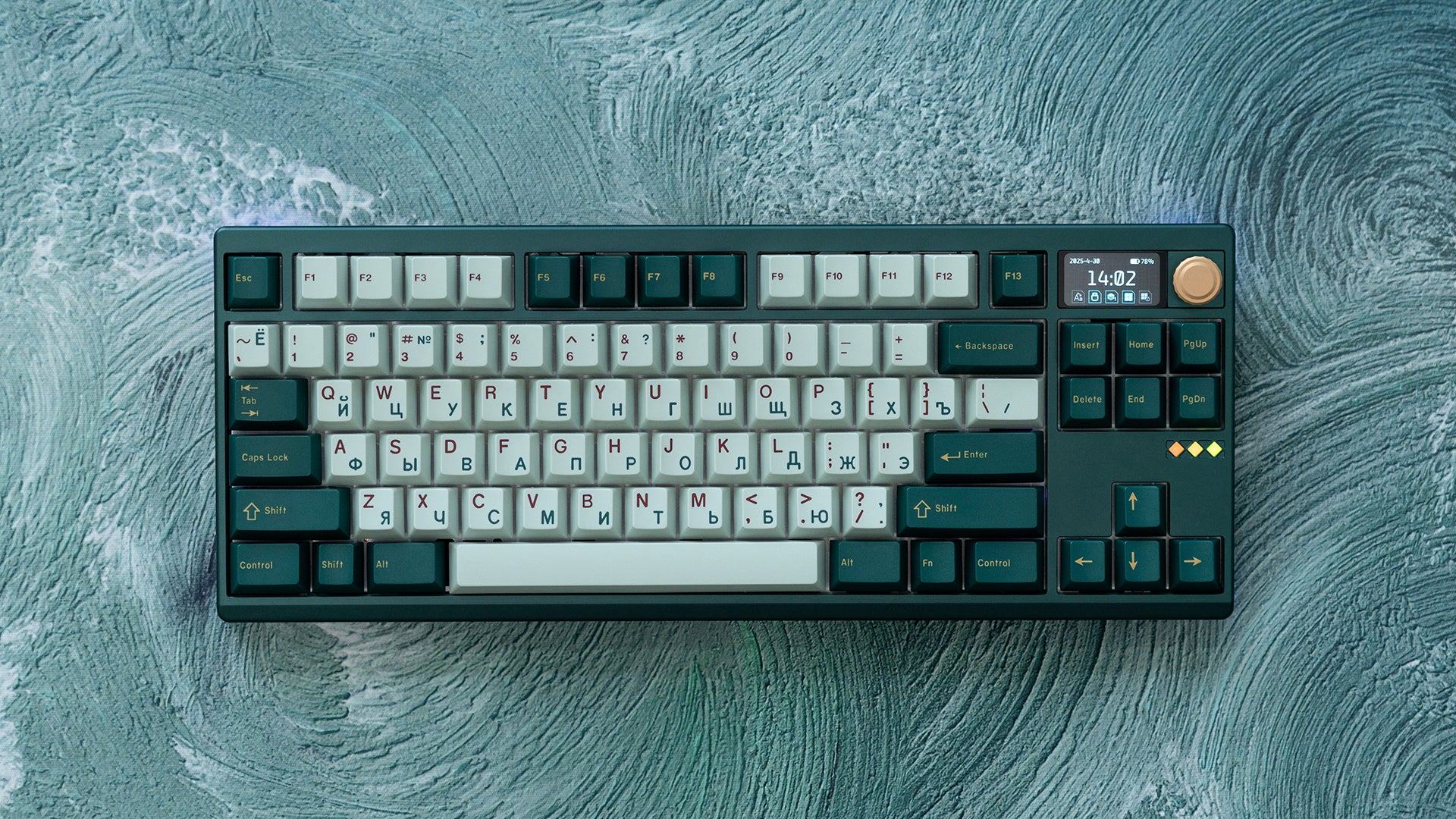

  • Ink Green

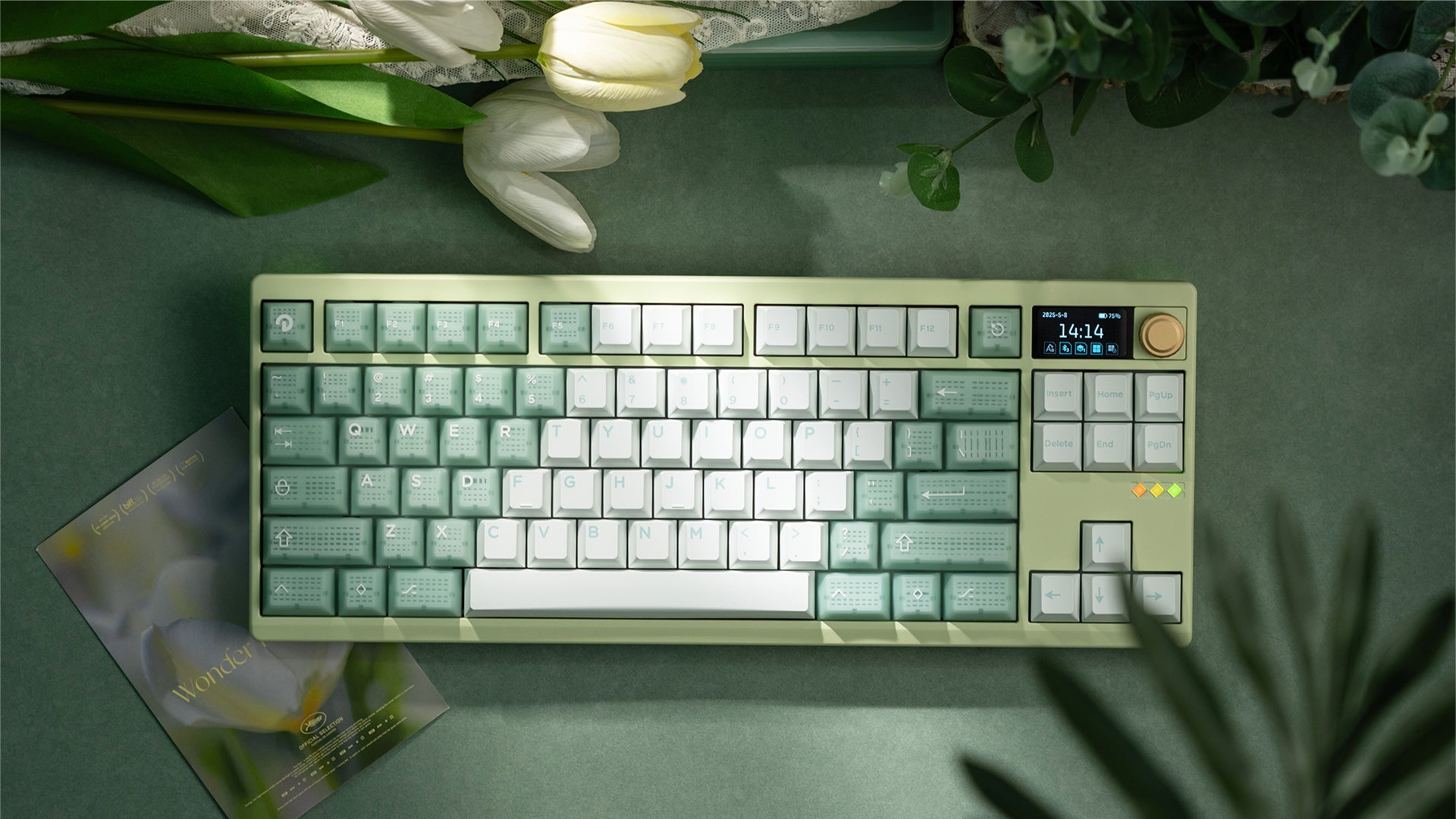

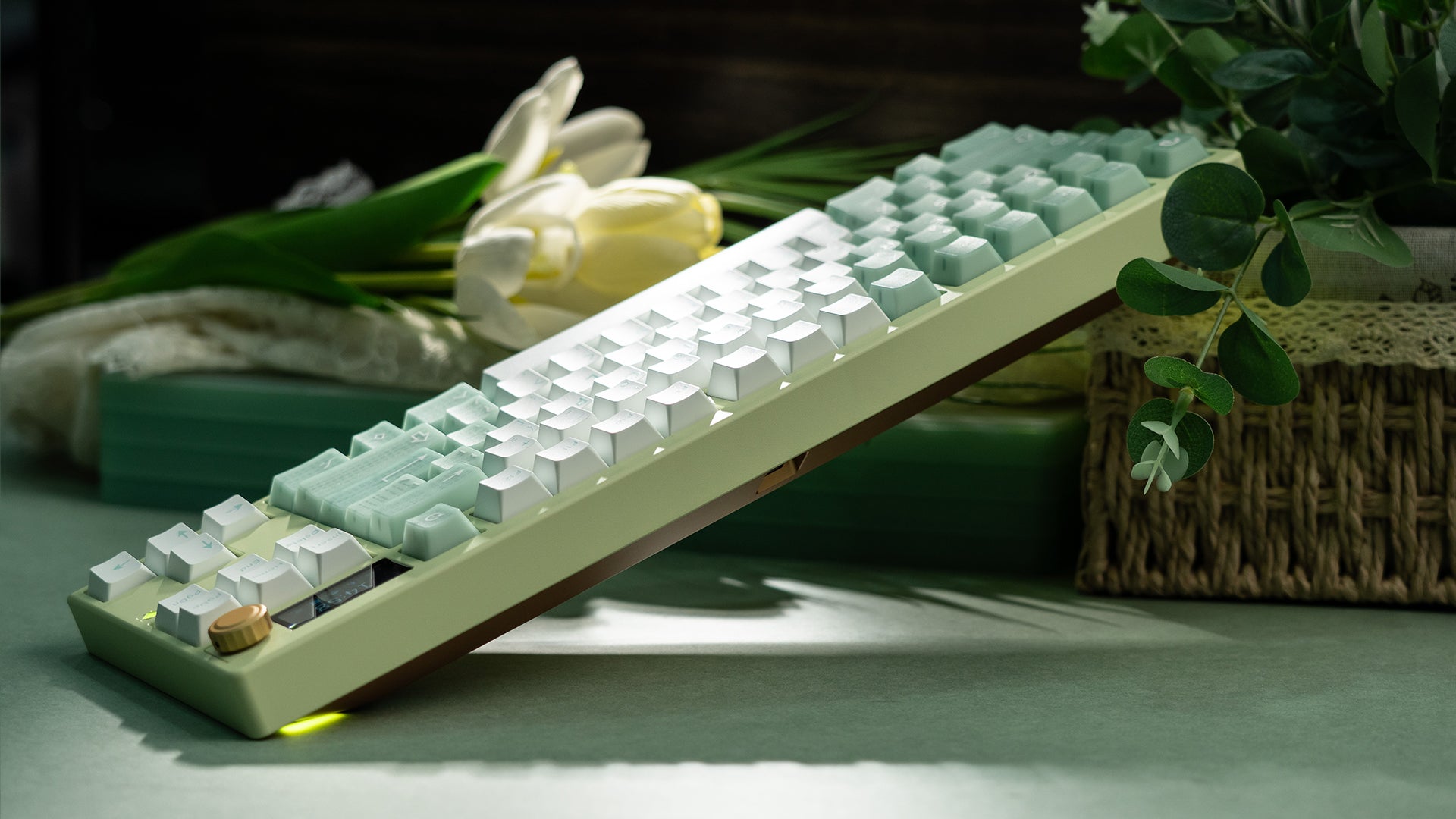

  • Milky Green

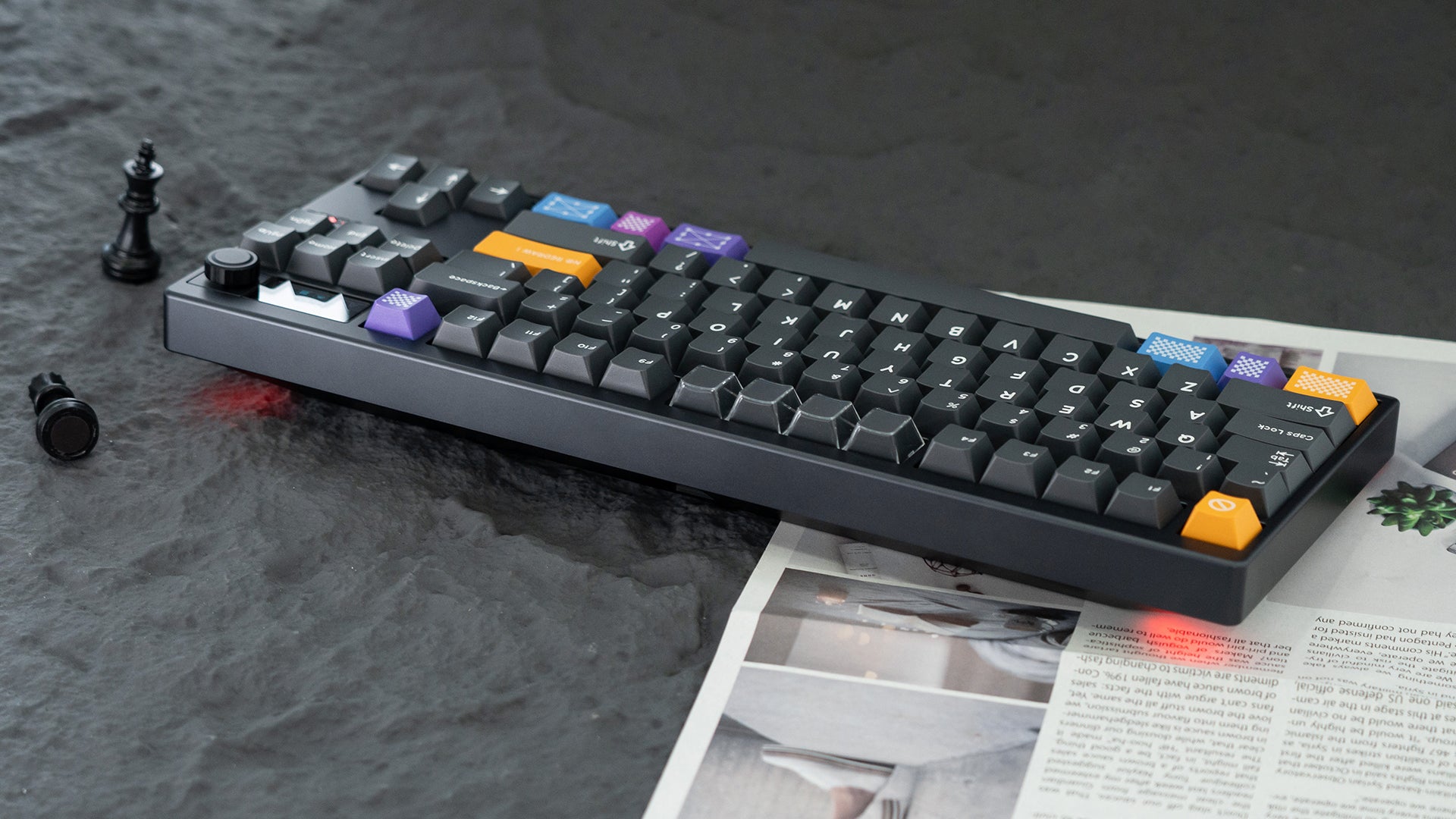

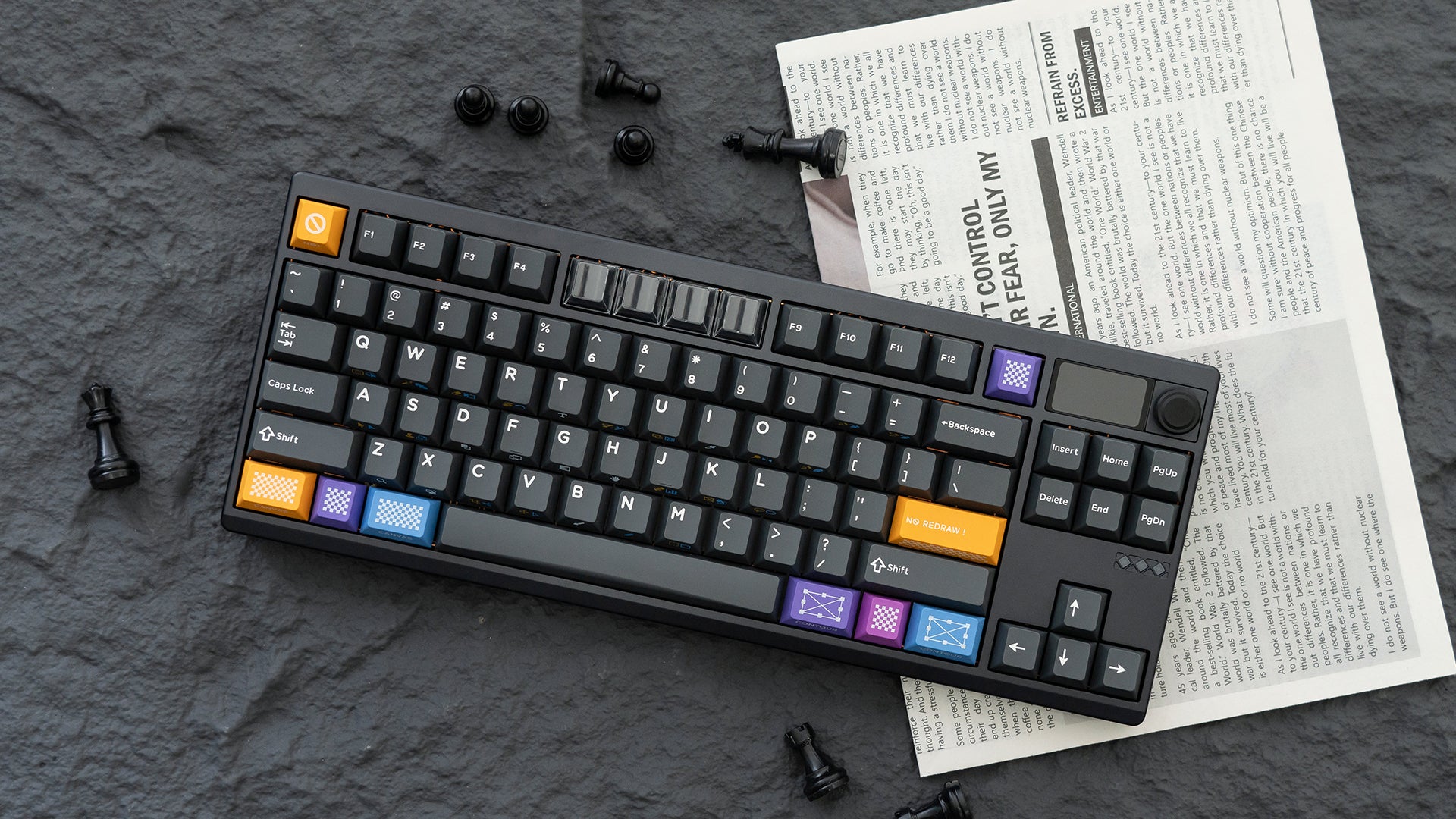

  • Anodized Black

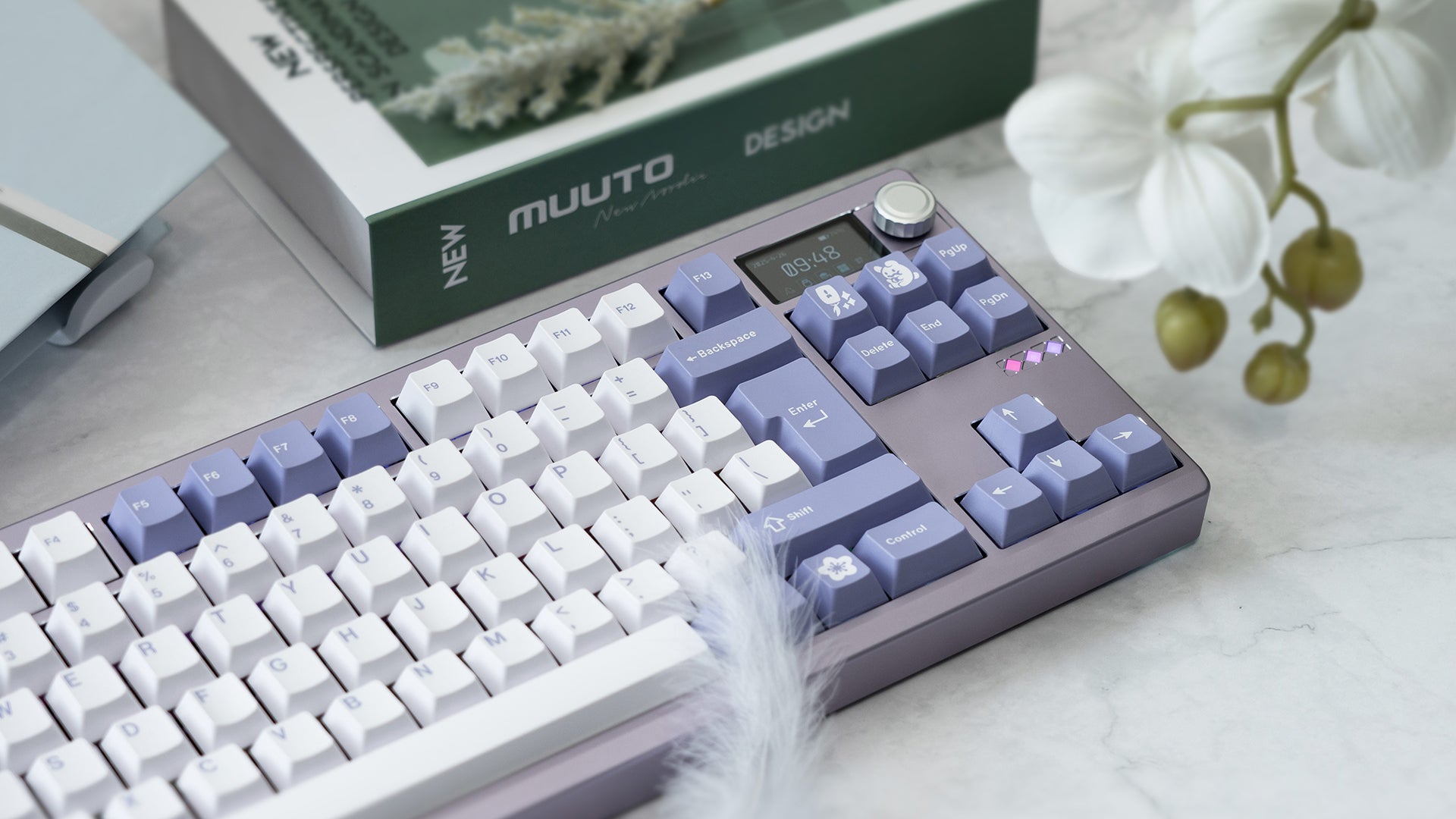

  • Anodized Lavender

  • Eggplant Purple

  • Gunmetal Gray
Poster
Poster
Poster
Poster
Poster
Poster

VENDORS
Vendor Primary Region Product Page Time / Date
Meletrix CN CN ZOOM TKL DYNA May 20, Beijing time
Meletrix Global ZOOM TKL DYNA June 3, Beijing time
CK US ZOOM TKL DYNA June 3, Beijing time
DK US ZOOM TKL DYNA June 3, Beijing time
Central Computers US ZOOM TKL DYNA June 3, Beijing time
MK US ZOOM TKL DYNA June 3, Beijing time
Mech.land CA ZOOM TKL DYNA June 3, Beijing time
Deskhero CA ZOOM TKL DYNA June 3, Beijing time
KeebzNCables AU ZOOM TKL DYNA June 3, Beijing time
coffeekeys IT ZOOM TKL DYNA June 3, Beijing time
Prototypist GB ZOOM TKL DYNA June 3, Beijing time
Maxgaming SE ZOOM TKL DYNA TBD
swagkeys KR ZOOM TKL DYNA May 23, Beijing time
iLumkb SG ZOOM TKL DYNA June 3, Beijing time
RF Gaming SG ZOOM TKL DYNA May 22, Beijing time
INPAD TW ZOOM TKL DYNA May 20, Beijing time
Keshav IN ZOOM TKL DYNA June 3, Beijing time
Rebult MY ZOOM TKL DYNA June 3, Beijing time
Soi Gear VN ZOOM TKL DYNA May 20, Beijing time
Keygem DE ZOOM TKL DYNA May 20, Beijing time
Keebsmark ID ZOOM TKL DYNA May 20, Beijing time
GGS ID ZOOM TKL DYNA TBD
Fancy Customs CL ZOOM TKL DYNA TBD
Geekboard RU ZOOM TKL DYNA TBD
Mecha MY ZOOM TKL DYNA June 3, Beijing time
