ZOOM65 V3

Maximum Customization

16

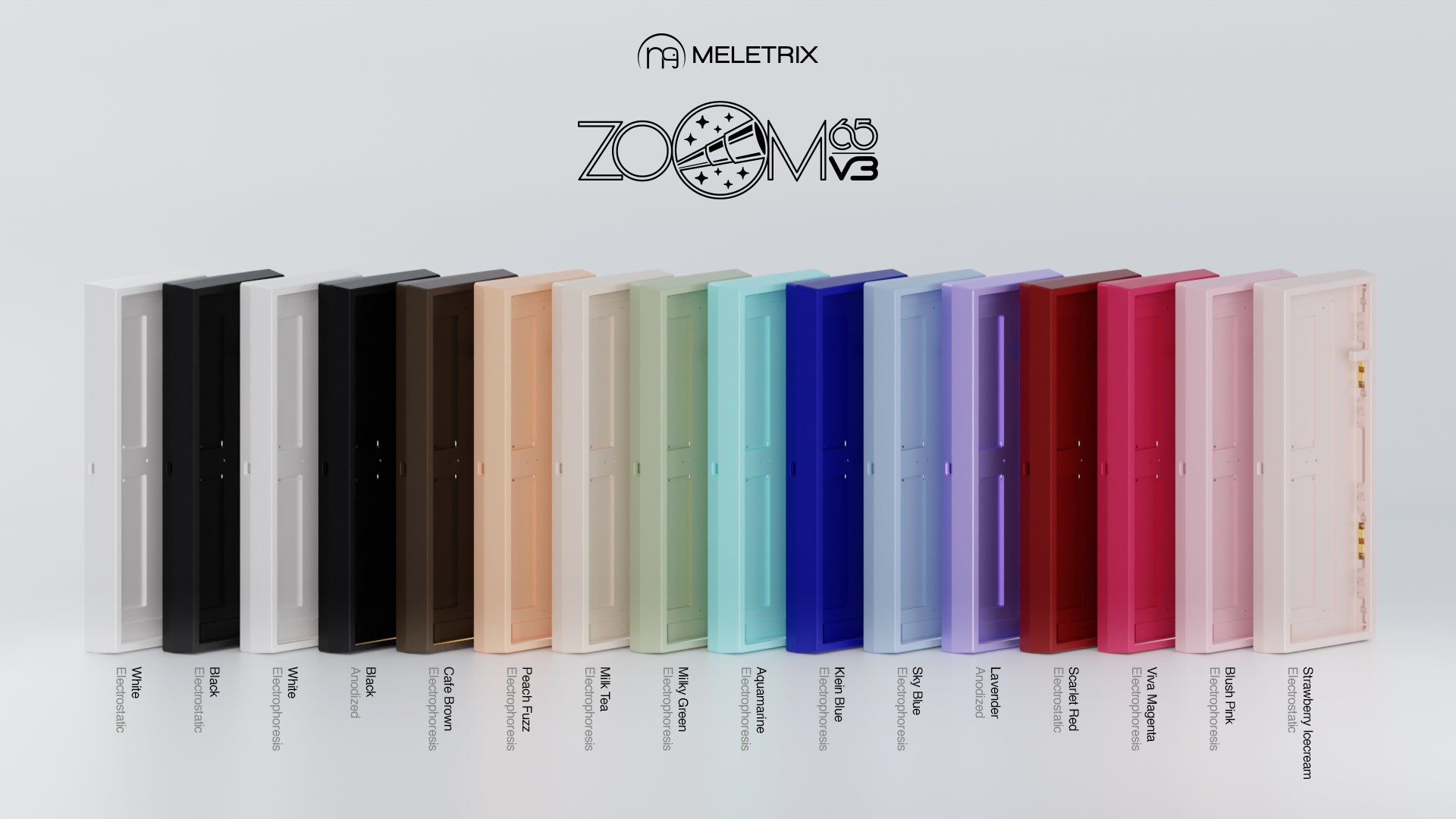

Including 5 new colors : Aquamarine, Klein Blue, Peach Fuzz, Viva Magenta, Cafe Brown

4

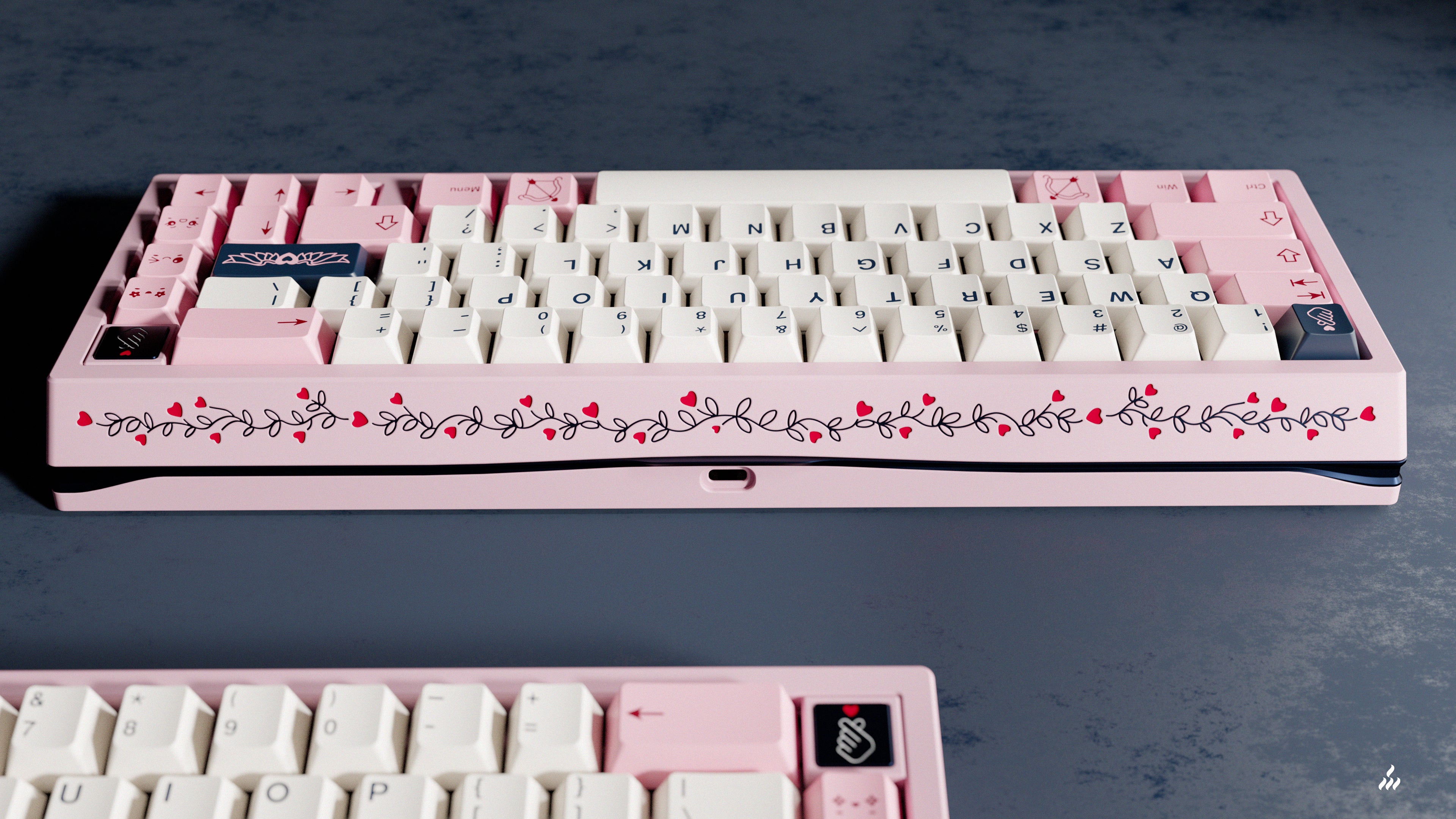

4 Versions Case

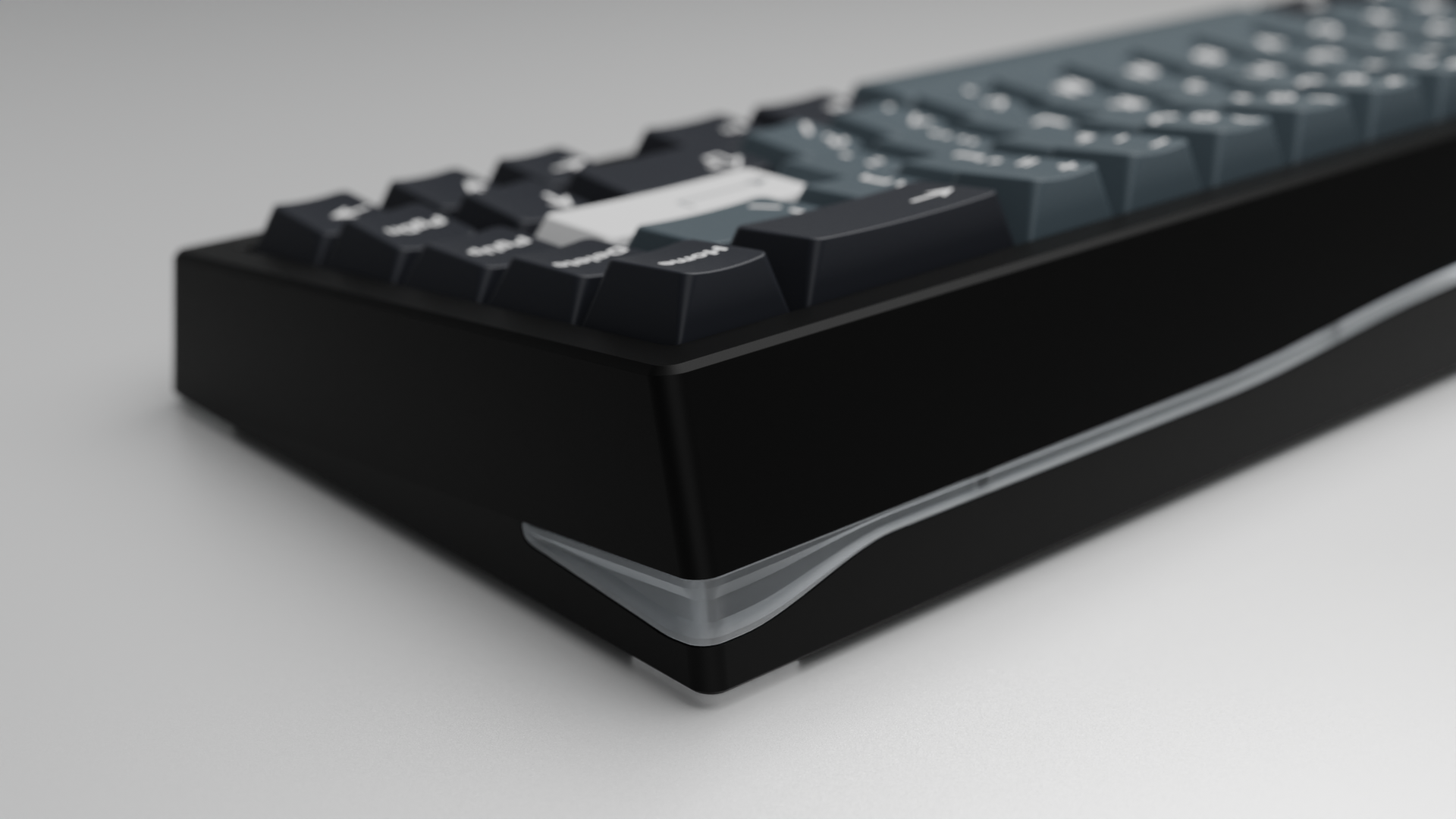

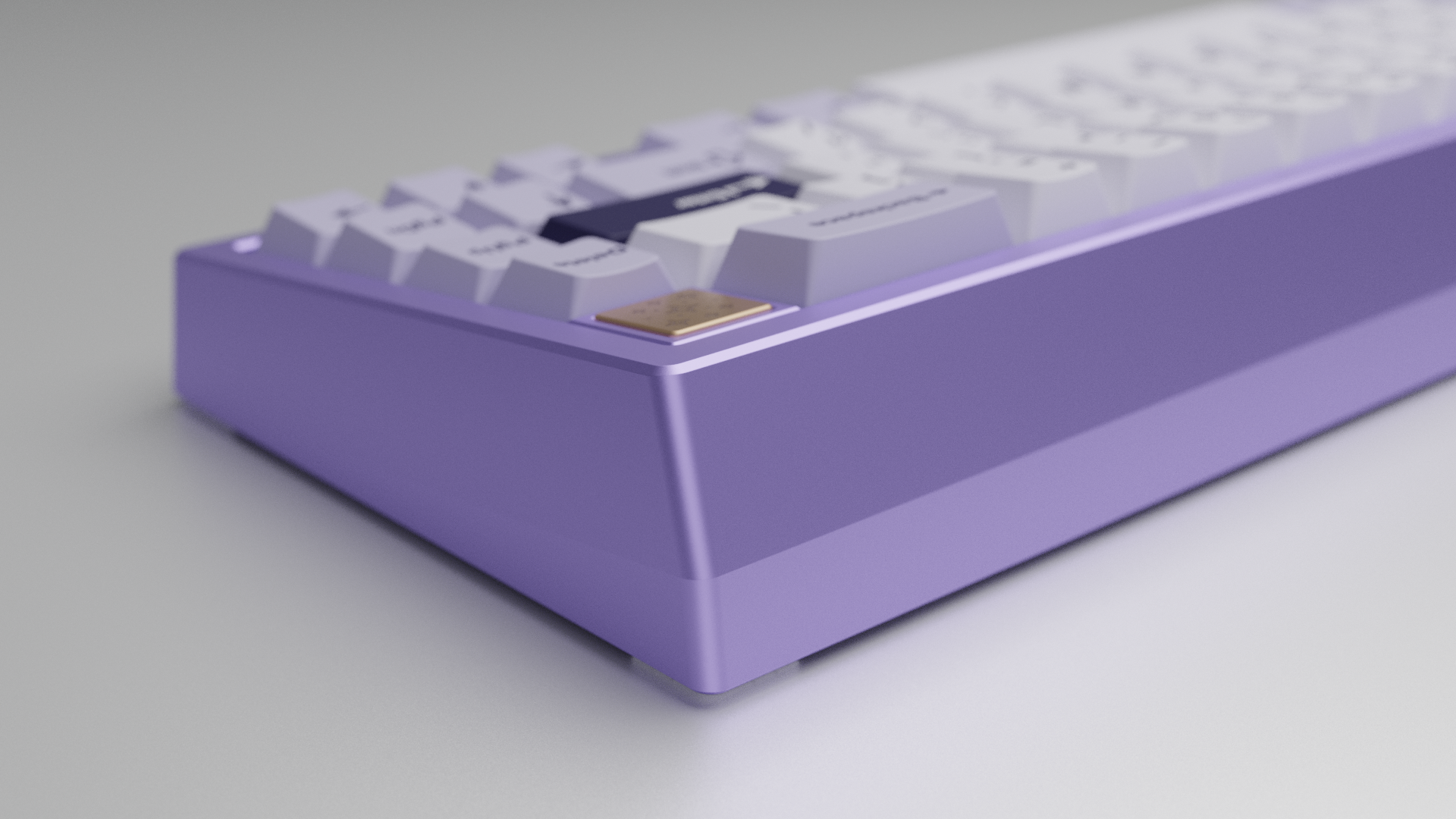

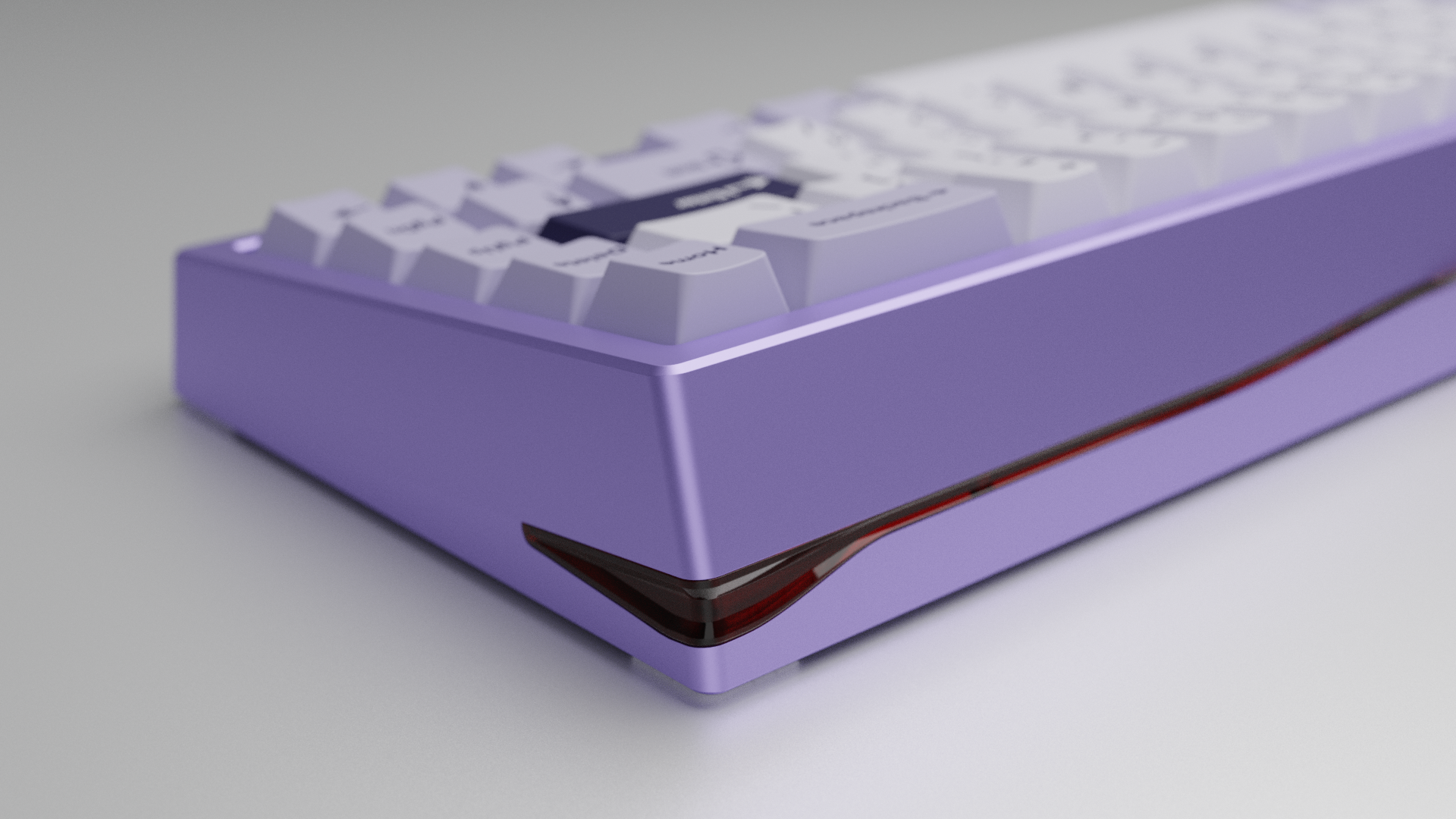

About Tail Light Accents' Color

Based on the results of the last IC, we've added the transparent version as an option, come to the IC form below and tell us what you think!

Screwless Quick Assembly System

01

Catchball Screwless Assembly Structure


The top and bottom cases are assembled and disassembled using catchballs.

02

Magnetic Connection System

We use custom magnetic PCB plug connectors for a better mounting experience.

03

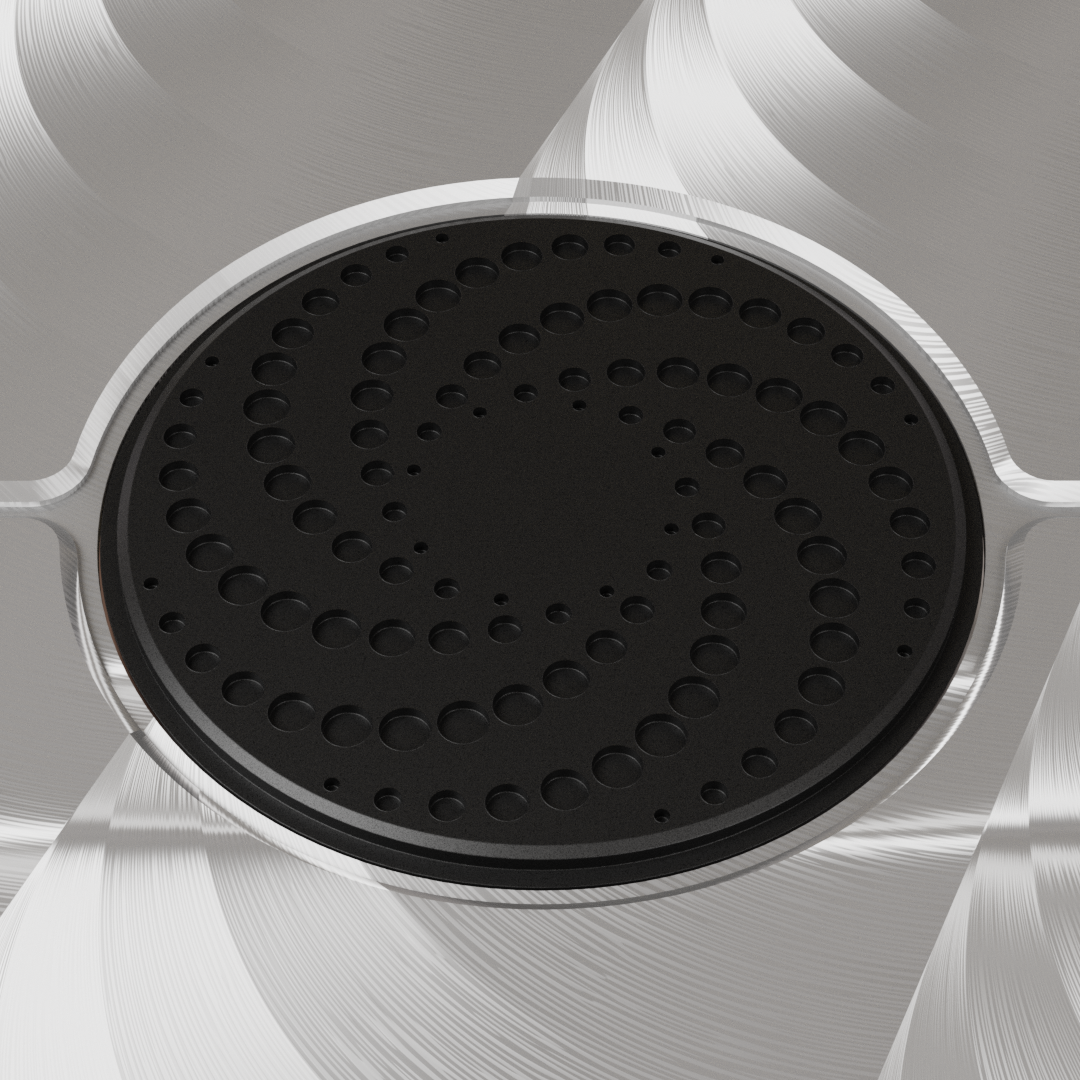

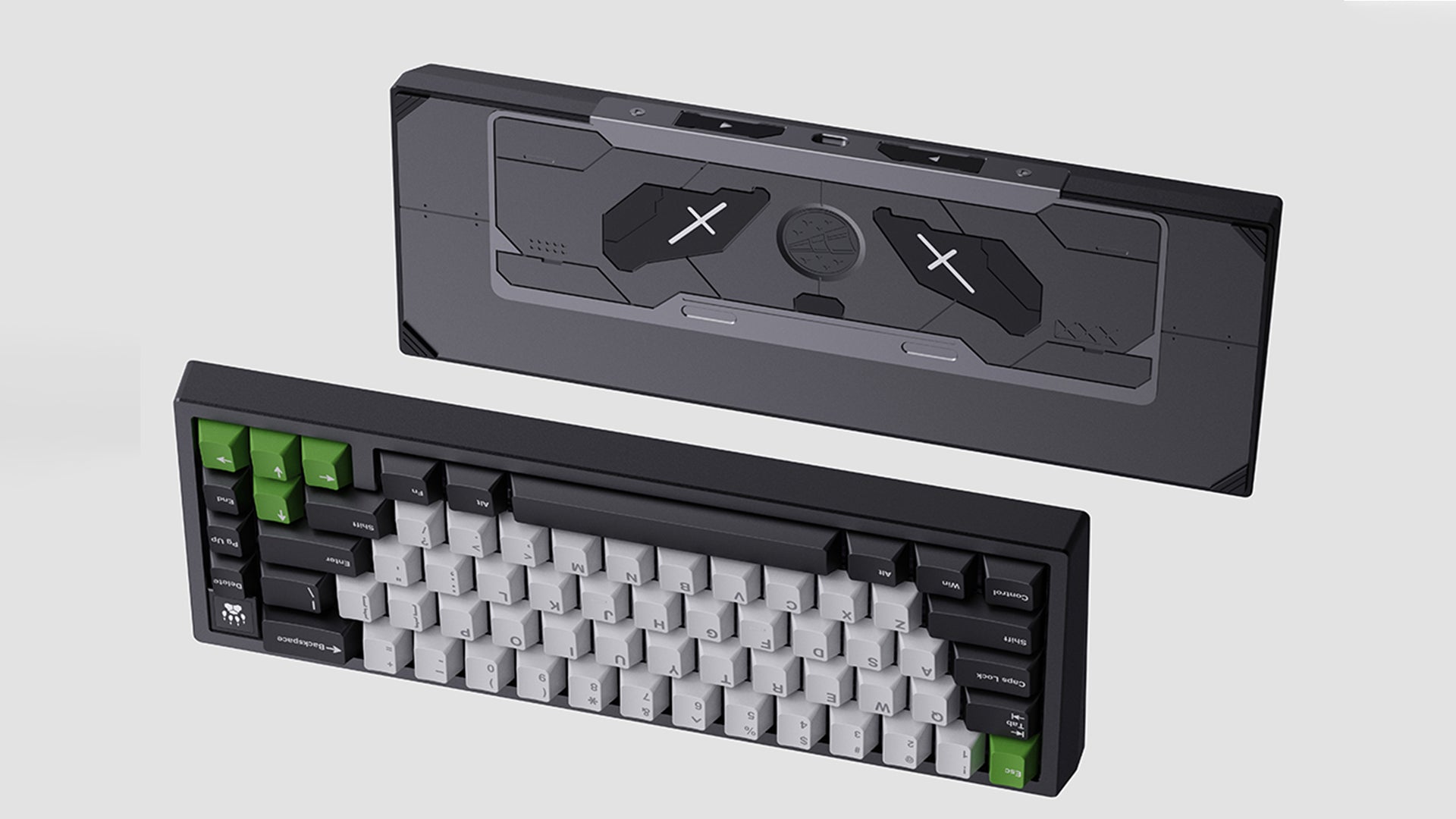

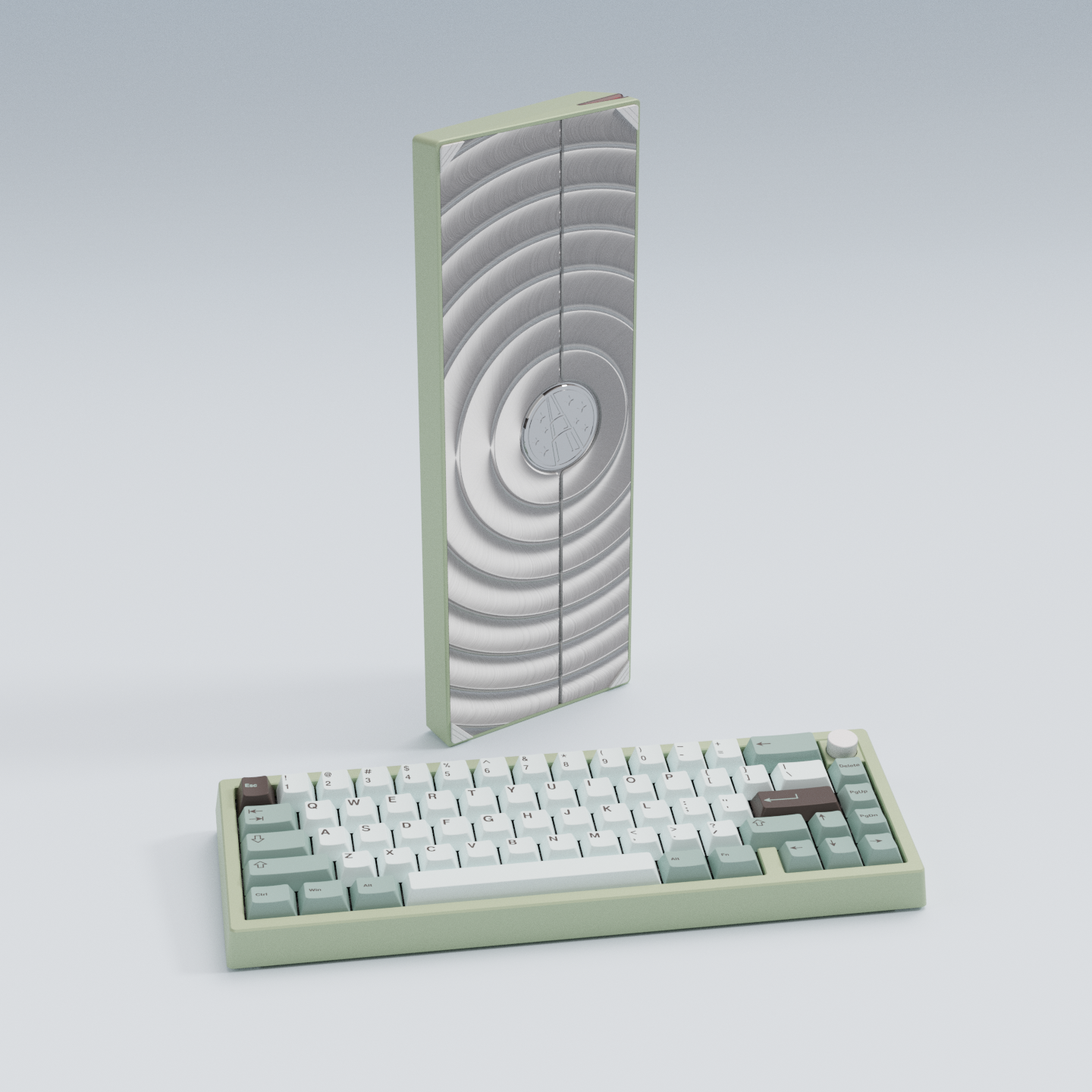

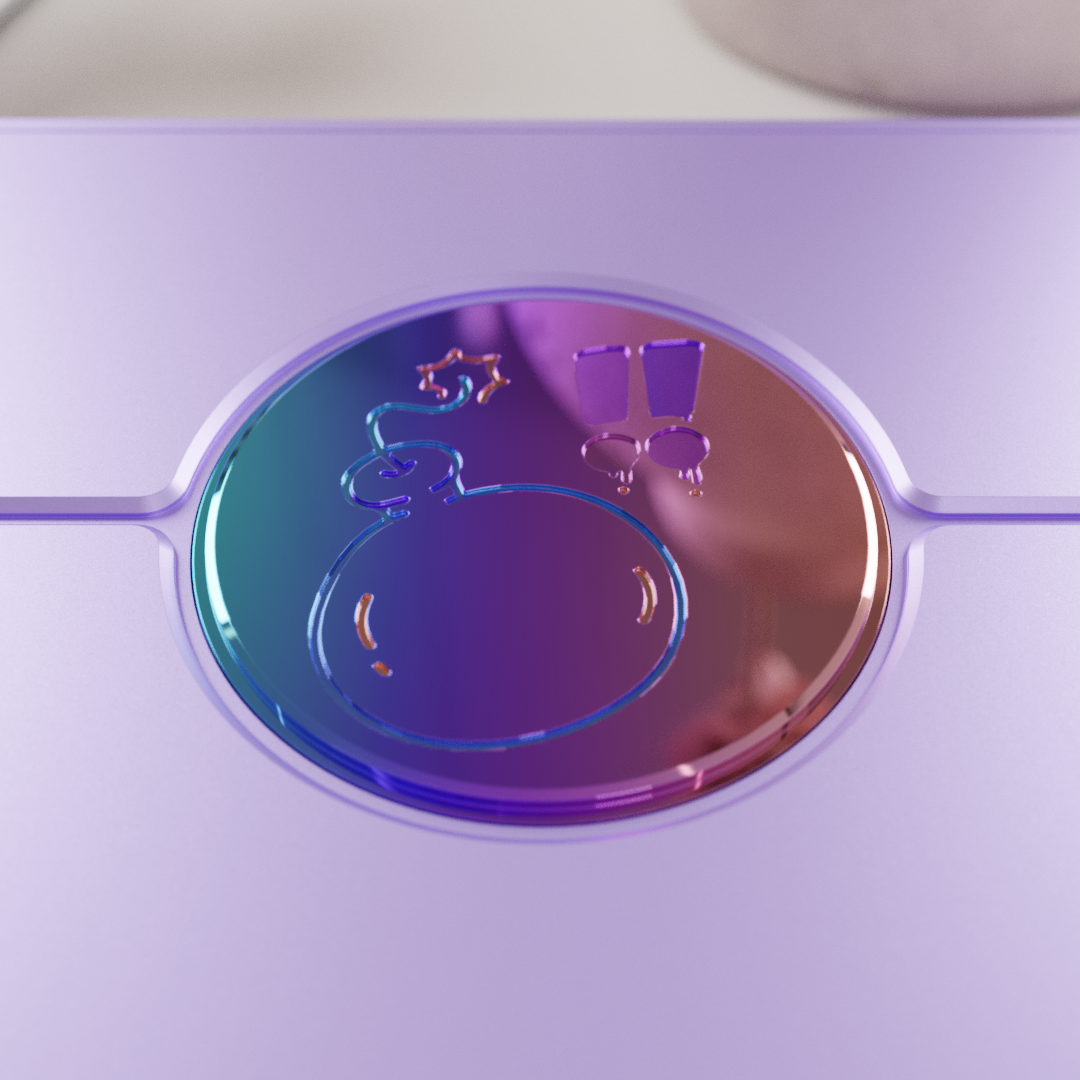

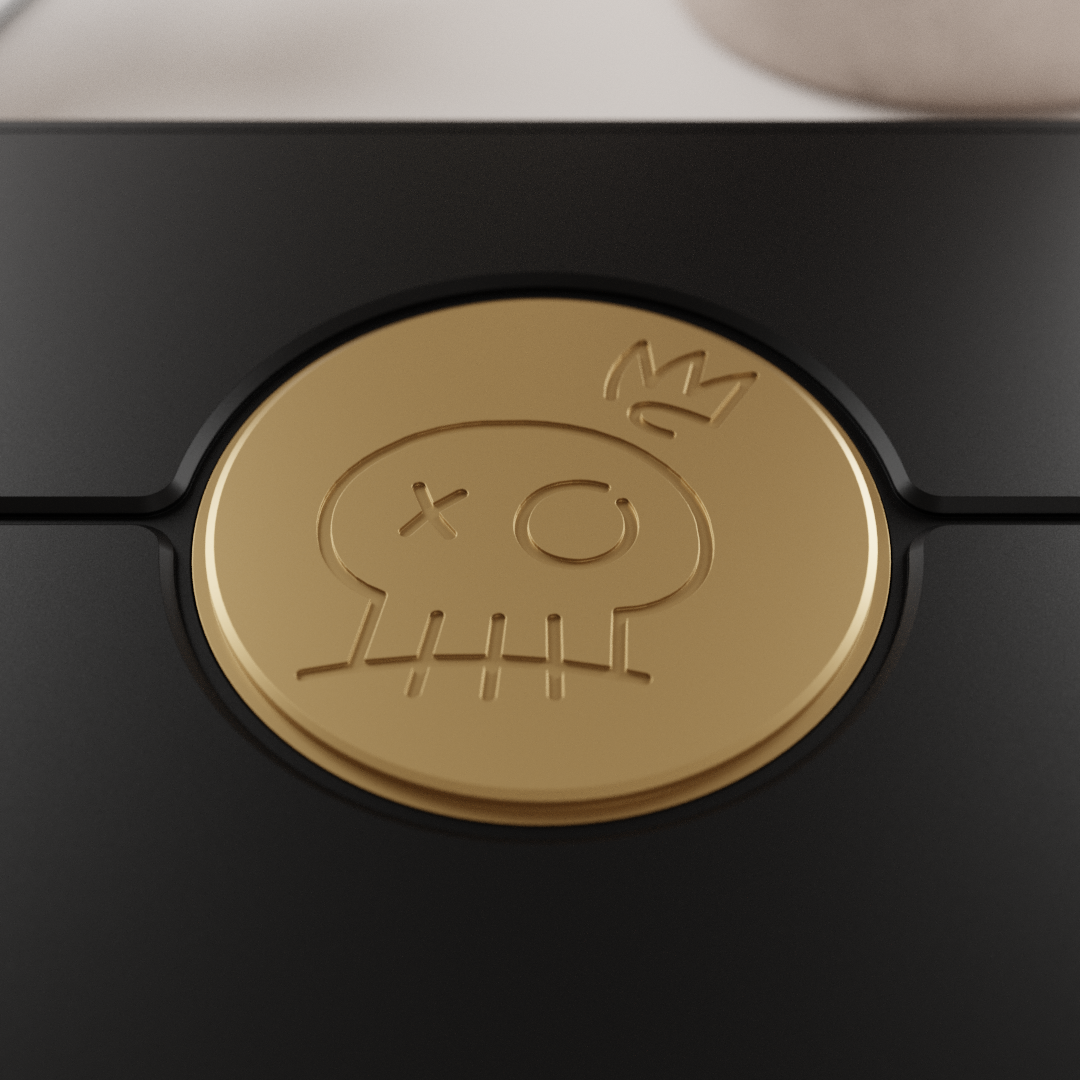

Magnetic Weight for Easy Changes

Thanks to this design, we've modified the round weight on the bottom case. Additionally, we offer numerous colorful options as extras, and we've ensured the 2.4G receiver can be conveniently hidden and stored.

01

Catchball Screwless Assembly Structure


The top and bottom cases are assembled and disassembled using catchballs.

02

Magnetic Connection System

We use custom magnetic PCB plug connectors for a better mounting experience.

03

Magnetic Weight for Easy Changes

Thanks to this design, we've modified the round weight on the bottom case. Additionally, we offer numerous colorful options as extras, and we've ensured the 2.4G receiver can be conveniently hidden and stored.

7

7 mounting systems - From old to new, from traditional to hybrid (All options will be provided together)

01 Short-Arm Spring Mounting

We've ensured that they strike the perfect balance between length and elasticity to minimize excessive bounce and guarantee a satisfying typing experience. With shortened arms and maintained elasticity, our springs offer a precise and responsive feel, ensuring each keystroke is both comfortable and impactful.

02 Non-Load Bearing Spring Mounting

We've collaborated closely with our spring factory to develop springs with high elasticity without collapsing. Experience seamless keystrokes with the perfect bounce, allowing the internal assembly to effortlessly adjust to your fingertips with each keystroke.

03 Split O-Ring Mounting

We have created a system by splitting the rubber rings into separate parts and using extended blockers to support the O-rings, ensuring that even when the keyboard is flipped, the PCB and O-rings will not come loose. Additionally, our innovation will allow you to use any stabilizer, eliminating the traditional system's restrictions on the backspace position.

04 Magnetic Levitation Mounting

Our Magnetic Levitation mount achieves true levitation without any physical contact. After extensive testing and prototyping, we have achieved the perfect balance. Meletrix prioritizes customer customization, allowing users to experience a truly unique feeling with the ZOOM65 V3.

05 Silica Gel Particle Mounting

We have removed the elastic arm support from the silica gel particle mount, opting instead for a small extended hook, and we use silicone with a hardness of 40 degrees on the hook system. Silicone can absorb aftershocks, which we believe provides the most comfortable typing experience among rigid support structures.

06 Top Mount

The original top-mounting system has been well-received by certain users, and its quality remains unchanged. It will continue to be offered as an option for everyone to choose from.

07 Floating Pogo Pin Mounting

This is an interesting mounting system. Designed to enable the entire inner assembly to closely follow the fingers during high-frequency typing, it results in a high-frequency bounce. The objective was to enhance typing speed without causing hand fatigue. It's a novel structure ideal for those who work with text extensively.

4

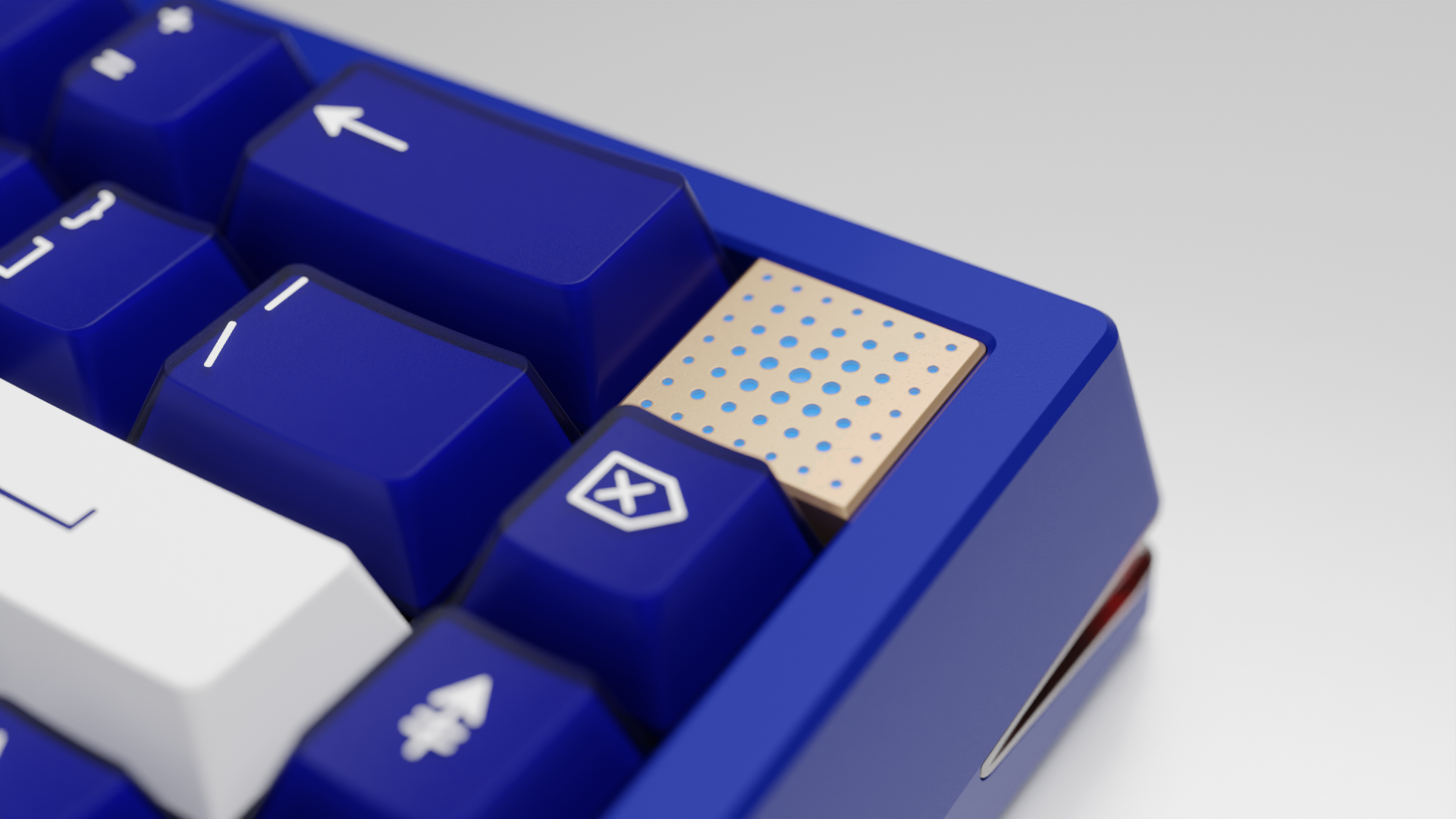

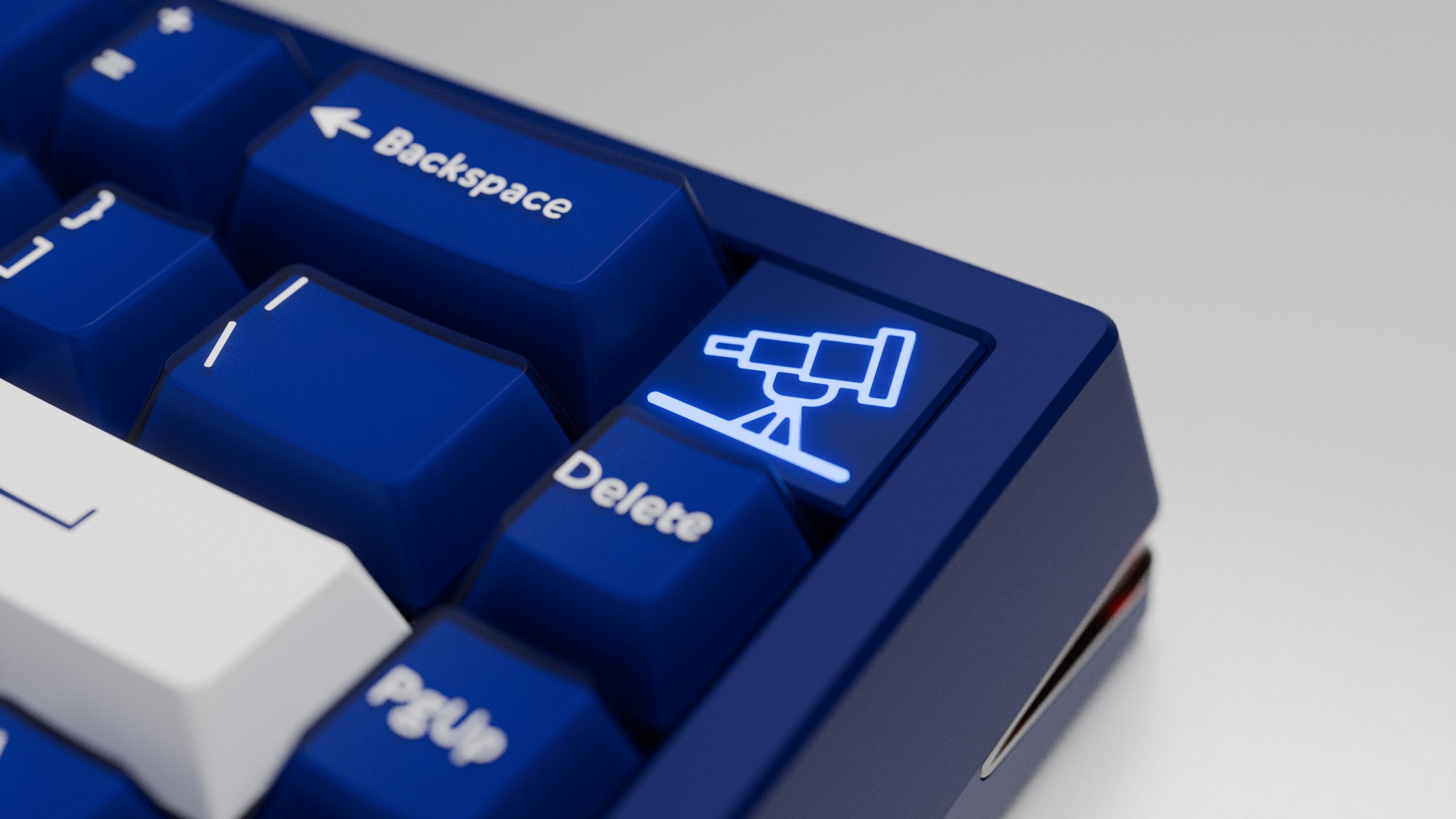

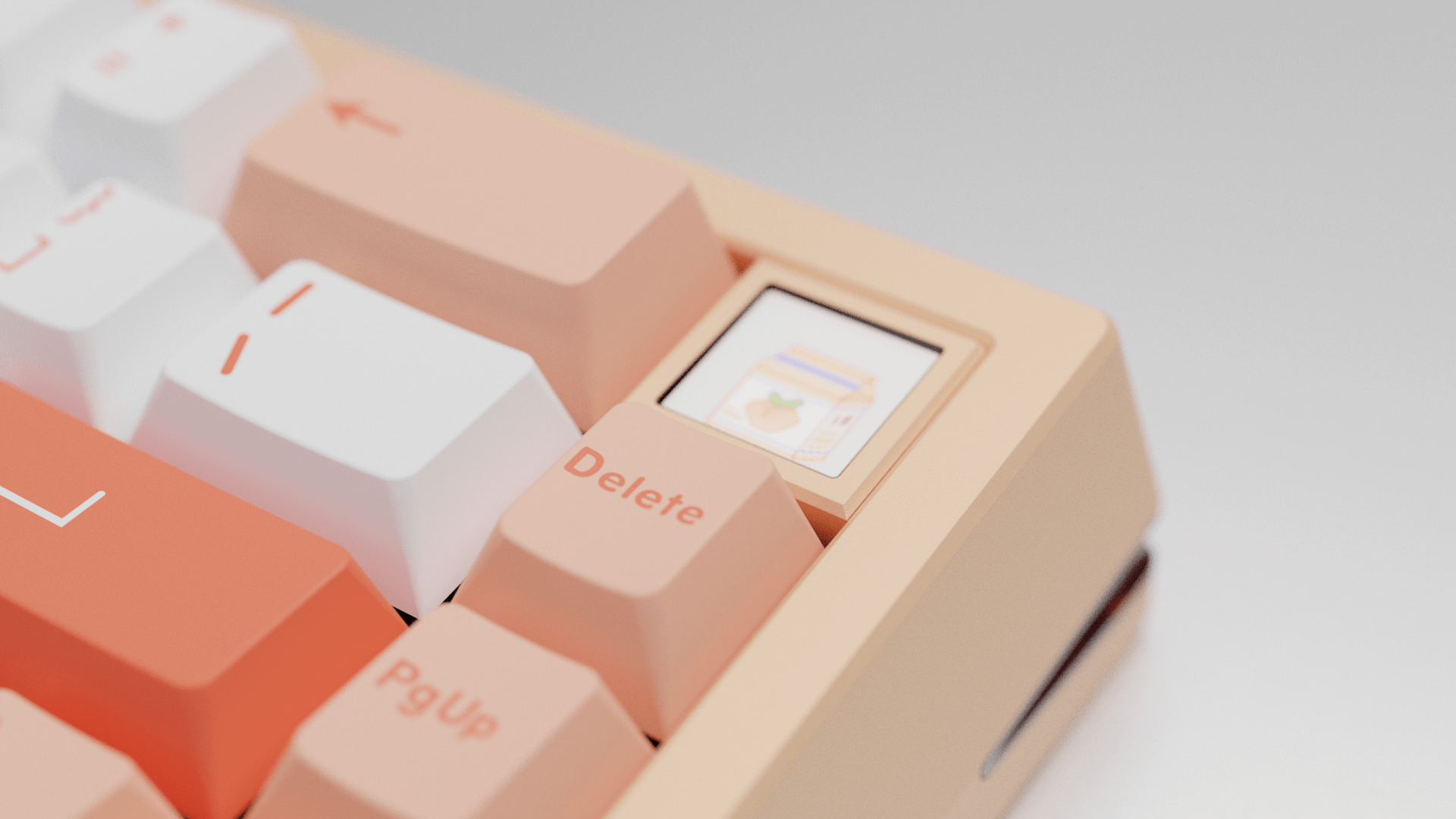

4 Modules

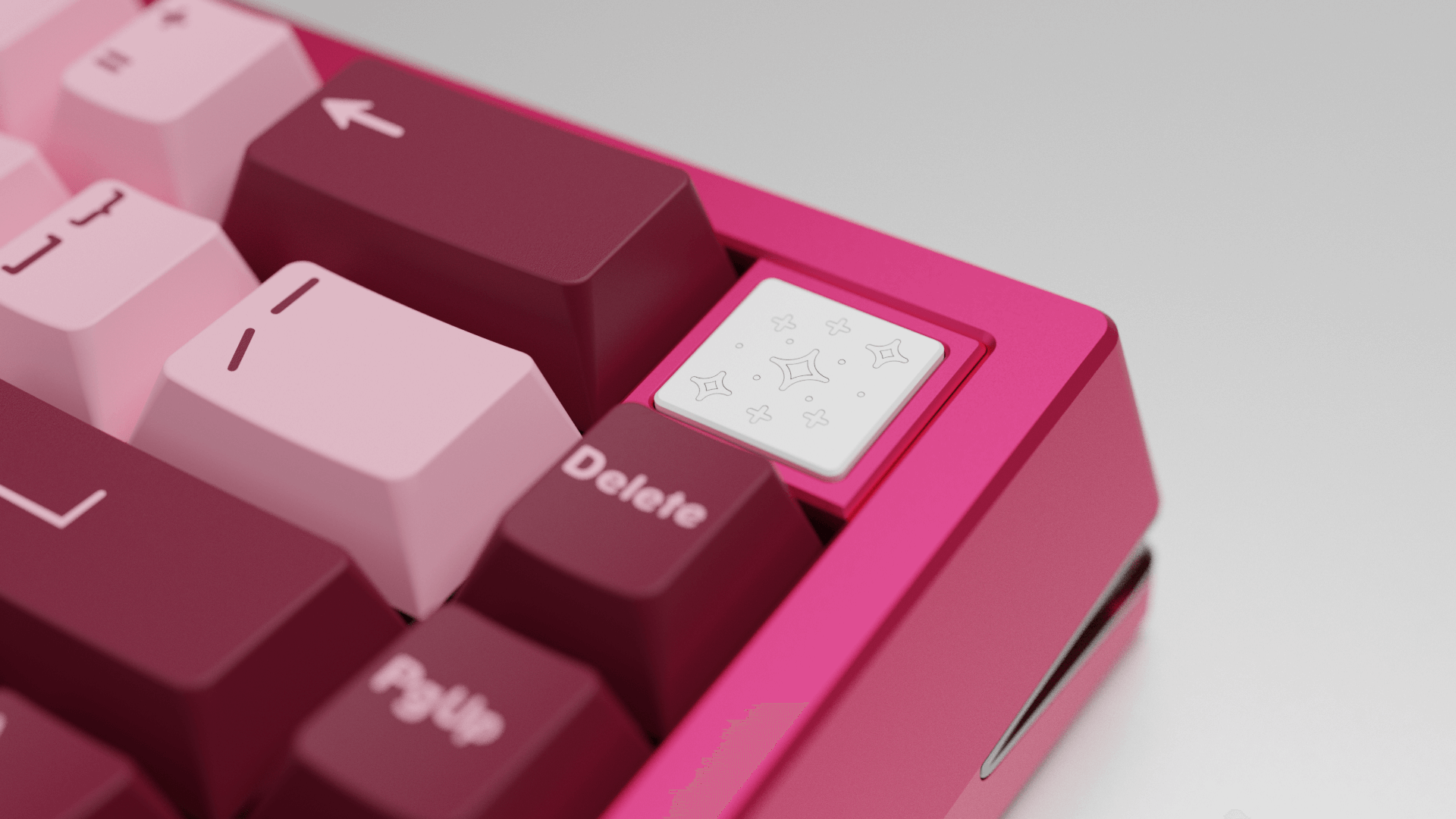

Based on the badges, we've added luminous badges, adjusted the screen refresh rate, and incorporated upgrades such as the ability to utilize the screen in single mode. Stay tuned for more updates!

What's More

Different Backplate Designs

16 colors matching the top case + Special RAW version with knife pattern

A Special RAW Version of the Backplate

Knife Pattern 1

A Special RAW Version of the Backplate

Knife Pattern 2

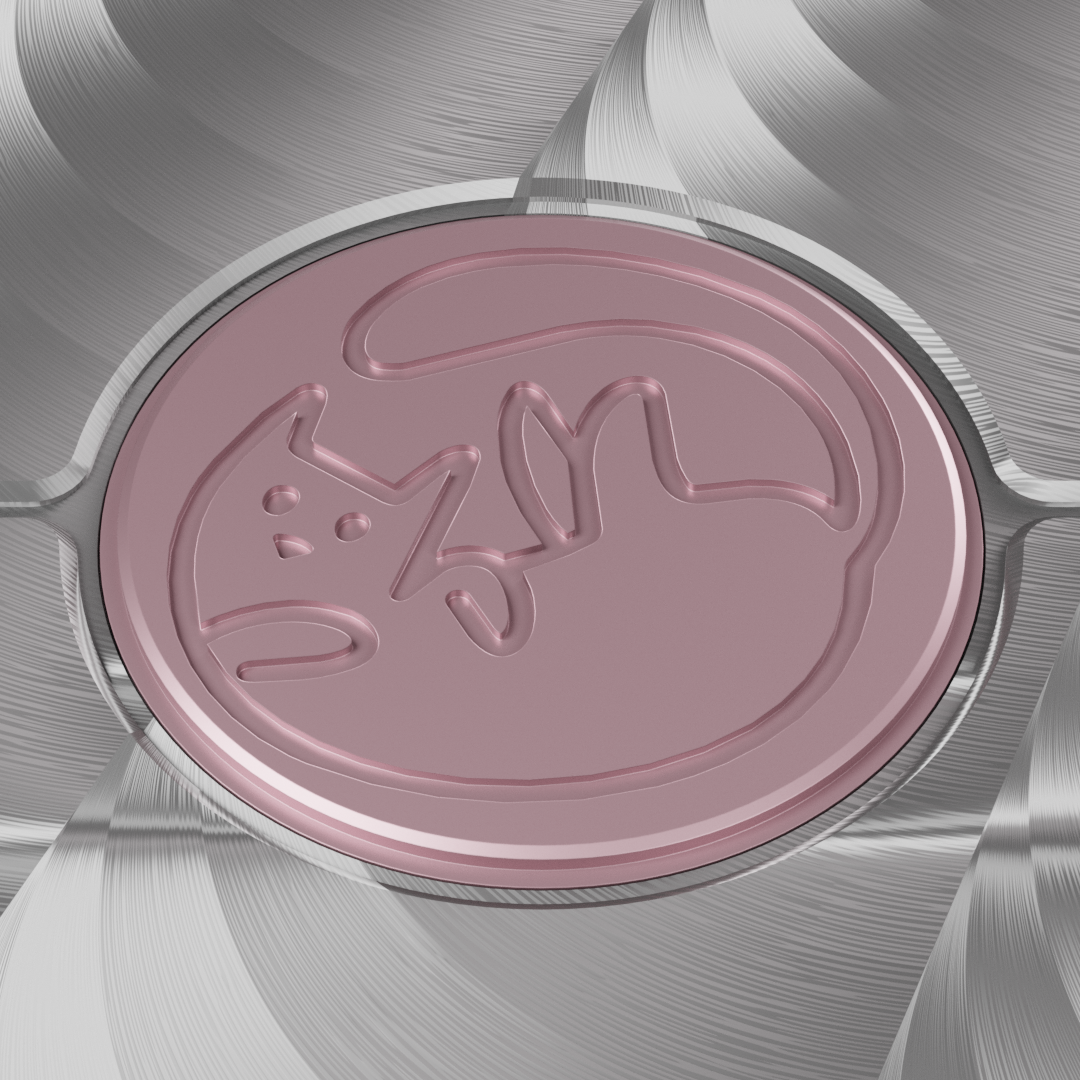

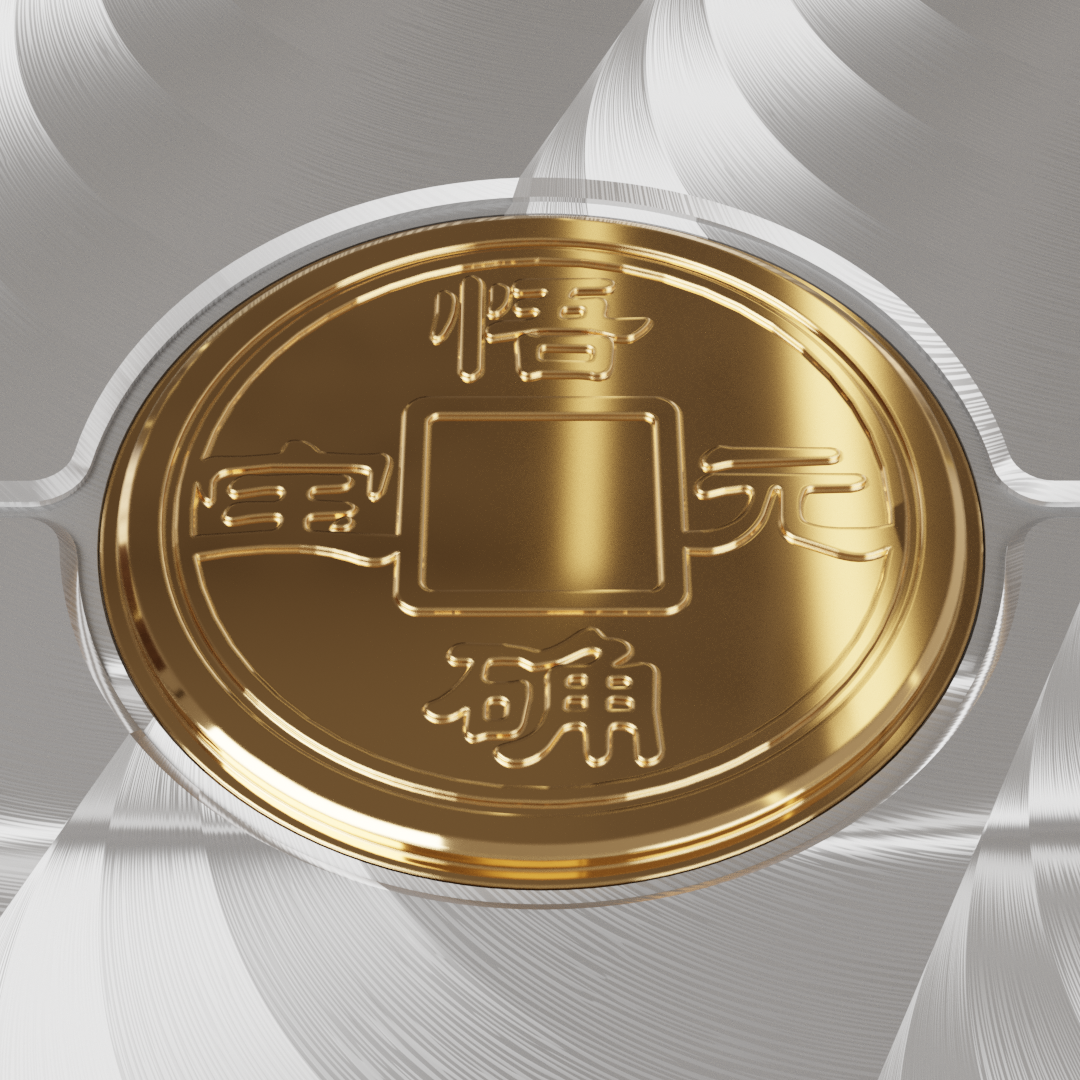

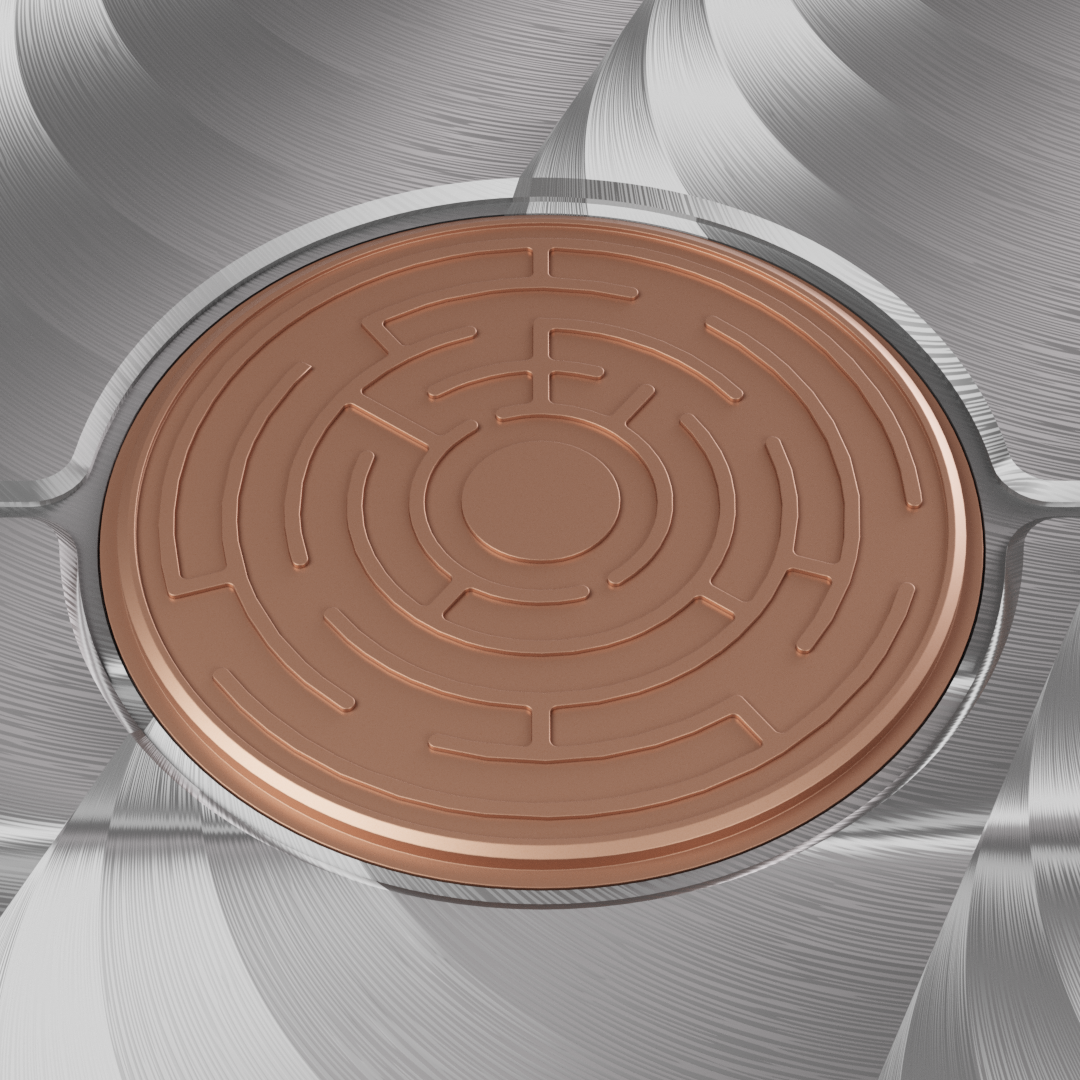

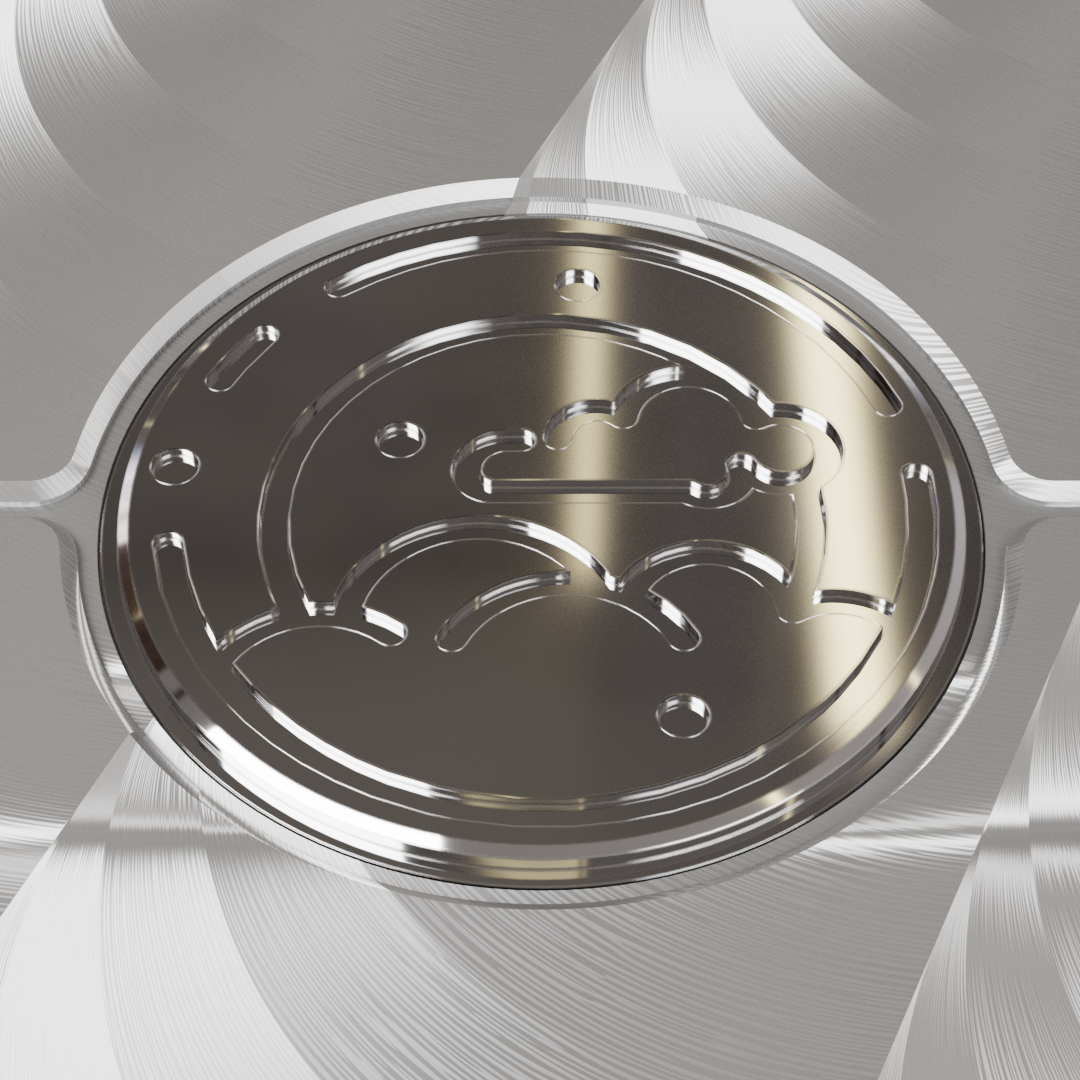

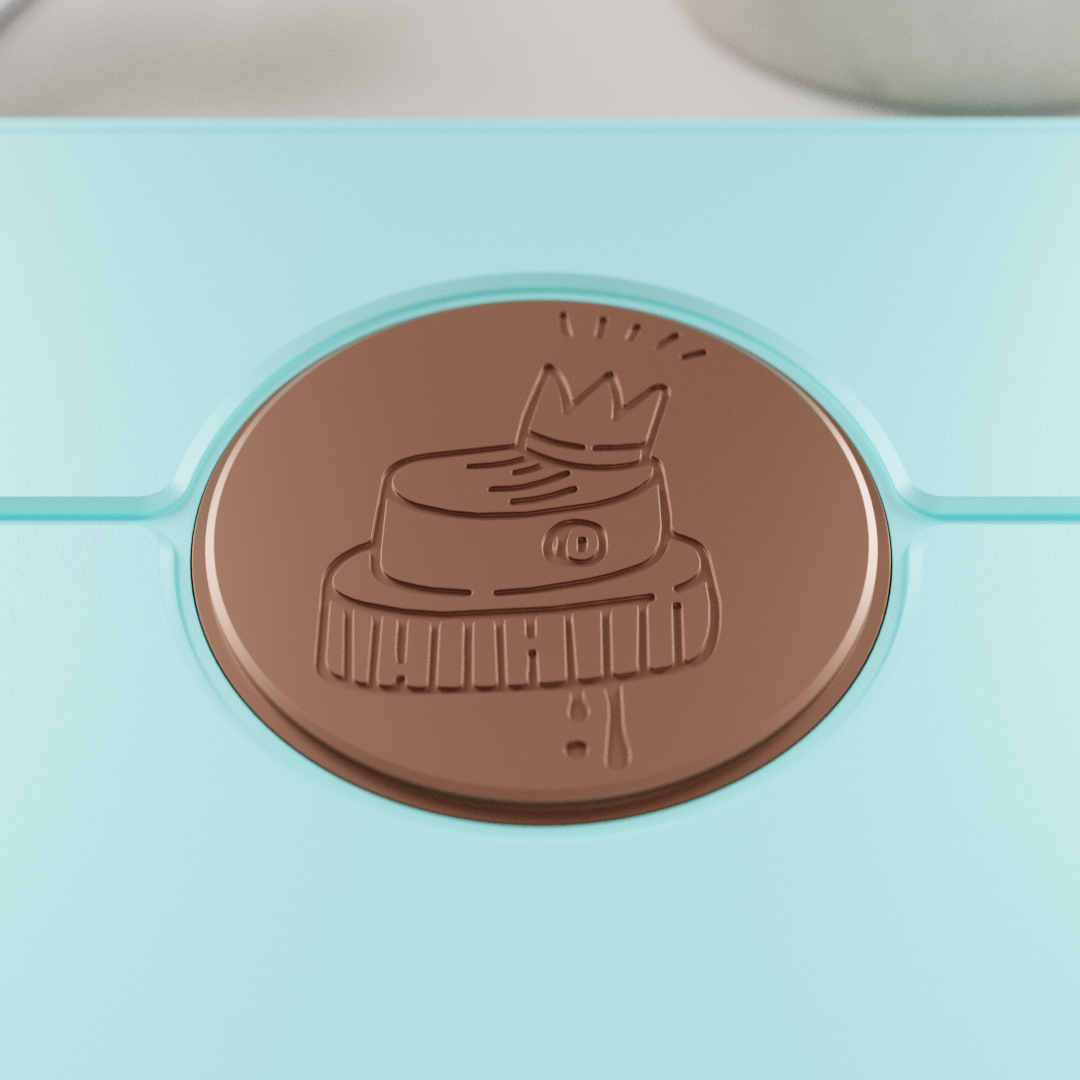

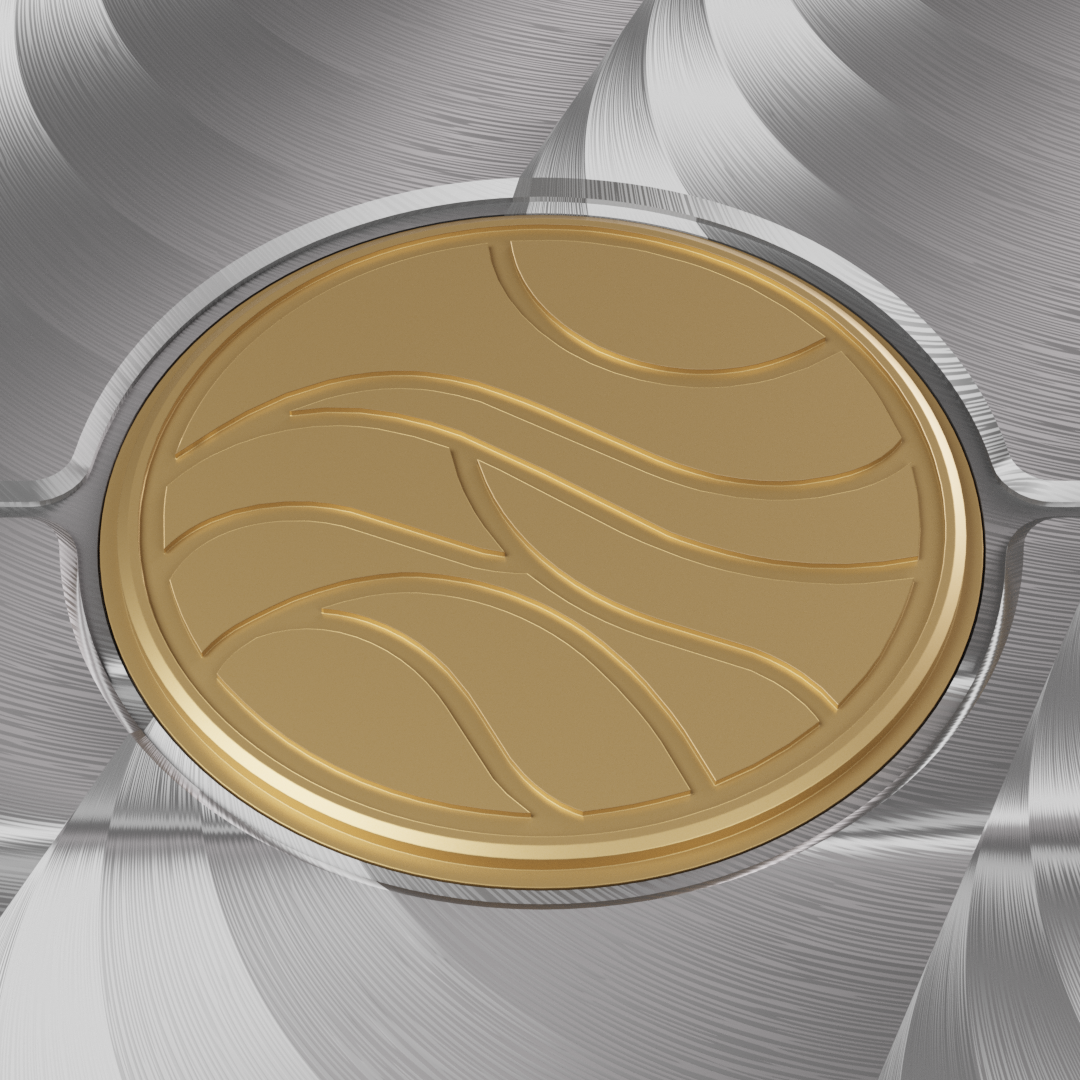

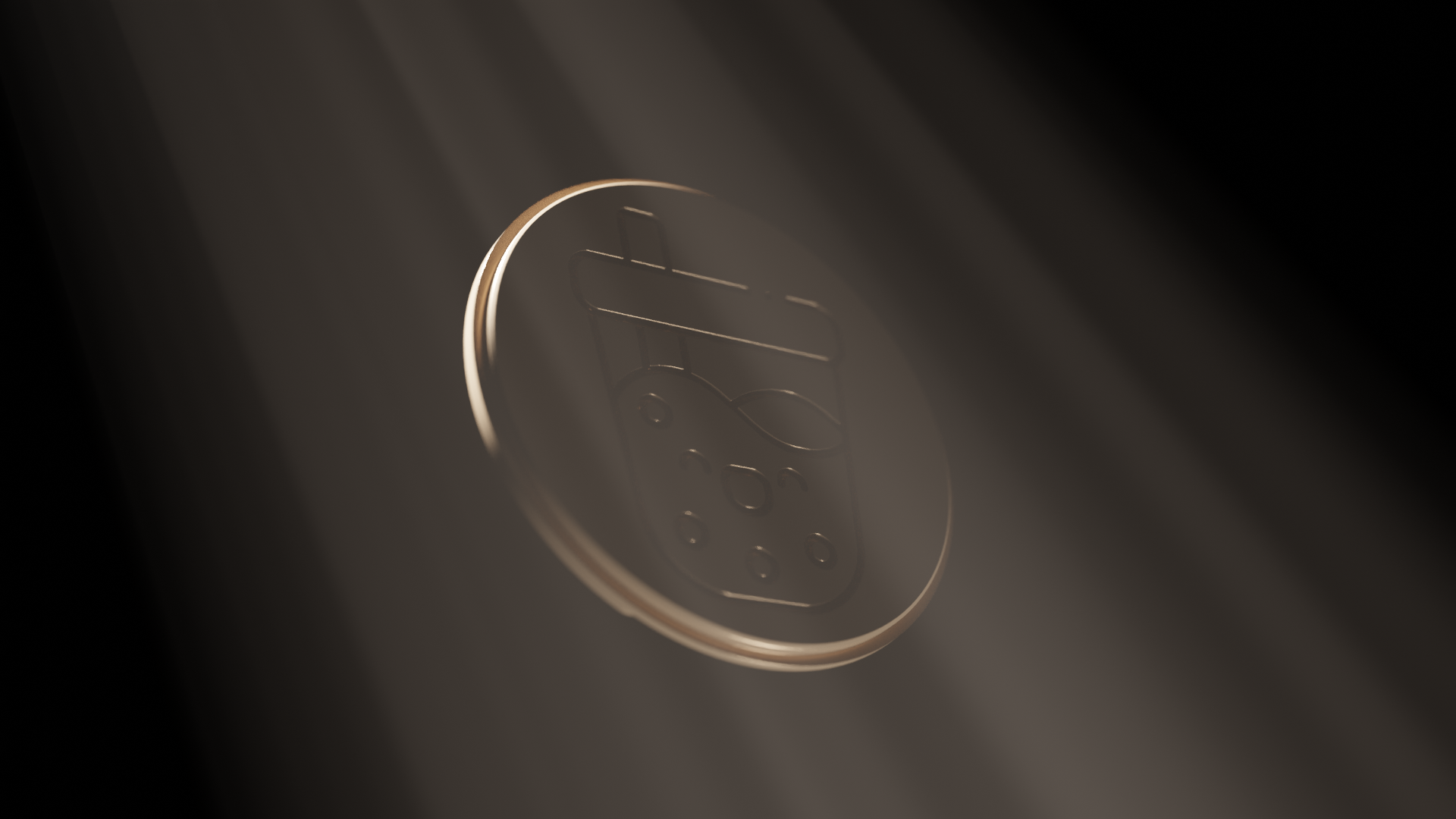

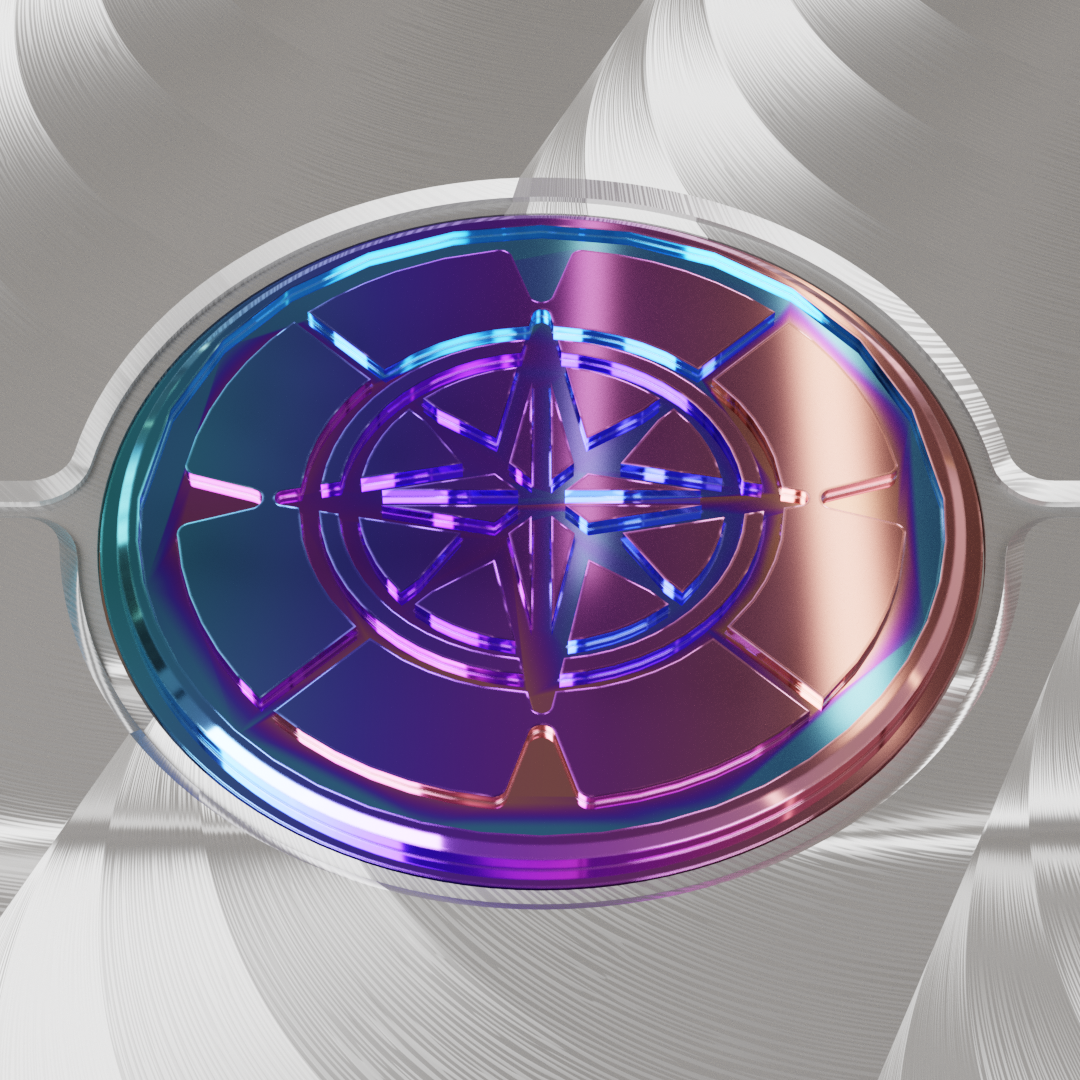

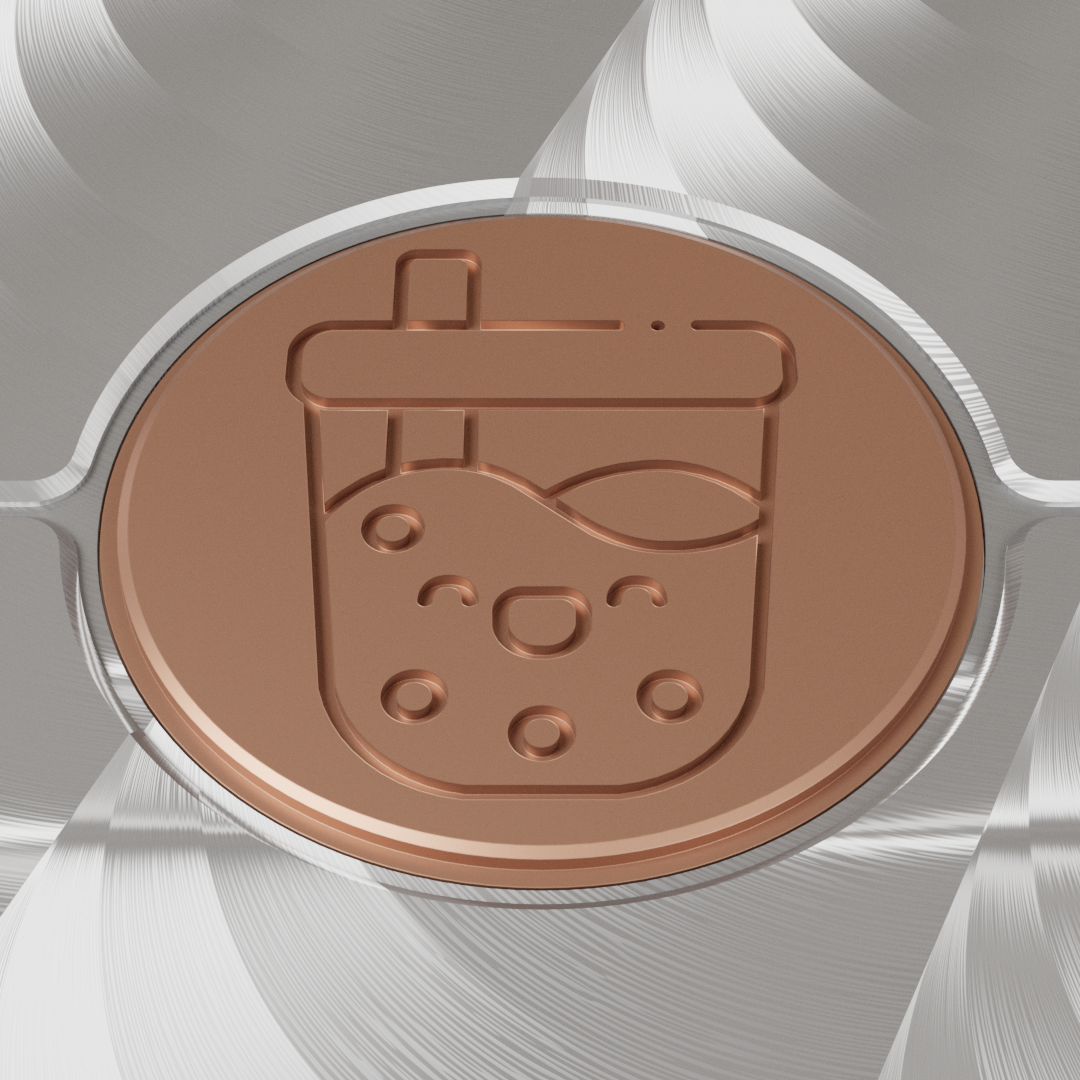

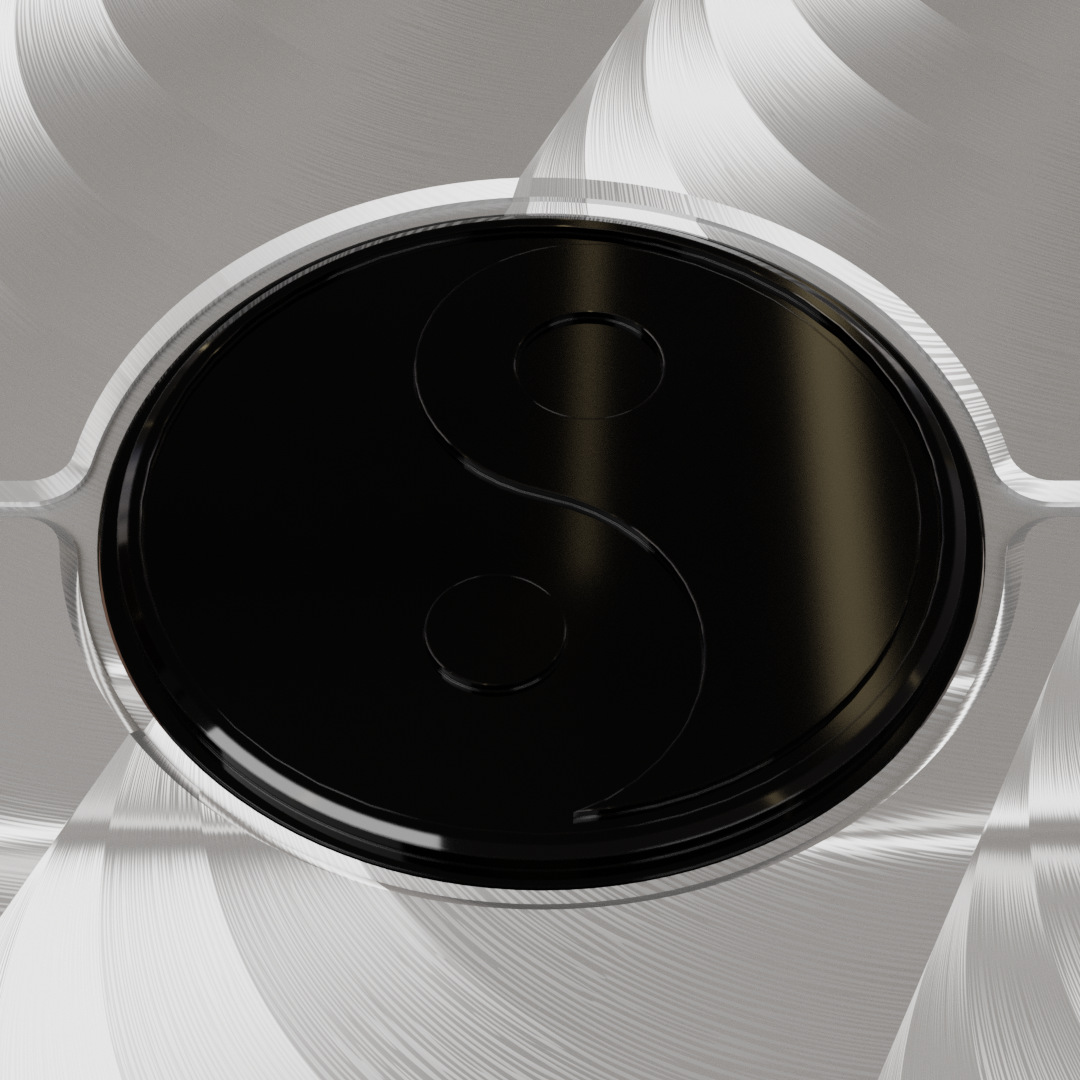

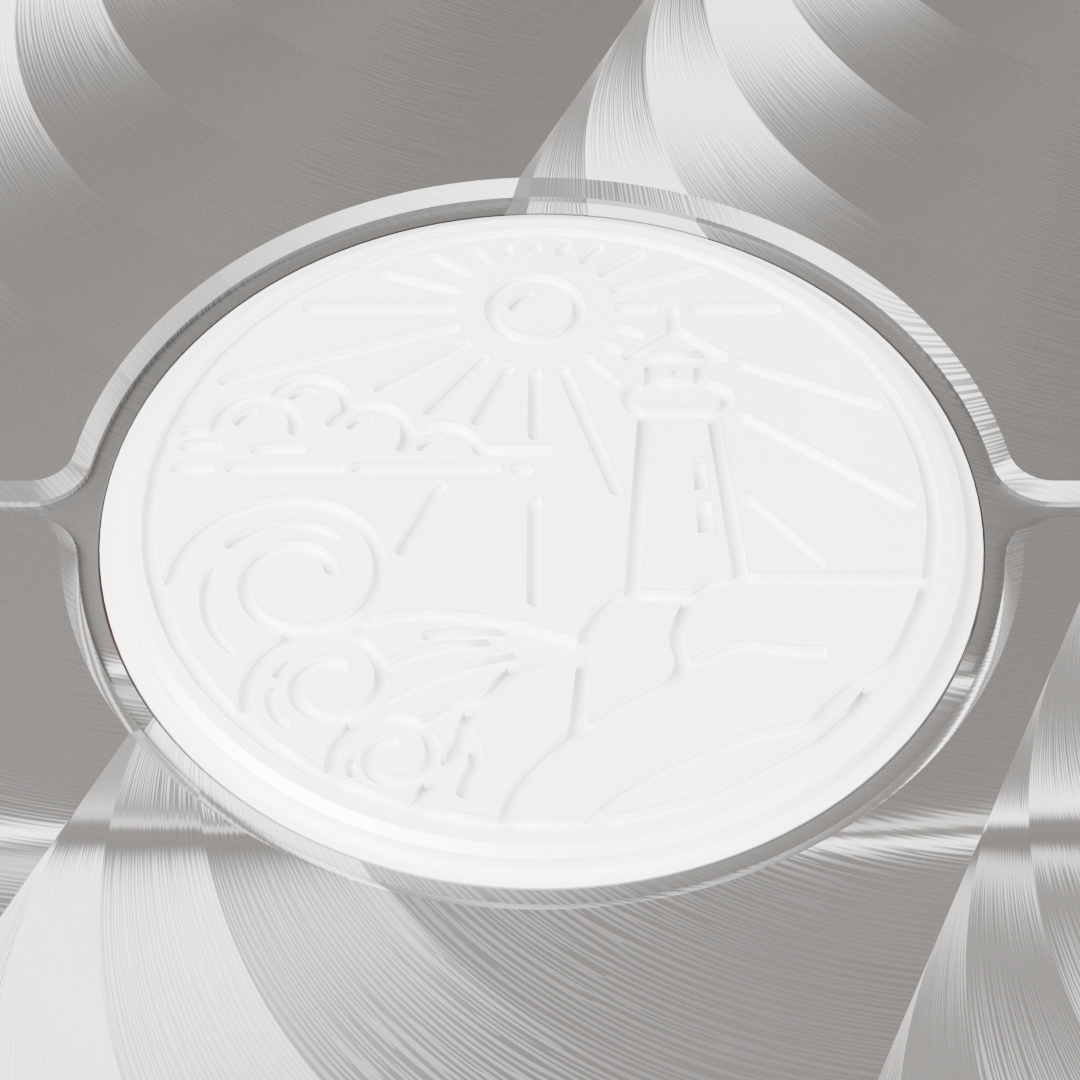

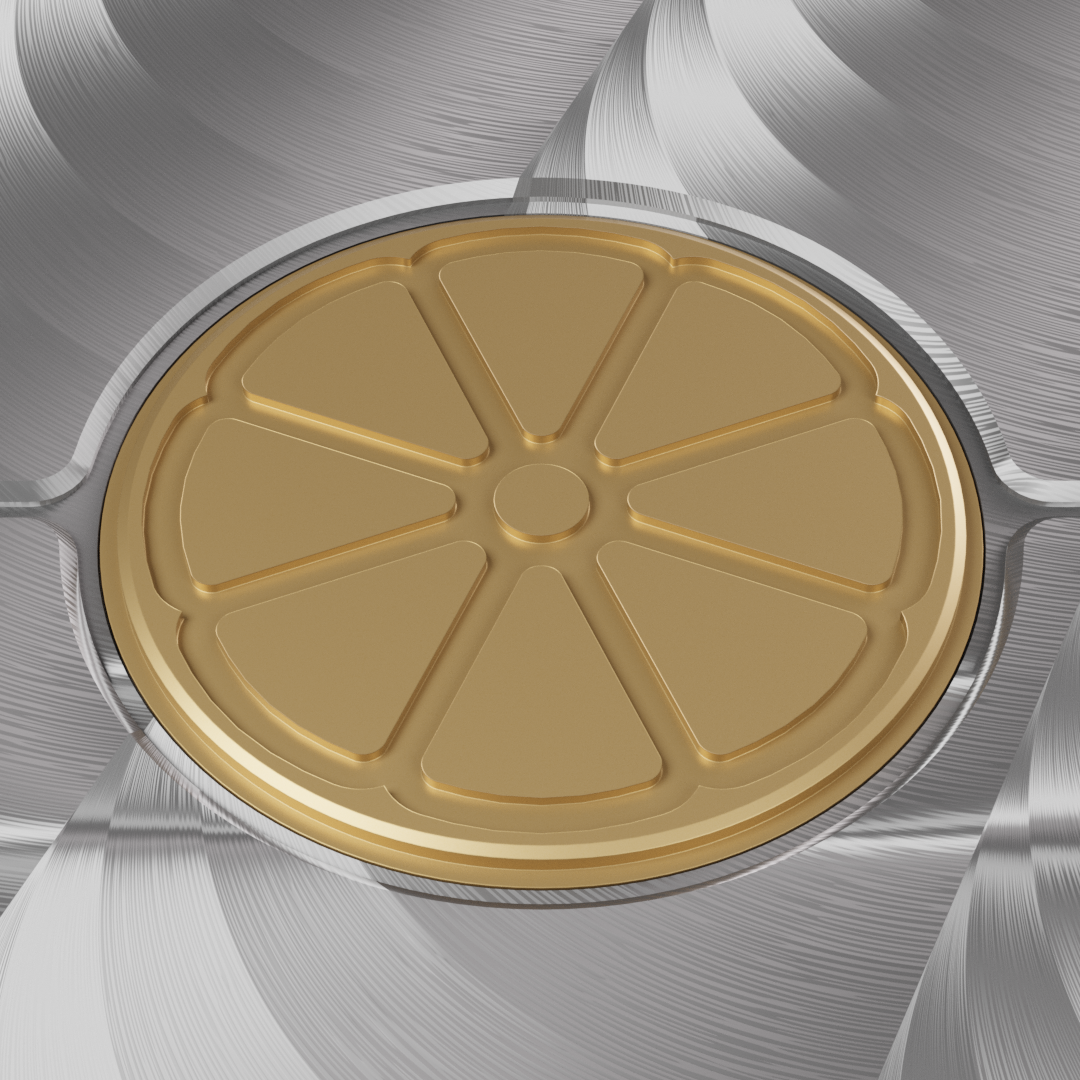

Special External Weight

Our weight and badge design competition has now started, you can find more about this and our Discord further down

Discord - Design Channel

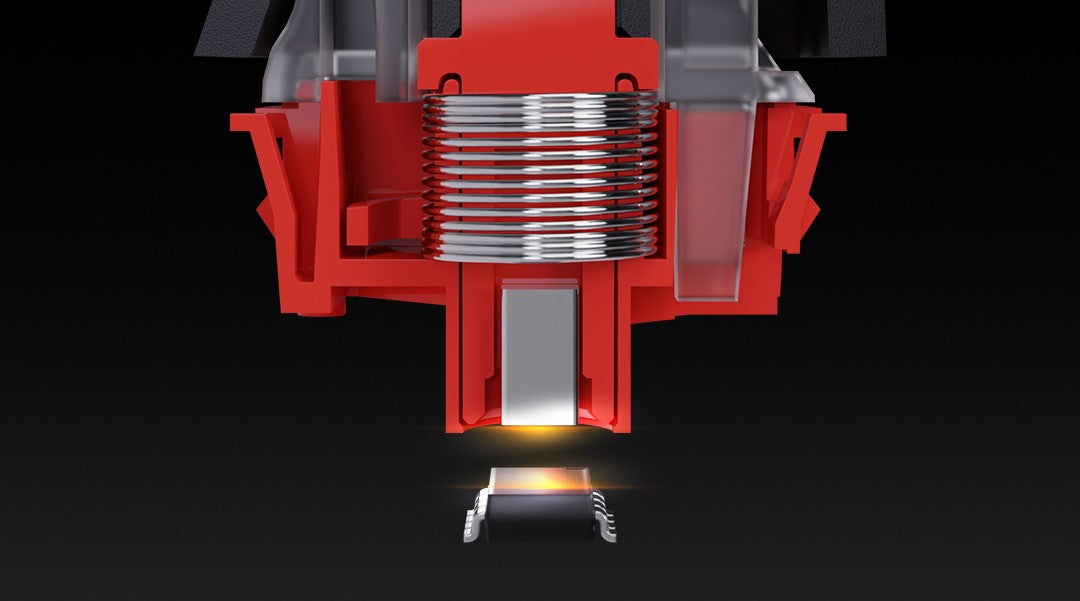

HE Module for ZOOM65 V3

This time the ZOOM65 V3 will also launch a HE module, which you can choose according to your needs.

HE Module for ZOOM65 V3

This time the ZOOM65 V3 will also launch a HE module, which you can choose according to your needs.

ZOOM65 V3 Exploded View

Product specification

Size

65%

Material

National standard 6063 Aluminum

PCB Type

Tri-mode flex cut 1.2mm

Tri-mode non-flex cut 1.6mm

Wired non-flex 1.6mm

Typing Angle

6.5°

Forehead Height

22.33mm

VIA & QMK Support

Yes

Tell Us What You Think

Fill out the IC below

IC Form

Want to have a talk?

Join our DISCORD
