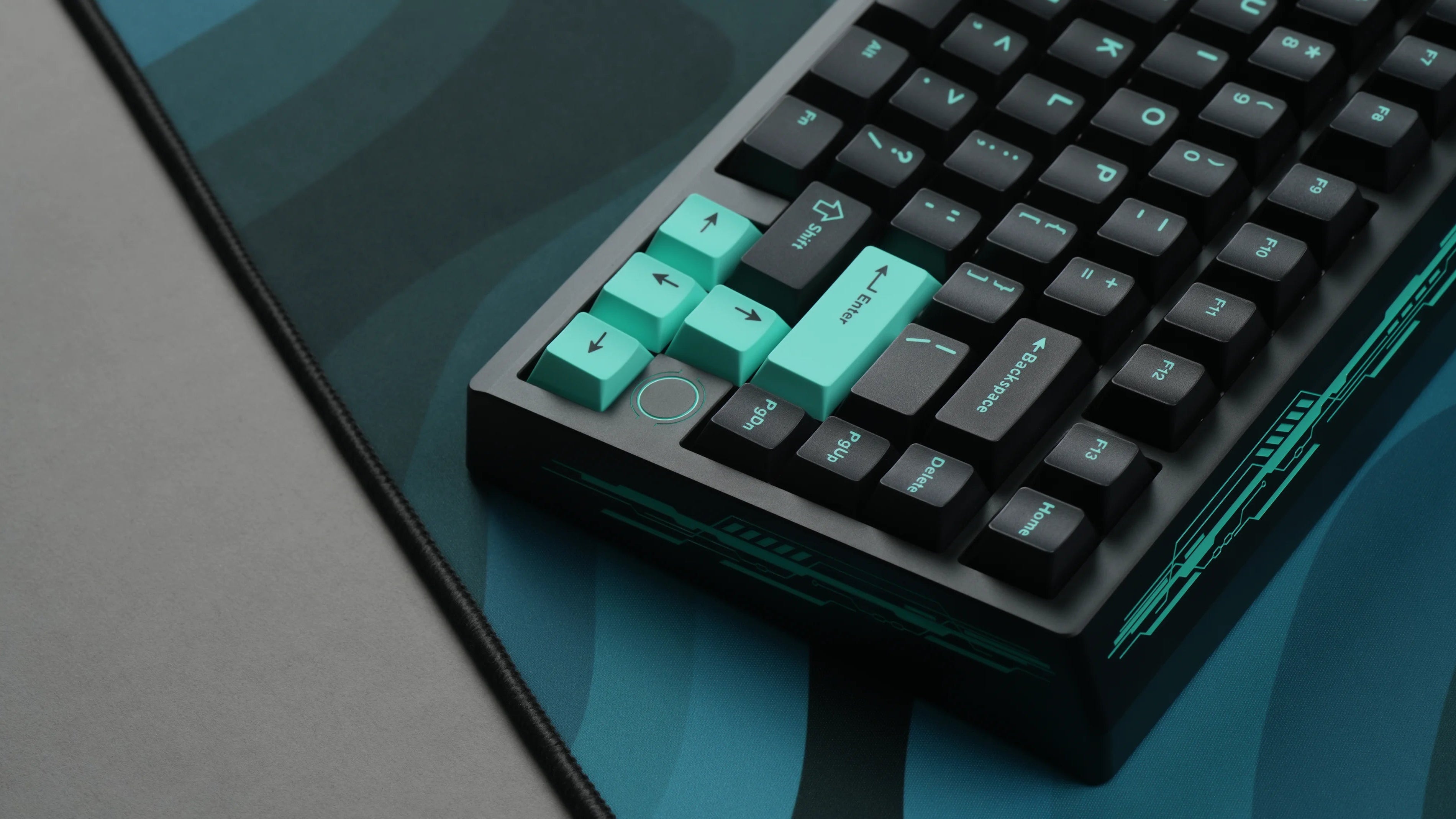

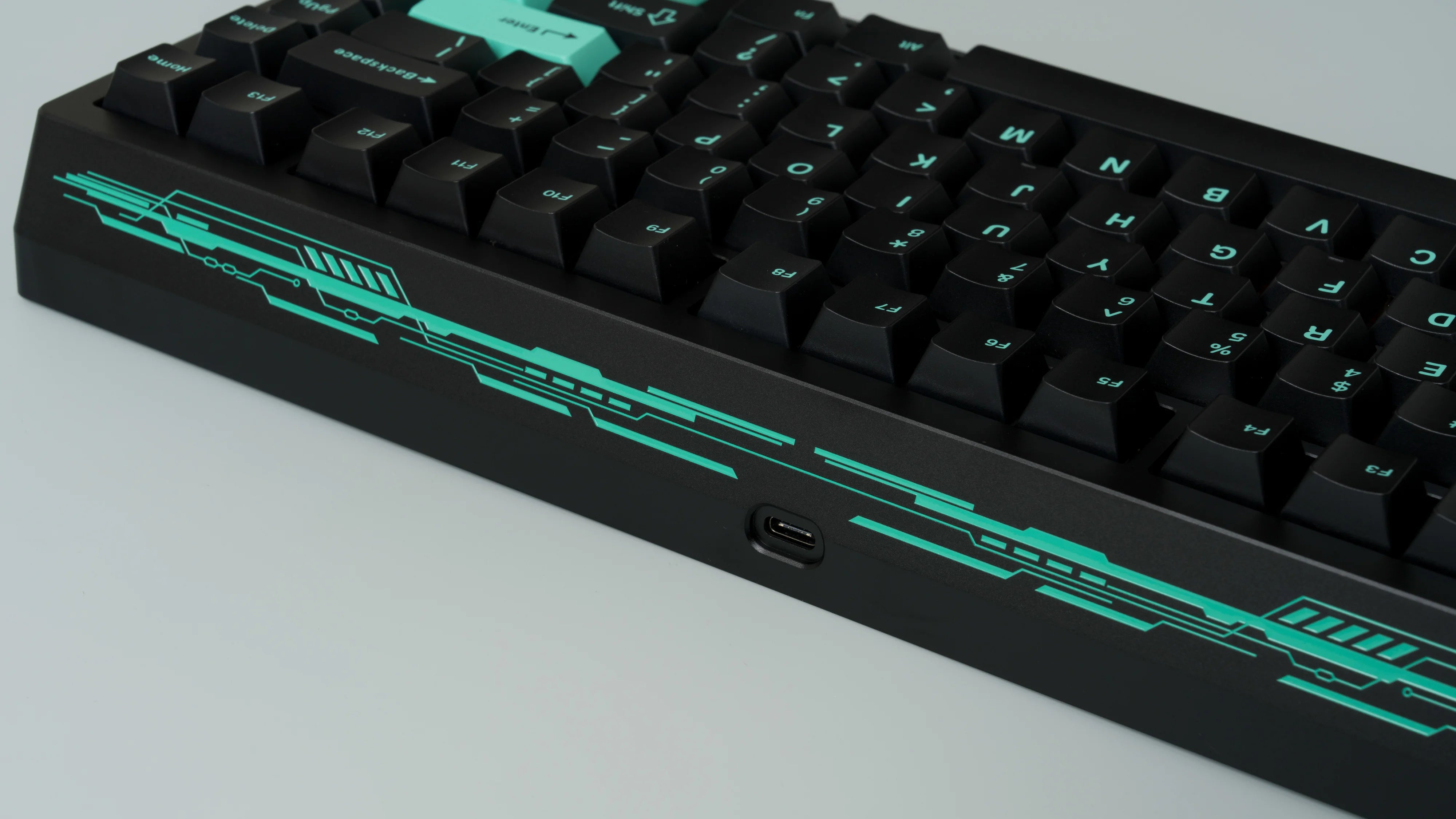

BOOG75 Prebuilt
Keyboard Specifications:
- Wired
- Gasket Mount Design
- 75% Layout
- PCB: 1.6mm, with Ai03 DB
- 5° Typing angle
- 22.14 mm front height
- Dimension: 323.6 x 145.78 x 34.73 (mm)
- Default plate: Alu
- Case Material: 6063 Aluminum
- Case Finish: Anodized+Infill (No Sparkles, No Chamfer)

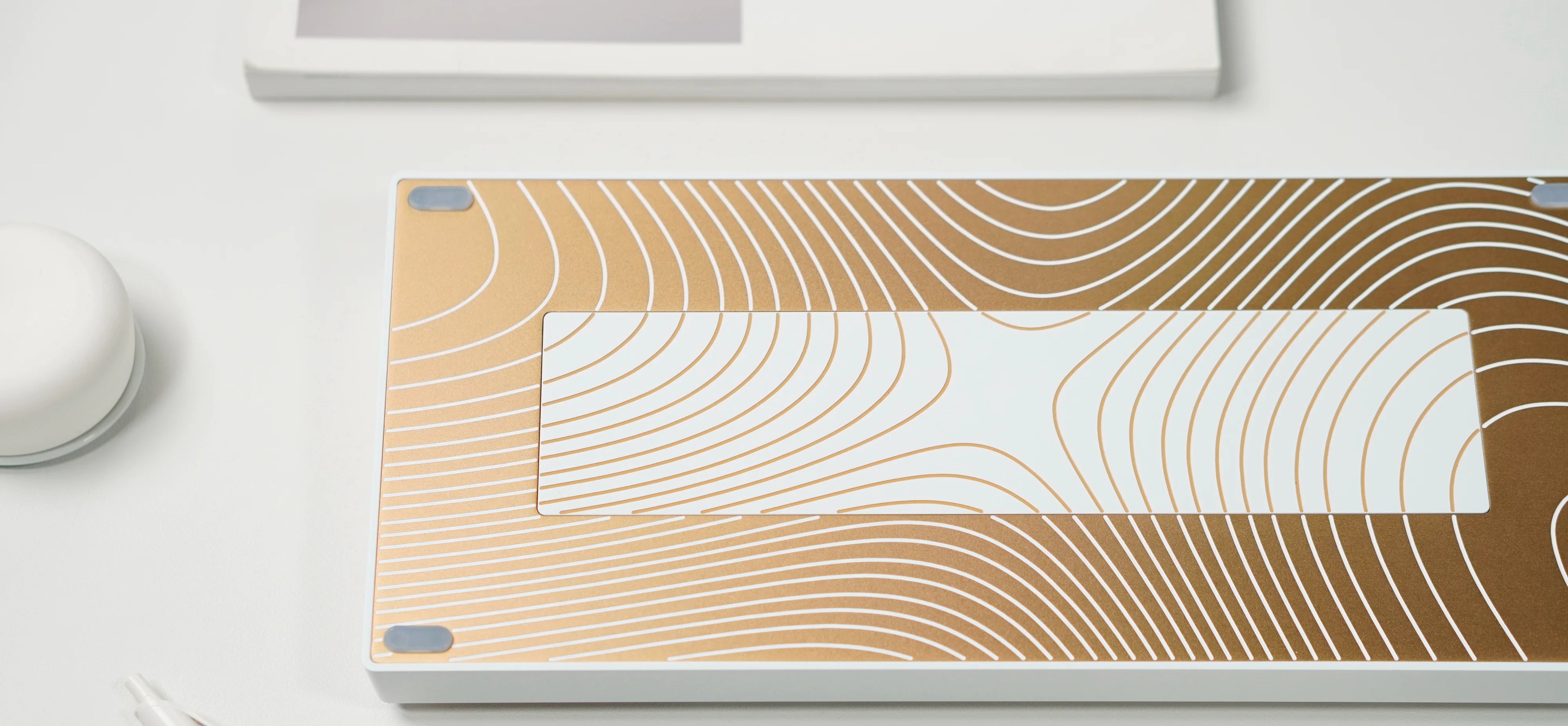

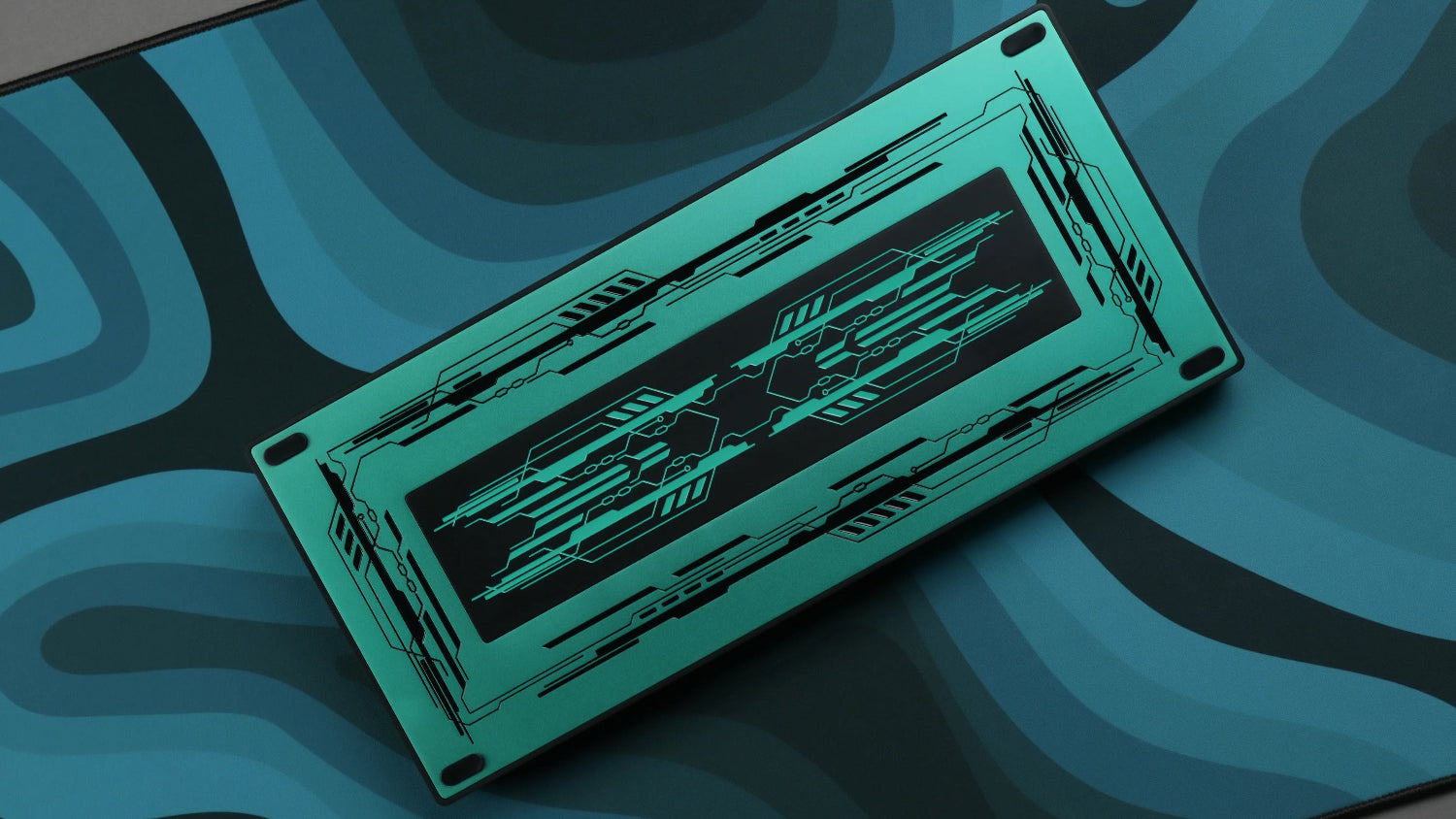

- Backplate and External Weight: Anodized+Infill
- Switches Type: Gateron KS37B, compatible with Gateron KS37, GATERON Magnetic FOX Switch, GATERON Dual-rail Magnetic Jade Mini E Switch
- The Orientation of the Switches: North Facing
- No SS Internal Weight
- Boog 75 Wired Polling Rate: 1000hz
Keycap Specifications:
- Manufacturer: WS PBT
- Keycap Material: Doubleshot PBT
- Keycap Thickness: 1.6mm
- Keycap Profile: Cherry
Switch Specifications:

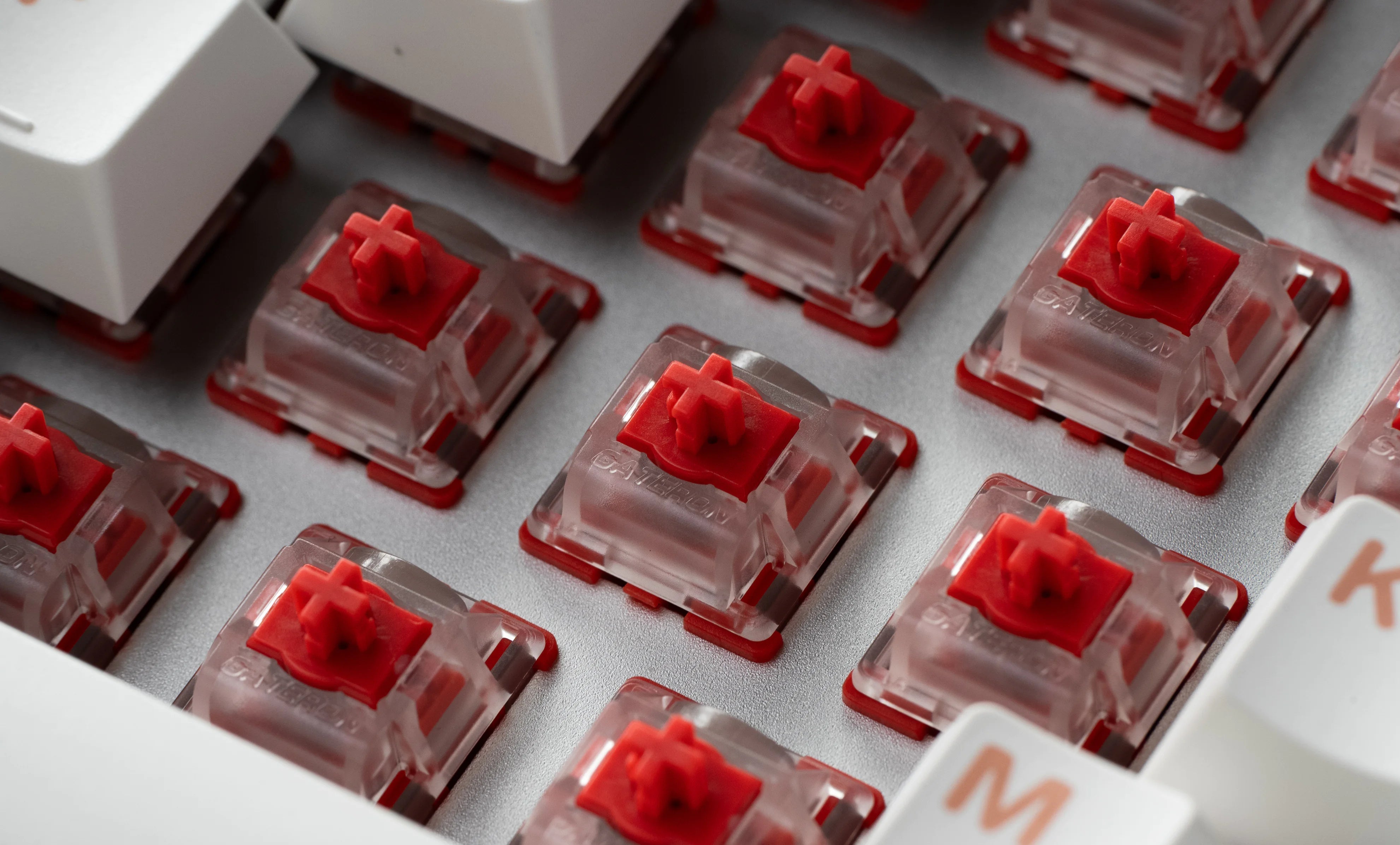

- Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
- Initial Force:30±10gf.
- Total travel:4.0±0.2mm.
- Operation Lifetime:150,000,000 Cycles.
- Bottom Force: 50±10gf.
- Top Housing Material: Thermoplastic, Transparent
- Bottom Housing Material: Thermoplastic, Red
- Stem Material: Thermoplastic, Red
- Spring Material: Stainless steel
Kit Contents:
Fully Assembled Keyboard, including:
- Top and bottom cases
- HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
- The themed keycaps
- Tool accessories
Disclaimer of Stabs
- In the case of mass production, we will lubricate the stabilizer manually to a degree that is better than factory-lubed. However, if an individual pursues an exceptionally perfect tactile experience, he or she will need to lubricate it manually a second time. This is within the acceptable range of quality without affecting the functionality of the keyboard.
We would like to clarify that our BOOG75 keyboard is only compatible with certain types of switches ( compatible with KS37). Any issues arising from the customer's independent replacement of switches fall outside the scope of our after-sales service. In such cases, customers will be responsible for covering any repair costs incurred. We appreciate your understanding in this matter.
BOOG75 Prebuilt Keyboard
No assembly required. Enjoy a fully built, high-end custom keyboard experience with premium feel and sound.
BOOG75 offers an easy entry into the world of custom keyboards, where every structure and component is thoughtfully designed and perfectly matched.

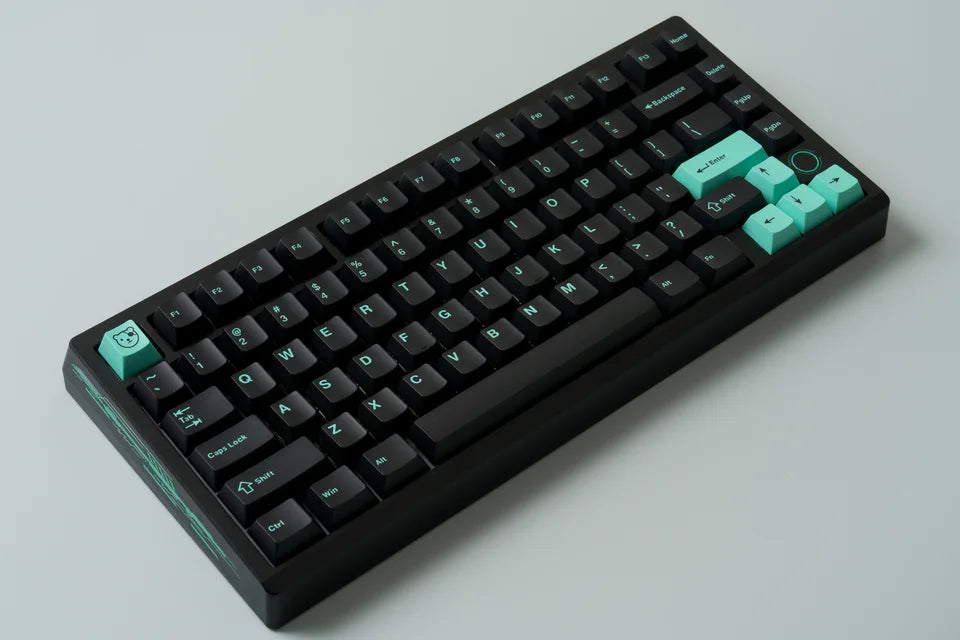

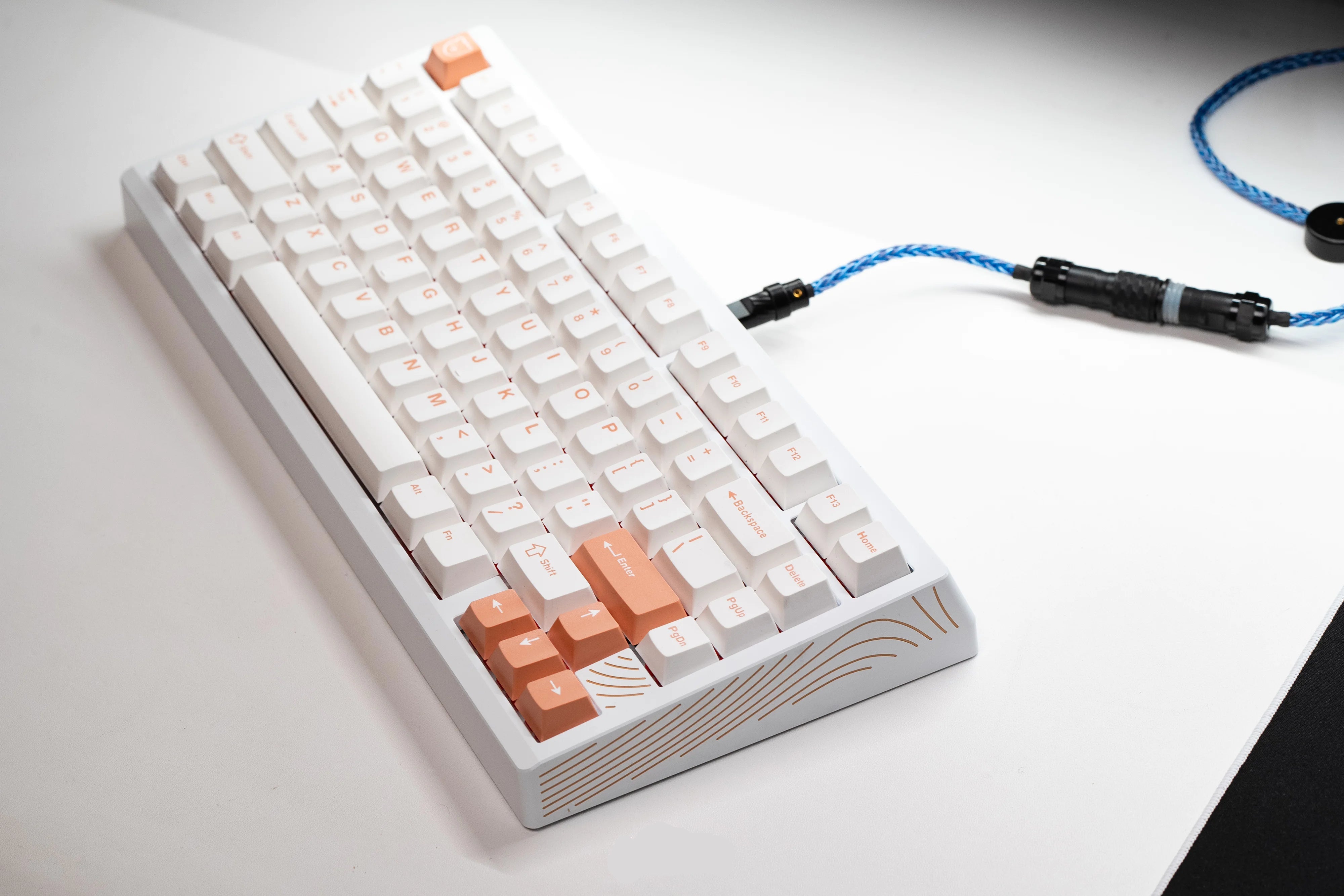

Two classic color options

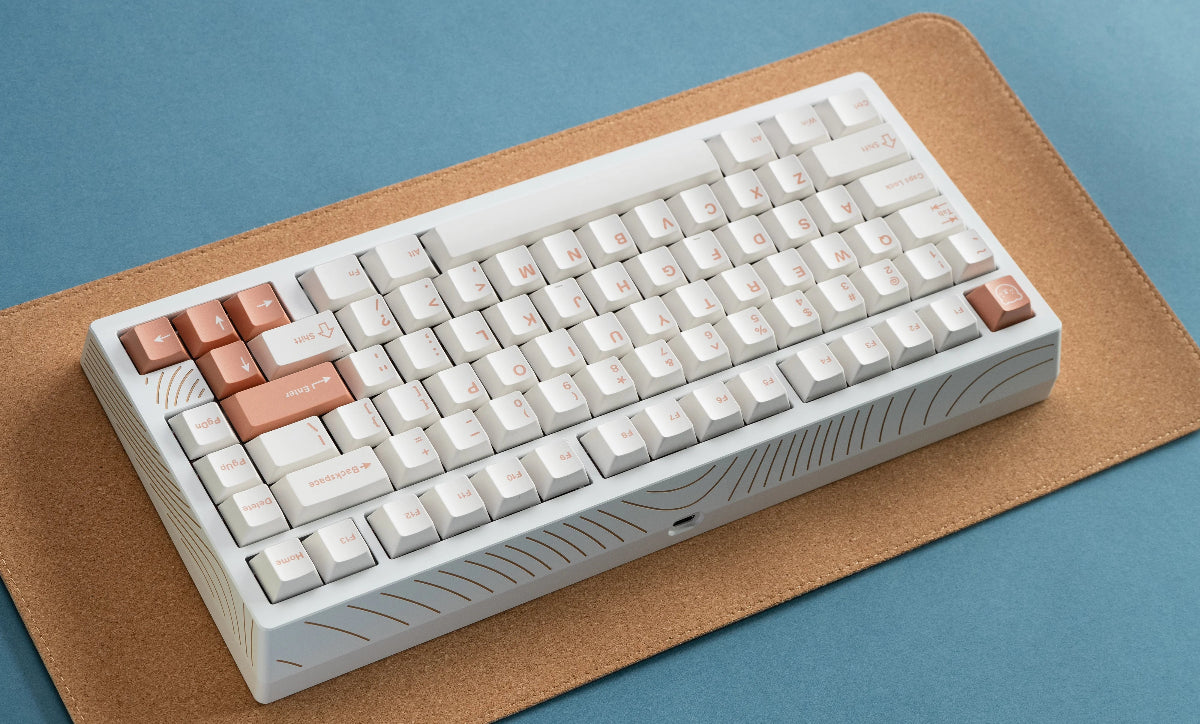

The BOOG75 prebuilt keyboard comes in two classic colors, black and white. Whether you prefer a minimalist style or a gaming aesthetic, you’re sure to find the one that fits you perfectly.

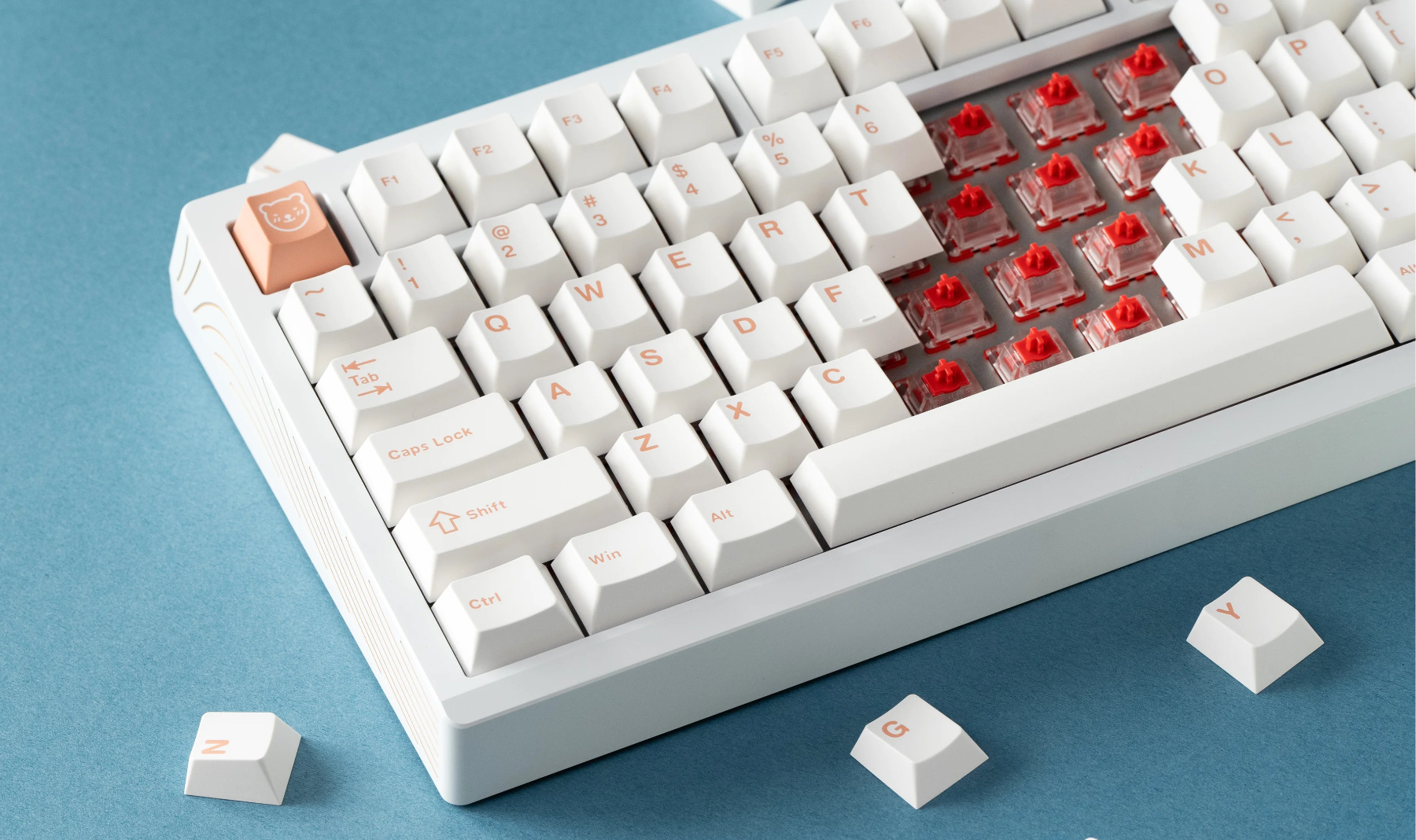

The BOOG75 is prebuilt with GATERON KS-37B switches, masterfully tuned for a premium typing sound. Every keystroke delivers satisfaction, effortlessly bridging work and play while elevating your mood.

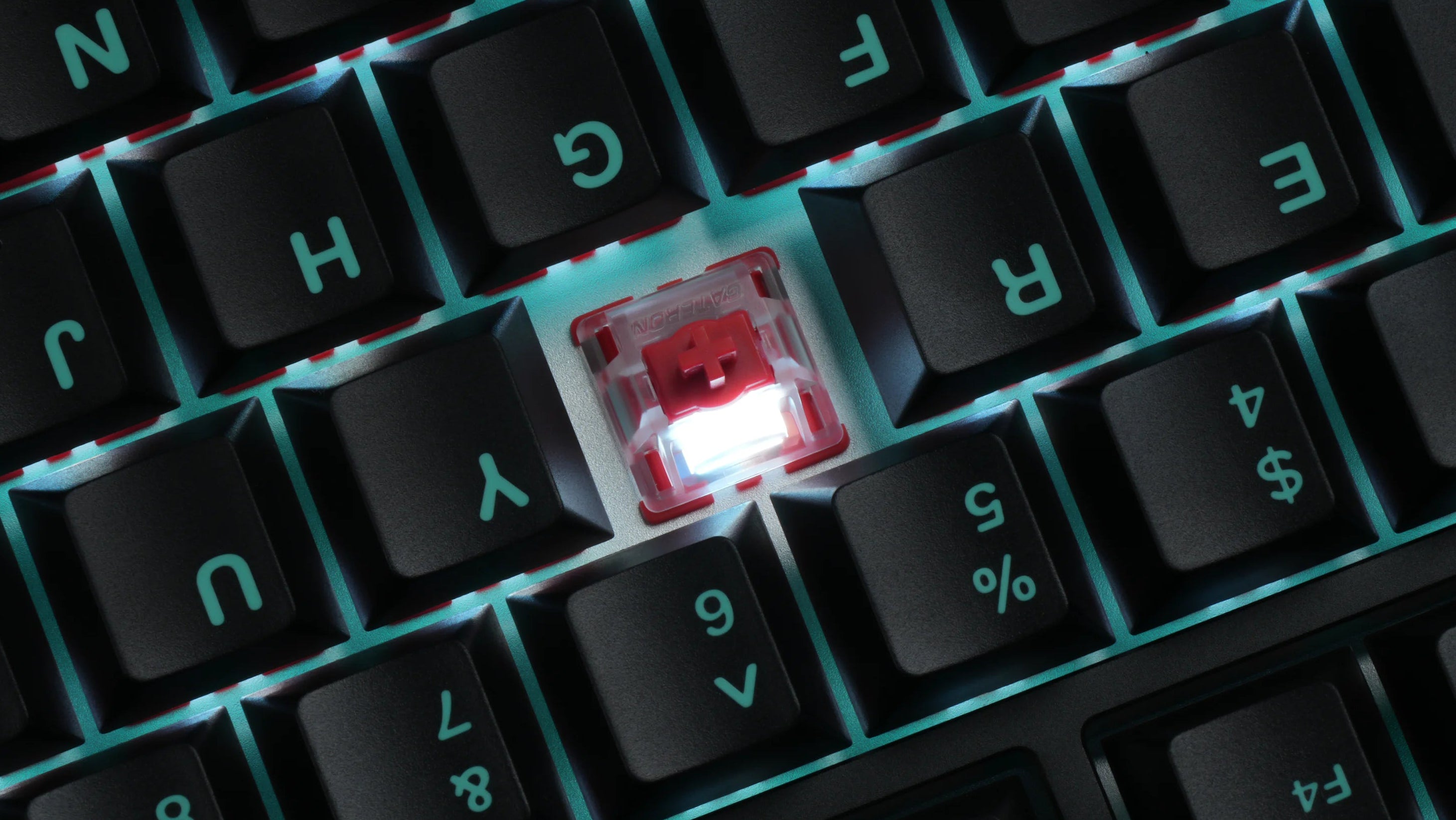

The GATERON KS-37B switches also feature stunning RGB lighting that immediately catches the eye. Fully customizable, it adapts perfectly to every scenario you need, whether it is intense gaming, focused work, or late-night creativity, bringing both style and functionality to your setup.
The BOOG75 is prebuilt with GATERON KS-37B switches, masterfully tuned for a premium typing sound. Every keystroke delivers satisfaction, effortlessly bridging work and play while elevating your mood.
The GATERON KS-37B switches also feature stunning RGB lighting that immediately catches the eye. Fully customizable, it adapts perfectly to every scenario you need, whether it is intense gaming, focused work, or late-night creativity, bringing both style and functionality to your setup.
Quality you can see and feel
Featuring a Gasket Mount design for a soft, comfortable typing experience, the aluminum case and plate enhance both the feel and stability of the keyboard.
Specially tuned Poron case foam that makes you fall in love with the sound of typing. PBT doubleshot keycaps for an extra smooth and satisfying touch
Advanced Key Setting
Boog75 magnetic enables you to gain the upper hand in game.
Our Boog75 enables key activation at distances as short as 0.1mm. You can customize the activation point for each key, ranging from 0.1mm to 4.0mm. Find the ideal key travel distance that suits
you best.
Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance traveled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses. This capability empowers you to swiftly execute a series of actions during gaming.
Boog75 magnetic enables you to gain the upper hand in game.
Our Boog75 enables key activation at distances as short as 0.1mm. You can customize the activation point for each key, ranging from 0.1mm to 4.0mm. Find the ideal key travel distance that suits
you best.
Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance traveled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses. This capability empowers you to swiftly execute a series of actions during gaming.
4 different actions on a single key based on key position. Activate 1 up to 4bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.
Snappy Tappy (socD cleaning) monitors the 2selected keys and activates thembased on youchosen settings.
2 different actions on a single key based on press behaviour. Hold the key downfor the first action or tap the key for the second action. Mod tap function improves operational and input efficiency by providing additional shortcuts.
Lock an action between its on and off state by tapping the key. Activate thenormal key behaviour by holding down the key.By enabling quick adaptation to different usage needs or work environments through simple operations, it enhances flexibility.
4 different actions on a single key based on key position. Activate 1 up to 4bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.
Snappy Tappy (socD cleaning) monitors the 2selected keys and activates thembased on youchosen settings.
2 different actions on a single key based on press behaviour. Hold the key downfor the first action or tap the key for the second action. Mod tap function improves operational and input efficiency by providing additional shortcuts.
Lock an action between its on and off state by tapping the key. Activate thenormal key behaviour by holding down the key.By enabling quick adaptation to different usage needs or work environments through simple operations, it enhances flexibility.
Adjustable activation point for each key from 0.1 mm - 4.0 mm with an accuracy of 0.1 mm
Custom profiles for different games
We support setting up 3 different profiles to support you to quickly jump between different games.
You may also like
![[Extra] WS Cosmic Odyssey Keycap Set](http://meletrix.com/cdn/shop/files/DSC02867_54967e6a-88d8-492a-9d72-a04ea84a4889.jpg?v=1709013649&width=1920)
![[Extra] WS Cosmic Odyssey Keycap Set](http://meletrix.com/cdn/shop/files/DSC02853.jpg?v=1709013649&width=1920)
2 colors available
5 colors available
![[In-Stock] Wooden Wrist Rest](http://meletrix.com/cdn/shop/files/DSC02469.jpg?v=1706682594&width=1920)
![[In-Stock] Wooden Wrist Rest](http://meletrix.com/cdn/shop/files/DSC02470.jpg?v=1706682594&width=1920)
FAQ
Is the PCB only compatible with the Zoom 75?
Yes
Will it support Zoom 75 LCD Module or Knob Module?
No, only the 2-Keys module is supported now.
What switches will be included?
Gateron KS37B
What is the orientation of the switches?
North Facing
Does the PCB have wireless capability?
Sorry, we're only offering wired connections at this time.
Can the case be used for the wireless variant of the Zoom 75?
Sorry, it can't, Boog75 doesn't have a battery slot, but it can be used for the wired one.
Is the BOOG75 compatible with other switches
It only compatibles with Gateron KS37 now
Does the sensitivity setting have to be as low as possible?
For the setting of break stroke, due to the advanced setting of BOOG75, it is not the trigger value that is the lower the better, it is the best to adjust the trigger value according to the your personal use situation, which is suitable for your own value.
