ZOOM75 PRODUCT cOLLECTION
ZOOM75 PRODUCT cOLLECTION
ZOOM75 ESSENTIAL EDITION
ZOOM75 SPECIAL EDITION
Zoom75 Add-on
ZOOM75 MODULAR highlights
Customised Knob Modular
MELETRIX
desktop art creator
newly designed Cat Paw Knob, PVD Bear Knob and Rabbit knob
Variety of Badges MODULAR
Shooting Star & Silk Screen Badge
(Note: Please remember to add the badge module to your shopping cart if you have purchased the badges as the kit comes with a knob module that does not support the installation of badges.)
Shooting Star Anodized Gold
Shooting Star Anodized Pink
Shooting Star Anodized Rosegold
Shooting Star E-White
Shooting Star Anodized Black
Shooting Star PVD Silver
Silk Screen - Cosmic Cruiser
Silk Screen - Synthwave
Silk Screen - Starry Night
Silk Screen - Feline Trio
Silk Screen - Skateboard Bunny
Silk Screen - BearHug
Silk Screen - Get Rich
Silk Screen - Cyber Bears 01
Silk Screen - Cyber Bears 02
Silk Screen - Margins

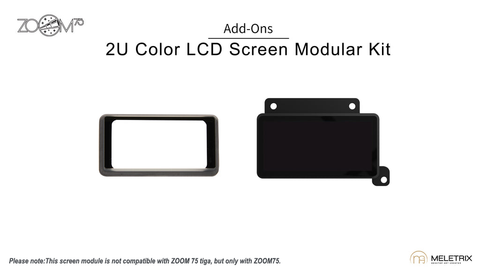

2U Color LCD Modular
(Note: Please remember to add the 2U Color LCD module to your shopping cart if you have purchased the 2U COLOR LCD as the kit comes with a knob module that does not support the installation of LCD.)
2U COLOR LCD FEATURES
Zoom75 Prototype -LCD Features Display by Meletrix
TWO-KEYS Modular
(Note: If you need to use two-keys, please add the two-keys modular to your shipping cart as the kit comes with a knob module that does not support the installation of two-keys.)
Zoom75 AT A GLANCE
Modular Top Right 2U
The Zoom75 changeable module design gives more possibilities for playability with top right 2U space for color LCD, knobs, two-keys and badges. One keyboard for 4 different experiences, split module design makes changes easy and unlocks more customization space.
Special edition with telescopic engraving
In addition to the 15 standard colors, four special colors are available: anodized black, anodized orange, anodized lavender, and E-white. Meanwhile, the 4 special colors come with the Zoom series telescope logo.
Knob Variety
The Zoom75 knob is compatible with the Zoom65 series, and 3 new cute knobs have been added: an anodized cat paw, a PVD silver bear, and an anodized rabbit knob, which knob can be rotated to control the volume and pressed to change the mute.
Badge Variety
Zoom75 has added 11 different styles of badges for you to choose from. It's a great way to make your keyboard even more versatile!
Tri-mode RGB
The Zoom75 tri-mode PCB with RGB lights provides a variety of light effects for a great visual experience.
while the RGB lights support wired, Bluetooth, and 2.4G modes, allowing them to be used anytime, anywhere.
Gasket mount
Zoom75 uses a gasket isolation mount structure for a soft, bouncy and pleasant typefeel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.
Multi-layout
Unlike traditional keyboards, you are not stuck with just one layout on Zoom75! Change things up every now and then with split backspace, left shift and spacebar! You can also switch between normal and stepped caps lock or ANSI and ISO enter.
Gasket Sleeves
The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.
Plate variety
Plates in other materials, such as brass, aluminum and FR4, can be bought as add-on accessories, and they dramatically change the feel and sound of the plate.
Foam included
PCB and Bottom Case are made of lighter PORON material. To reduce resonance, many tests were done on the foaming material this time. We made the PORON lighter and the foam pores dense. Every minor detail matters a lot, with the current poron, the sound is more concentrated and is deeper than with normal dampeners.
Hot swap
The Zoom75 Hotswap PCB is a printed circuit board designed for use in custom mechanical keyboards. It features hot-swappable sockets that allow for easy customization of switch types without the need for soldering. The PCB is compatible with 75% keyboard layouts and supports both ANSI and ISO standards.
WS Stabilizer V3
The new stabilizers were under development for almost one year, and will be included with the Zoom75. They use soft TPU around the wires to achieve better performance even with minimal lubing.
WIRELESS FREEDOM
Triple Mode PCB
Use your Zoom75 with your PC, laptop, tablet or even your phone - all without any wires. You can also use the included cable for a lag free experience. Thanks to Bluetooth 5.0 and 2.4GHz support. Use the included cable to charge the battery or to use the keyboard in wired mode if that's what you prefer.
VIA compatible
The wired version PCB is fully compatible with VIA，thepowerful GUI widely renowned for it's customizability and easeof use. Remap any key on the keyboard on 4 different layers,including the knob. Use built in powerful shortcuts andmacros，or define your own!
Battery included
Every Zoom75 Essential Edition comes with a Li-ion battery included in the kit. The battery should last 6-8 weeks between charges under normal use. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.
ZOOM75 SPECIFICATION DETAILS
Specification
• Gasket mount design
• 75% Layout
• PCB: 1.2mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Finish treatment: electrostatic coated, anodized, E-white, nano coated（GT Silver only)
• Default plate: PC
• Zoom75 Bluetooth PCB polling rate: 125hz
• Zoom 75 2.4GHz Polling Rate: 1000hz
• Zoom 75 Wired Polling Rate: 1000hz
• Bluetooth PCB can be used in wired or wireless mode.
• Tri-mode PCB support VIA. Wired PCB support QMK, not VIA.
• Essential kit with Alu knob / weight / Glass Mirror Back Plate: 1.74 kg
• Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 2.03kg
• Essential kit with Alu knob / weight /PVD Back Plate: 1.87 kg
• Essential kit with brass knob / PVD SS weight / PVD Back Plate: 2.15 kg
• Internal Stainless Steel Weight: 0.358 kg
ZOOM75 Dimensions and Weight Picture
ZOOM75 Exploded View
ACCESSORY SPECIFICATION DETAILS TABLE
ZOOM75 purchase details
ZOOM75 Kit Contents
（Just the essentials, no keycaps, switches and Internal SS weight）
ZOOM75 EE/ SE Kit Contents
• Aluminum top & bottom case of buyer's choice
• Aluminum / SS external weight of buyer's choice
• Aluminum / brass rotary knob matching the external weight.
• Backplate of the same case color
• Knob Module Kit (matches case color)
• Tri-mode Flex Cut Or Non-Flex Cut Hotswap RGB PCB
Hot-swap, multi-layout Bluetooth /VIA PCB with per-key RGB
• Daughterboard/JST cable
• Flexible Flat Cable ( 2 pcs )
• Polycarbonate plate
• Gasket Sleeves
• Set of WS Stabilizers V3 （TPU)
（Mass production stabs maybe different from prototypes'）
• Li-ion battery (2 pcs)
• Coiled USB-C cable
• Poron Dampener kit
• Silicone keyboard feet
• Screws and other installation tools and accessories
• 2.4G USB Receiver
• Storage case
Zoom75 EE Wired Kit Contents
• White / Black Aluminum top & bottom case
• White case with E-white knob and weight
• Black case with anodized black Aluminium knob and weight
• White case with SS PVD Silver Backplate ; Black case with SS PVD Black Backplate
• Knob Module Kit (matches case color)
• Wired Non-flex Cut Hotswap PCB
Hot-swap, multi-layout, no RGB
• Daughterboard / JST cable
• Flexible Flat Cable ( 2 pcs )
• Polycarbonate plate
• Gasket Sleeves
• Set of WS Stabilizers V3 (TPU)
（Mass production stabs maybe different from prototypes'）
• Battery Foam
• Coiled USB-C cable
• Poron Dampener kit
• Silicone keyboard feet
• Screws and other installation tools and accessories
• No 2.4G USB Receiver
• Storage case
ZOOM75 PRICING LIST
ZOOM75 KEYBOARD KIT PRICE
ZOOM75 ESSENTIAL EDITION WIRED
Zoom75 EE Wired - White
$179
- Default E-white knob and weight
- Default SS PVD Silver Back Plate
Zoom75 EE Wired - Black
$179
- Default Anodized black Aluminium knob and weight
- Default SS PVD Black Back Plate
ZOOM75 x Kitsune
Zoom75 x Kitsune
$259
- Case Color: Anodized Navy
- External Weight: Anodized Rorsegold
- Default Anodized Rosegold Black Back Plate
ZOOM75 ESSENTIAL EDITION
Zoom75 Essential Edition
$199
- Aluminum weight & knob
- Glass Mirror Bottom Plate or PVD Back Plate
Zoom75 Essential Edition
$219
- PVD mirror weight (SS) & knob (brass)
- Glass Mirror Bottom Plate or PVD Back Plate
ZOOM75 SPECIAL EDITION
Zoom75 Special Edition
- Aluminum weight & knob
$229
- Glass Mirror Bottom Plate or PVD Back Plate
Zoom75 Special Edition
$249
- PVD mirror weight (SS) & knob (brass)
- Glass Mirror Bottom Plate or PVD Back Plate
Zoom75 ACCESSORIES PRICE
Extra Knob & Weight
Extra knob (Aluminum)
$6
Extra knob (PVD mirror brass)
$9
Anodized Rabbit Knob
$9
Anodized Cat Paw Knob
$10
PVD Bear Knob
$12
Extra weight (Ano and E-white)
$19
Extra weight (PVD Mirror)
$36
Extra Backplate kit
Extra Back Plate Kit
$15
PVD mirror stainless steel/ Glass Mirror
Extra Back Plate Kit
Carbon Fiber
$21
BADGE & Modular
Anodized/Silk Screen Badges
$16
PVD Badges
$18
Badges Modular
$10
Two-keys Modular
$10
2U Color LCD Modular
$25
Plate - Aluminum
$19
Plate - Brass
$34
Plate - FR4
$19
Plate - POM
$19
Plate - Polycarbonate
$19
Plate- Carbon Fiber
$29
OTHER ADD-ONS
Internal SS weight
$20
Extra silicone keyboard feet
1pcs black +1 pcs white
$5
BT/ VIA RGB PCB
$69
Bluetooth/VIA, RGB PCB comes with Ai03 DB
Wired PCB
$42
Great Waves Storage Case
$22
Extra Poron Dampener kit
$20
Poron PCB foam, Plate foam, Switch foam, Weight foam and Gasket sleeves
GT Silver Unboxing & Review
Lilac
SKY BLUE REVIEW
Plum
Combinations
You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.
You cannot combine this group buy order with a previous order as we cannot hold on to an order until the other one arrives.
Cancellations
There will be a 4% fee on order cancellations and refunds after placing an order. Your payment method will be charged as soon as you place the order. There are no refunds or cancellation after the group buy ends.
Quality Disclaimer
Since there are so many variations, images provided on the product page are renders or prototypes and are for display purposes only. Please also refer to the prototype's video as a reference before purchasing.
