[GB]Zoom75 x Akuamarin Edition
Zoom75 x Akuamarin Edition Kit Contents
Top case: Polycarbonate
Bottom case: CNC Alu
External weight : e-White
Backplate : Glass Gradient
Screen Module x 1
Tri-mode Flex Cut/Non-Flex Cut Hotswap RGB PCB x 1
Daughterboard+JST cable x 1
Flexible Flat Cable x 2
Alu plate (Colored) x 1
Gasket Sleeves (White) x 1
Set of WS Stabilizers V3.1
Li-ion battery x 2
Coiled USB-C cable x 1
Poron Dampener kit
Silicone keyboard feet x 4
2.4G USB Receiver
Screws and other installation tools and accessories
Storage case x 1
*Not include Internal Stainless Steel Weight (Need to buy separately)
Notice
- GB Time: 26 March 2024 at 9:30 AM - 9 April 2024 at 9:30 AM Beijing Time
Delivery Time: Expected July - Zoom75 x Akuamarin Edition Barebones Keyboard Kit Contents not include switches, keycaps, and mat
- Akuamarin Keycaps will only be produced when they arrive at MOQ, if there are not enough they will be refunded, excluding handling charges.
- The final colors of the products will be based on the color chips confirmed by the designer. Images are renders, final product is based on the bulk products
Add-on
Design Concept
- Whysoda
Akuamarin is a simple yet striking collection designed by Whysoda. Inspired by the eponymous gemstone, this blue-green hue is known to convey a sense of tranquility, natural beauty, and calmness, reminiscent of sun-kissed waters on a balmy day.
The Akuamarin collection includes a base kit, novelty kit, switches, keyboard mat, and a zoom75 keyboard, allowing you to add as much or as little personality as desired to your workspace.

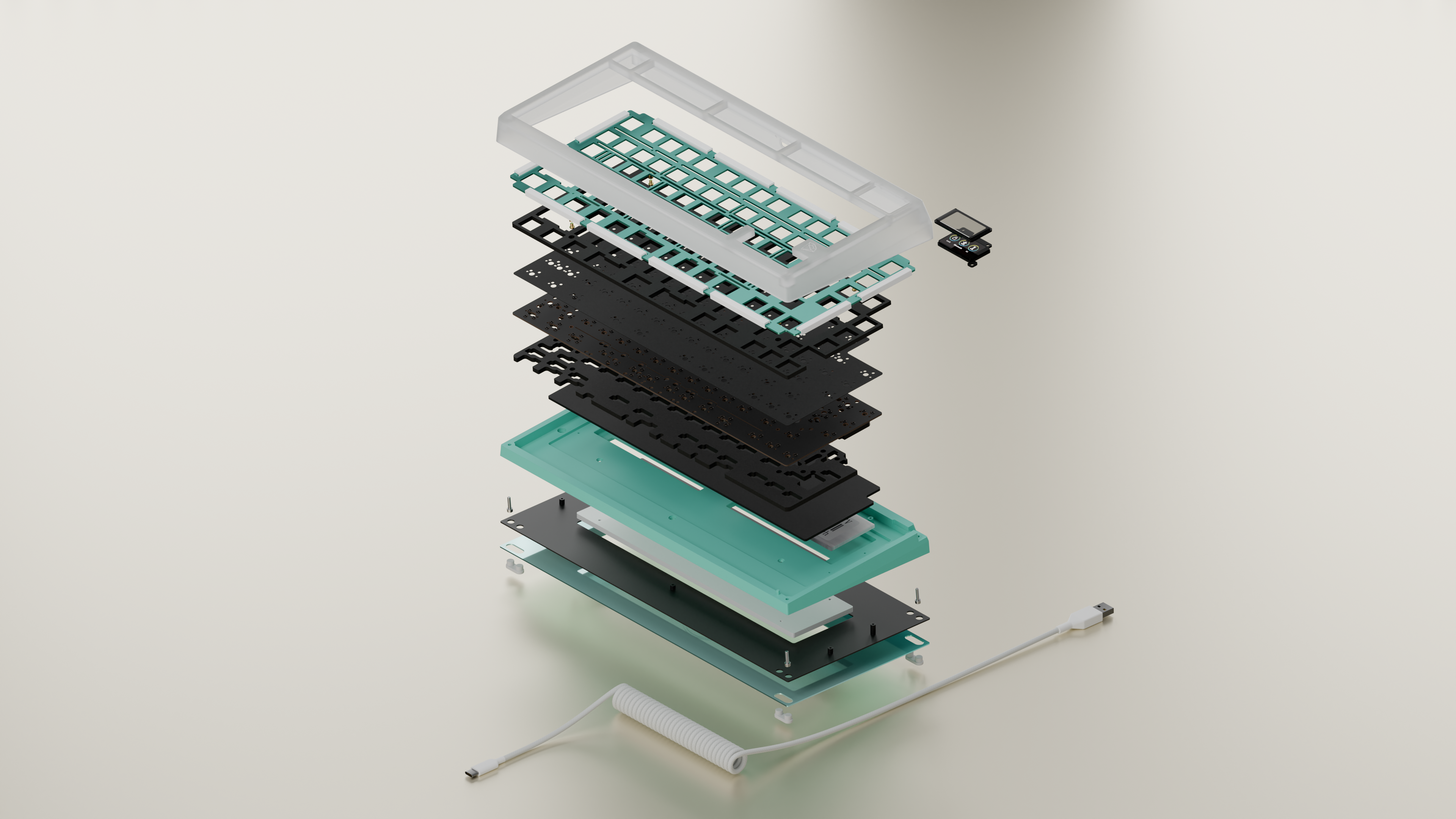

Zoom75 x Akuamarin Exploded View
Zoom75 x Akuamarin Specifications
• Gasket mount design
• 75% Layout
• PCB: 1.2mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Finish treatment:
Top case: Polycarbonate
Bottom case: CNC Alu
• Default plate: Colored Alu
• Zoom75 Bluetooth PCB polling rate: 125hz
• Zoom 75 2.4GHz Polling Rate: 1000hz
• Zoom 75 Wired Polling Rate: 1000hz
• Tri-mode PCB support VIA.
Akuamarin Base kit+Novelties kit
Base kit
Manufacturer: WS ABS
Keycap Material: Doubleshot ABS
Keycap Thickness: 1.6mm
Keycap Profile: Cherry
Keys QTY: 177 keys
Novelties kit
Manufacturer: WS PBT
Keycap Material: ABS (UV Printing)
Keycap Thickness: 1.6mm
Keycap Profile: Cherry
Keys QTY: 21keys
Akuamarin Switches
Switch Type: Linear
Top Housing Material: Translucent Nylon
Bottom Housing Material: Translucent Nylon
Stem Material: Translucent Nylon
Spring: DL635 63.5g bottom out
(Double Stage) Length: 22mm
Total travel: ~3.80mm
Mounting Pins: 5-pins
Factory Lubed
Akuamarin Mat
Size: 394mm x 160mm x 4mm
Anti-fray black stitched edges
High-quality cloth top and rubber anti-slip bottom
Akuamarin Fullset Note
*If the order quantity of other accessories such as keycaps does not reach the MOQ, we will refund the difference in price.
Zoom75 Quality Disclaimer
Cancellations
There will be a 4% fee on order cancellations and refunds after placing an order. Your payment method will be charged as soon as you place the order. There are no refunds or cancellation after the group buy ends.
Quality Disclaimer
Since there are so many variations, images provided on the product page are renders or prototypes and are for display purposes only.
